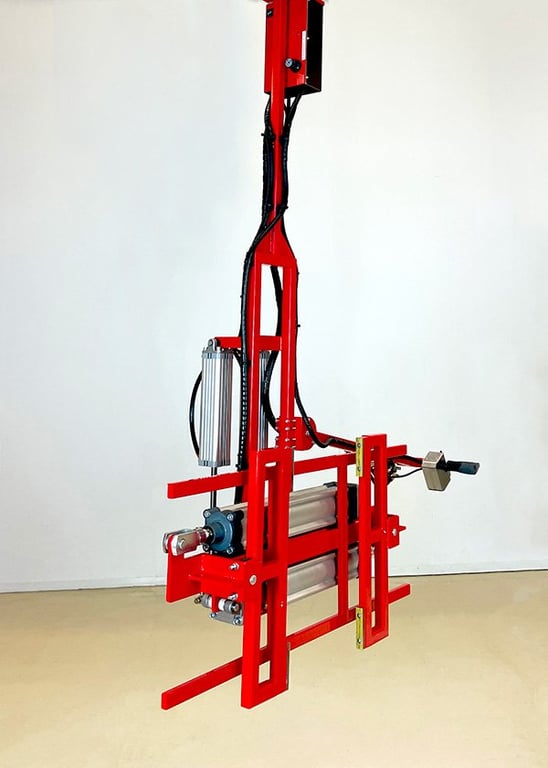

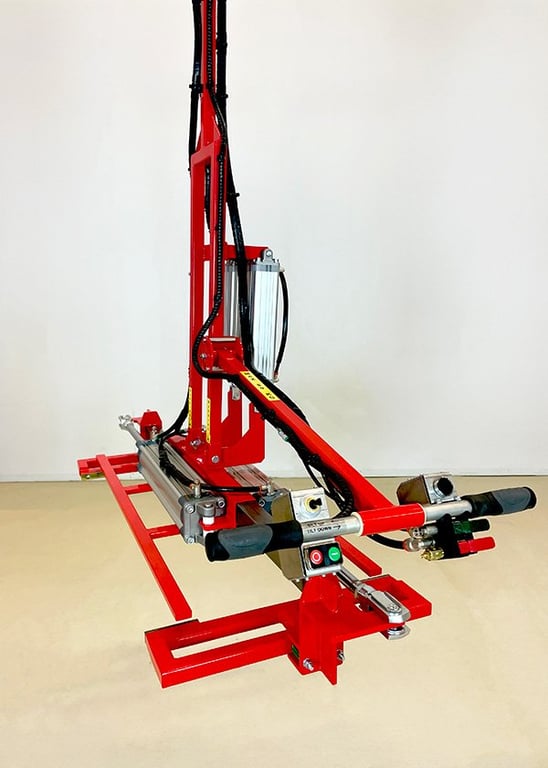

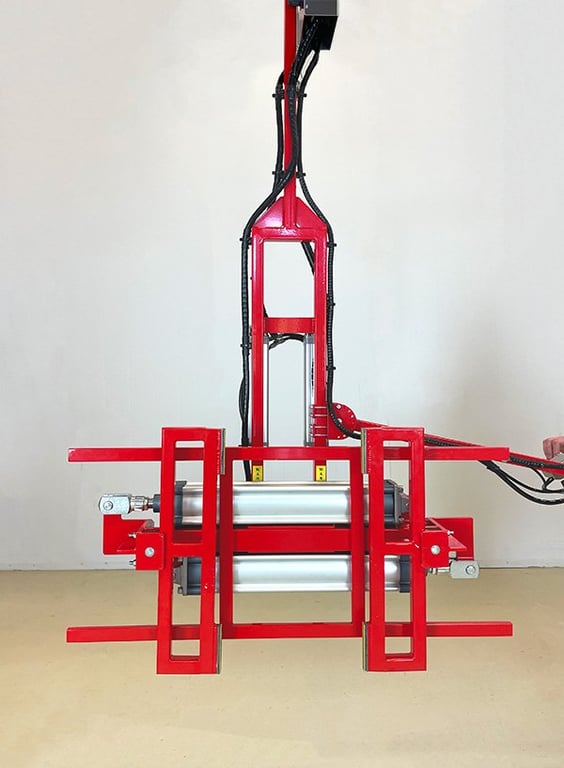

Mechanical Door Gripper 89-12187

Maximum capacity 80 kg, tool weight 61 kg
Mechanical clamping on the door stiles
Tilt function once lifted off the floor
PSH control; one operator instead of two
Wood and furniture industry, article 89-12187

FullSharp – official Lifts All representative in Vietnam

Work more efficiently with a door gripper

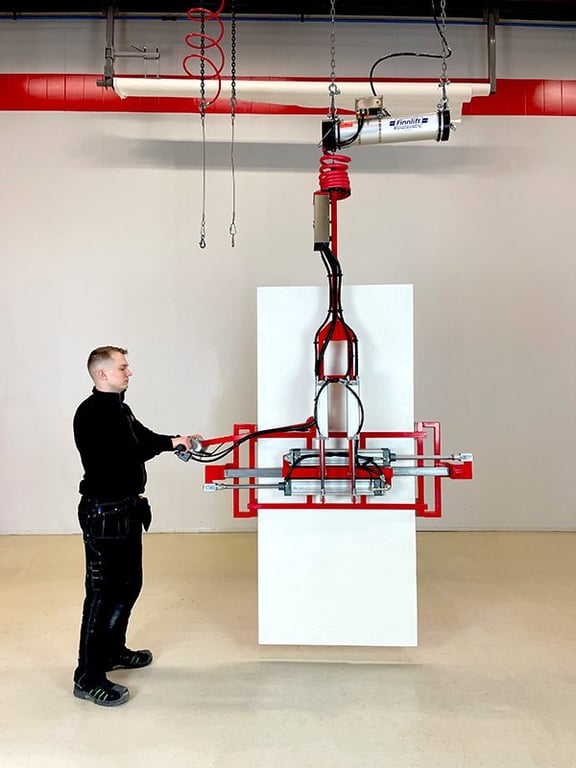

This door gripper lifts doors of up to 80 kg easily and without effort. It clamps mechanically on the stiles – the long sides of the door – for a secure hold. Once the door is off the ground it can also be tilted, so doors can be positioned precisely.

For the operator, the gripper removes heavy lifting and allows an ergonomic working posture. Doors are awkward to handle alone and normally take two people; with this solution one person can do the job, making work more efficient. Because it is so easy to manoeuvre, the gripper is especially helpful in assembly work.

A customised door gripper

Lifts All tailors the tool to your needs and to the load being lifted. Capacity, tilt and the way the tool grips the load are adjusted to how you want the lift performed. Door lifts can also handle door frames, panels and other types of doors.

Video

Technical specifications

Item	Specification
Article number	89-12187
Type of lifting object	Door
Weight (kg)	61
Maximum capacity (kg)	80
Industry	Wood and furniture industry
Serial number	A6861
Function	Tilt
Gripping technique	Mechanical
Optional control	PSH
Noise level (dB)	70

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
