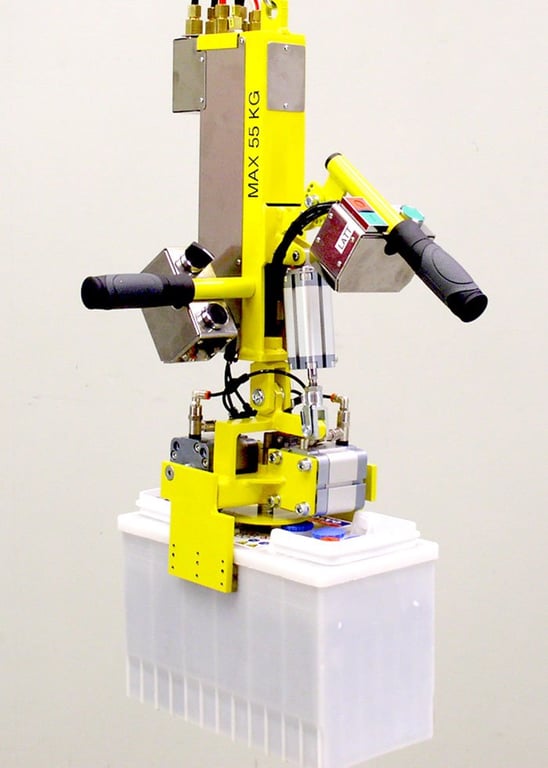

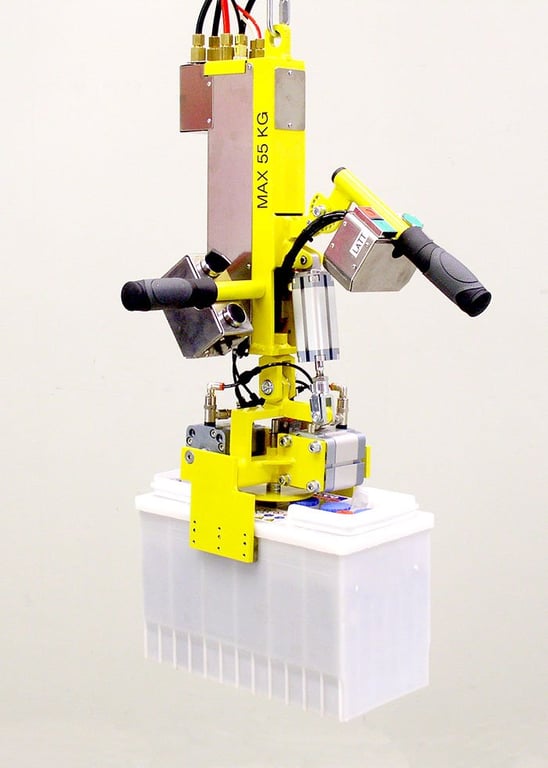

Mechanical Battery Gripper 2426

Maximum capacity 55 kg, tool weight 13 kg
Mechanical clamping from both sides
Sensor plate confirms a secure grip
Tilt function, balanced control
Battery industry, article 2426

FullSharp – official Lifts All representative in Vietnam

Product overview

This is one of the Lifts All battery grippers – a mechanical gripper for car batteries that makes it easy to move a battery from one place to another. It lifts by clamping the load from both sides, and a sensor plate detects when the gripper has a safe hold, at which point the load becomes weightless. Maximum capacity is 55 kg.

How does the car battery gripper work?

Place the gripper arms around the load and press the green and black buttons at the same time to grip it. Lift and move the battery to where it is to be unloaded. To release, press and hold the red button until the load is completely free of the gripper.

Custom-built lifting solutions

Lifts All designs and adapts each tool to suit the specific load and working environment. Capacity, rotation, tilt and the lifting method itself are all tailored to requirements. Tools are normally painted red, but in this case the customer requested yellow.

Technical specifications

Item	Specification
Article number	2426
Type of lifting object	Battery
Weight (kg)	13
Maximum capacity (kg)	55
Industry	Battery industry
Function	Tilt
Gripping technique	Mechanical
Optional control	Balancing

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
