Lifts All Manhattan stone block gripper 89-10288

Max capacity 50 kg, tool weight 70 kg
Manhattan mechanical gripper, grips the short end
Rotates the block 90° or 180° at a switch
Two Pro-Speed Handle levers, height-adjustable handle

FullSharp – official Lifts All representative in Vietnam

Lifting tool for stone blocks

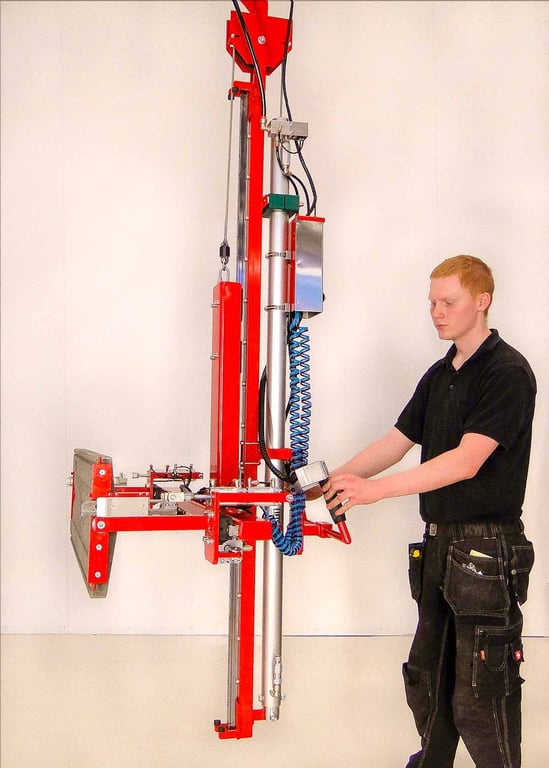

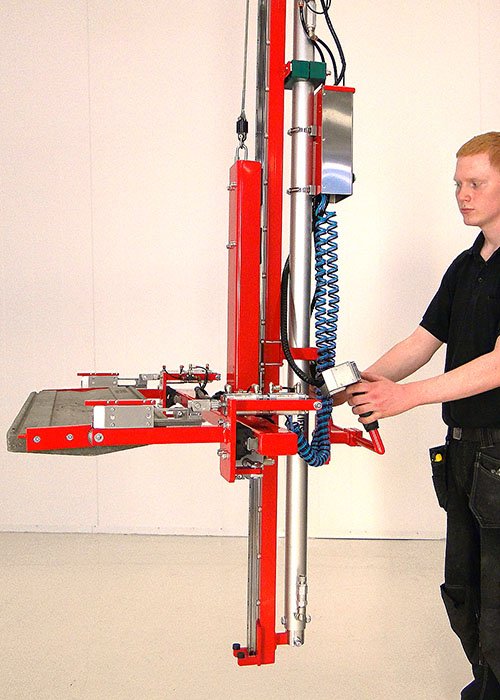

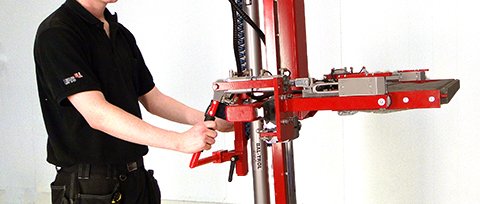

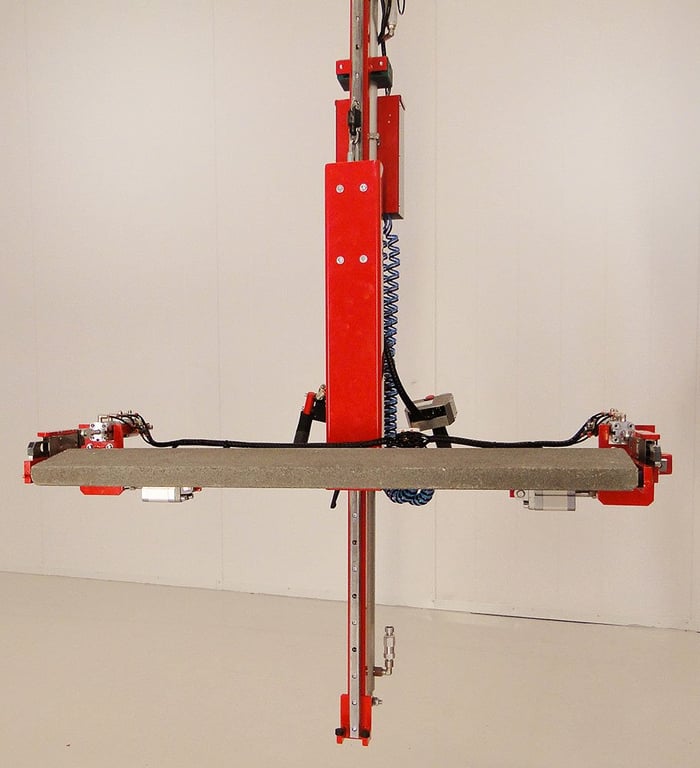

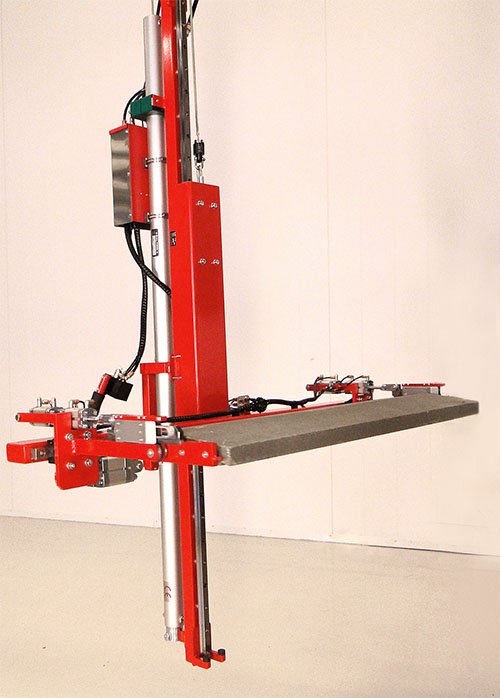

This gripper is custom-built to lift stone blocks up to 50 kg. It is efficient and flexible and can be used by any operator, regardless of physique or experience. For ergonomic support, the control handle adjusts easily to the operator's height. The operator grips the block at its short end and raises or lowers it with the two Pro-Speed Handle levers. At the flip of a switch, the block can also be rotated 90° or 180°.

The tool moves stone blocks from a pallet onto an inspection bench, where the rotation function is especially useful. Rotation also lets the block be set down in the right orientation, ready for the next step.

Lifts All Manhattan stone block gripper 89-10288

Technical specifications

Item	Specification
Article number	89-10288
Type of lifting object	Stone
Weight (kg)	70
Serial number	4743
Maximum capacity (kg)	50
Function	Rotation
Gripping technique	Manhattan – lift high, mechanical
Optional control	PSH

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
