Manhattan Combi-Gripper for Rotors 89-12106

Mechanical grip for rotors of 20–140 kg
Vacuum application for metal sheets up to 50 kg
Equalizer balances the load to the millimetre
PSH control, Manhattan high-lift series
Custom-built, article 89-12106

FullSharp – official Lifts All representative in Vietnam

Product overview

This Manhattan combi-gripper is a custom-designed lifting tool for rotors that grips both mechanically and by vacuum. The mechanical application lifts rotors weighing from 20 to 140 kg with ease. As a combination tool it also handles other loads – in this case metal sheets, which are lifted with the vacuum application. The tool is fitted with an Equalizer that balances the load with millimetre precision, so the operator stays fully in control of tool and load even when moving bulky items in tight spaces. Maximum capacity is 140 kg for the mechanical grip and 50 kg for the vacuum grip.

Manhattan Combi-Gripper for Rotors 89-12106

How does it work?

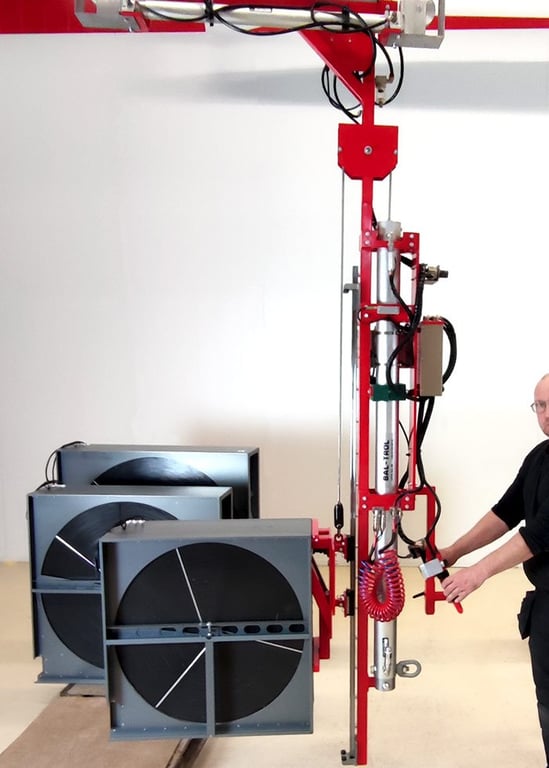

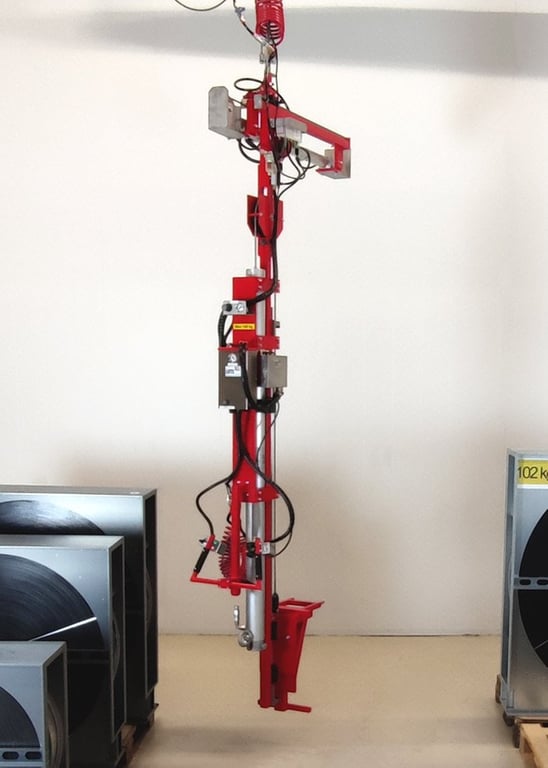

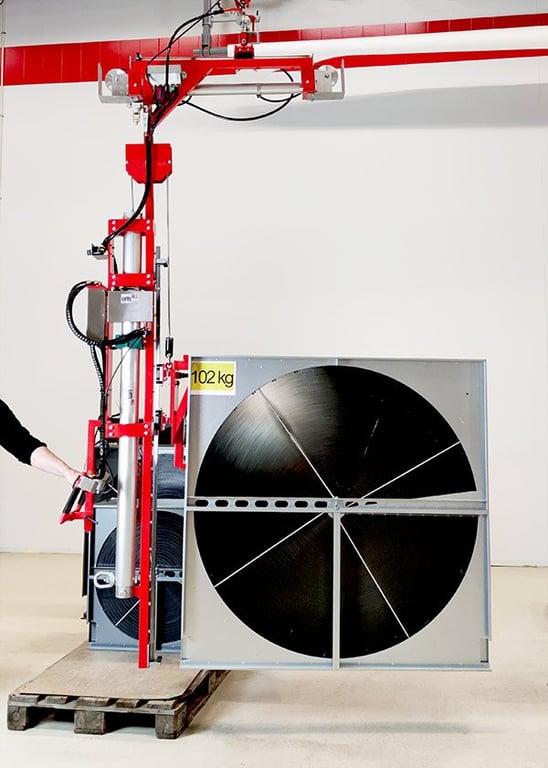

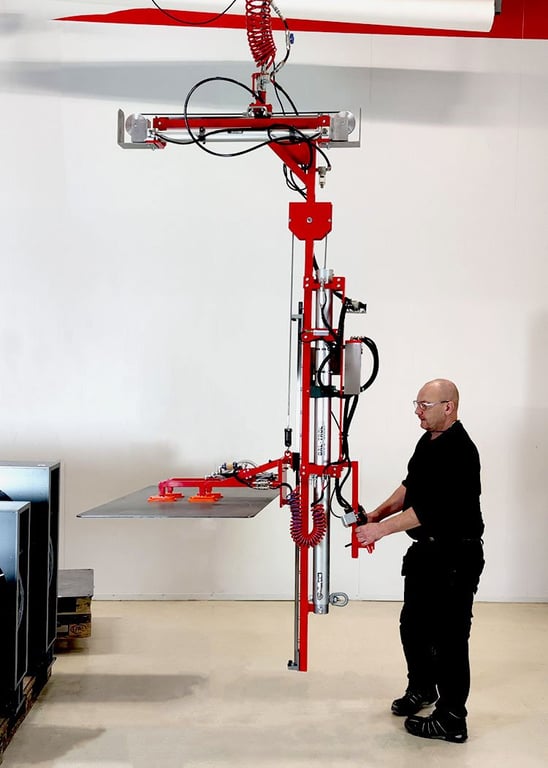

The combi-gripper uses interchangeable applications for different loads. For rotors, the mechanical gripper is used: its prongs are slid under the rotor cover and the rotor is lifted. Once the load is in the air, the Equalizer senses its weight and balances it electronically so that the load levels itself, and the operator can move it steadily and safely. To lift metal sheets or other flat, airtight materials, simply switch to the vacuum application and place the suction cups on the load – no heavy lifting required.

Customised with the Equalizer

The Equalizer can be fitted to any Lifts All lifting tool. It controls the movement of the elements in the pneumatic hoist, making it easier to lift similar loads of varying weight and to steer them precisely, since the load is balanced continuously in the air and kept level as it rises. Whatever the load weight, lifting feels secure.

Video

Technical specifications

Item	Specification
Article number	89-12106
Type of lifting object	Electronics (rotor)
Weight (kg)	100
Maximum capacity (kg)	140, 50
Serial number	A6706
Optional control	PSH
Gripping technique	Combination, Manhattan – lift high
Noise level (dB)	62

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
