Lifts All Manhattan cabinet gripper 89-12105

Max capacity 150 kg, tool weight 148 kg
Manhattan mechanical gripper with padded adjustable forks
Center-of-gravity adjustment for a stable lift
Optional PSH control, noise level 53 dB
Wood and furniture industry

FullSharp – official Lifts All representative in Vietnam

Manhattan cabinet gripper – custom-built for safe cabinet handling

The Manhattan cabinet gripper is a purpose-built lifting tool for cabinets and cabinet frames. It moves cabinets easily and safely from one pallet to another or onto a conveyor. The tool is fully mechanical and has adjustable forks to take cabinets of different sizes.

A key custom feature is the padded forks, which protect the load throughout the lift so that both unpainted and painted frames can be handled without damage. The lifter also works at greater heights than are possible with manual lifting. Maximum load is 150 kg.

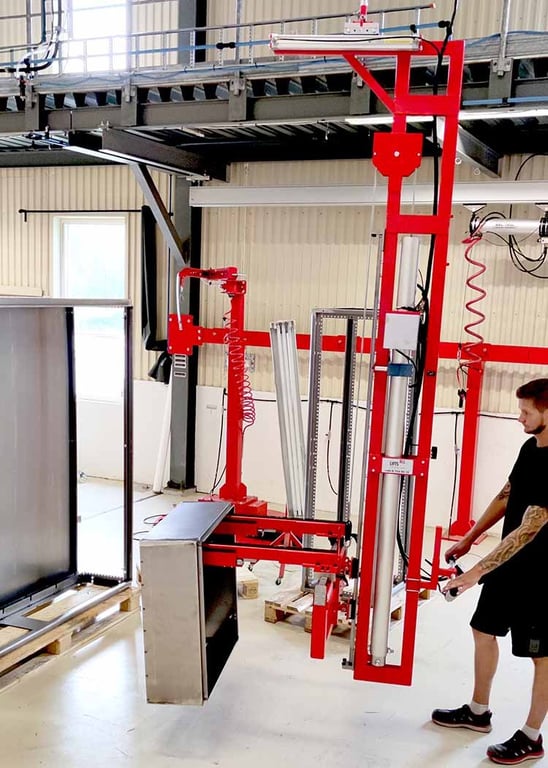

Lifts All Manhattan cabinet gripper 89-12105

How the Manhattan cabinet gripper works

The operator manually sets the distance between the forks to match the cabinet. A center-of-gravity adjustment keeps the lift stable and safe, without swaying.

Once lifted, the cabinet is easily moved into position. Pressing the release button retracts the forks from the cabinet. Loads up to 150 kg can be handled safely and ergonomically, without straining the back or shoulders.

Tailored to your needs

Like all Lifts All equipment, the Manhattan cabinet gripper is customized to your requirements, whether that means other cabinet sizes, a different load type or a different maximum capacity.

Technical specifications

Item	Specification
Article number	89-12105
Type of lifting object	Furniture
Weight (kg)	148
Maximum capacity (kg)	150
Industry	Wood and furniture industry
Serial number	A6714
Gripping technique	Manhattan – lift high, mechanical
Optional control	PSH
Noise level (dB)	53

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
