Lifts All I-Frames Vacuum Cup Frames

For dense and porous materials
2 or 4 cups, 215 mm cup centres
Powder-coated metal frame
Elongated loads: cartons, tubes, pipes
Operating temperature 10–50 °C

FullSharp – official Lifts All representative in Vietnam

I-frames for elongated loads

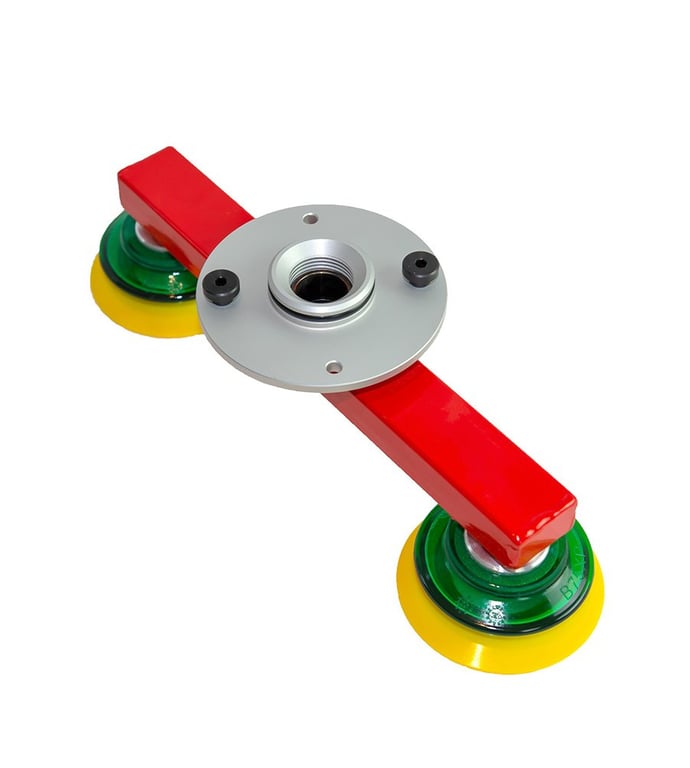

Lifts All I-frames are designed for both dense and porous materials. Two vacuum cups mounted on a powder-coated metal frame make them well suited to elongated objects such as cartons, tubes or pipes. Adding a cell rubber gasket gives the cups an even better grip over straps.

Operating conditions

I-frames work best at temperatures between 10 and 50 °C.

Video

Technical specifications

Item	Specification
Height (mm)	103, 130, 146, 88
Weight (kg)	1, 0.7, 0.75, 1.5, 2.7
Maximum capacity (kg)	18, 24, 36, 50
Maximum capacity, airtight (kg)	18, 34, 35, 36, 69
Maximum capacity, porous (kg)	12.5, 24, 25, 50
Type of lifting object	Cardboard box
Gripping technique	Vacuum
Number of cups	2, 4
Cup centre distance (mm)	215
Cup outer edge (mm)	293, 329, 339, 381, 449.5
Cup diameter (mm)	113.7, 115, 129, 155, 176, 77.5

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
