Lifts All H-Frames Vacuum Cup Frames

Grips the four corners, avoiding taped joints
For porous and dense materials
4 or 6 cups, 175 mm cup centres
Cell rubber gasket option for gripping over straps
Operating temperature 10–50 °C

FullSharp – official Lifts All representative in Vietnam

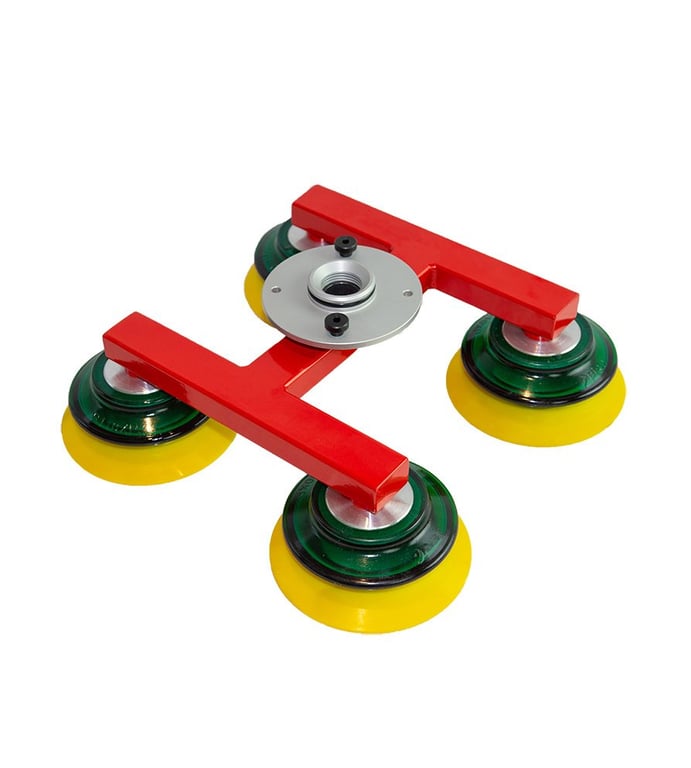

H-frames for cartons

H-frames are ideal for lifting porous boxes, packages and cartons. The H shape places the cups on the four corners of the package, away from the taped joint where vacuum cups struggle to seal.

Technical specifications

Item	Specification
Height (mm)	101, 103, 108, 88
Weight (kg)	1.2, 1.5, 2
Maximum capacity (kg)	36, 60, 76
Maximum capacity, airtight (kg)	100, 36, 50, 76
Maximum capacity, porous (kg)	0, 25, 36, 50, 60, 86
Type of lifting object	Cardboard box
Gripping technique	Vacuum
Number of cups	4, 6
Cup centre distance (mm)	175
Cup outer edge (mm)	253, 265, 289, 390
Cup diameter (mm)	113.7, 114, 77.5, 88.7
Configuration height (mm)	-78, -91, -93, -98

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

Versions

SKU	Name	Weight (kg)	Maximum capacity airtight (kg)	Maximum capacity porous (kg)	Number of cups	Cup diameter (mm)
93-10020	H-Frame - (6x110mm) - Cardboard - [86\|100] kg - (Bayonet connection)	1.5	100	86	6	113.7
93-10021	H-Frame - (6x75 mm) - Cardboard - [36\|50] kg - (Bayonet connection)	1.5	50	36	6	88,7
93-20010	H-Frame - (4x75 mm) - Carton - [25\|36]kg - (Bayonet coupling)	1.2	36	25	4	77.5
93-20011	H-Frame - (4x110 mm) - Carton - [50\|76]kg - (Bayonet coupling)	2	76	50	4	113.7

Versions according to Lifts All (Sweden) data. Contact FullSharp to choose the right version for your product and workstation.

Also for dense materials

H-frames also handle dense materials such as plastic boxes and sheet metal parts, using the same vacuum cups for porous and dense loads. Adding a cell rubber gasket gives the cups an even better grip over straps.

Operating conditions

These attachments are intended for temperatures between 10 and 50 °C.
