Lifts All planetary gear wheel gripper 89-12296

Max capacity 5 kg, tool weight 11 kg
Mechanical gripper, picks 4 gear wheels at once
Balancing control, grips automatically, release by button
Noise level 60 dB
Automotive: pick and pack, pallet to table, assembly

FullSharp – official Lifts All representative in Vietnam

Product overview

The Lifts All gear wheel gripper is used in the automotive industry for fast, safe lifting of components. It handles both gear wheels and planetary (satellite) gear wheels.

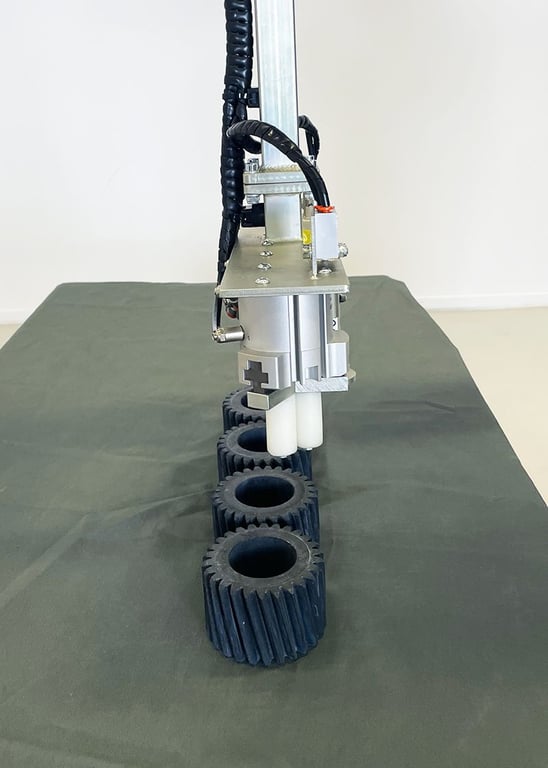

Lifts All planetary gear wheel gripper 89-12296

Gear wheel gripper for car components

In automotive production, safety comes first throughout the process, and every component must be handled gently to avoid damage. The gripper protects gear wheels through machining and assembly: instead of lifting by hand and risking drops or scratches, the wheels are lifted smoothly and safely.

Applications are broad. The gripper can pick and pack, move gear wheels from pallet to table or place them during assembly, with simple handling and components that stay intact.

Easy handling

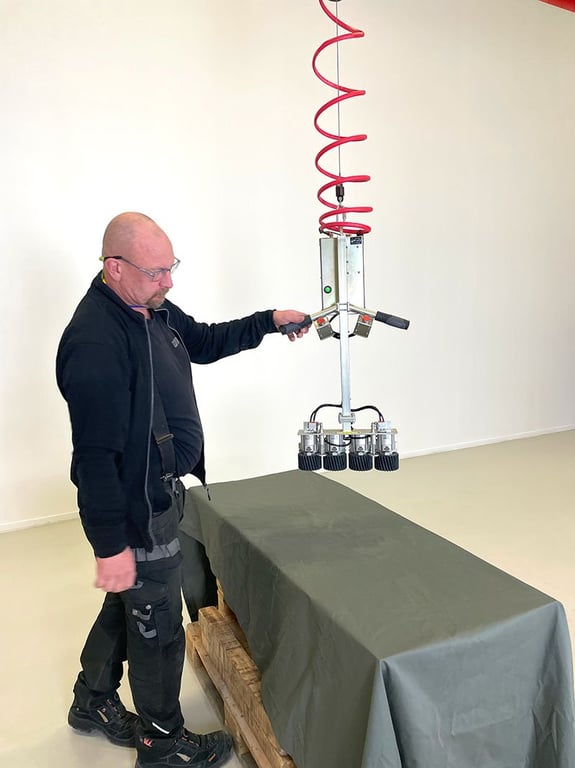

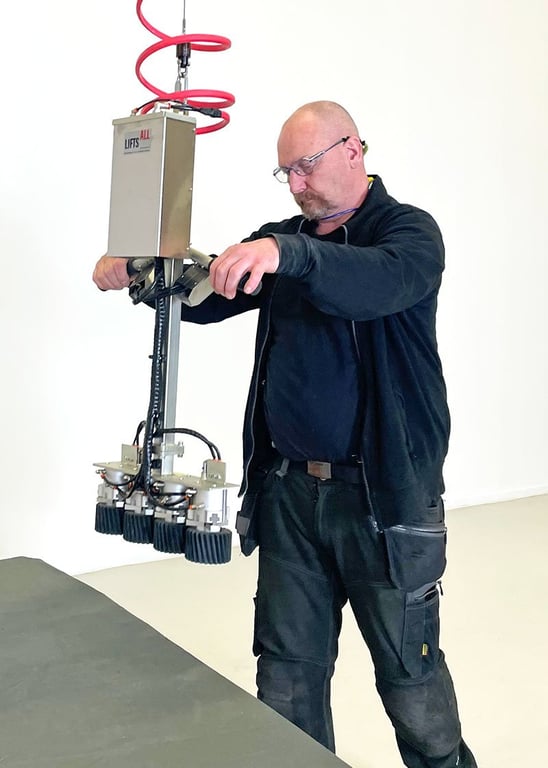

A balancing control unit makes the gripper exceptionally easy to use. It grips the wheels automatically; the operator only presses a button to release them. Four wheels are lifted at the same time, streamlining the work. Because the wheels feel weightless, they are easy to place on pallets or carts, or to mount on pistons or housings. Compared with lifting heavy wheels by hand, the job becomes quick, safe and ergonomic.

Lifting tools for the automotive industry

The automotive industry is one of Lifts All's largest markets. Beyond this gear wheel gripper, customized solutions have been built for car doors, gearboxes, seats and more. Most Lifts All tools are designed around each customer's products and handling.

Video

Technical specifications

Item	Specification
Article number	89-12296
Type of load	Automotive component, metal
Weight (kg)	11
Maximum capacity (kg)	5
Industry	Automotive industry
Serial number	A7072
Gripping technique	Mechanical
Control	Balancing
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
