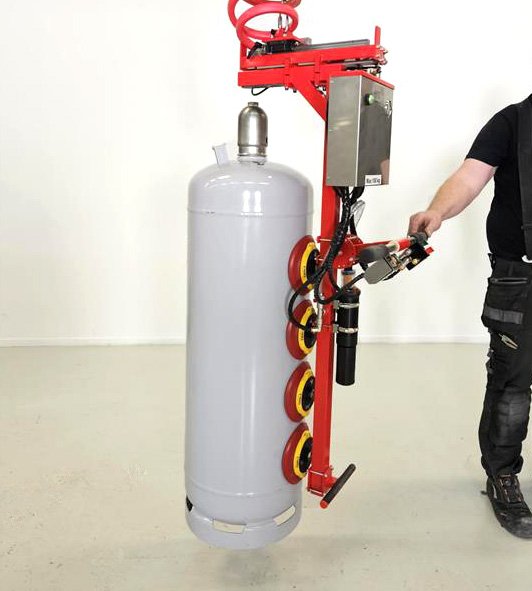

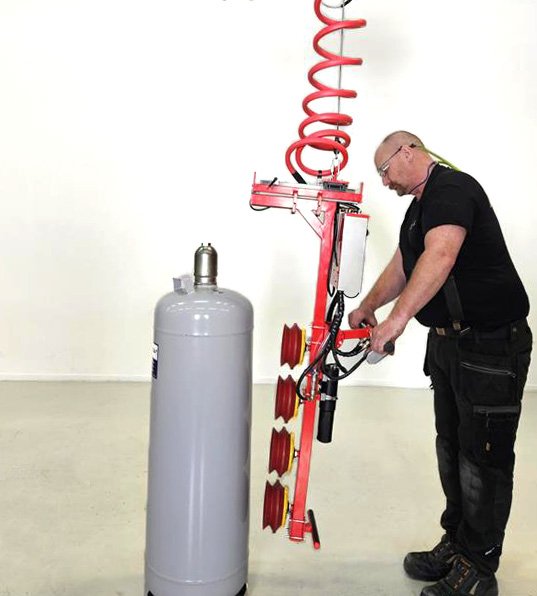

Gas Cylinder Vacuum Gripper 89-12356

Max capacity 100 kg
Vacuum suction cups, no scratches or marks
Air powered, no ignition sources
Load guard for slow descent on pressure loss
Optional PSH control; oil, gas and industrial gas

FullSharp – official Lifts All representative in Vietnam

Product overview

The Lifts All gas cylinder lifter handles cylinders of up to 100 kg (220 lbs) with ease. It helps companies in the oil and gas sector and other industries streamline material handling and make cylinder handling far more ergonomic.

Safe, energy-efficient and precise cylinder handling

This lifting solution is built for safe, ergonomic handling of gas cylinders in demanding industrial environments. Intelligent vacuum technology and several built-in safety functions give the operator full control while minimising the risk of accidents.

Safety features include:

The gripper runs on compressed air rather than electricity. With no ignition sources, it does not require ATEX certification; a Lifts All Declaration of Exemption can be supplied on request.
Gas cylinders are sensitive and must not be subjected to shocks or impacts. The gripper handles them gently and securely, and a load guard ensures a slow descent if system pressure drops.
Vacuum suction cups are used instead of mechanical clamps, so the cylinders stay undamaged and free of scratches and marks.

User-friendly design

Intuitive controls and a clear user manual let operators learn the tool quickly, cutting training time and raising productivity.

A gas cylinder lifter increases safety and efficiency and reduces workplace injuries. By taking heavy manual lifting off the operator, it lowers the risk of strain injuries to the lower back, shoulders and elbows, while speeding up the work and shortening handling time.

Technical specifications

Item	Specification
Article number	89-12356
Weight (kg)	22.5
Maximum capacity (kg)	100
Gripping technique	Vacuum
Optional control	PSH
Type of lifting object	Gas cylinder
Noise level (dB)	70

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
