Vacuum Gripper for Gas Cylinders 89-12170

Max capacity 85 kg, tool weight 37 kg
Vacuum gripping on the cylinder body
C-shaped frame reaches into storage cells and tight spaces
Stainless steel with earth cable for explosive environments
Green light confirms a secure grip

FullSharp – official Lifts All representative in Vietnam

Product overview

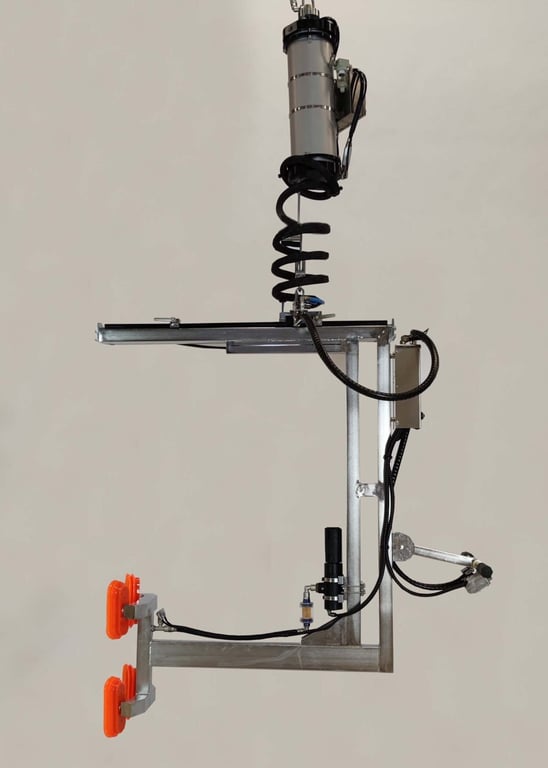

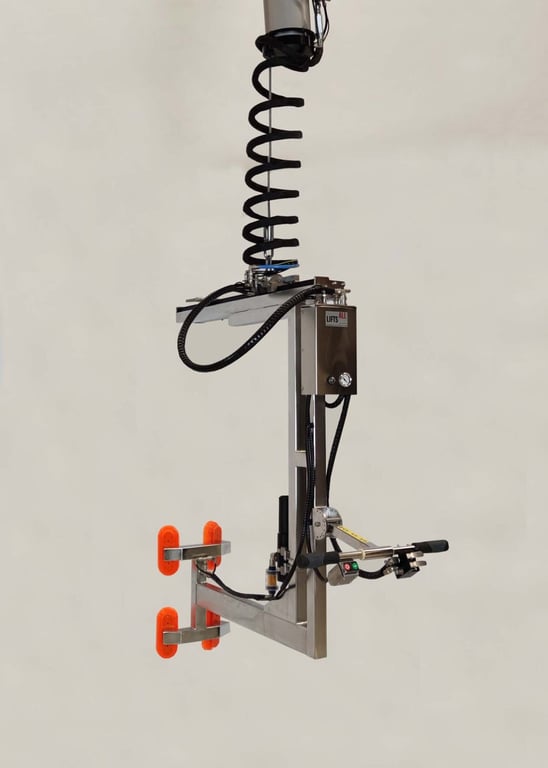

This vacuum gripper is designed for lifting larger gas bottles and gas cylinders. Its C-shaped frame lets the operator reach all the way into the storage cell and into tight spaces. The gripper weighs 37 kg and lifts up to 85 kg.

It is made of stainless steel and fitted with an earth cable for safe use in explosive environments.

Vacuum Gripper for Gas Cylinders 89-12170

Safe lifting

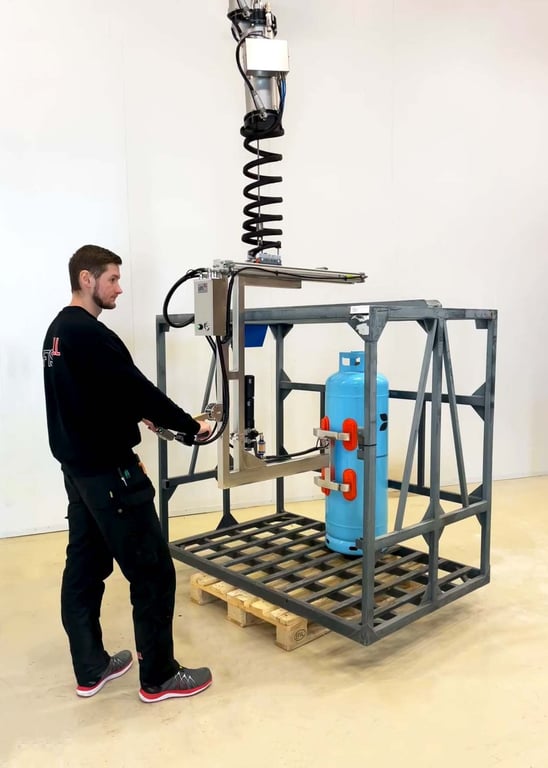

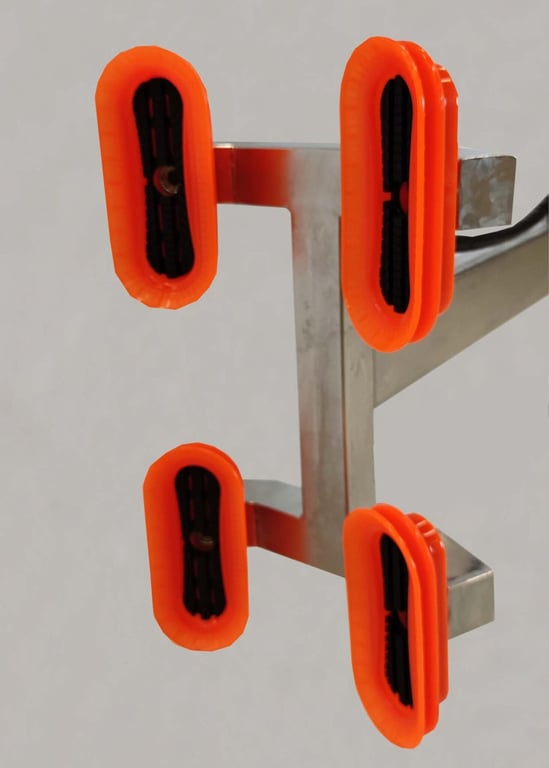

Place the suction cups against the side of the cylinder. When the cylinder is firmly attached, a green light comes on to show that it is safe to lift. Move the cylinder to the required location, set it down on a stable surface and press the red button to release it. The gas cylinder has been moved smoothly, safely and ergonomically.

Customised lifting solutions

Each lifting tool is designed around what you need to lift and the environment you work in. The design can be adapted to your maximum loads, rotation and tilt requirements, space restrictions and more, and matched to the pace of your work. You can even choose the colour: Lifts All tools normally come in the brand's signature red, but this customer opted for a stainless-steel finish.

Video

Technical specifications

Item	Specification
Article number	89-12170
Type of lifting object	Gas cylinder
Tool weight (kg)	37
Maximum capacity (kg)	85
Serial number	A6820
Other characteristics	Stainless steel (SS)
Optional control	PSH
Gripping technology	Vacuum
Noise level (dB)	68

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.
