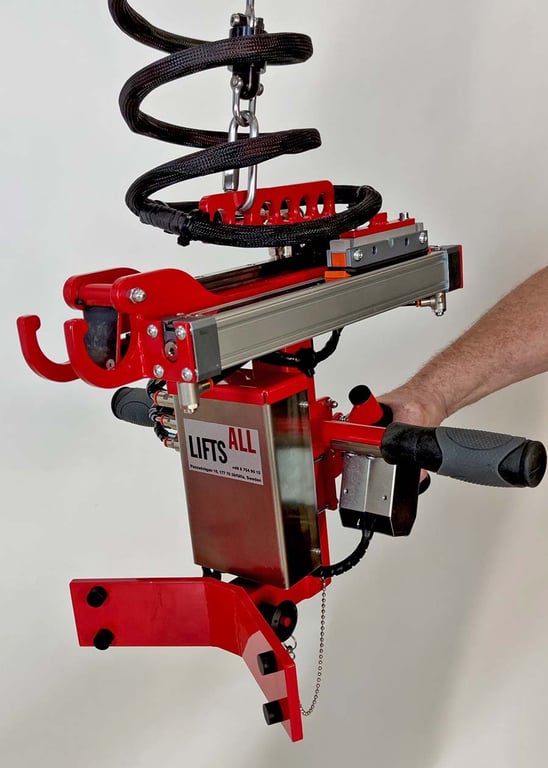

Lifts All gas cylinder gripper 89-12099

Maximum capacity 27 kg, tool weight 10.5 kg
Mechanical hooks on the cylinder ring handle
LPG, propane, helium and argon cylinders
Centre-of-gravity bar and stabiliser for a steady lift
Twin handles for right- and left-handed operators

FullSharp – official Lifts All representative in Vietnam

Product overview

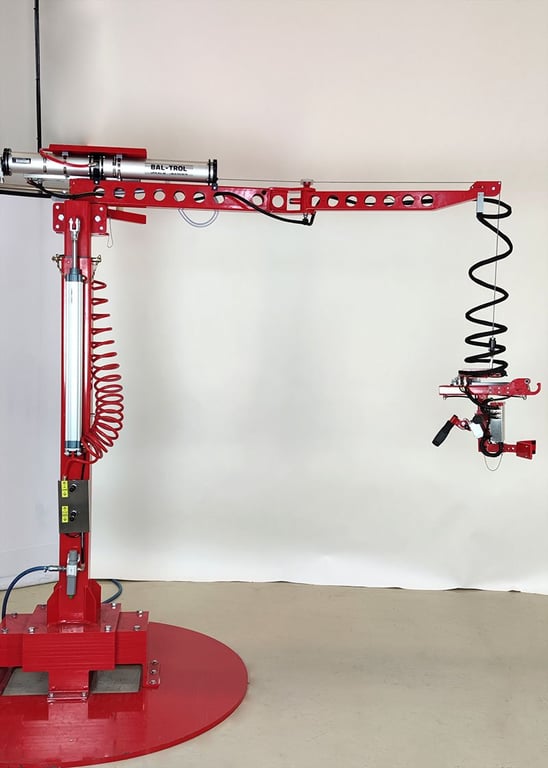

This gripper is built to lift many kinds of gas cylinders, including other gas containers and cylinders with ring handles such as propane, helium and argon bottles. Cylinders can be moved from pallet to pallet, loaded on and off trucks, and even stacked. Maximum capacity is 27 kg. This unit is mounted on a FlexiCrane with endless rotation, so the operator can move freely with the load. A gas cylinder weighs around 25 kg, which is heavy to handle manually, especially many times a day. This LPG cylinder lifter makes the work easier and protects the operator's back and shoulders.

Smooth, controlled cylinder handling

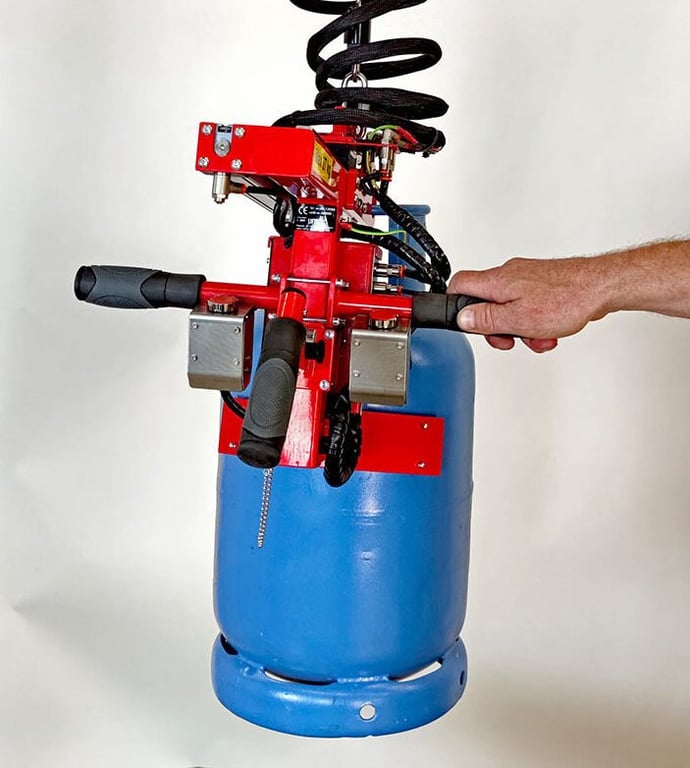

The operator angles the gripper hooks onto the cylinder handle. A centre-of-gravity bar on top balances the tool as the cylinder is lifted, giving a safe, smooth lift with no wobbling. A stabiliser holds the cylinder during the lift and helps steer the load; it can be adjusted for cylinders of different sizes. To disengage, set the cylinder on firm ground and press either release button. Two handles make the tool comfortable for both right- and left-handed operators.

Grippers tailored to your needs

The gripper can also be adapted for other products or for loads of different sizes and weights. Lifts All customises its grippers to each customer's product, designing tools that make material handling as efficient as possible.

Video

Technical specifications

Item	Specification
Article number	89-12099
Type of load	Gas cylinder
Weight (kg)	10.5
Maximum capacity (kg)	27
Serial number	A6660
Selectable control	Balancing
Gripping technique	Mechanical
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
