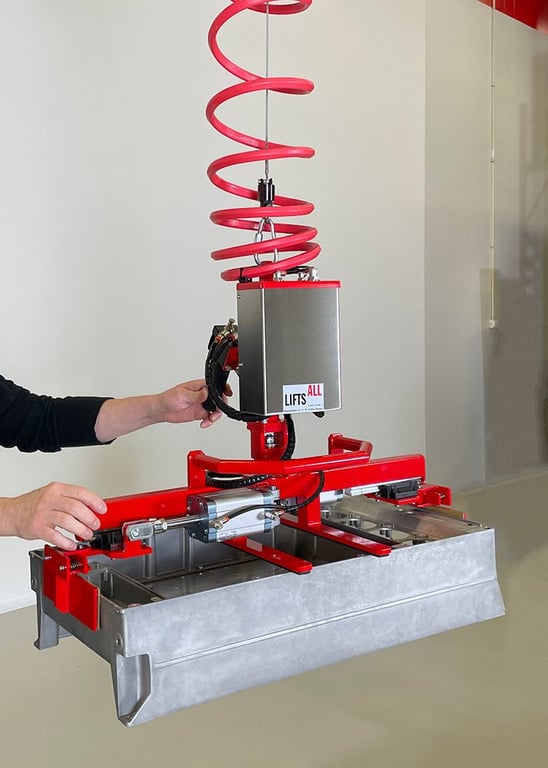

Electrical Enclosure Gripper 89-12243

Max capacity 18 kg
Rubber-lined clamps protect the surface
Rotates the load 355° while weightless
Adjustable gripping width 630–780 mm
Four buttons: grip, lift, lower, release; optional PSH

FullSharp – official Lifts All representative in Vietnam

Product overview

An electrical enclosure is a box or cabinet that houses electronics or wiring. Enclosures are usually made of metal and vary in shape according to the components inside; they can be large and heavy or small and light. The Lifts All enclosure gripper is built for enclosures up to 18 kg and can be customized for other weights.

Enclosure gripper – easy to use

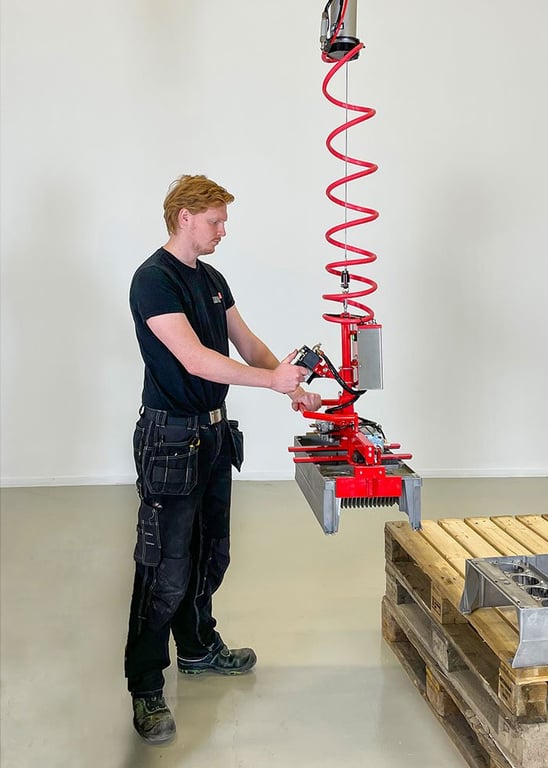

Rubber-lined clamping surfaces hold the enclosure firmly without damaging it, and the load stays tightly clasped for the whole lift with no risk of dropping. While weightless, the load can be rotated 355 degrees so it can be positioned by hand, making it effortless to place enclosures into a rimmed pallet or onto a table.

Handling enclosures of different sizes? Adjustable arms take care of that: the tool grips enclosures from 630 to 780 mm wide, and the gripping width can also be tailored to your enclosures.

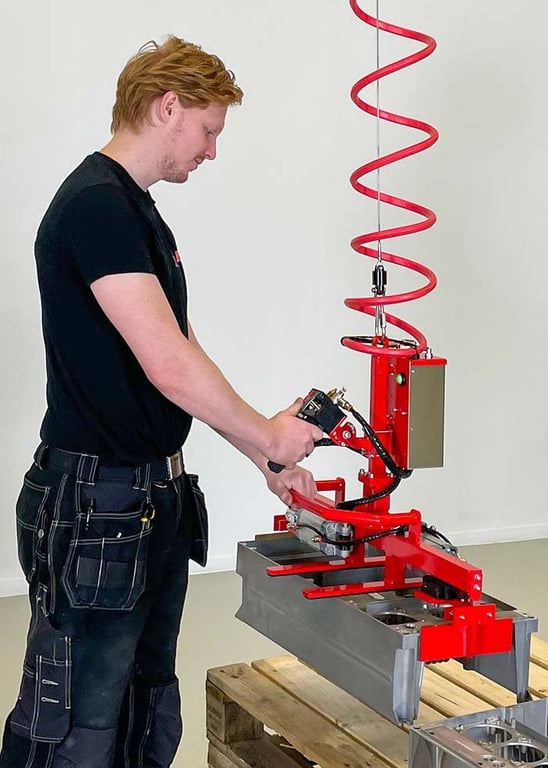

Operation is simple and comfortable. The control unit has only four buttons, for grip, lift, lower and release, and an extra handle keeps the operator's arms in an ergonomic position.

Video

Technical specifications

Item	Specification
Article number	89-12243
Type of lifting object	Electronics, metal
Weight (kg)	18.2
Maximum capacity (kg)	18
Serial number	A6957
Function	Rotation
Gripping technology	Mechanical
Optional control	PSH

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
