Combi Gripper for Flanges 89-12261

Max capacity 79 kg
Combi grip: vacuum cups or mechanical clamps
Flanges, flanged track wheels, welding rings
Attachments swap in seconds; mode selector switch
Two handles; optional PSH; metal industry

FullSharp – official Lifts All representative in Vietnam

Product overview

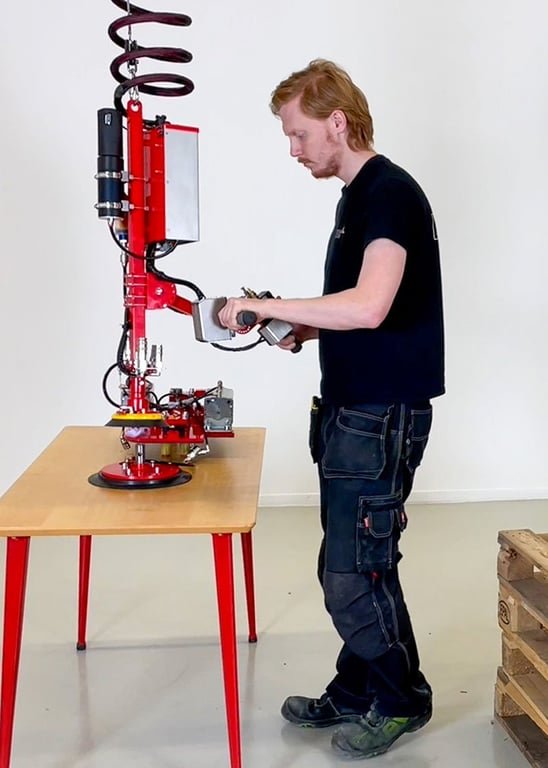

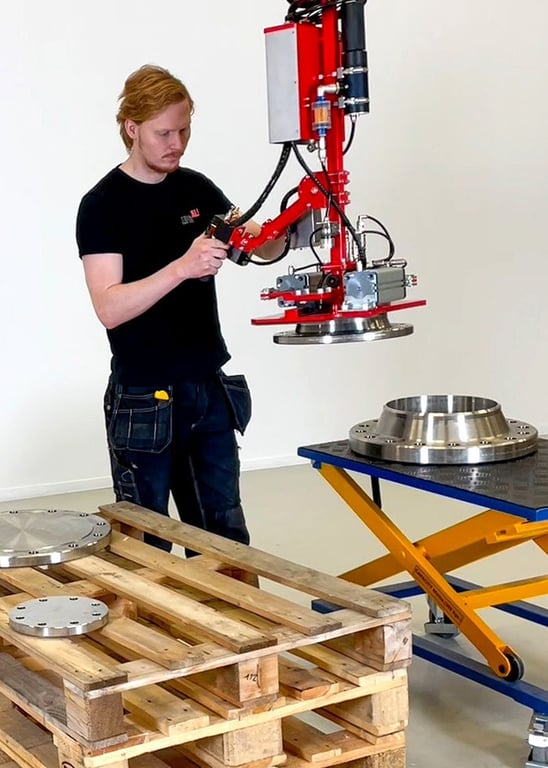

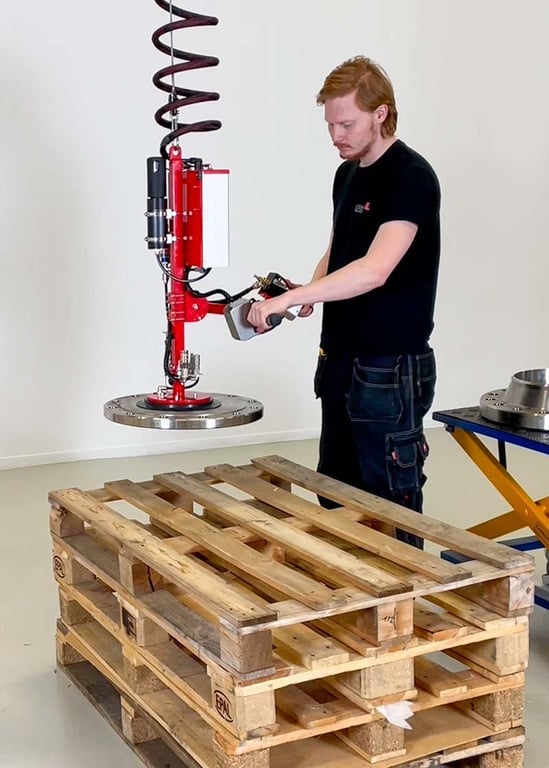

This combi gripper lifts industrial flanges weighing up to 79 kg, as well as flanged track wheels and welding rings. It comes with several attachments for gripping in different ways: smooth-surfaced flanges are lifted with vacuum cups, while threaded flanges are clamped mechanically on the sides.

A combi gripper lets one tool handle different objects. It saves space and eliminates mounting and dismounting separate grippers, and attachments are swapped in seconds.

Ergonomic and easy to use

Simple control buttons grip/release and lift/lower the load, and a switch toggles between vacuum and mechanical grip. Two handles give full control and support a good working posture.

Like every Lifts All gripper, it is designed so the operator stands comfortably while working. The load feels weightless, so one person can now lift what used to take two, and repetitive lifting becomes easier and safer.

Video

Technical specifications

Item	Specification
Article number	89-12261
Type of lifting object	Metal
Weight (kg)	11.1
Maximum capacity (kg)	79
Industry	Metal industry
Serial number	A6987/6988
Gripping technique	Combi
Optional control	PSH
Noise level (dB)	72

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
