Combi-Gripper for Boxes 89-12283

Maximum capacity 50 kg, tool weight 12.5 kg
Vacuum cups for boxes and flat items
Hook for buckets and containers
Selector switch for hook or vacuum, PSH control
Extendable handle, article 89-12283

FullSharp – official Lifts All representative in Vietnam

Product overview

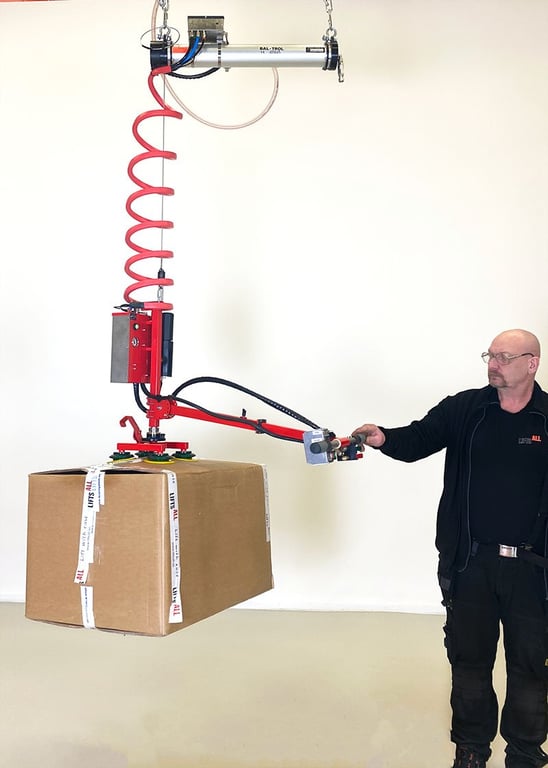

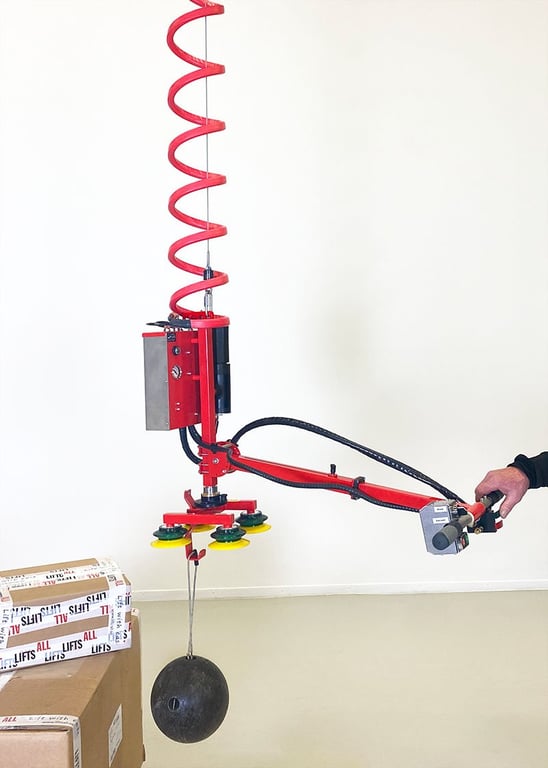

The Lifts All combi-gripper for boxes is fitted with both vacuum cups and a hook. The vacuum cups lift boxes and other compact, flat objects with ease, while the hook carries buckets and containers effortlessly. This versatile tool supports operators through several lifting steps – in a packing process, for example – and saves both money and floor space, since a single tool handles several kinds of objects.

An ergonomic combi-gripper

Besides taking the weight of the load off the operator, the gripper is designed for comfortable use. The handle can be extended to suit the operator's height and to reach the objects. Rubber grips give a firm, secure hold, and the design keeps the operator working comfortably with the elbows close to the body.

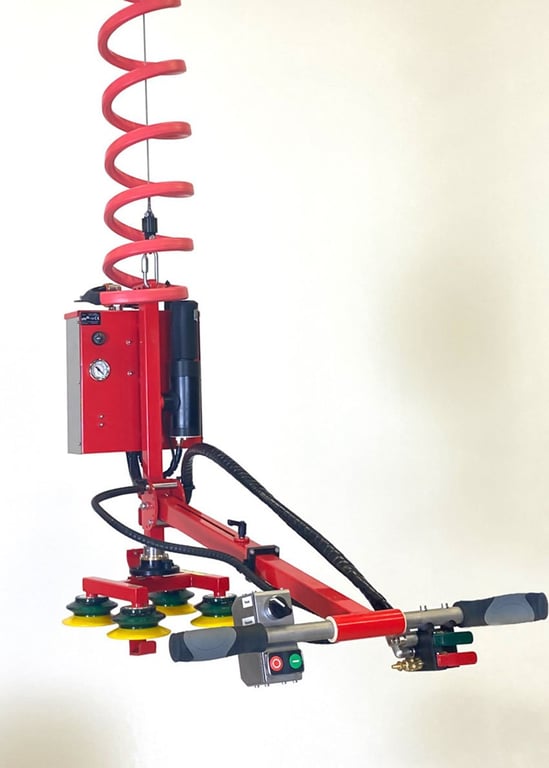

The tool is easy to learn and moves smoothly. A switch selects hook or vacuum mode; round red and green buttons grip and release, and red and green levers raise and lower the load. Loads can be placed exactly where needed without strenuous manual lifting.

Video

Technical specifications

Item	Specification
Article number	89-12283
Type of lifting object	Box
Weight (kg)	12.5
Maximum capacity (kg)	50
Serial number	A7092
Gripping technique	Combi
Optional control	PSH
Noise level (dB)	75

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
