Lifts All combi-gripper for barrels and containers 89-11989

Maximum capacity 200 kg, tool weight 28 kg
Combi grip: mechanical clamp plus folding hook
Scissor function: heavier load, stronger grip
Barrels without lid rims, handled buckets and cans
Pharma and beverage industries, optional PSH

FullSharp – official Lifts All representative in Vietnam

Product overview

This combi-gripper lifts very heavy barrels and containers at the push of a button. It works both as a mechanical clamp and as a hook, so one tool covers many different products. With a capacity of 200 kg, barrels that were once impossible to move by hand can now be handled by a single operator.

Lifts All combi-gripper for barrels and containers 89-11989

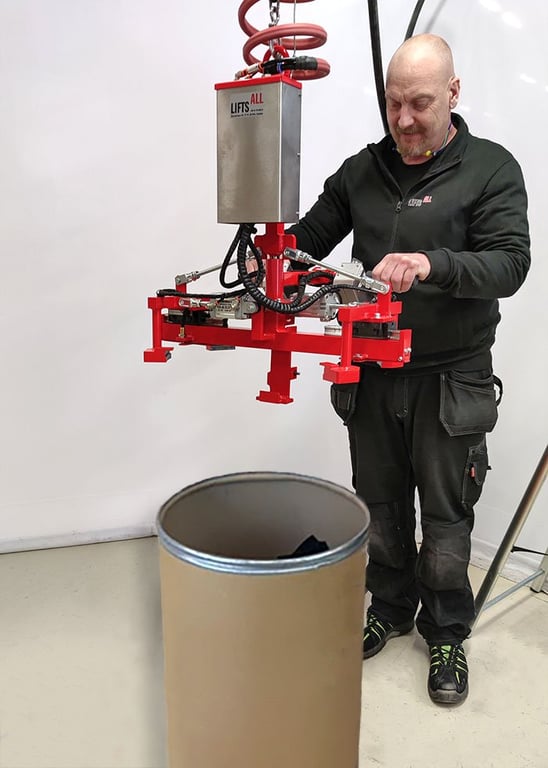

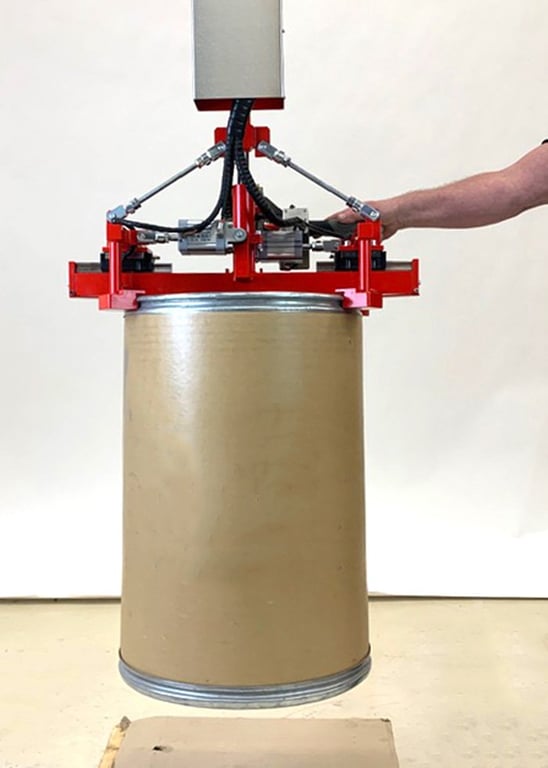

Lifting barrels

Lifts All developed a scissor function for this tool: the grip comes not only from the cylinder but also from the weight of the load itself, so the heavier the barrel, the firmer the hold. This gives a secure grip even on very heavy barrels that have no ledge around the lid to grab.

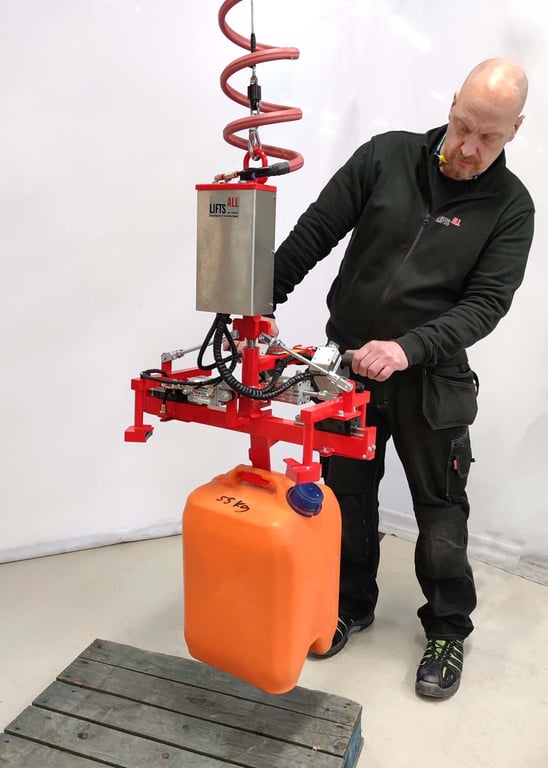

Lifting containers

The built-in hook lifts buckets and other containers, offering a smooth solution for any vessel with a handle. When the hook is not needed, it folds away and is locked in place with an adjustment bolt, ready to be unfolded again.

Lifting across industries

The gripper was developed for the pharmaceutical industry, but it is equally suited to beverage production and any other sector that handles large vessels containing dry or liquid substances.

Technical specifications

Item	Specification
Article number	89-11989
Type of load	Drum, barrel
Weight (kg)	28
Maximum capacity (kg)	200
Industry	Beverage industry
Serial number	A6567
Optional control	PSH
Gripping technique	Combi
Noise level (dB)	60

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
