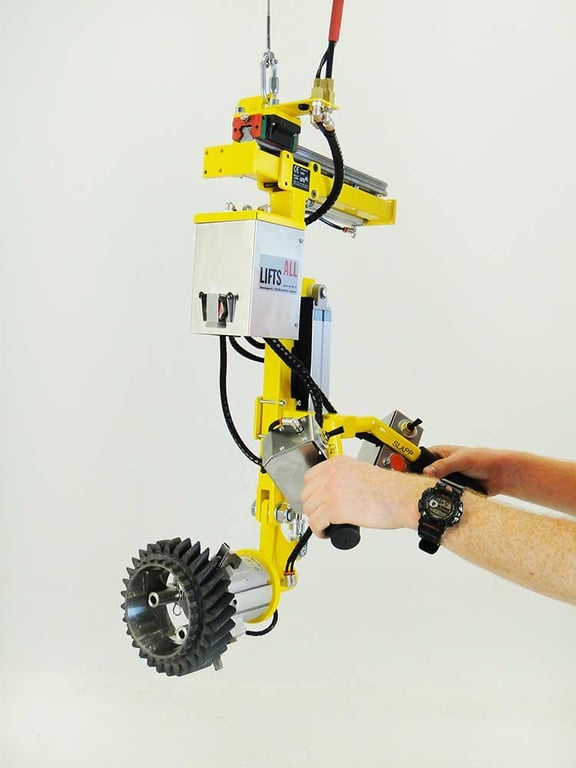

Cogwheel Gripper 3481

Maximum capacity 14 kg, tool weight 11 kg
Mechanical grip in the inner bore
90° tilt for gearbox mounting, manual rotation
Balanced control – no up/down buttons
Automotive and metal industry, article 3481

FullSharp – official Lifts All representative in Vietnam

Product overview

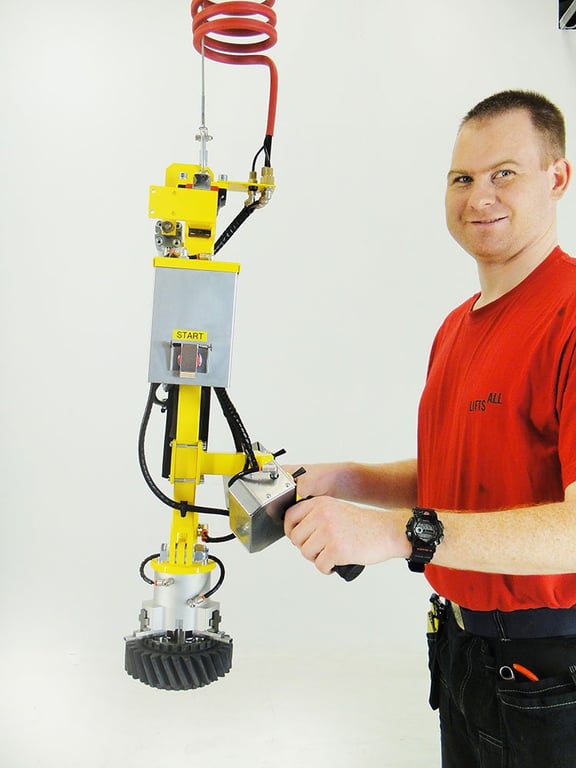

The cogwheel gripper is a favourite in the automotive industry. This compact tool lifts cogwheels of up to 14 kg and is used mainly in car manufacturing. The operator grips the inner bore of the gear, moves it quickly through the steps at the workstation and then mounts it in the gearbox.

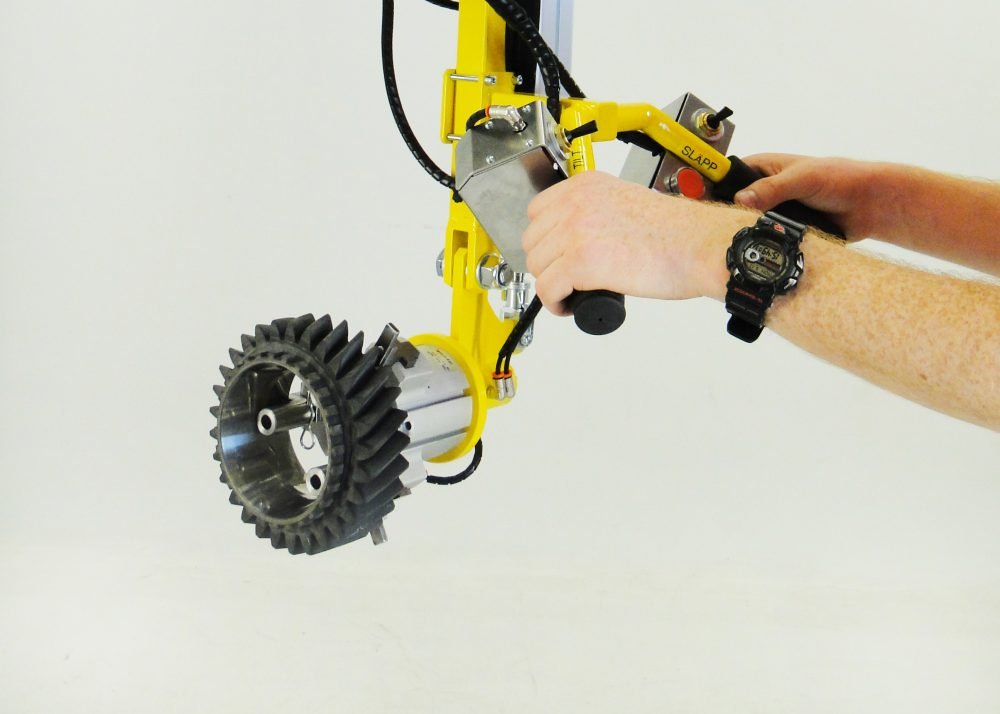

A tilt switch turns the cogwheel through 90° for placement in the gearbox, and the gear can also be rotated by hand for maximum precision.

The gripper uses Balancing control – a mechanical way of achieving weightlessness. No buttons are needed to raise or lower the load: simply guide it by hand and you will not feel its weight.

Technical specifications

Item	Specification
Article number	3481
Type of lifting object	Metal (cogwheel)
Weight (kg)	11
Maximum capacity (kg)	14
Industry	Metal industry
Serial number	3481
Function	Tilt
Gripping technique	Mechanical
Optional control	Balancing

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
