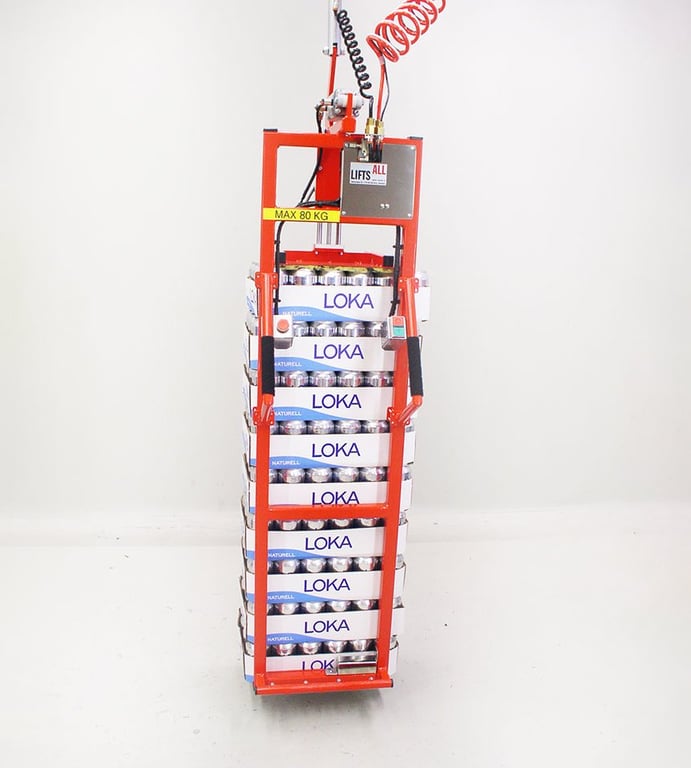

Beverage Case Gripper 2490

Maximum capacity 80 kg, tool weight 21.5 kg
Picks a stack of 9 cases at once
Pallet-to-pallet case handling
Balanced control – a light pull on the handles
Beverage industry, article 2490

FullSharp – official Lifts All representative in Vietnam

Product overview

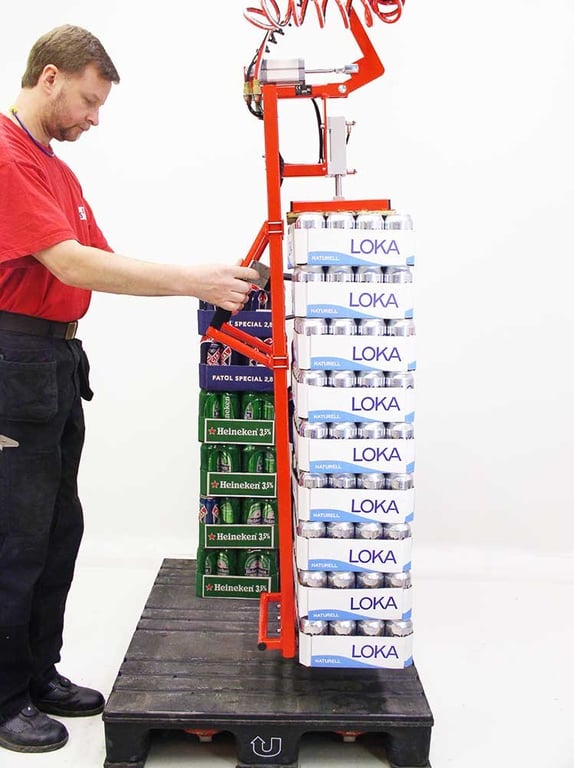

The case gripper is a popular choice in the beverage industry because it moves cases from pallet to pallet quickly and easily. Rather than lifting and carrying each case by hand and risking repetitive strain injuries, the operator lets the gripper do the work. It picks up a stack of nine (9) cases at a time – 80 kg that would otherwise be lifted manually.

Balancing mechanics equalise the weight of the gripper and the load, so the load is raised and lowered with a slight pull on the handles. At the press of a button the load becomes weightless and can be manoeuvred in any direction with precision.

Technical specifications

Item	Specification
Article number	2490
Type of lifting object	Beverage cases (cans)
Weight (kg)	21.5
Maximum capacity (kg)	80
Industry	Beverage industry
Serial number	2490
Gripping technique	Mechanical
Optional control	Balancing

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
