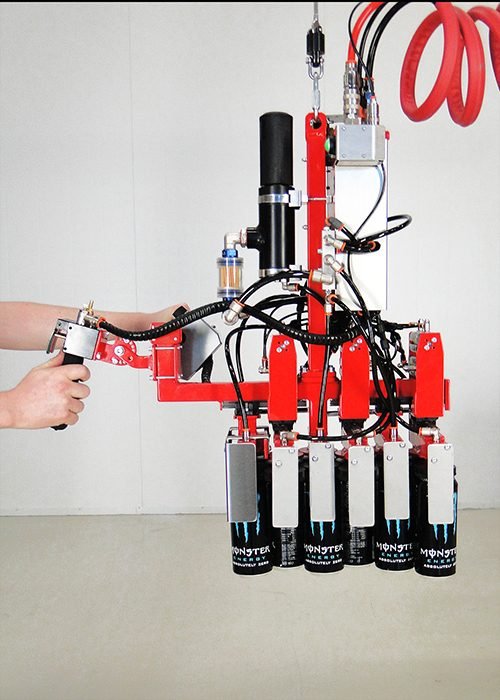

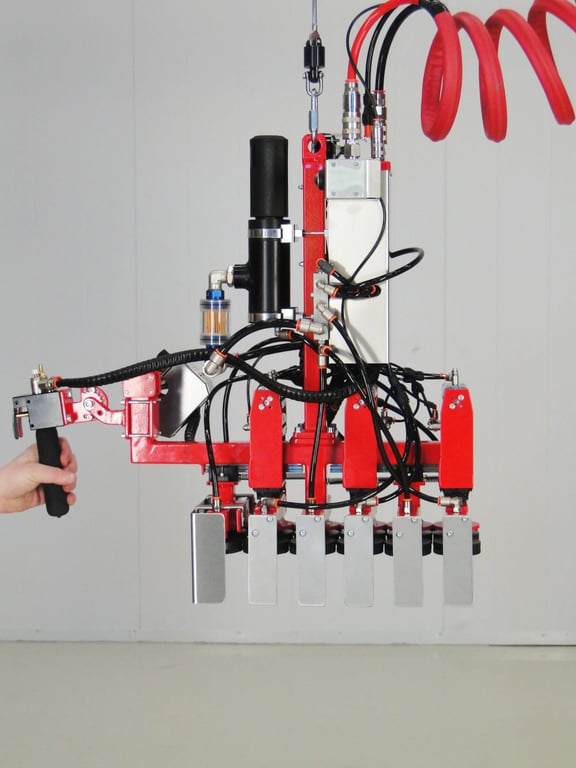

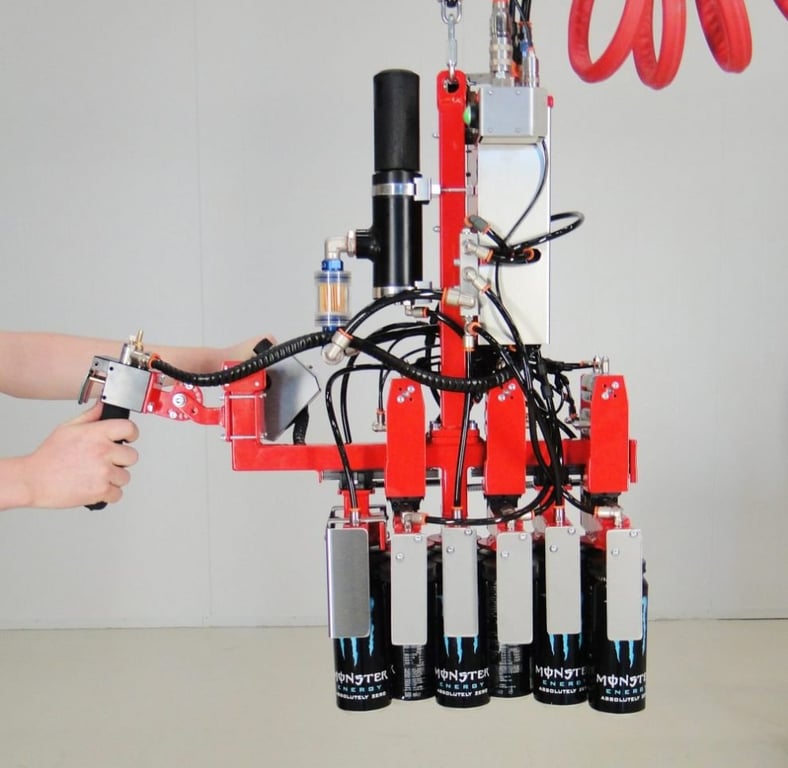

Lifts All can gripper 89-10541

Maximum capacity 8 kg (24 cans), tool weight 25 kg
Picks 24 cans per lift
Realigns selected cans sideways in mid-air
Pallet to display cabinet
Beverage industry, optional PSH control

FullSharp – official Lifts All representative in Vietnam

Gripper for aluminium and tin cans

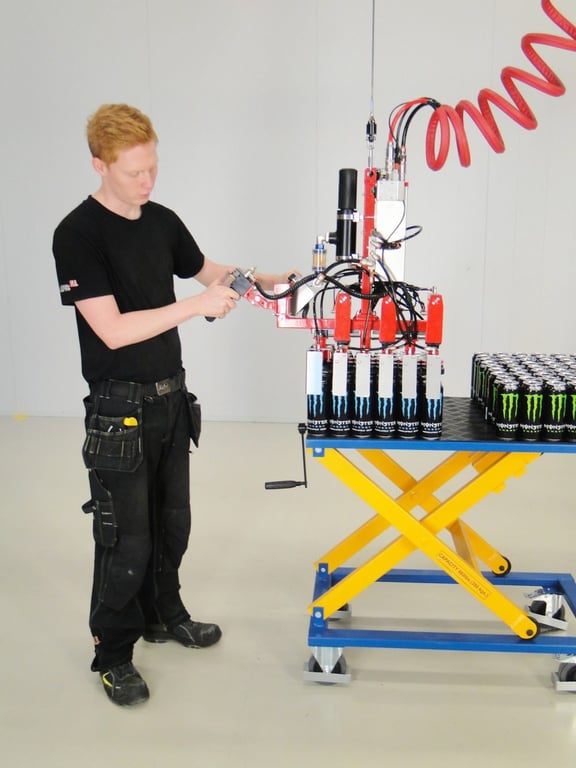

This gripper lets the operator lift drink cans from a pallet and move them into a display cabinet ergonomically. Instead of carrying two or three cans at a time by hand, the operator now moves 24 cans, around 8 kg, in every lift. The work becomes fast, efficient and even enjoyable.

The gripper was developed specifically to pick 24 cans at once and set them down in a defined pattern. Some cans have to be realigned in mid-air so they fit into the box in a particular way, and this requirement was built into the design, mechanics and manufacture of the tool.

The can lifter is custom-made for this task and shifts selected cans sideways so that they fit neatly into the box.

Video

Technical specifications

Item	Specification
Article number	89-10541
Type of load	Can
Weight (kg)	25
Maximum capacity (kg)	8
Industry	Beverage industry
Serial number	5028
Gripping technique	Mechanical
Optional control	PSH

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
