Lifts All Basic Bottle Gripper 88-10063, 88-10032

Lifts 24 bottles at once, 33 cl glass bottles
Tested with Vichy and longneck bottles
Gripping: mechanical, manual or automatic version
Endless rotation, tool weight 2.9 kg
Industry: beverages, breweries

FullSharp – official Lifts All representative in Vietnam

Product overview

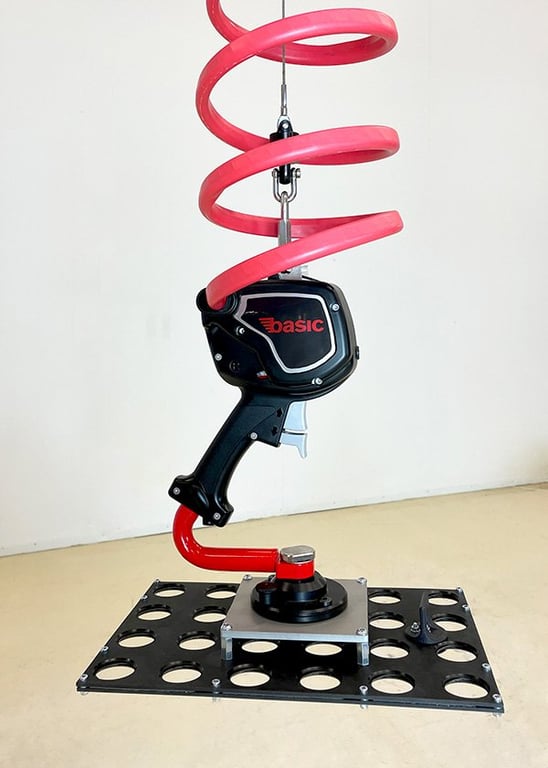

The Basic bottle gripper is made for the beverage industry and breweries and has been tested with Vichy and longneck bottles. It picks up 24 bottles in a single lift, keeping work smooth and efficient. This version is designed for 33 cl glass longneck bottles and comes in two variants: manual, where the operator clamps the bottles with a knob, and automatic, where the tool clamps them by itself before lifting. The result is faster packing and a lower risk of wear-and-tear injuries.

Lifts All Basic Bottle Gripper 88-10063, 88-10032

How does the Basic bottle gripper work?

Manual and automatic bottle lifting

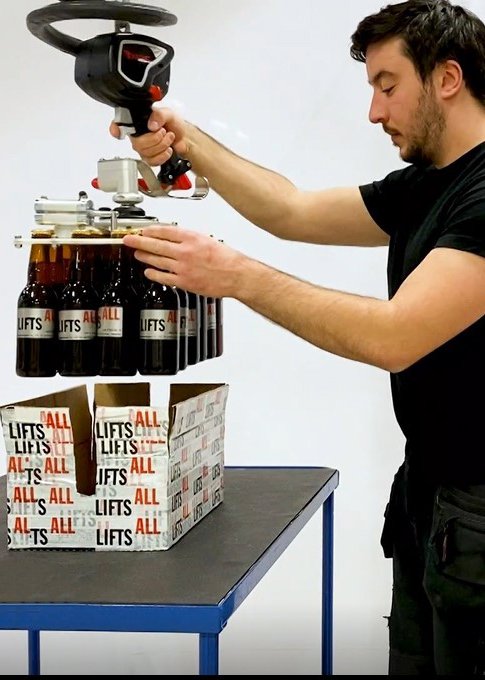

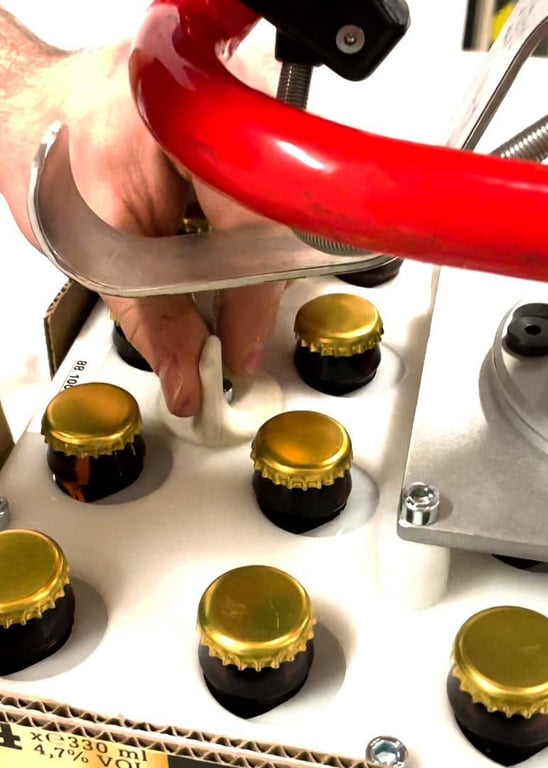

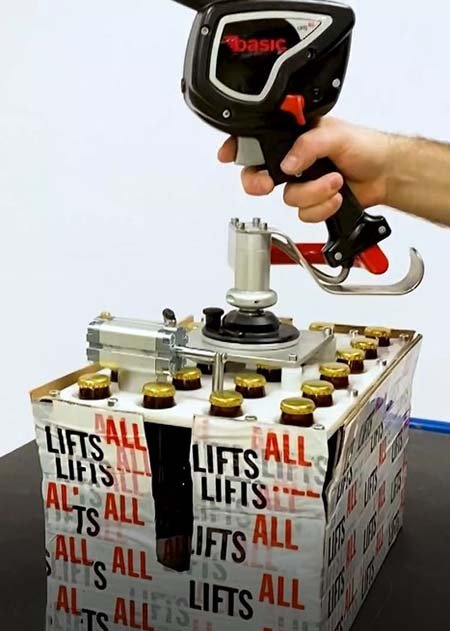

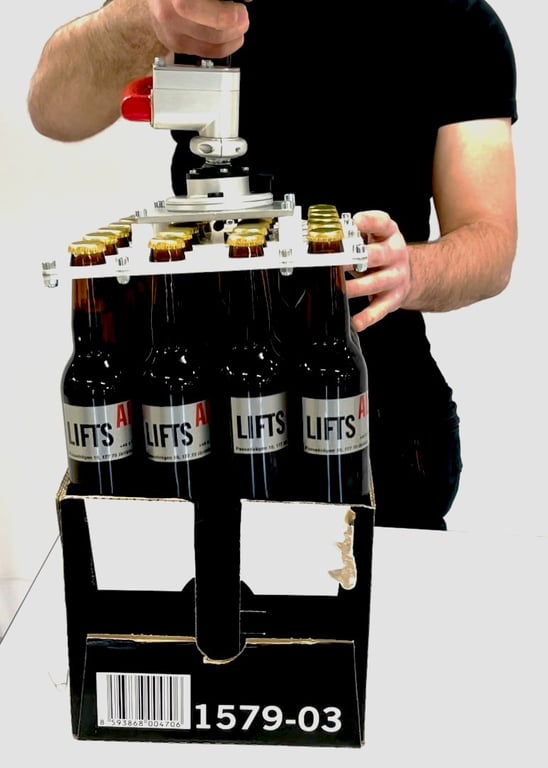

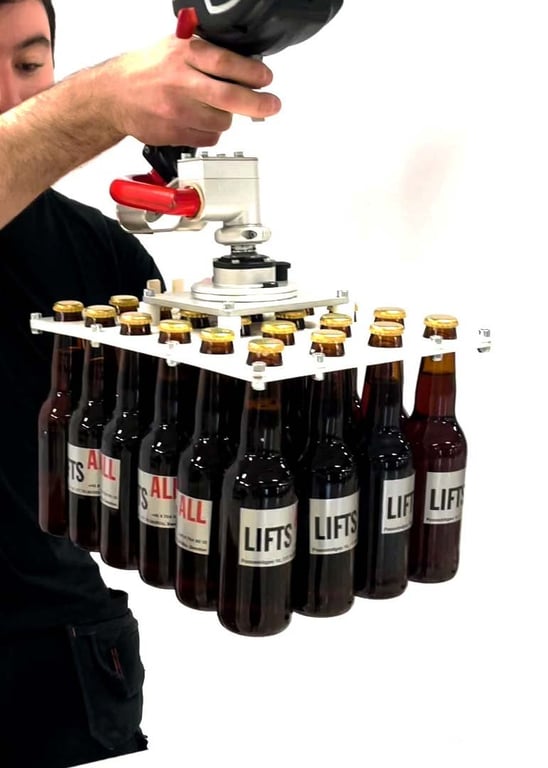

Guide the bottle necks into the holes in the gripper plate and turn the knob to clamp them securely; the automatic version does this for you. Lift the bottles into their packaging or to the required position. Once the bottles stand on a flat, stable surface, turn the knob again to release them; the automatic version releases them as soon as they are set down on a flat surface. Both versions allow endless rotation during the lift.

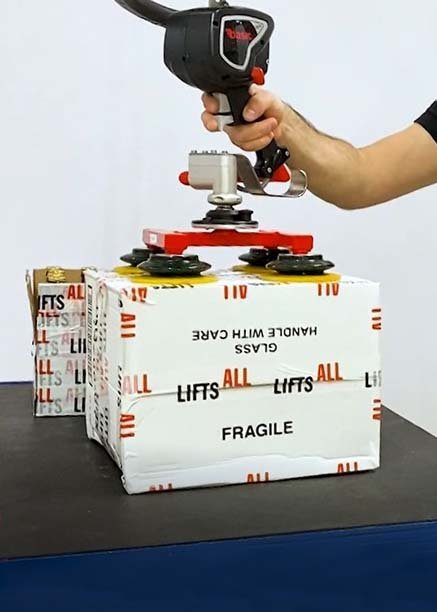

The Basic can also handle other loads: fitted with a different attachment, such as a vacuum cup, it can lift boxes instead.

Tailored to your needs

The solution can be adapted to lift fewer or more bottles, or bottles of other shapes and sizes. Each design takes into account the load's material and dimensions, the number of lifts, the lifting path and the working environment, to arrive at the optimal solution for the task.

Video

Technical specifications

Item	Specification
Article number	88-10063
Type of lifting object	Bottle
Industry	Beverage industry
Serial numbers	88-10063, 88-10032
Weight (kg)	2.9
Gripping technique	Mechanical

Specifications from the manufacturer Lifts All (Sweden); the final configuration is proposed by FullSharp for your product and workstation.

More images

FullSharp – official Lifts All representative in Vietnam

FullSharp is the official representative of Lifts All (Sweden) in Vietnam and supplies complete solutions: Lifts All lifting tools, balancers, jib cranes or overhead rails, with installation and service. Send us the load type, dimensions, weight and photos of your workstation for a site survey and quotation.
