Pneumatic Roll Lifter & Tilter 250 kg

Material rolls are heavy and round, making them hard to handle — rolling them by hand easily distorts the core and scuffs the outer layer. When a roll must be stood up or laid down to load onto a machine, workers often push it at an angle by hand, one of the most accident-prone moves in the roll-change area.

FullSharp installs a pneumatic manipulator for lifting rolls up to 250 kg with an electric roll-turning motor. The roll is clamped and lifted with compressed air, then tilted to the needed orientation by the motor — one person at the control panel completes the whole cycle.

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg

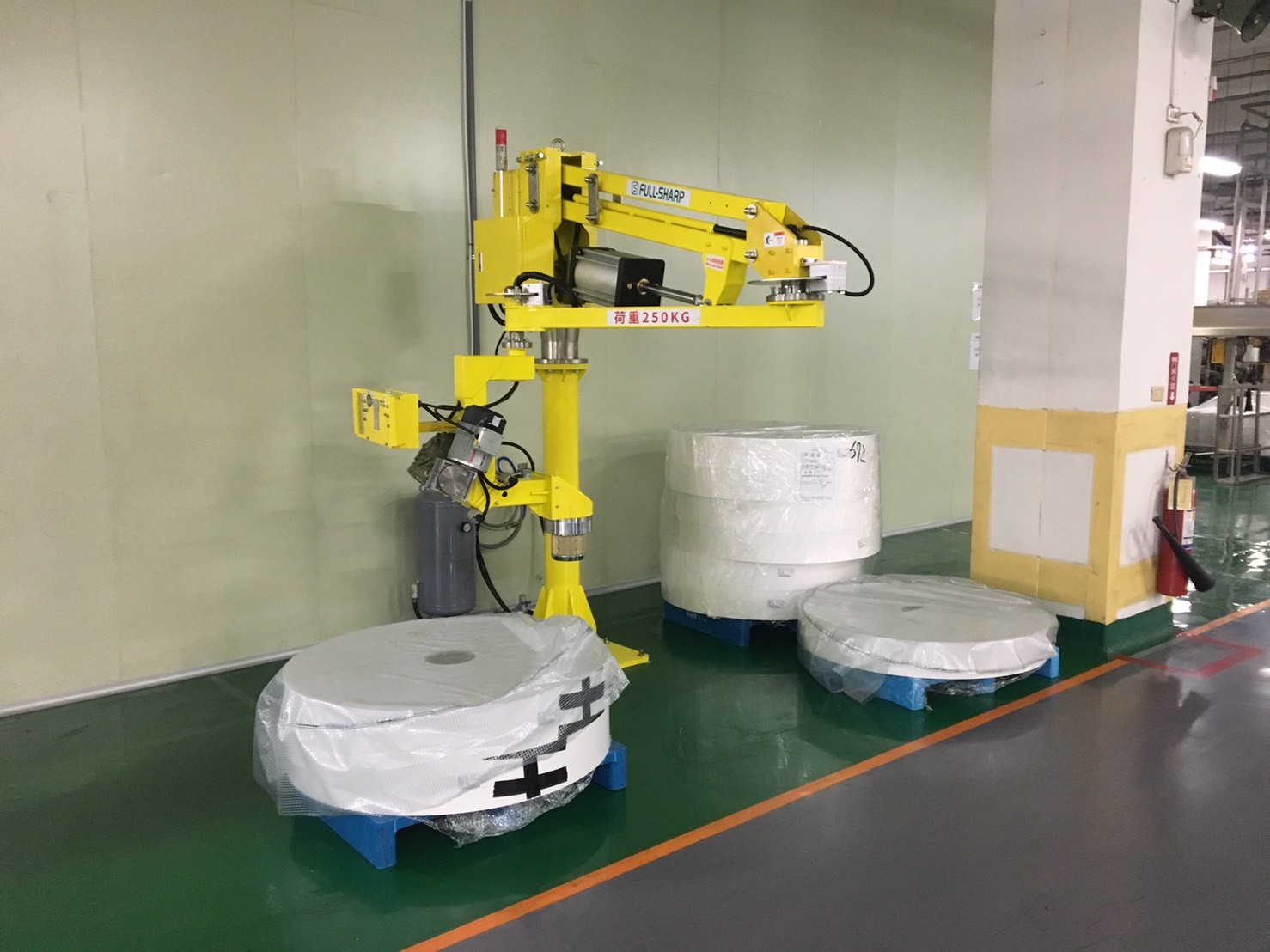

Pneumatic manipulator with roll-turning motor handling a 250 kg material roll in a factory.

Equipment Installed

Roll clamp head: hugs the roll's diameter, holding it firmly without denting the core or tearing the outer layer.

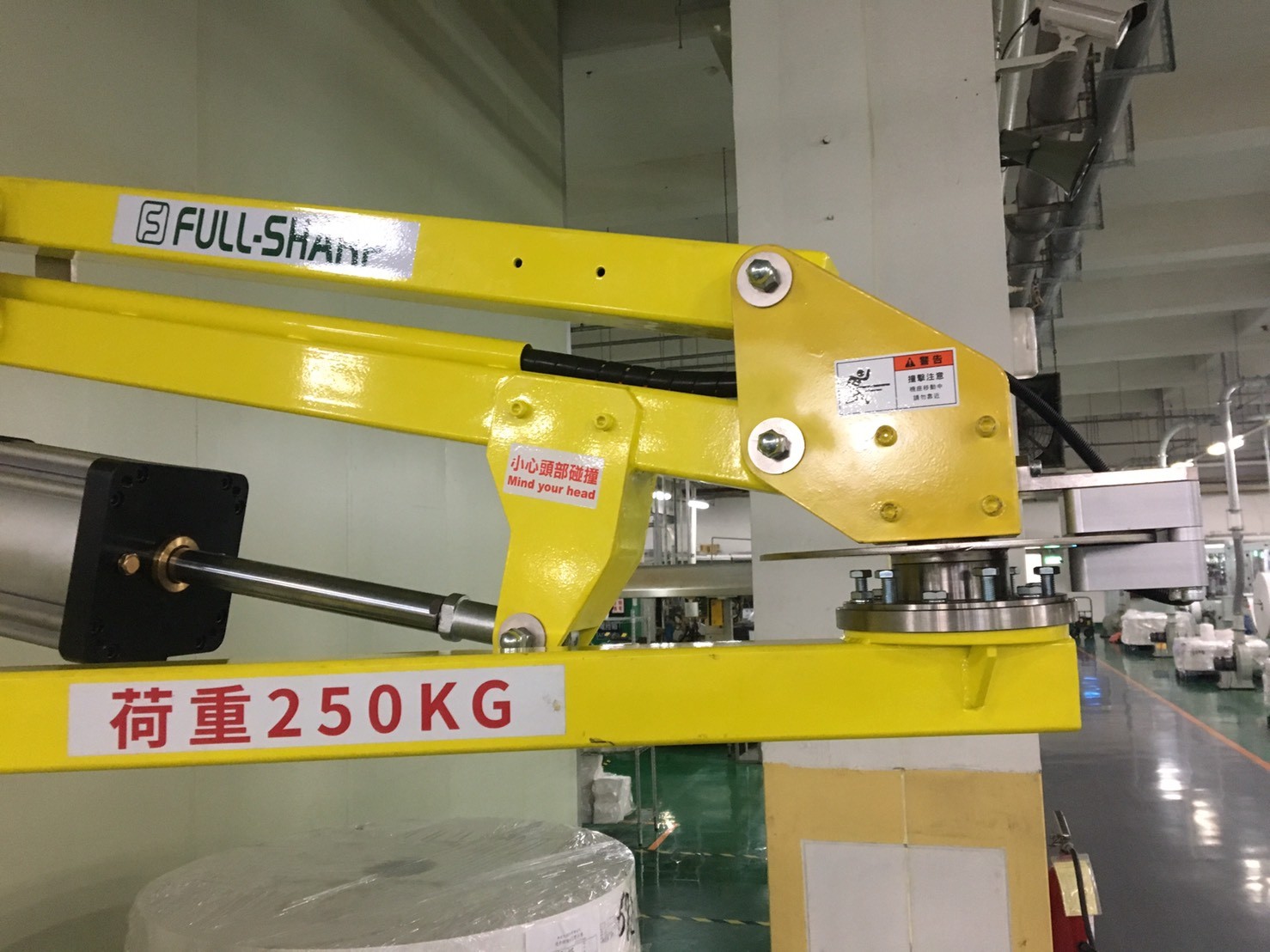

250 kg pneumatic lifting unit: raises and lowers smoothly, holding the roll suspended at the exact height needed to load the machine.

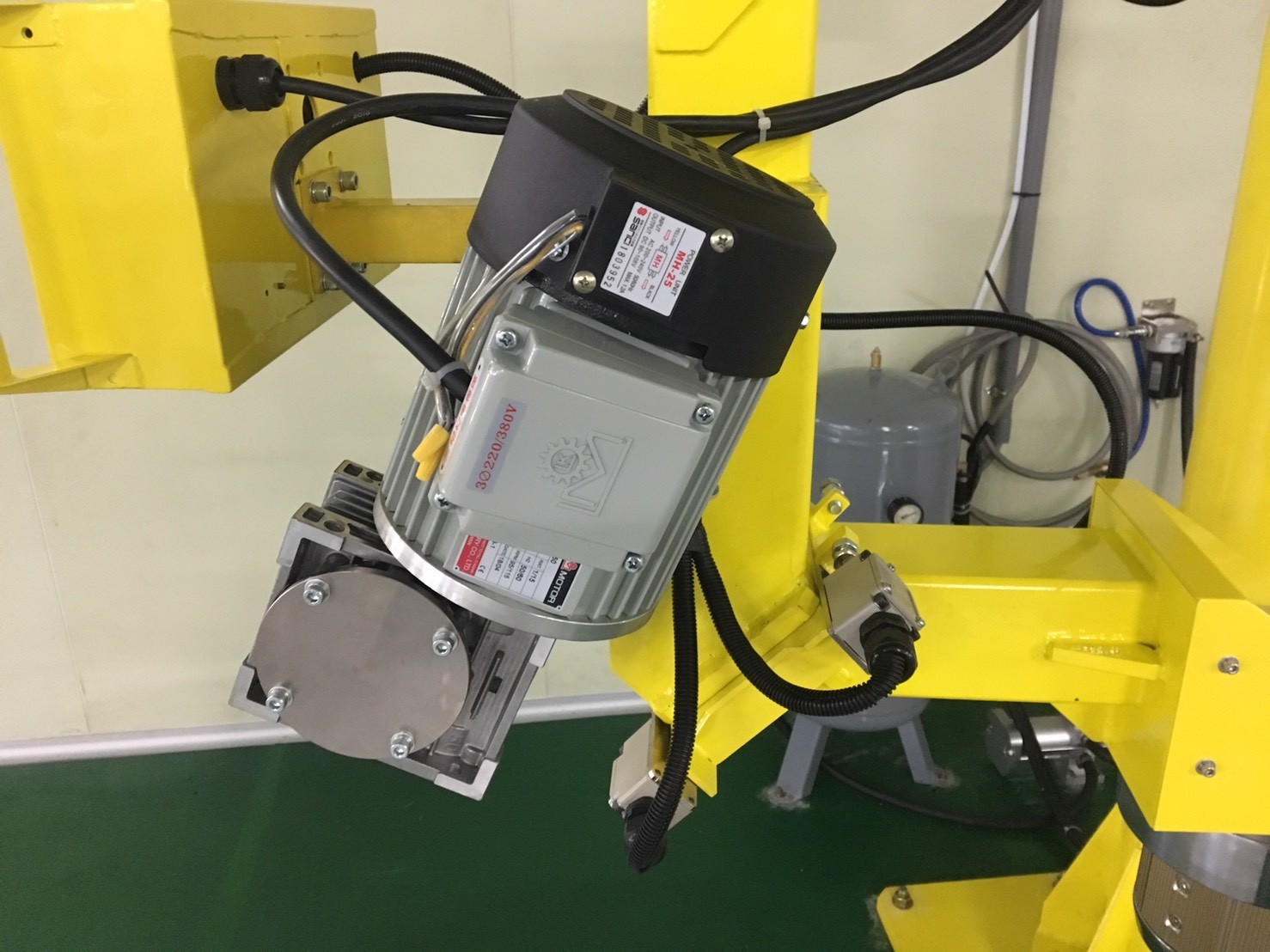

Electric roll-turning motor: rotates the roll between upright and horizontal using a motor, with no need for workers to hold it in place.
Control panel: gathers the clamp, lift, and tilt commands in one place so a single person can operate the whole unit.

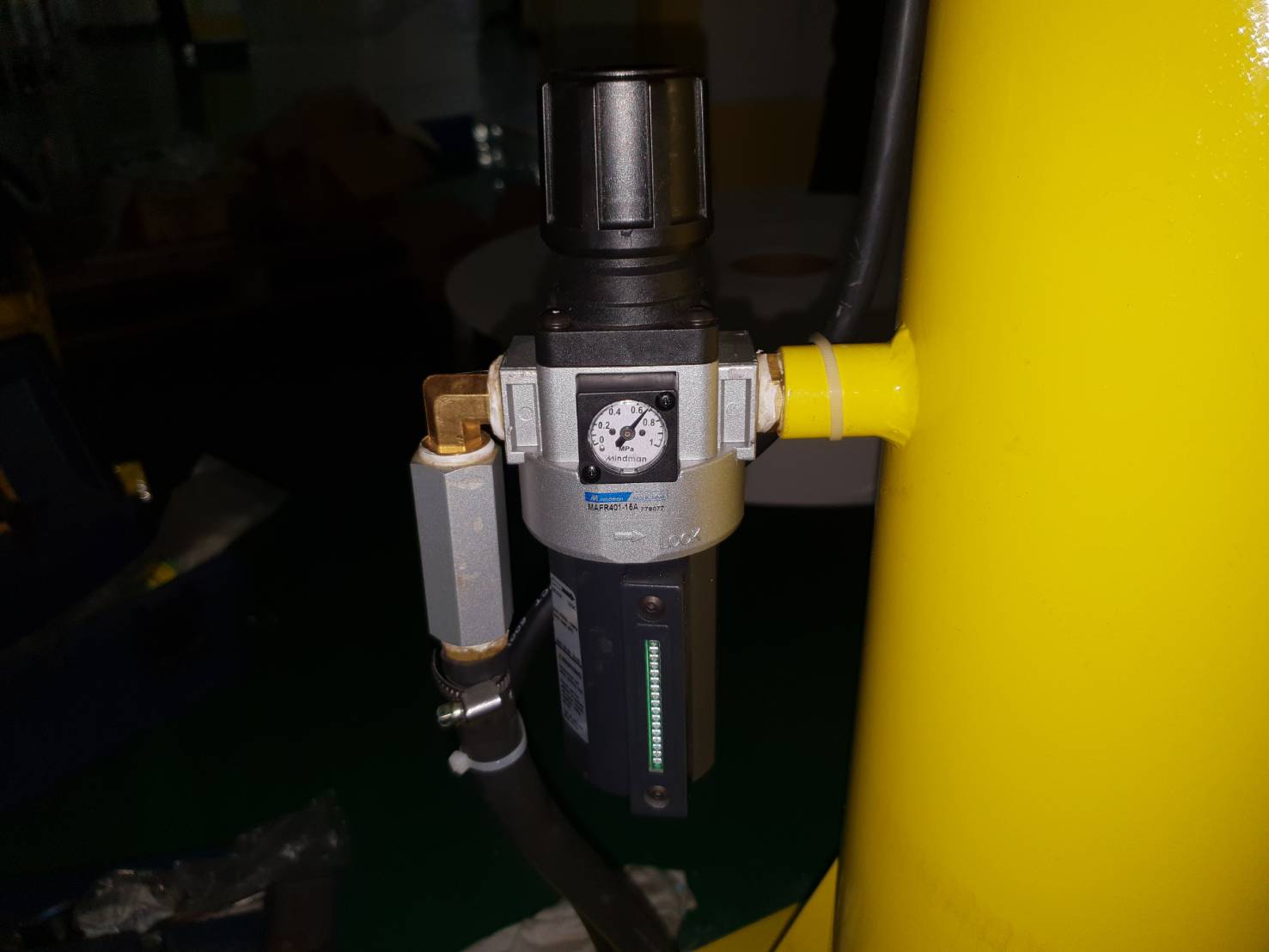

Air-loss safety lock: keeps the clamp engaged so the roll cannot slip if air pressure drops.

Key Specifications

Roll lifting capacity250 kg

Benefits for Your Facility

Faster roll changes

The roll is lifted, tilted, and loaded onto the shaft in one continuous cycle, so the machine stops less often.

Removes a dangerous step

No more pushing a roll at an angle by hand in a cramped area.

Keeps material intact

The clamp hugs the exact profile of the roll, so the core stays true and the outer layer stays free of scuffs.

Real Installation Photos

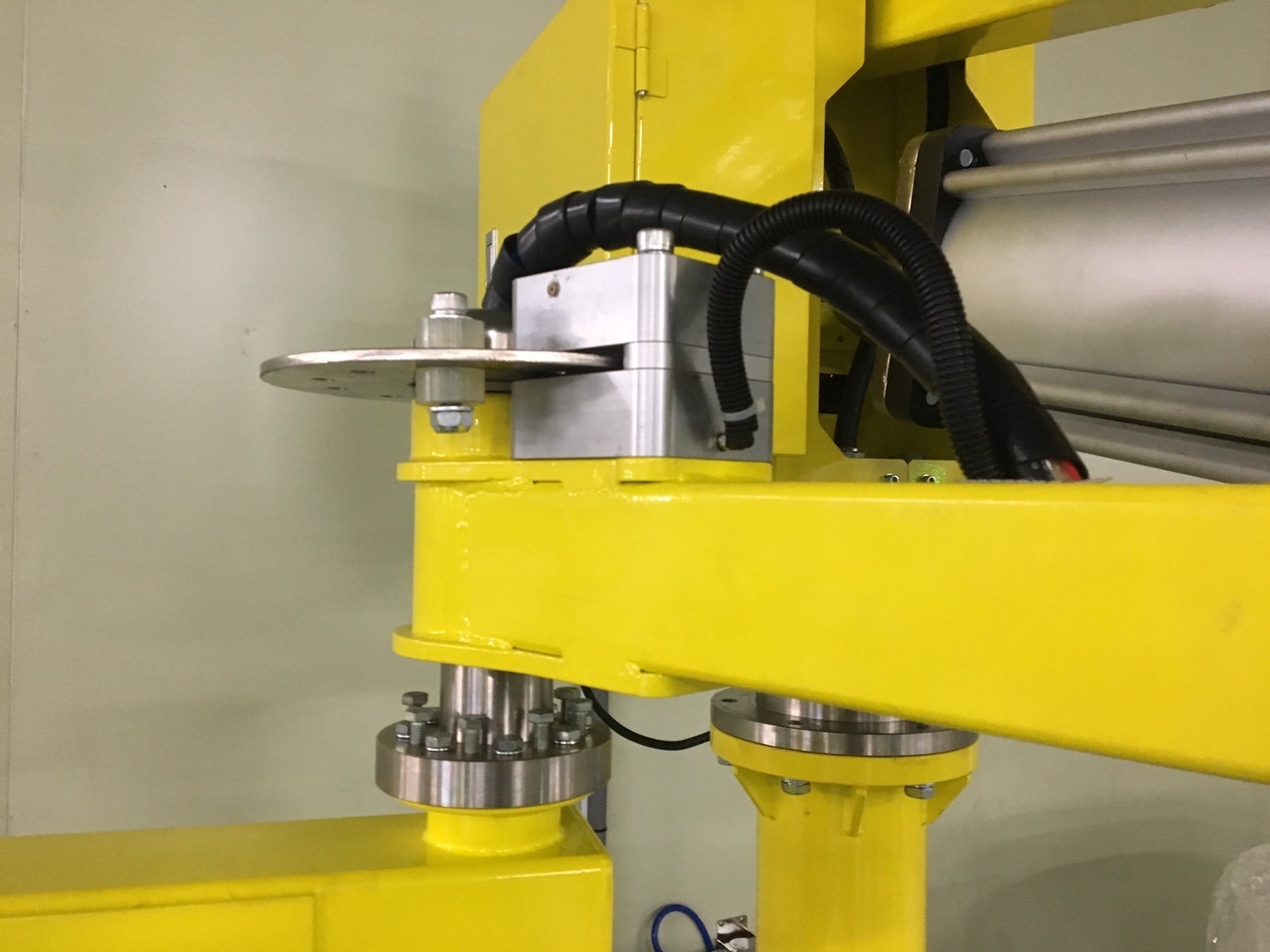

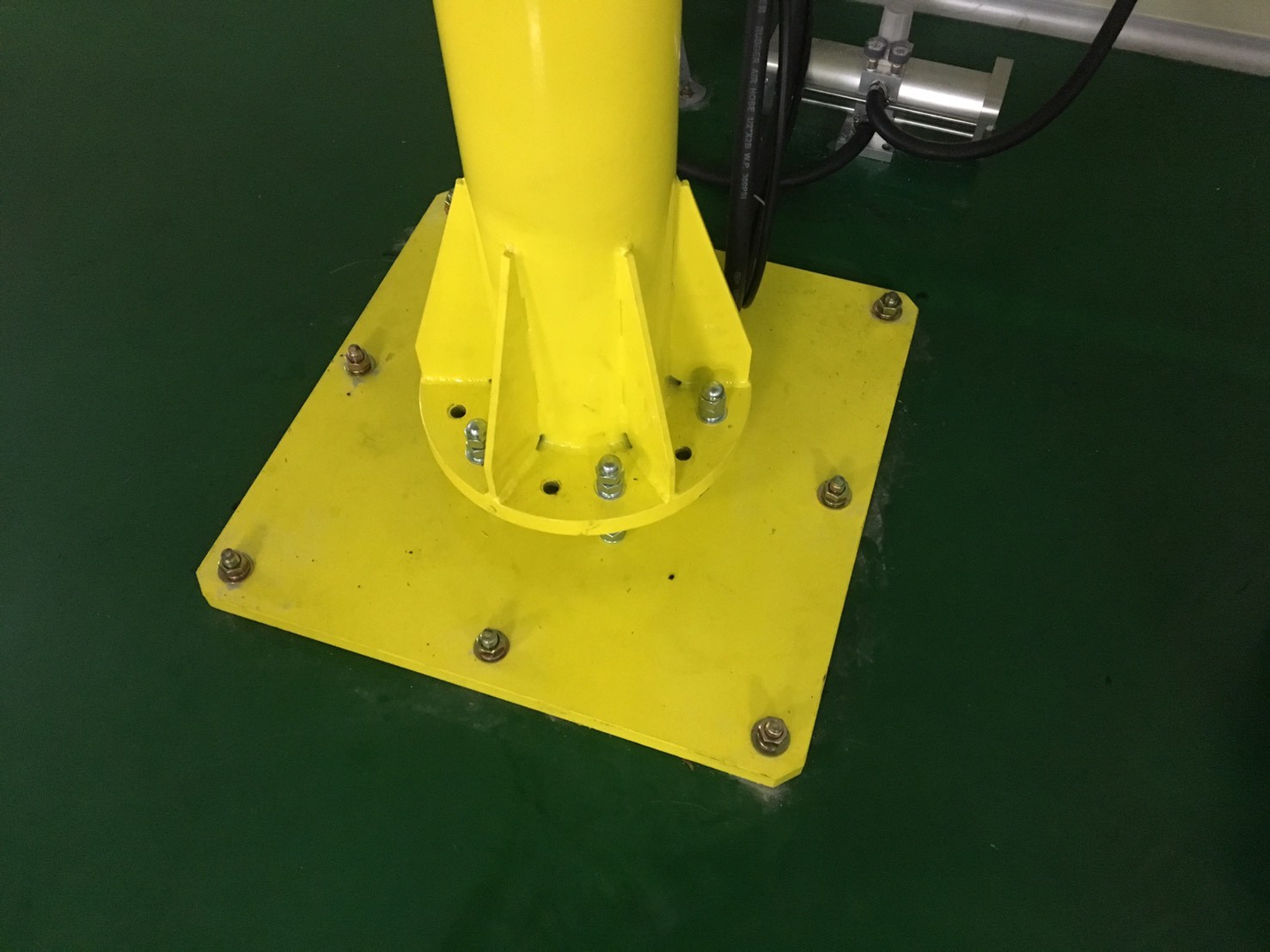

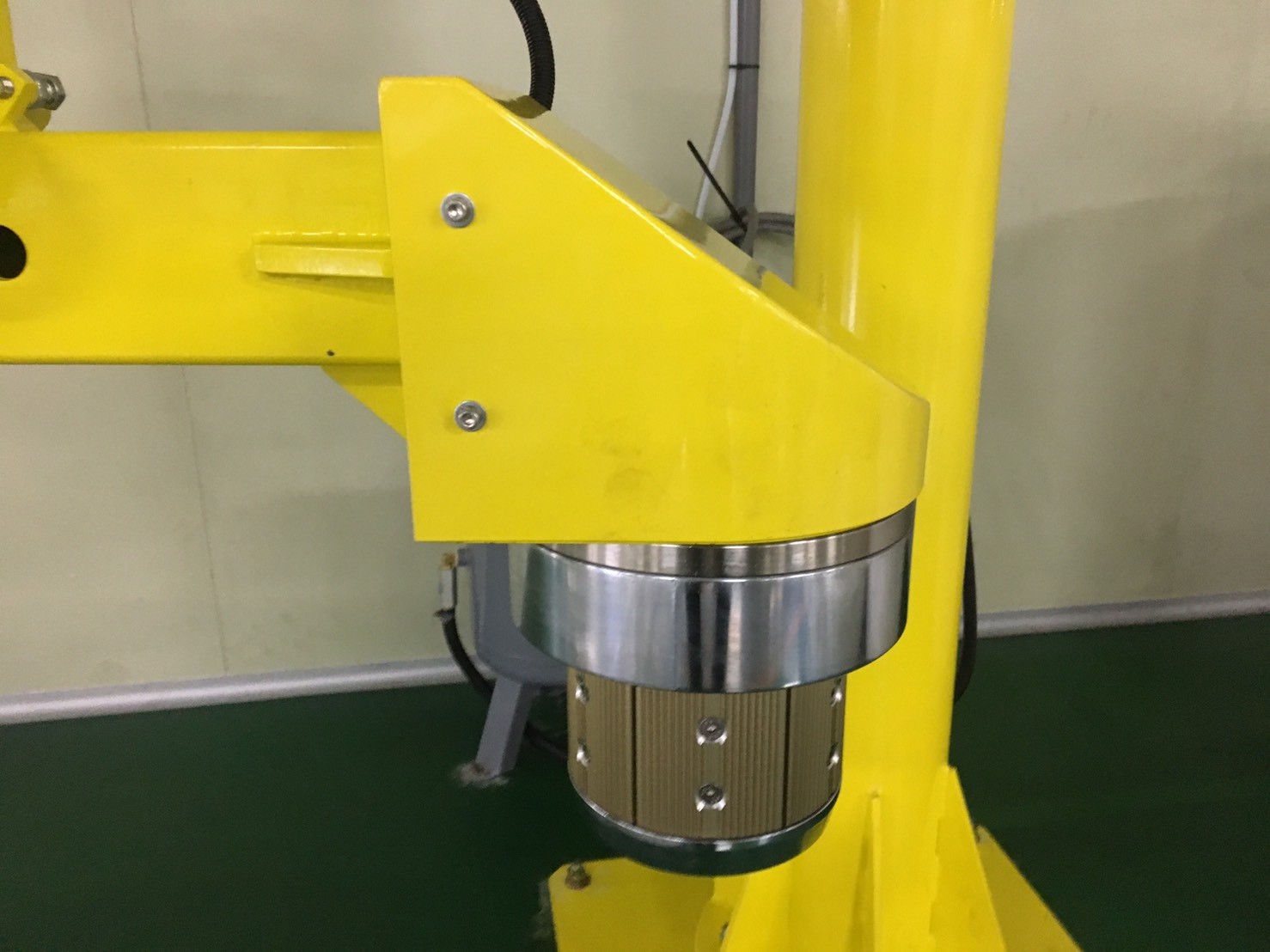

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 1

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 2

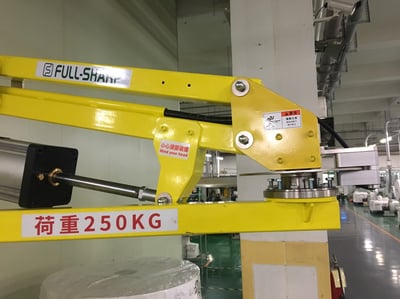

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 3

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 4

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 5

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 6

Pneumatic Manipulator for Roll Lifting with Roll-Turning Motor, 250 kg - ảnh 7

Click a photo to enlarge. A 7-photo album taken on site.

Suitable Applications

Paper and corrugated packaging plants
Printing shops with frequent roll changes
Plastic film and fabric roll plants
Roll material warehouses

Installation Consulting for Your Facility

FullSharp measures the roll's diameter, width, and weight along with the machine shaft height to select the right clamp configuration. Our engineers calculate the lifting travel and tilt angle, install the unit at the roll-change position, and test it with an actual roll before handover.
