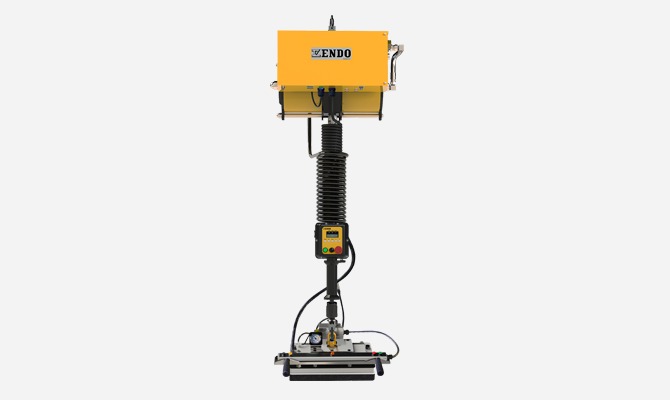

ENDO Vacuum Gripper for Cartons (Magical Balancer)

ENDO Vacuum Gripper for Cartons (Magical Balancer) is part of the ENDO Air Balancer with Balance Control Module range. ENDO air balancers with a balance control module keep the load floating so it moves up and down with a light push: BC1, BC2, ABC series and the Magical Balancer.

It can lift up cardboard packaging surrounded by PP bands.

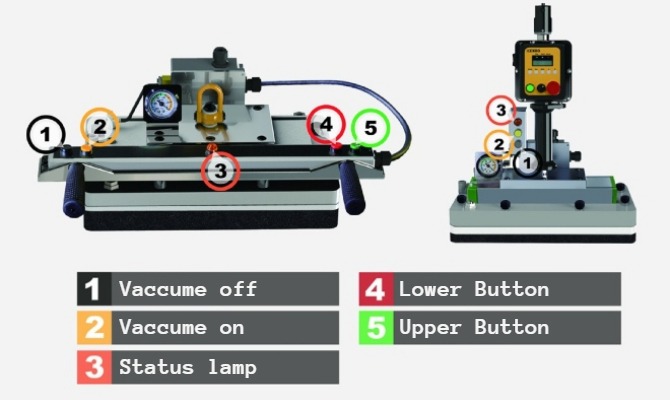

Safety interlock is implemented , so carton is not fallen off if operator push release button when it vaccumes.
It can handle cardboard weighing up to about 30 kg. *Load capacity varies depending on the conditions of the workpiece.

Product Video

Specifications

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Power supply	Air inlet
EDB-30	0.5	30	1.9	Single Phase 100V	Rc 1/2

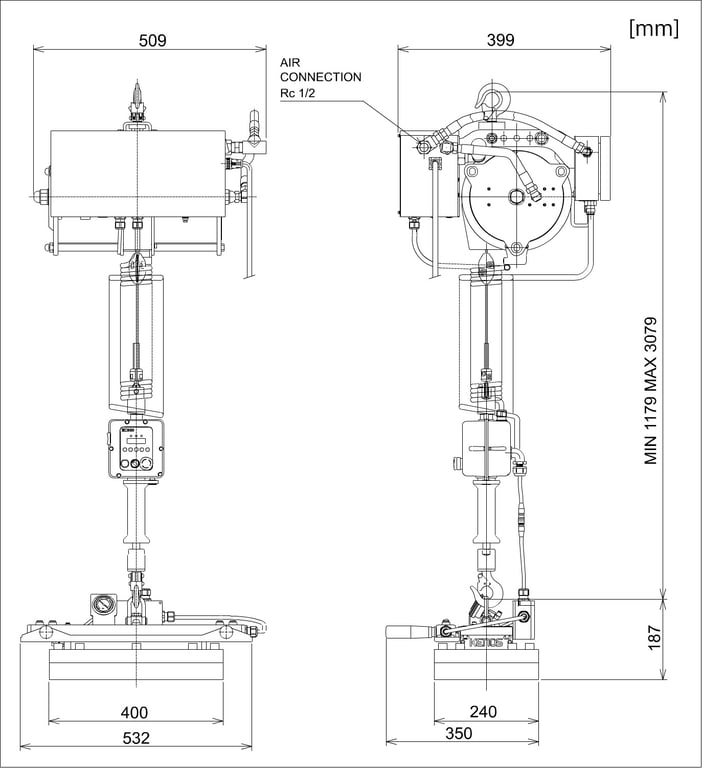

Drawing EDBD-30

ENDO Vacuum Gripper for Cartons (Magical Balancer)

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
