ENDO Jib Crane
ENDO Jib Crane is part of the ENDO Rail System range. ENDO rail systems and jib cranes for suspending air balancers and moving loads horizontally by hand.
- Floor fixed post type jib crane
- Aluminum rails are used for the running rails, enabling smoother operation than steel rails and I-beams.
- Since the jib can be turned 360 degrees, it can be safely and reliably transferred in combination with a hoisting machine.

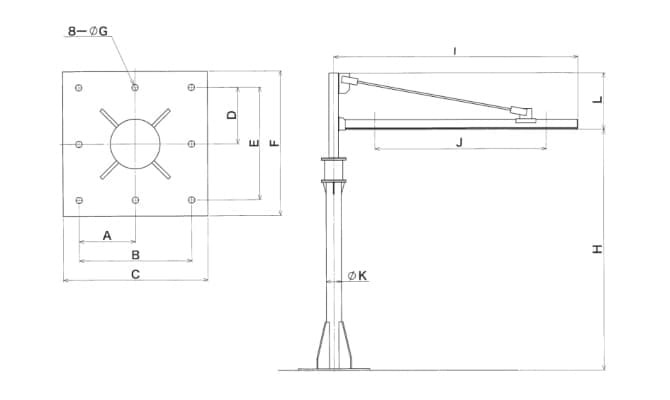

Specifications
| Model | A (mm） | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EJS-2-20-300 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 2,095 | 1,140 | φ216.8 | 700 | 300 |
| EJS-2-30-265 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 2,095 | 1,315 | φ216.8 | 700 | 265 |
| EJS-3-20-170 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 2,000 | 3,095 | 2,235 | φ216.8 | 900 | 170 |
| EJS-3-30-150 | 230 | 460 | 500 | 230 | 460 | 500 | φ20 | 3,000 | 3,095 | 2,235 | φ216.8 | 900 | 150 |
| EJB-2-20-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 2,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-2-30-400 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 2,110 | 1,140 | φ267.4 | 700 | 400 |
| EJB-3-30-250 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 3,110 | 2,235 | φ267.4 | 900 | 250 |
| EJB-4-30-120 | 280 | 560 | 600 | 280 | 560 | 600 | φ20 | 3,000 | 4,110 | 3,235 | φ267.4 | 900 | 120 |
