ENDO Rail System

ENDO Rail System is part of the ENDO Rail System range. ENDO rail systems and jib cranes for suspending air balancers and moving loads horizontally by hand.

You can move suspended loads flexibly without effort. This is an ideal transfer system with aluminum rails.
Since the system quickly follows the movement of the lifting equipment, you can move the load along the shortest route and reduce the operation time.
The components are available in kits and can be connected using bolts to allow easy assembly and construction.
Lower running resistance and improved controllability are achieved by the combination of the aluminum rails and resin wheels.

Specifications

Model	Unit Weight (kg/m)	Rail Height (inch)

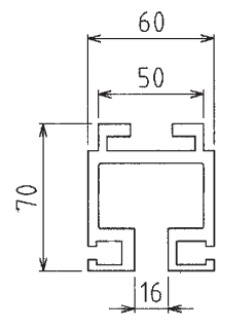

TR2000	3.6	2

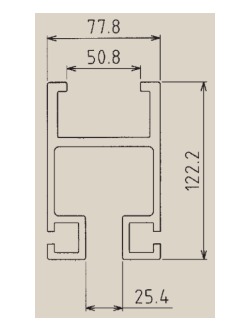

RAD4110	6.44	4

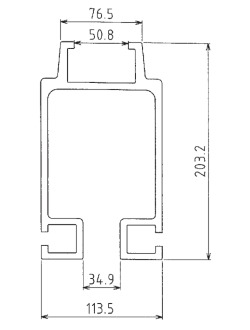

RAD7510	12.26	8

Allowable load

Rail length (m)	TR2000 Recommended load(kg)	RAD4110 Recommended load(kg)	RAD7510 Recommended load(kg)
1	200	500	500
2	100	500	500
3	45	250	500
4	25	140	500
5	16	90	470
6	11	60	330

Contact FullSharp for a quotation
