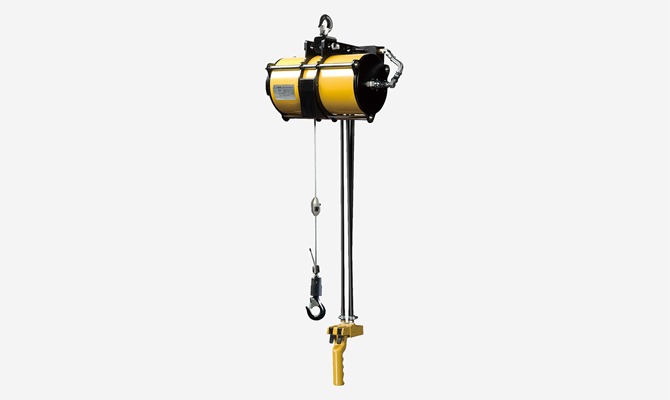

ENDO MSD Series Air Balancer

ENDO MSD Series Air Balancer is part of the ENDO Air Balancer with Lift Control Module range. ENDO air balancers with a lift control module, raised and lowered by push button or control handle: MS, MS-A, MS-ATC, MSD series and Kensui.

Hoisting capacity:0～90kg.
On the main equipment of the Air Balancer, speed control is available using the speed adjustment screw of the control module.
The built-in brake system eliminates inertial movement of the wire after stopping, and therefore, it can prevent swinging of the load (inertial motion prevention device).

Control Module Specification

Control module	Model	Hose	Operation	Weight (Kg)	Body
Hoisting	MSD	Straight×3	Pendant type	6	EHB-85D

Air Balancer Series (Wire rope)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Cable diameter (mm)	Air inlet
EHB-85D	0.7	90	1.9	34	Φ4.76	Rc 3/8
	0.6	75
	0.5	62
	0.4	50

（*）Weight: Without module

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Contact FullSharp for a quotation
