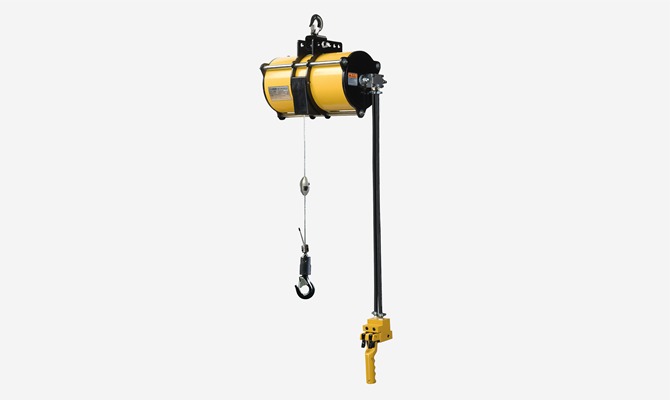

ENDO MS/MSS Series Air Balancer

ENDO MS/MSS Series Air Balancer is part of the ENDO Air Balancer with Lift Control Module range. ENDO air balancers with a lift control module, raised and lowered by push button or control handle: MS, MS-A, MS-ATC, MSD series and Kensui.

Hoisting capacity:0～450kg.
Speed control is available using the speed adjustment screw of the pendant switch.
With the floating feature, you can raise and lower the suspended load over an approx. 35 cm range from the stop position while holding the load by hand.

Control Module Specification

Control module	Model	Hose	Operation	Weight (Kg)	Weight (Kg)
Hoisting	MS	Straight hose×2	Pendant	2	EHB-50S(C), 50(C), 85(C), 130(C), 270CR
Hoisting	MSS	Straight hose×2	Pendant	2.2	EHB-2070(C), 450CR

Air Balancer Series (Wire rope)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Cable diameter (mm)	Air inlet
EHB-50S	0.7	55	0.7	21	φ4.76	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-50	0.7	55	1.9	28	φ4.76	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-85	0.7	90	1.9	29	φ4.76	Rc 3/8
	0.6	75
	0.5	62
	0.4	50
EHB-130	0.7	140	1.9	36	φ4.76	Rc 3/8
	0.6	120
	0.5	100
	0.4	80
EHB-270	0.7	270	1.9	43	φ6	Rc 3/8
	0.6	230
	0.5	190
	0.4	150

（*）Weight: Without module

Air Balancer Series (Link chain)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Chain size x Fall	Air inlet
EHB-50SC	0.7	55	0.65	20	4.0×1	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-50C	0.7	55	1.8	29	4.0×1	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-85C	0.7	90	1.8	30	4.0×1	Rc 3/8
	0.6	75
	0.5	62
	0.4	50
EHB-130C	0.7	140	1.8	37	4.0×1	Rc 3/8
	0.6	120
	0.5	100
	0.4	80
EHB-270C	0.7	270	1.7	44	4.0×1	Rc 3/8
	0.6	230
	0.5	190
	0.4	150
EHB-270CR	0.7	270	0.9	43	4.0 x 2	Rc 3/8
	0.6	230
	0.5	190
	0.4	150
EHB-450CR	0.6	450	0.85	50	4.0 x 2	Rc 3/8
	0.5	370
	0.4	290

（*）Weight: Without module

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Contact FullSharp for a quotation
