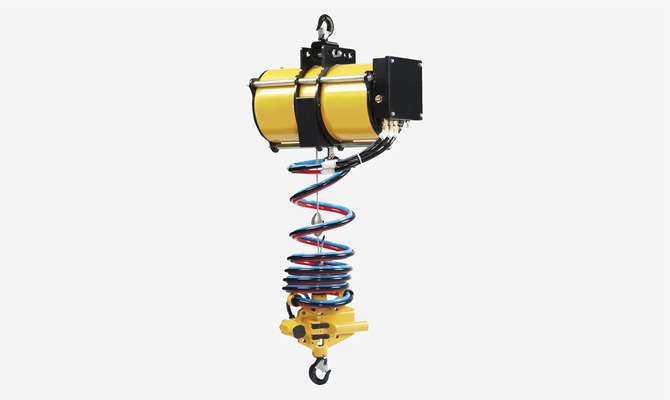

ENDO MS-ATC Series Air Balancer

ENDO MS-ATC Series Air Balancer is part of the ENDO Air Balancer with Lift Control Module range. ENDO air balancers with a lift control module, raised and lowered by push button or control handle: MS, MS-A, MS-ATC, MSD series and Kensui.

Hoisting capacity:0～140kg.
The up and down buttons and handle are mounted on the lower hook.
While ensuring the stability of a suspended load, the balancer provides better controllability compared to the standard pendant type.
Speed control is available using the speed adjustment screw of the lift control module.
The fall-arrest device prevents the load from dropping even if the air supply is shut off or when the pendant switch hose breaks.

Control Module Specification

Control module	Model	Hose	Operation	Weight(Kg)	Body
Hoisting	MS-ATC	Coil hose×3	Pendant	6	EHB-50S(C), 50(C), 85(C), 130(C)

Air Balancer Series (Wire rope)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Cable diameter (mm)	Air inlet
EHB-50S	0.7	55	0.7	21	Φ4.76	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-50	0.7	55	1.9	28	Φ4.76	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-85	0.7	90	1.9	29	Φ4.76	Rc 3/8
	0.6	75
	0.5	62
	0.4	50
EHB-130	0.7	140	1.9	36	Φ4.76	Rc 3/8
	0.6	120
	0.5	100
	0.4	80

（*）Weight: Without module

Air Balancer Series (Link chain)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Chain size x Fall	Air inlet
EHB-50SC	0.7	55	0.65	20	4.0×1	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-50C	0.7	55	1.8	29	4.0×1	Rc 3/8
	0.6	48
	0.5	40
	0.4	32
EHB-85C	0.7	90	1.8	30	4.0×1	Rc 3/8
	0.6	75
	0.5	62
	0.4	50
EHB-130C	0.7	140	1.8	37	4.0×1	Rc 3/8
	0.6	120
	0.5	100
	0.4	80

（*）Weight: Without module

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
