Air Balancer with Balance Control Module

ENDO Magical Balancer (EDB)

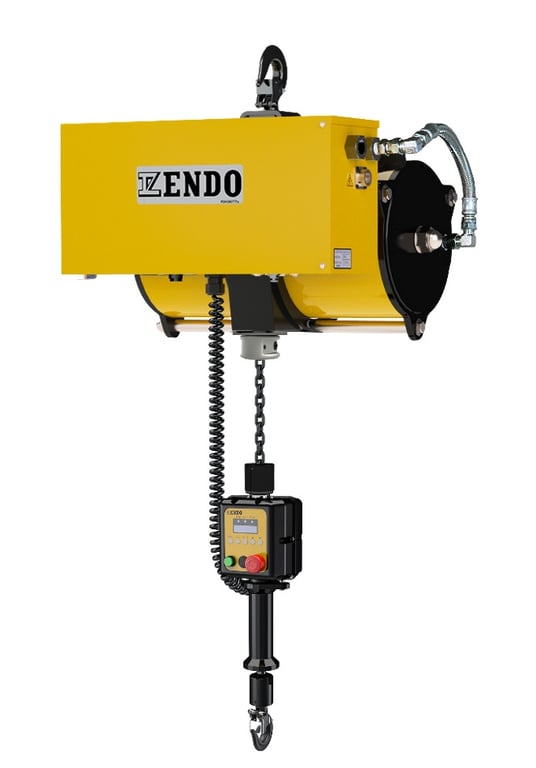

Name: ENDO Magical Balancer (EDB)
Brand: FullSharp

ENDO Magical Balancer (EDB) is part of the ENDO Air Balancer with Balance Control Module range. ENDO air balancers with a balance control module keep the load floating so it moves up and down with a light push: BC1, BC2, ABC series and the Magical Balancer.

Product Video

Overview

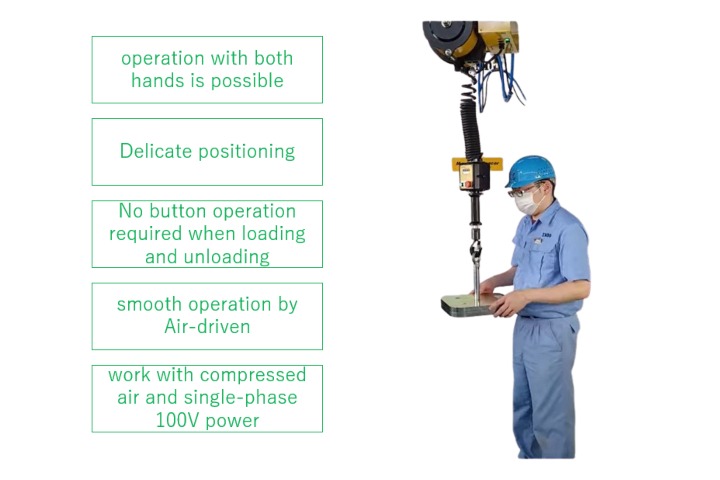

We would highly recommend the "Magical balancer" to companies that are having trouble transporting heavy objects.
The operation is simple and does not require any complicated steps.
It is ideal for sites where transportation and assembly work involving alignment is carried out.
A 100V single-phase power supply and compressed air are required.

■Main Applications
・Transporting heavy items carried manually

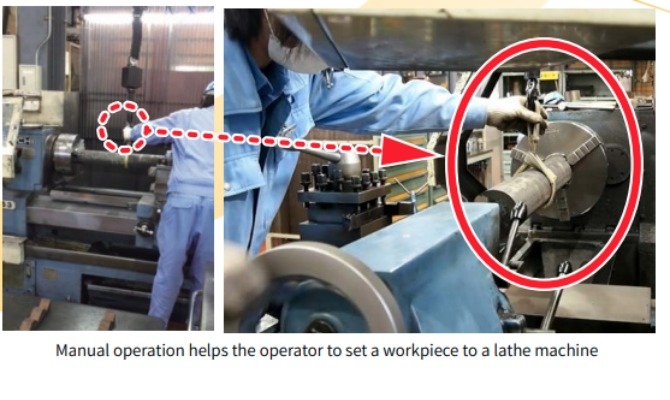

・Attaching the workpiece to the chuck of the processing machine
・Positioning during assembly work
・Handling heavy objects that require delicate work

Movie of Magical Balancer: Everything You Need to Know in 2 min!
No Button Operation is Required Automatically to Switch to Float Mode
Key Safety Features
Catalog・CAD・Manual Download
Features / Specification / Application

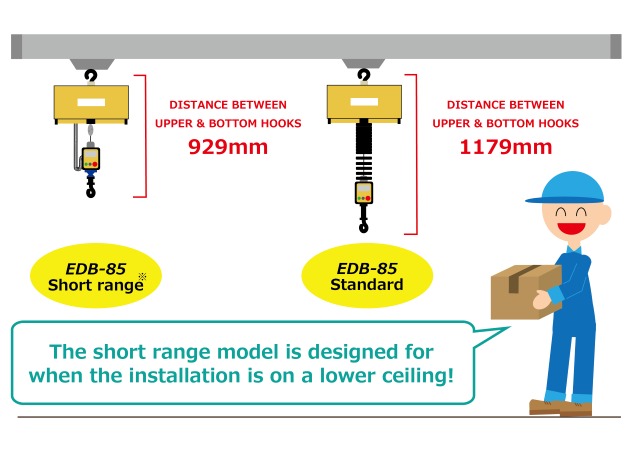

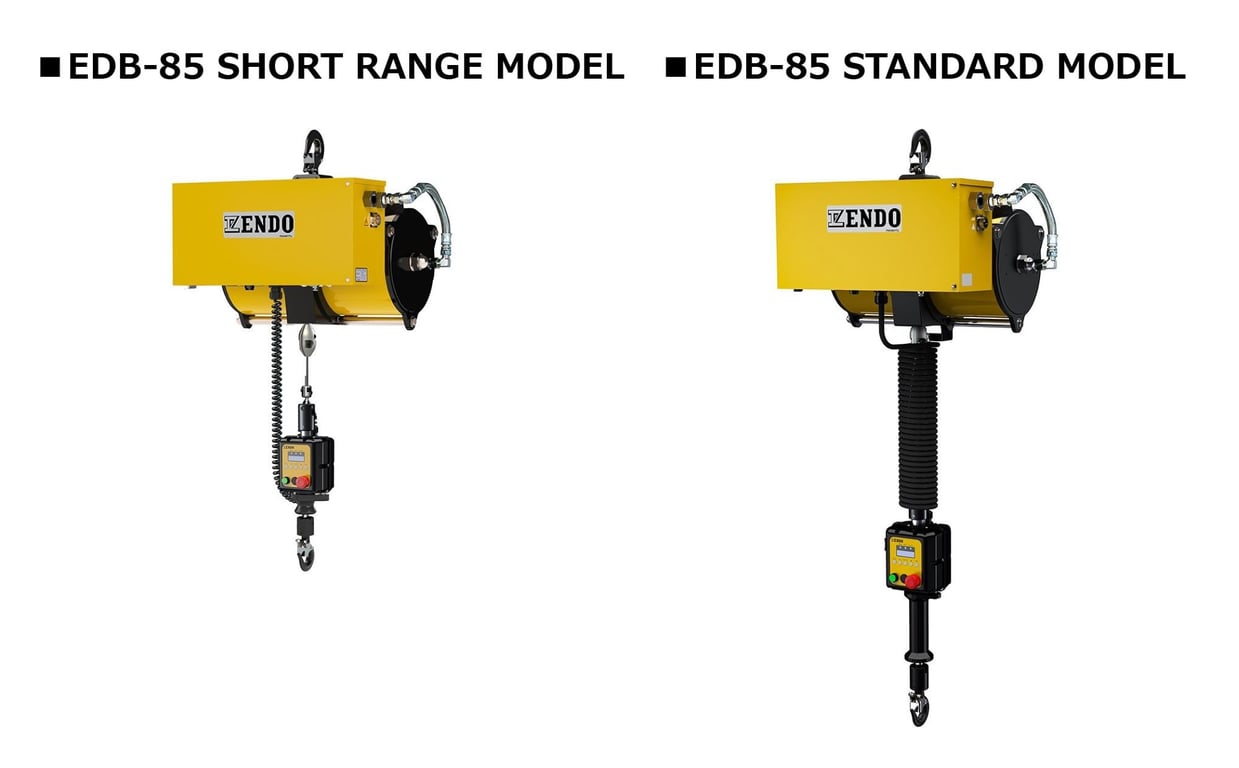

Low Ceilings are not a problem! Magical Balancer (Short Range Model)

・Either model of the different ranges can be selected according to a working space to meet the operation range.
・It allows smooth operation that can be combined with a rail system or a jib crane.
・The short range model of Magical Balancer is the special specification.
Please contact us for further information on the inquiry form.

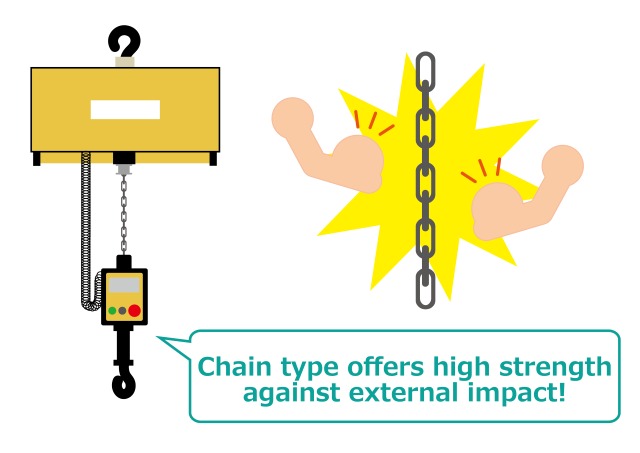

Chain Type Offers Higher Durability to External Impact

・The standard model comes equipped with a wire rope but can be changed to the chain type for increased strength and impact durability.
・Due to assembly processes, the length of the chain is set to within ±50mm of the standard length. Please contact us for further information.

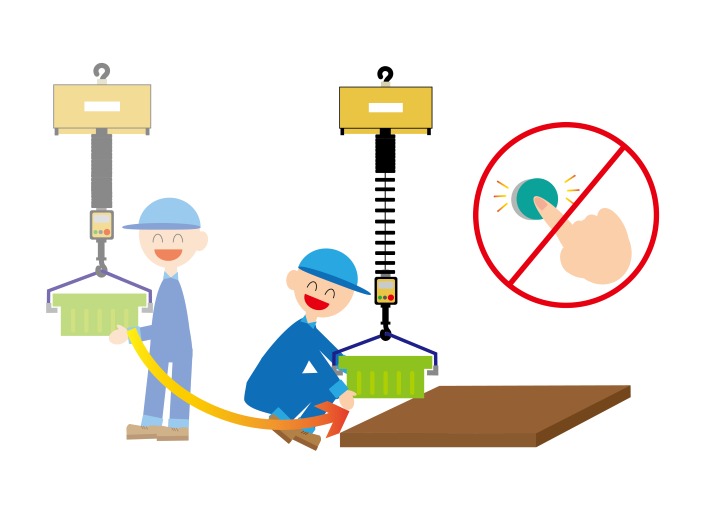

No Button Operation is Required Automatically to Switch to Float Mode

・You do not have to do a bothersome button operation whenever hoisting and lowering a workpiece after the load weight is detected.

Key Safety Features

■What happens if the suspended workpiece suddenly falls??

→Snap back arrest safety feature is equipped to prevent injuries caused by bouncing

■What happens during a power outage?

→Magical Balancer will not drop the load even if the air supply and electrical connections are disconnected.

This video shows the entire process until the load is lowered by pressing the emergency descent button.

Realizing smooth operability by adopting a new control method that combines electronic control and air control

By equipping sensor on the grip, the weight of the suspended load is detected in real time and air pressure in the cylinder is automatically controlled. It realizes smooth and light operability, quick operation and followability.

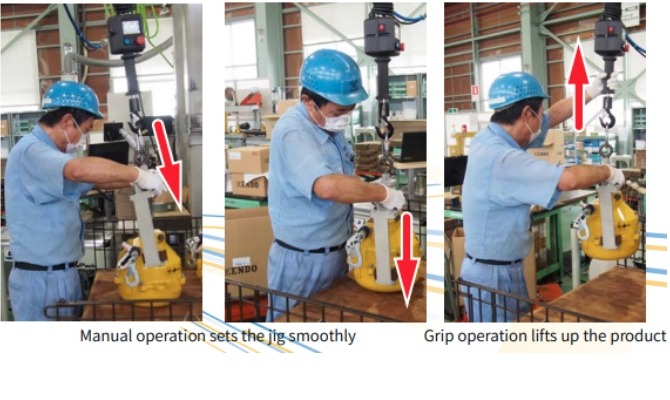

Grip operation mode that shorten the required time to lift off the ground

This mode is used to attach / detach the suspended load and lift up / down the suspended load by sliding up or down the grip.
By detecting the weight of the suspended load in real time, the required time to lift off the ground has been significantly reduced (* patent pending).

Work balance mode that reduces the operating force

By sensing the force added to the suspended load, the operating force in balance mode is greatly improved.
When you release the grip, it instantly shifts to work balance mode.
Compared to our standard air balancers , The balance operation force (operating force) in the work balance mode has been reduced to about 1/2 to 1/3 (* patent pending)

Function for allowing gradual weight change of the suspended load

Cylinder pressure is automatically adjusted according to changes in the weight of the suspended load to maintain the suspended load.
[Application]
Pouring the liquid contained in the lifted container into another container.
[Note]
It may be necessary to consider your work condition if you use this function. Please contact us for details if you want to use this function.

Improved maintainability

By equipping an alarm function that displays the details of the error when an abnormality occurs. It reduces the time to spent to identify the cause of anomalies. For example, it can quickly detect an abnormality such as a drop in air pressure.

Specifications

Model	Air pressure (mpa)	lifting capacity (kg)	Travel (m)	Mass (kg)	Wire rope diameter (mm)	Air Connection	Electricity
EDB-50	0.4	20	1.9	42	Φ4.76	Rc 1/2	AC100V-240V
	0.5	30
	0.6	40
	0.7	50
EDB-85	0.4	40	1.9	43	Φ4.76	Rc 1/2	AC100V-240V
	0.5	55
	0.6	70
	0.7	85
EDB-130	0.4	61	1.9	50	Φ4.76	Rc 1/2	AC100V-240V
	0.5	84
	0.6	107
	0.7	130
