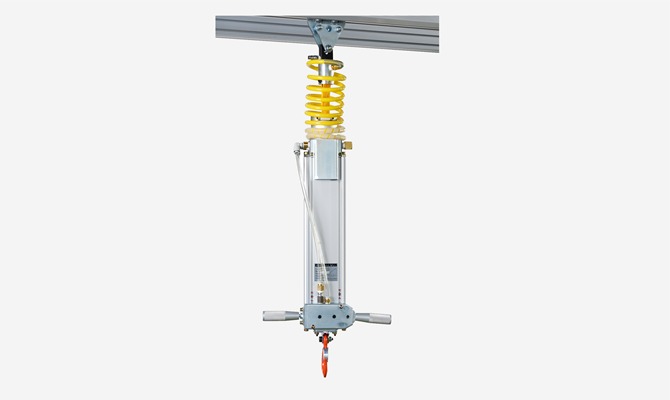

ENDO Kensui Air Balancer

ENDO Kensui Air Balancer is part of the ENDO Air Balancer with Lift Control Module range. ENDO air balancers with a lift control module, raised and lowered by push button or control handle: MS, MS-A, MS-ATC, MSD series and Kensui.

Hoisting capacity:0～70kg.

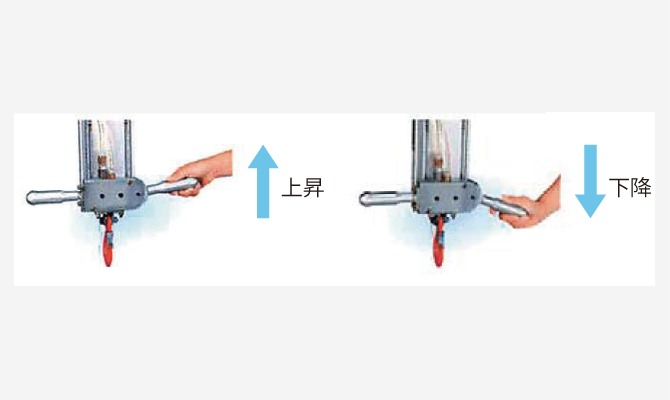

Lift-up/down and speed adjustment can be operated with a single lever and one hand.
The maximum lifting speed is 50 m/min, allowing an operation speed that is closer to the speed as if handling a lightweight object manually.

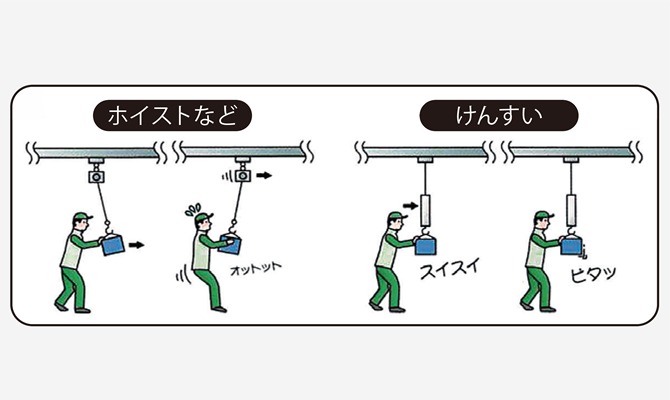

The center of gravity of the main body is designed to be low and it moves near the load. This structure prevents the main equipment and load from swinging.
Kensui is driven only by air, enabling its use in explosion hazardous areas.
Aluminum (anodized aluminum finish) is used for the major portion of the main equipment to prevent the “coat peeling”. Therefore, Kensui is ideal for applications such as food processing and precision products where sanitation and cleanliness are critical.
This type is equipped with a fall-arrest mechanism for when the air supply is shut off.

Specifications

Model	ARS070
Vertical Stroke	1300mm
Main equipment mass (including the hook unit)	Approx 10kg
Main equipment height (without the hook unit)	Approx 685mm

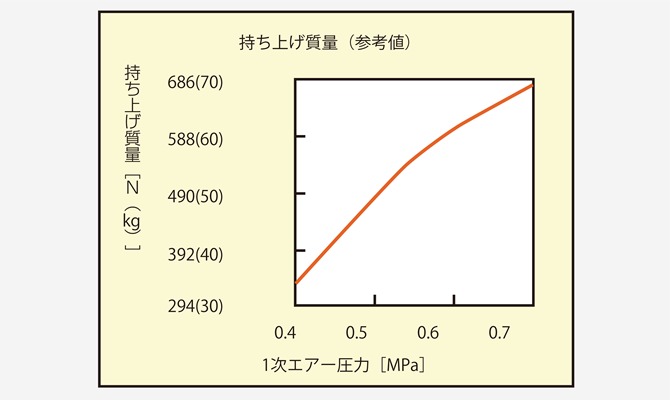

Rated lifting weight (including the lifting tool)	70kg (MAX 686N) (at a reduced pressure of 0.7 Mpa)
Operatibg air Pressure	0.4~0.7Mpa
Air Consumption	25l/min(ANR)(per one stroke)
Lifting speed(Reference value)	Without Load：0~50m/min With lifting 50kg：0~30m/min
Main Equipment Swivel	Unlimited

Accessories

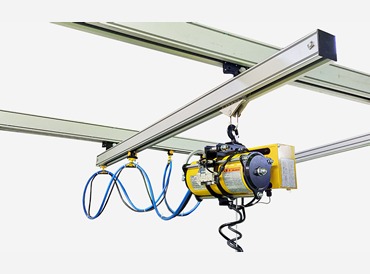

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

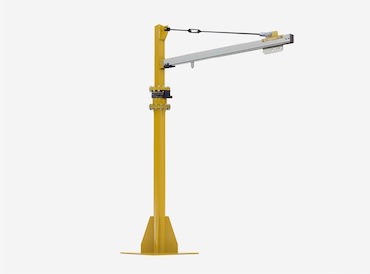

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
