ENDO Easy Positioner

Name: ENDO Easy Positioner
Brand: FullSharp

ENDO Easy Positioner is part of the ENDO Servo Balancer range. ENDO servo balancers use a servo motor to lift and position loads following the operator's hand force; they need only electric power, no compressed air.

Product Video

Overview

ENDO Easy Positioner is controlled by a potentiometer switch (volume switch) for smooth, precise and ultra -slow operation.
The lifting and lowering speed can be controlled to 1/100th of the maximum lifting speed.
It is suitable for jobs that requires precise positioning.
Maximum lifting weight is 300kg and it works on dual single-phase 200V and three-phase 200/220V.

■Main Applications
・Precise assembly operations
・Transporting workpieces to specified positions and performing attachment/detachment tasks
・Handling delicate workpieces
・Integration into automated transfer systems

Application usage

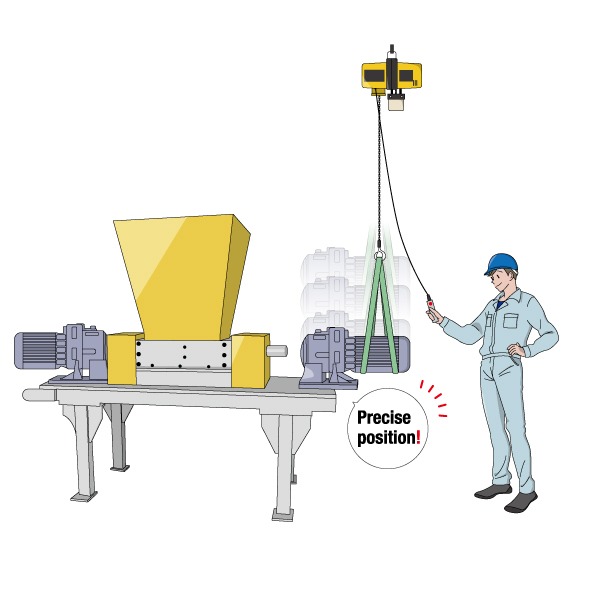

【Application usage 1】 Assembling large machinery:
The Easy Positioner lifts or lowers the workpiece to the desired position without inching.

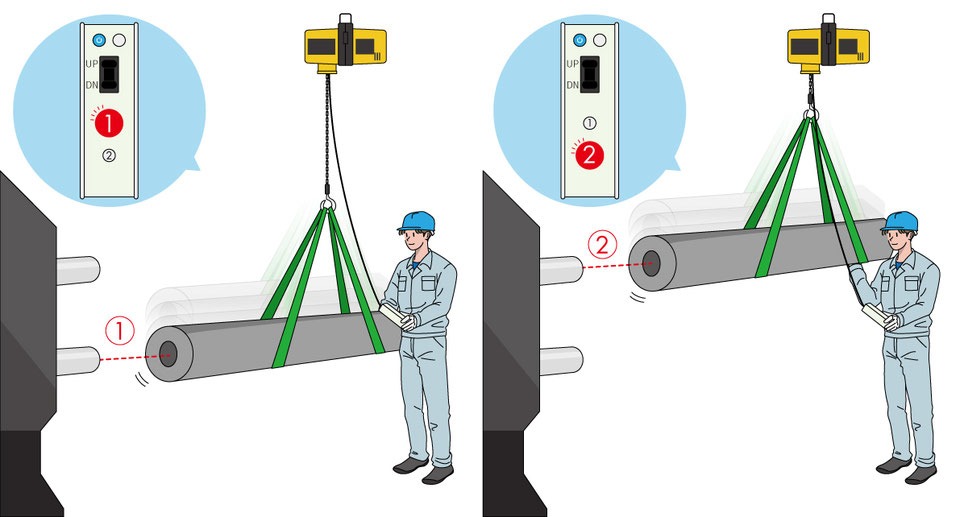

【Application usage 2】 Assembly work at different heights:

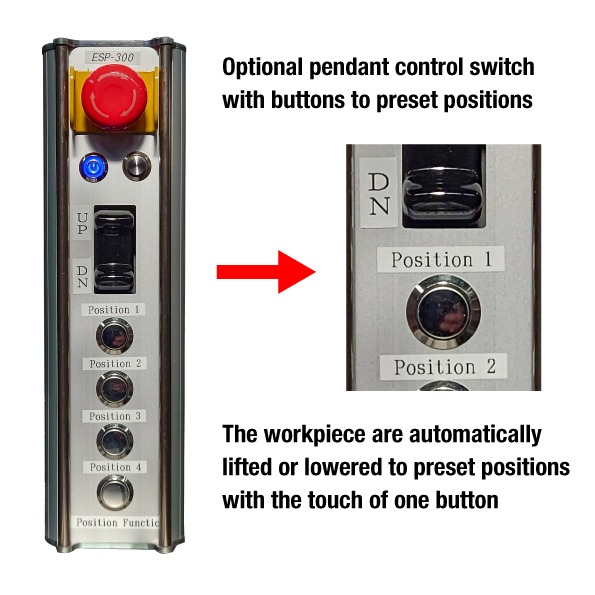

By presetting a position to a Position button “Position 1”, “Position 2”, “Position 3”…, The workpiece can automatically be lifted or lowered to the preset with the touch of one button. This allows for one touch positioning work of the workpiece with fixed installation heights.

Presetting variable speeds in the stroke is possible with customization options enabling smooth, precise, efficient positioning with the touch of one button.

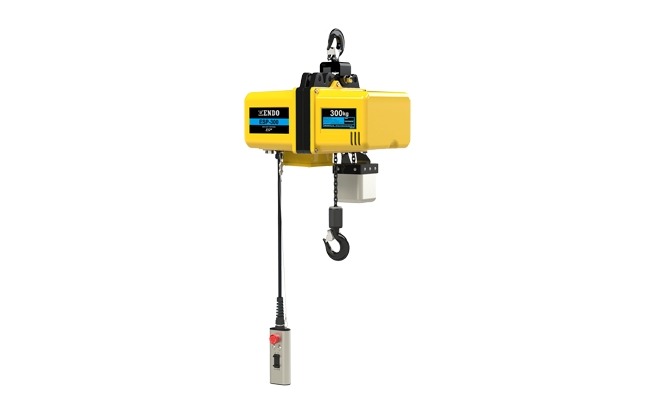

Product appearance

ESP-300

The standard cable length of a pendant control switch is 2 meters.

Specifications

Model	Capacity [kg]	Lifting speed [m/sec]	Lowest speed [m/sec]	Stroke [m]	Servo motor capacity [W]	Power supply [50/60Hz]	Mass [Kg]
ESP-300	300	0.274	0.0028	3	1000	Single Phase 200 3 Phase 200/220	31

The standard cable length of a pendant control switch is 2 meters.

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Contact FullSharp for a quotation
