Air Balancer with Balance Control Module

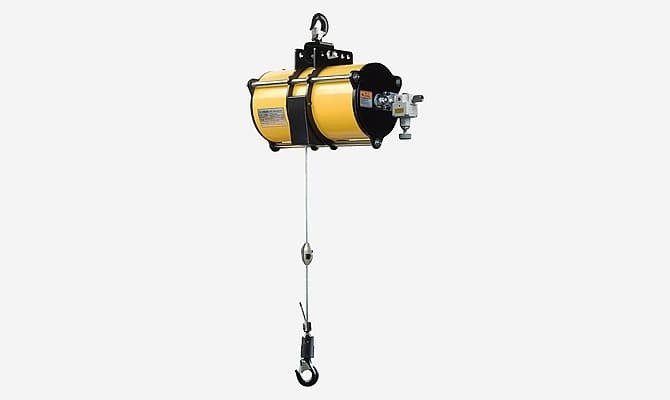

ENDO BC1 Series Air Balancer

ENDO BC1 Series Air Balancer is part of the ENDO Air Balancer with Balance Control Module range. ENDO air balancers with a balance control module keep the load floating so it moves up and down with a light push: BC1, BC2, ABC series and the Magical Balancer.

Hoisting capacity:0～270kg.
This is a single balancing module type.
Balance a suspended load that is specified within the range of 0 to the maximum hoisting capacity.
Use the regulator on the side of the main equipment to specify the weight of the suspended load and balance the load. You can manually perform a balancing operation over the full range of a stroke.
This feature facilitates load-lifting operations.

Control Module Specification

Control module	Model	Weight(Kg)	Body
Single Balance Module	BC1	1	EHB-50S(C), 50(C), 85(C), 130(C), 270CR

Air Balancer Series (Wire rope)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Cable diameter (mm)	Air inlet
EHB-50S	0.7	55	0.7	21	Φ4.76	Rc 1/4
	0.6	48
	0.5	40
	0.4	32
EHB-50	0.7	55	1.9	28	Φ4.76	Rc 1/4
	0.6	48
	0.5	40
	0.4	32
EHB-85	0.7	90	1.9	29	Φ4.76	Rc 1/4
	0.6	75
	0.5	62
	0.4	50
EHB-130	0.7	140	1.9	36	Φ4.76	Rc 1/4
	0.6	120
	0.5	100
	0.4	80

（*）Weight: Without module

Air Balancer Series (Link chain)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Chain size x Fall	Air inlet
EHB-50SC	0.7	55	0.65	20	4.0×1	Rc 1/4
	0.6	48
	0.5	40
	0.4	32
EHB-50C	0.7	55	1.8	29	4.0×1	Rc 1/4
	0.6	48
	0.5	40
	0.4	32
EHB-85C	0.7	90	1.8	30	4.0×1	Rc 1/4
	0.6	75
	0.5	62
	0.4	50
EHB-130C	0.7	140	1.8	37	4.0×1	Rc 1/4
	0.6	120
	0.5	100
	0.4	80
EHB-270CR	0.7	270	0.9	43	4.0x2	Rc 1/4
	0.6	120
	0.5	100
	0.4	80

（*）Weight: Without module

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Contact FullSharp for a quotation
