Air Balancer with Balance Control Module

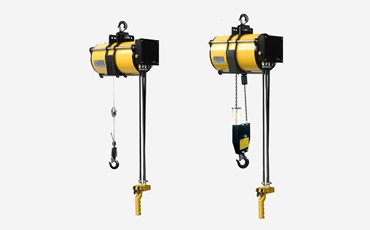

ENDO ABC Series Air Balancer

ENDO ABC Series Air Balancer is part of the ENDO Air Balancer with Balance Control Module range. ENDO air balancers with a balance control module keep the load floating so it moves up and down with a light push: BC1, BC2, ABC series and the Magical Balancer.

Hoisting capacity:0～160kg.
This is a dual balancing module type.
Balance a suspended load that is specified within the range of 0 to the maximum hoisting capacity.
You can manually perform a balancing operation over the full range of a stroke.
The fall-arrest device prevents the load from dropping even if the air supply is shut off or when the pendant switch hose breaks.
The load will descend slowly when the air supply is shut off.
You can easily perform the load setting with the regulator on the side of the main equipment and the load switching using the button control.
Switching with a two-handed handle is available to make the button control easier (BC2-H).

Product Video

Control module Specifications

Control module	Model	Hose	Operation	Weight (kg)	Body
Full auto module	ABC-5P-B	Coil hose×3	Pendant	11	EHB-50S(C), 50(C), 85(C), 130(C), 270CR
Full auto module	ABC-5G-B	Coil hose×3	Grip	11	EHB-50S(C), 50(C), 85(C), 130(C)

Air Balancer Series (Wire rope)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Cable diameter (mm)	Air inlet
EHB-50	0.5	40	1.9	28	Φ4.76	Rc 3/8
	0.4	30
	0.3	20
EHB-85	0.5	60	1.9	29	Φ4.76	Rc 3/8
	0.4	45
	0.3	30
EHB-130	0.5	85	1.9	36	Φ4.76	Rc 3/8
	0.4	62.5
	0.3	40

（*）Weight: Without module

Air Balancer Series (Link chain)

Model	Air pressure (MPa)	Max lifting capacity (kg)	Stroke (m)	Weight (kg)(*)	Chain size x Fall	Air inlet
EHB-50C	0.5	40	1.8	29	4.0×1	Rc 3/8
	0.4	30
	0.3	20
EHB-85C	0.5	60	1.8	30	4.0×1	Rc 3/8
	0.4	45
	0.3	30
EHB-130C	0.5	85	1.8	37	4.0×1	Rc 3/8
	0.4	62.5
	0.3	40
EHB-270CR	0.5	160	0.9	43	4.0×2	Rc 3/8
	0.4	115
	0.3	70

（*）Weight: Without module

Accessories

Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
