Gantry Crane

A gantry crane is a variant of the overhead crane, used to lift and move goods and heavy equipment in workshops, factories, seaports, airports and other outdoor areas. The gantry crane travels on rails laid on a concrete floor.

Gantry crane construction

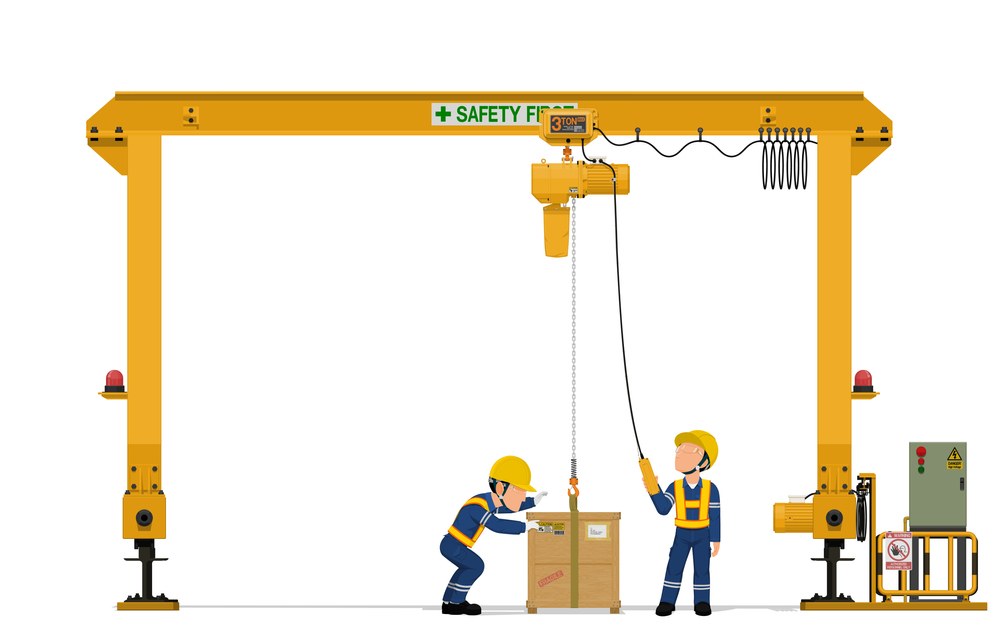

A gantry crane consists of 2 main parts:
The steel structure, which includes:

Main girder: steel box girder.
Gantry legs (A-frame type)
End carriages (gantry end beams)
Accessories: guardrails, service platform, rail clamps, etc.

The equipment section, which includes:

Hoist
Electrical system

Full-Sharp gantry crane products

To meet the lifting needs of every type of customer, Full-Sharp has researched and developed the following gantry cranes:

Single girder gantry crane:

Single girder gantry crane

Mini single girder gantry crane with lower capacity

Mini gantry crane

Double girder gantry crane

Rail-mounted gantry crane

Advantages of gantry cranes
Gantry cranes are now widely used across many industries

Mobility: A gantry crane is fully mobile, so users can easily move it from one area to another wherever materials or goods need to be lifted.
Easy installation: The main girder, end carriages and gantry legs are joined with high-strength structural bolts, making the crane easy to transport, dismantle and assemble.
Reasonable cost, and installation suited to many different working environments
Applications: lifting goods, materials and containers in warehouses, yards and seaports; lifting precast concrete elements; and many other purposes.
Performs well both indoors and outdoors.
The gantry crane can lift loads of up to 3 tons.

For detailed specifications, operating information and orders, contact us via:

Mobile: 0817 888 198

Hotline: (+84)225.3888336 / (+84)225.3888338

Or visit us in person at: Factory A1-1, No. 6, Road 23, VSIP Hai Phong Industrial Park, Vietnam.

Whatever the lifting challenge, Full-Sharp has it covered.
