Pneumatic Jib Crane, 5T Rail, 200kg Tray Gripper

Plastic trays holding components are stacked and moved continuously between the conveyor, inspection table, and storage racks. A full tray is heavy, and carrying it by hand can easily tilt it, shifting or dropping the components inside.

FullSharp suspends a pneumatic jib crane from the beam, running it on a 5T rail rated for 200 kg, and fits it with a gripper tool that hugs the tray sides. The tray stays level throughout the move, and the operator rotates the arm 360 degrees to bring it to the right station before releasing the grip.

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper

Pneumatic jib crane suspended on a 5T rail with a plastic tray gripper tool, moving a component tray.

Installed Equipment

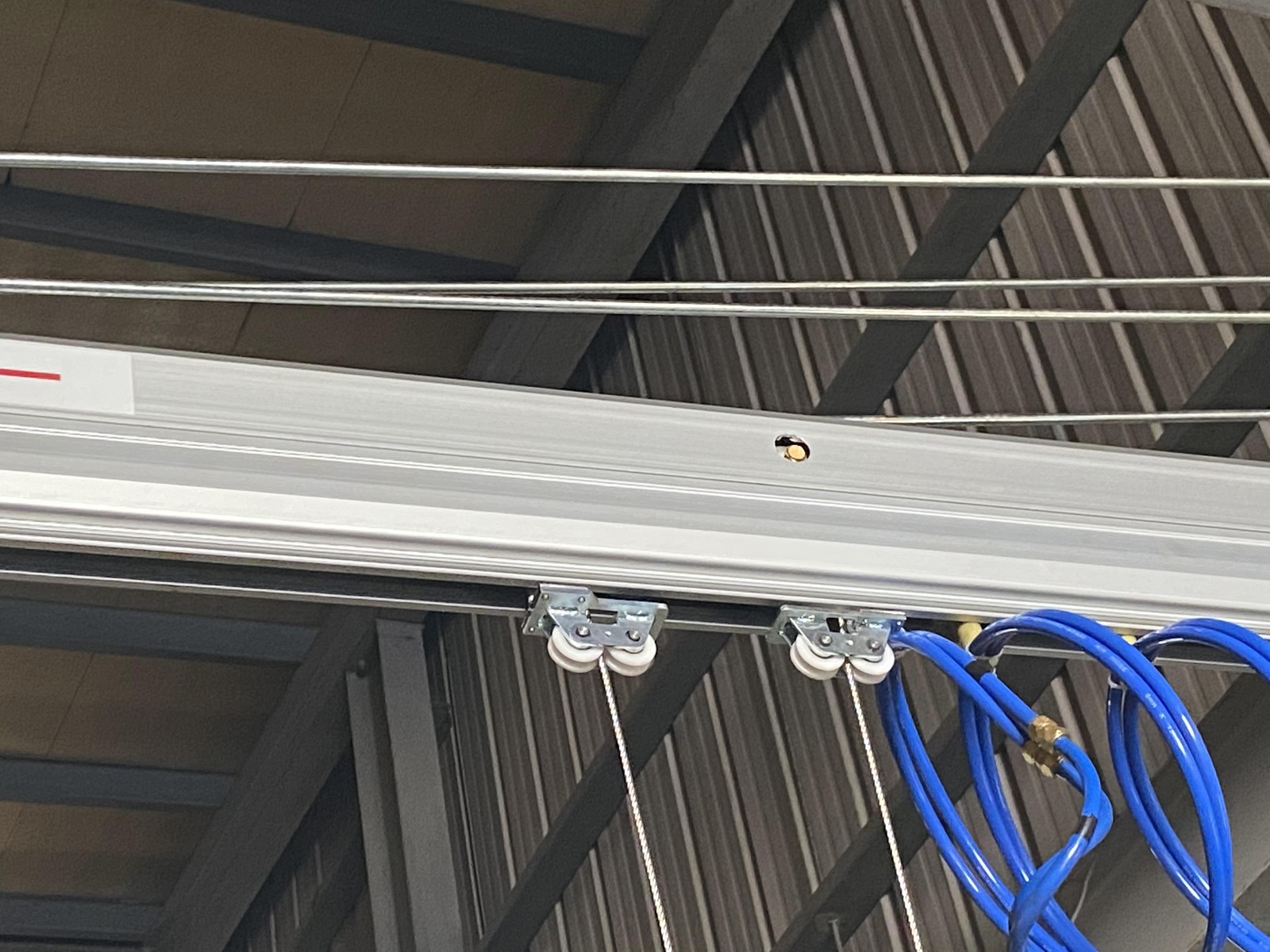

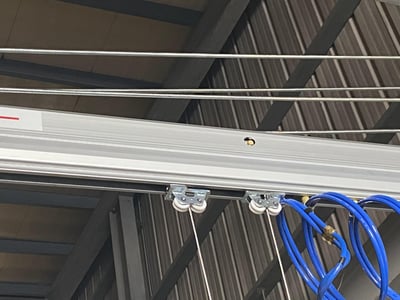

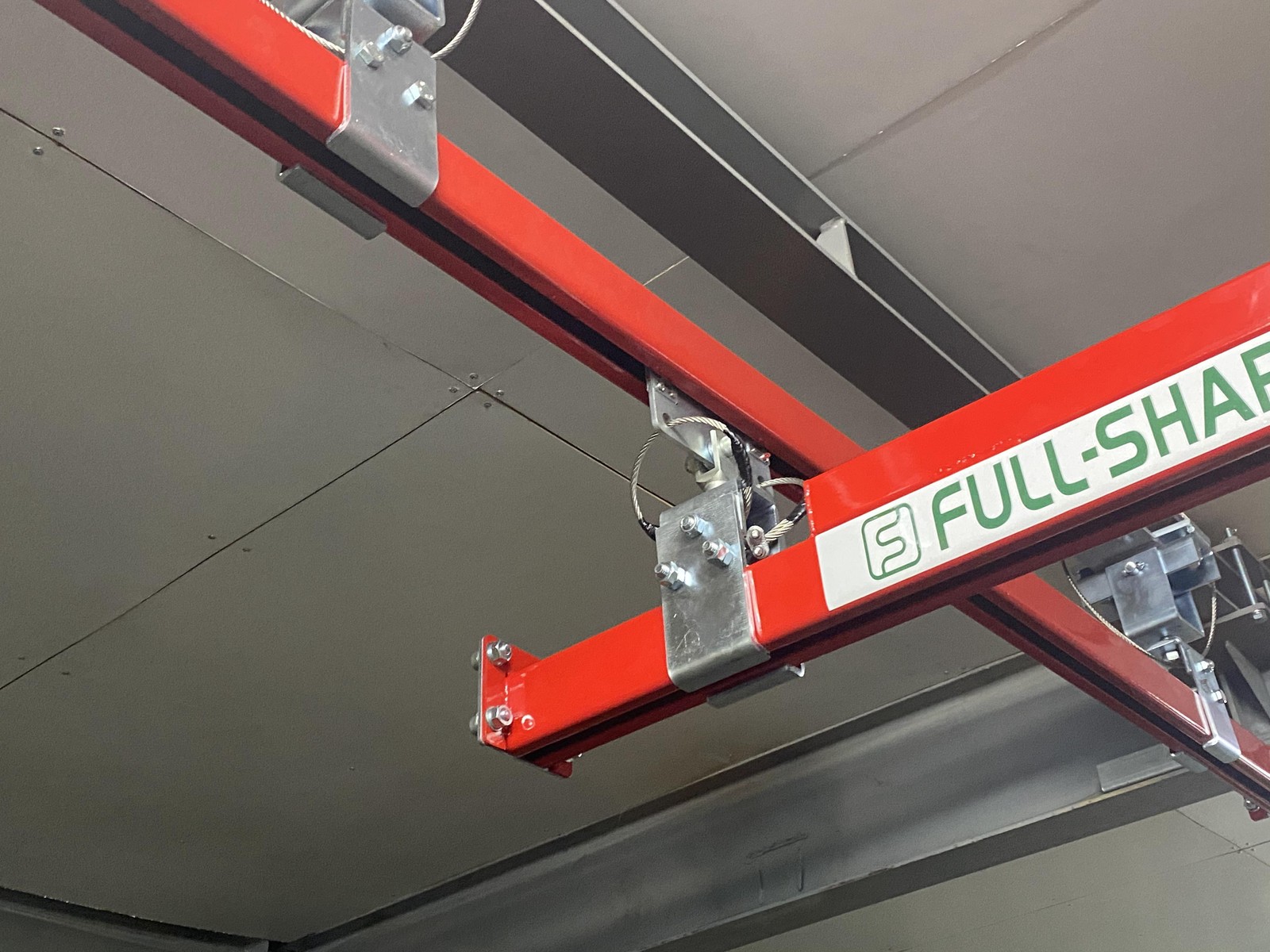

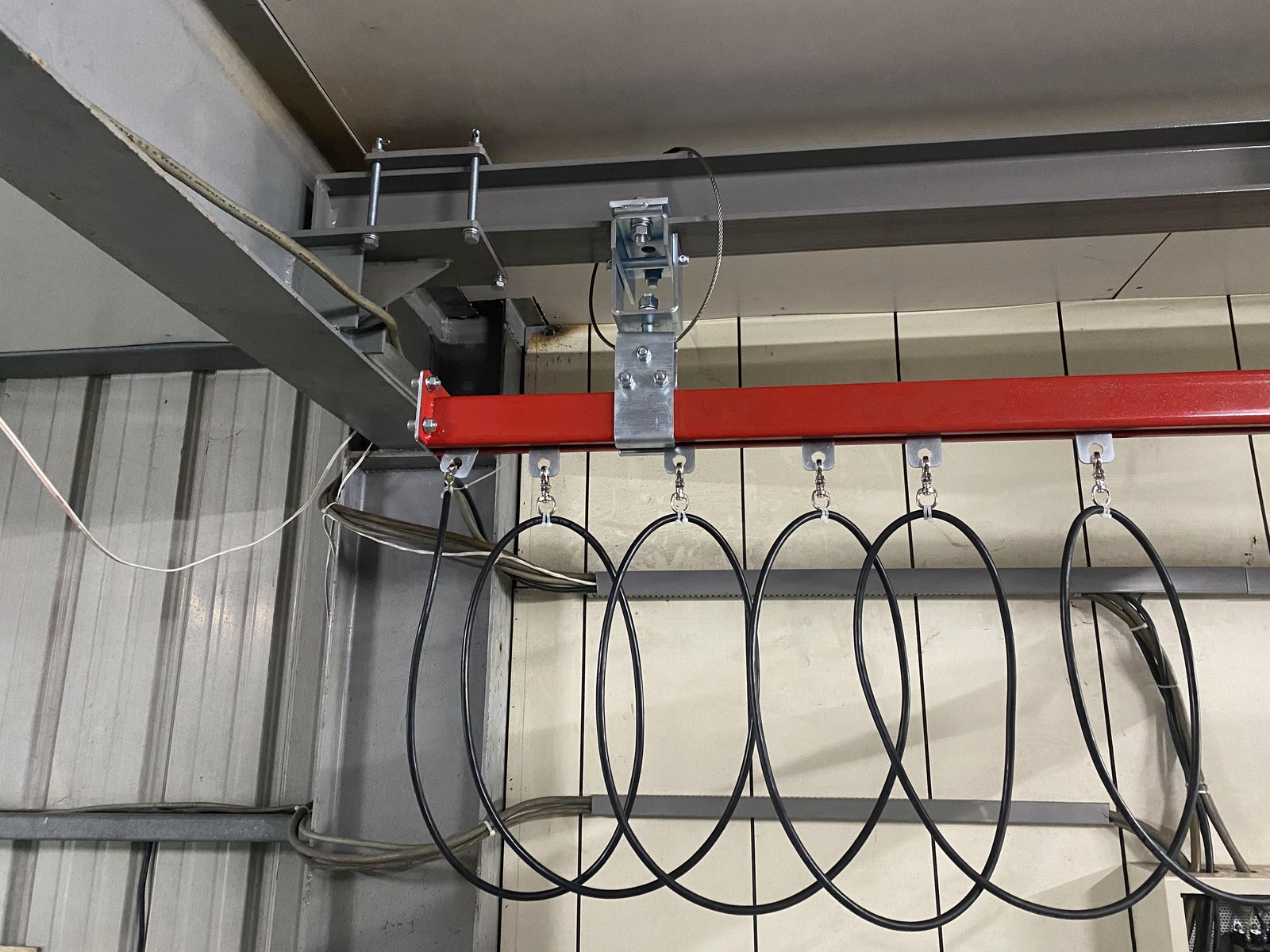

5T rail rated for 200 kg: suspended from the plant beam, with the trolley gliding smoothly along the working line.

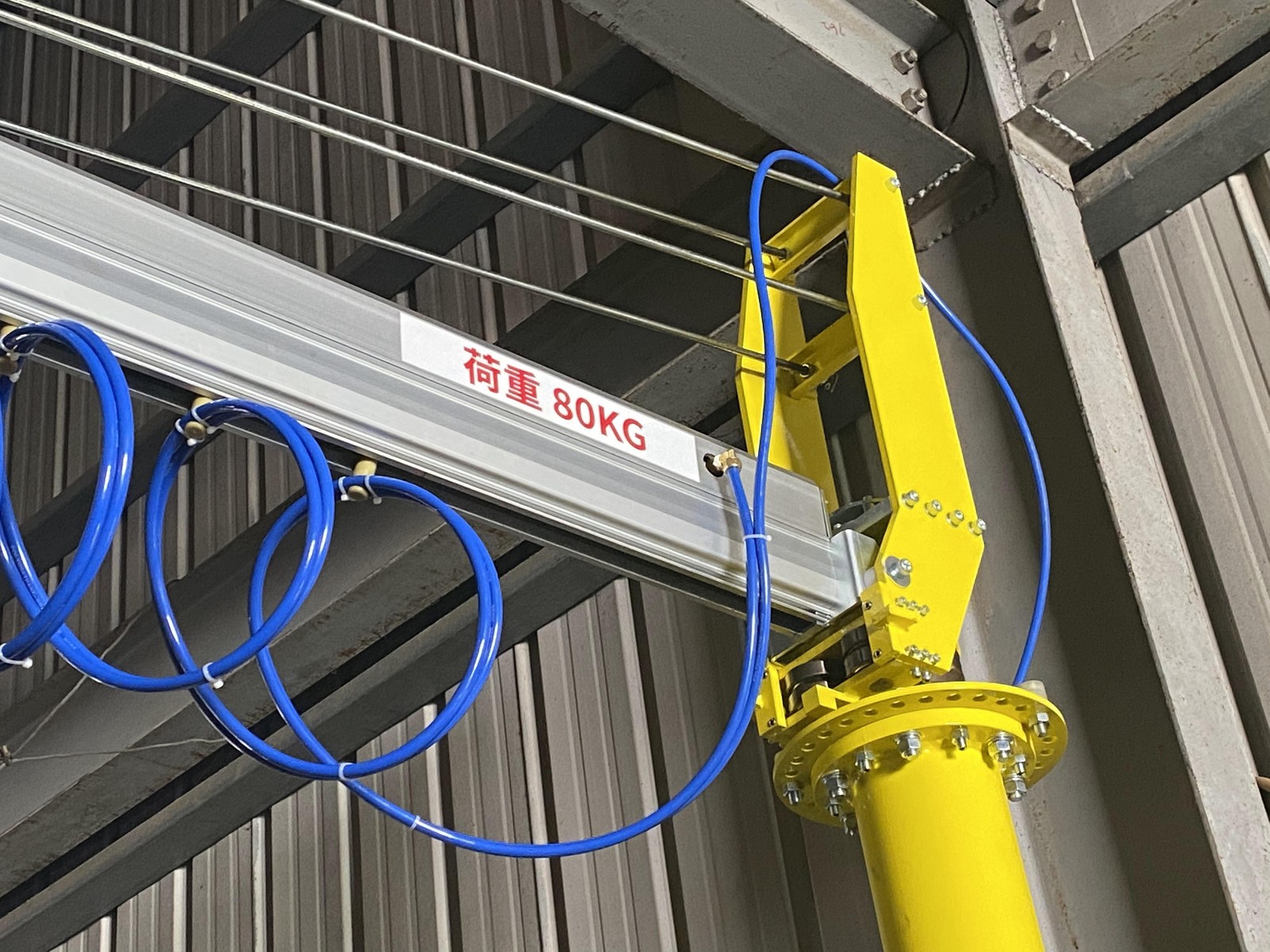

Pneumatic jib arm: rotates 360 degrees and carries the tray's weight, leaving the operator only to guide it.

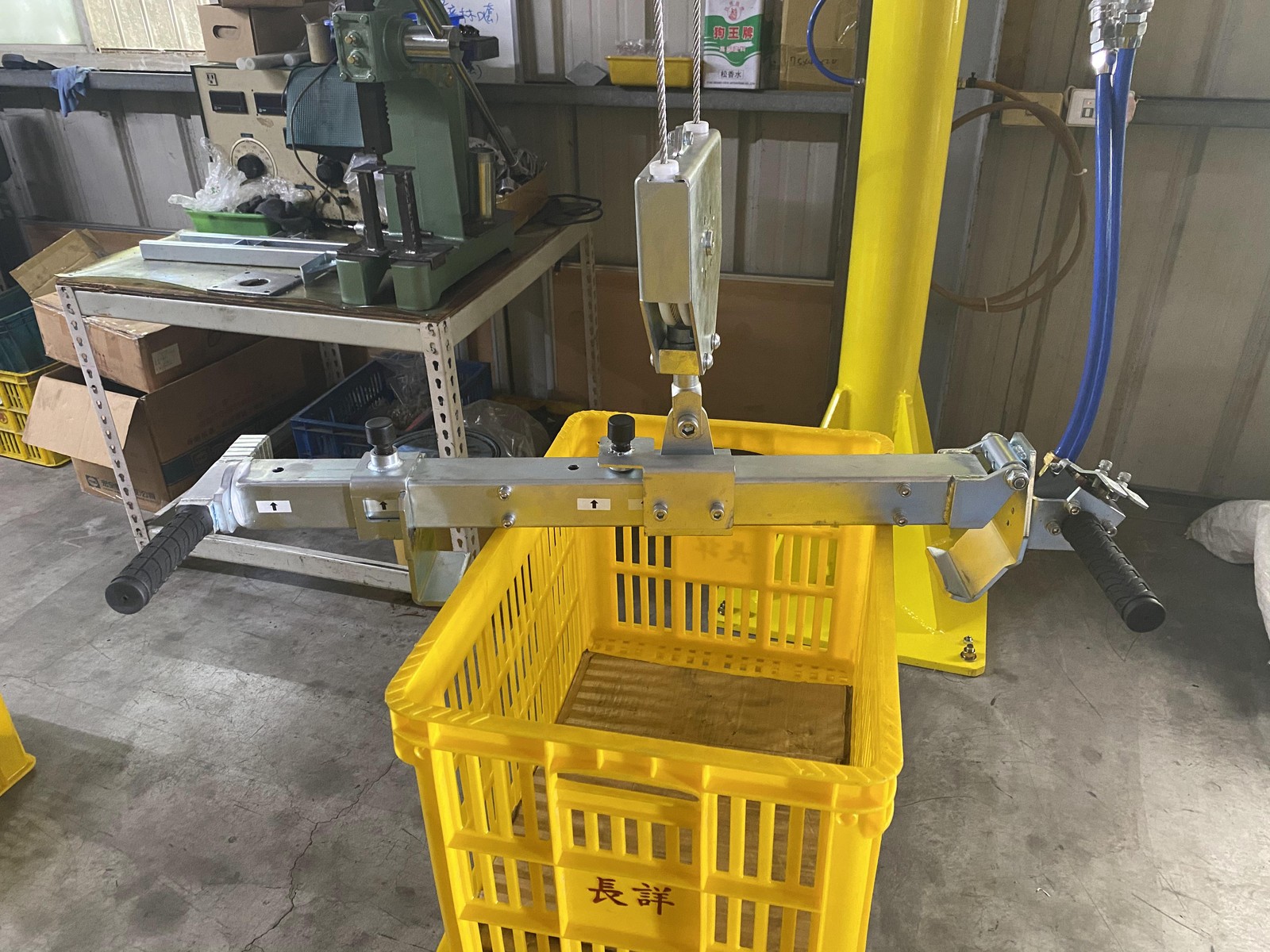

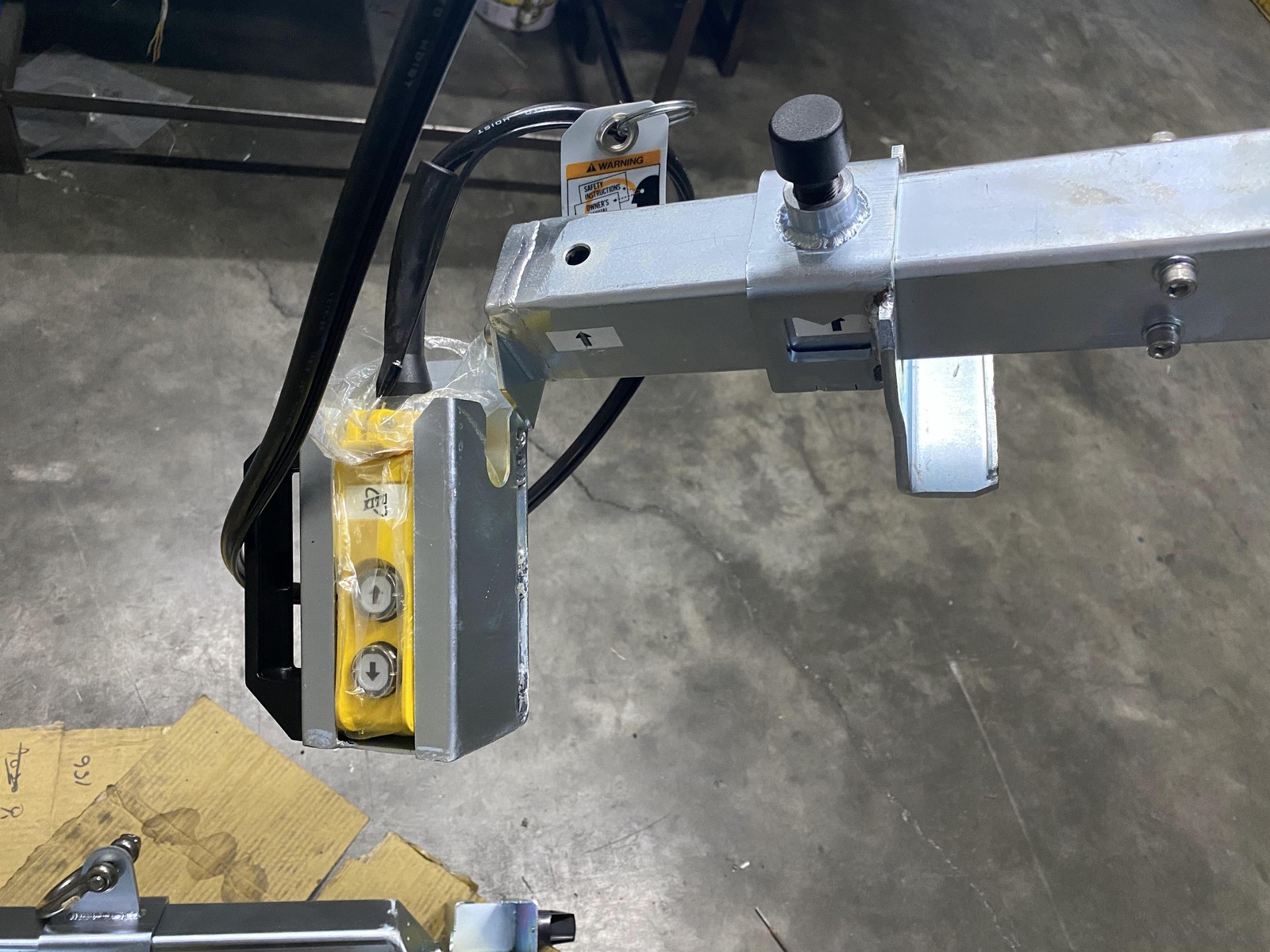

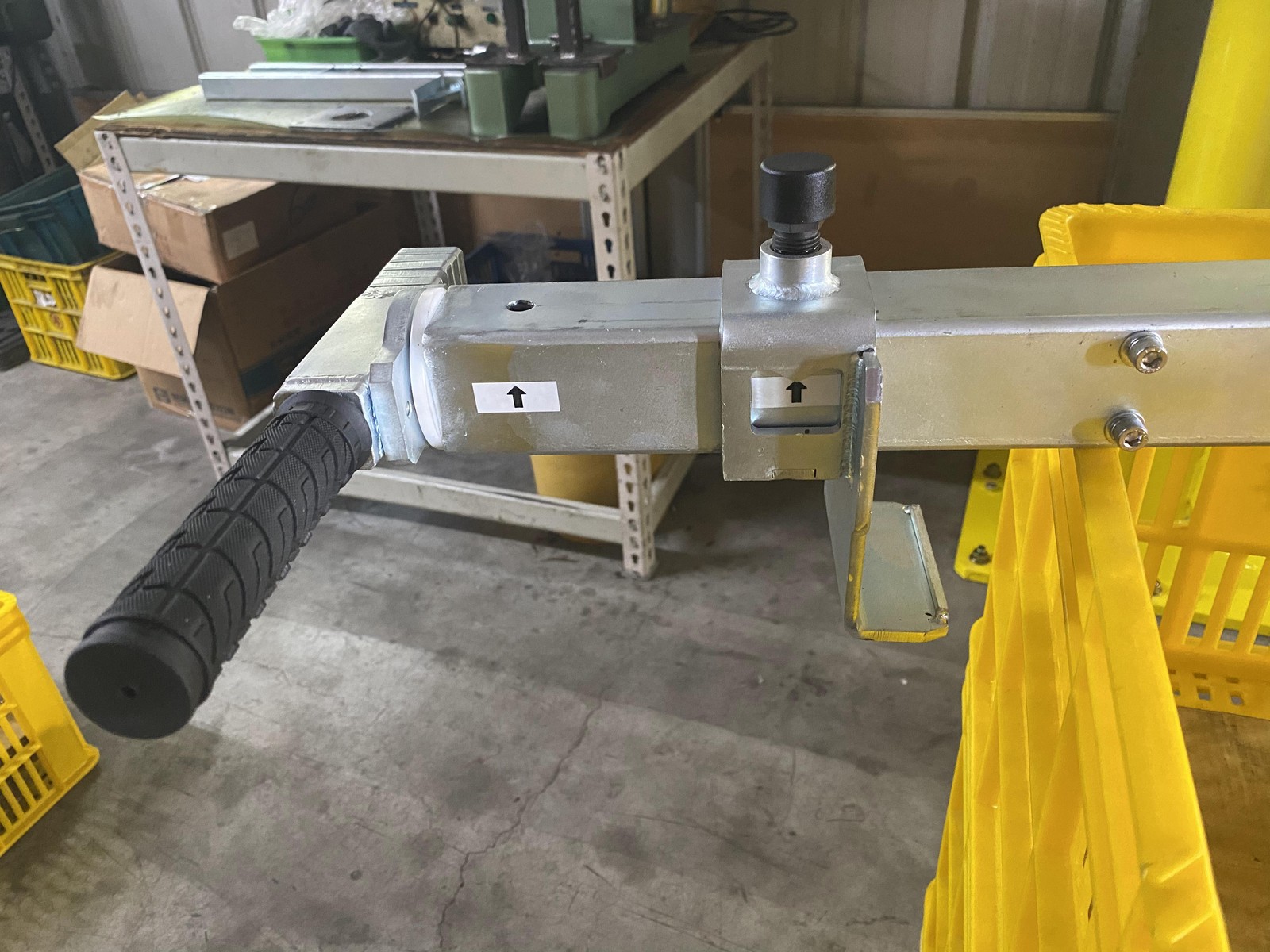

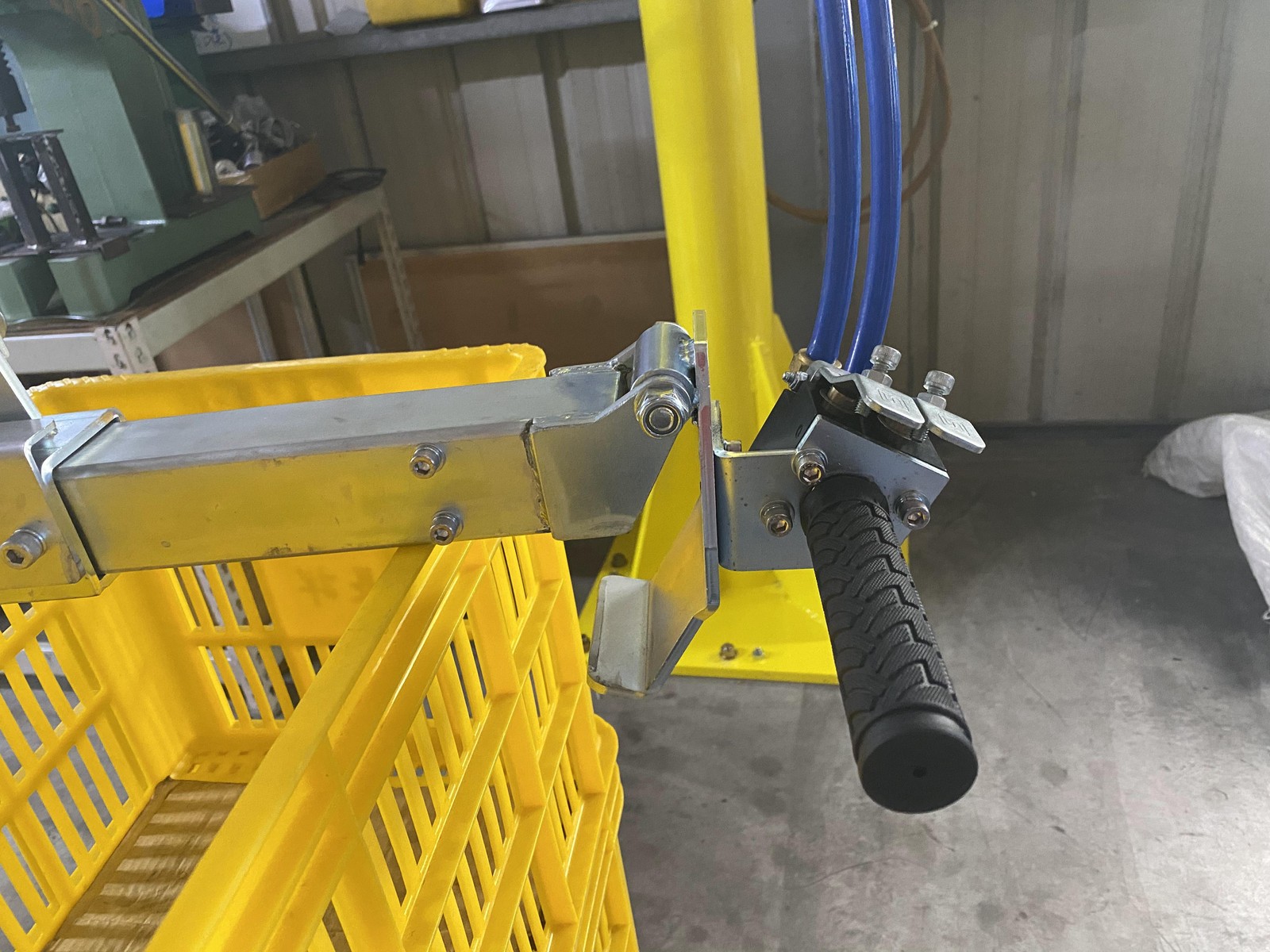

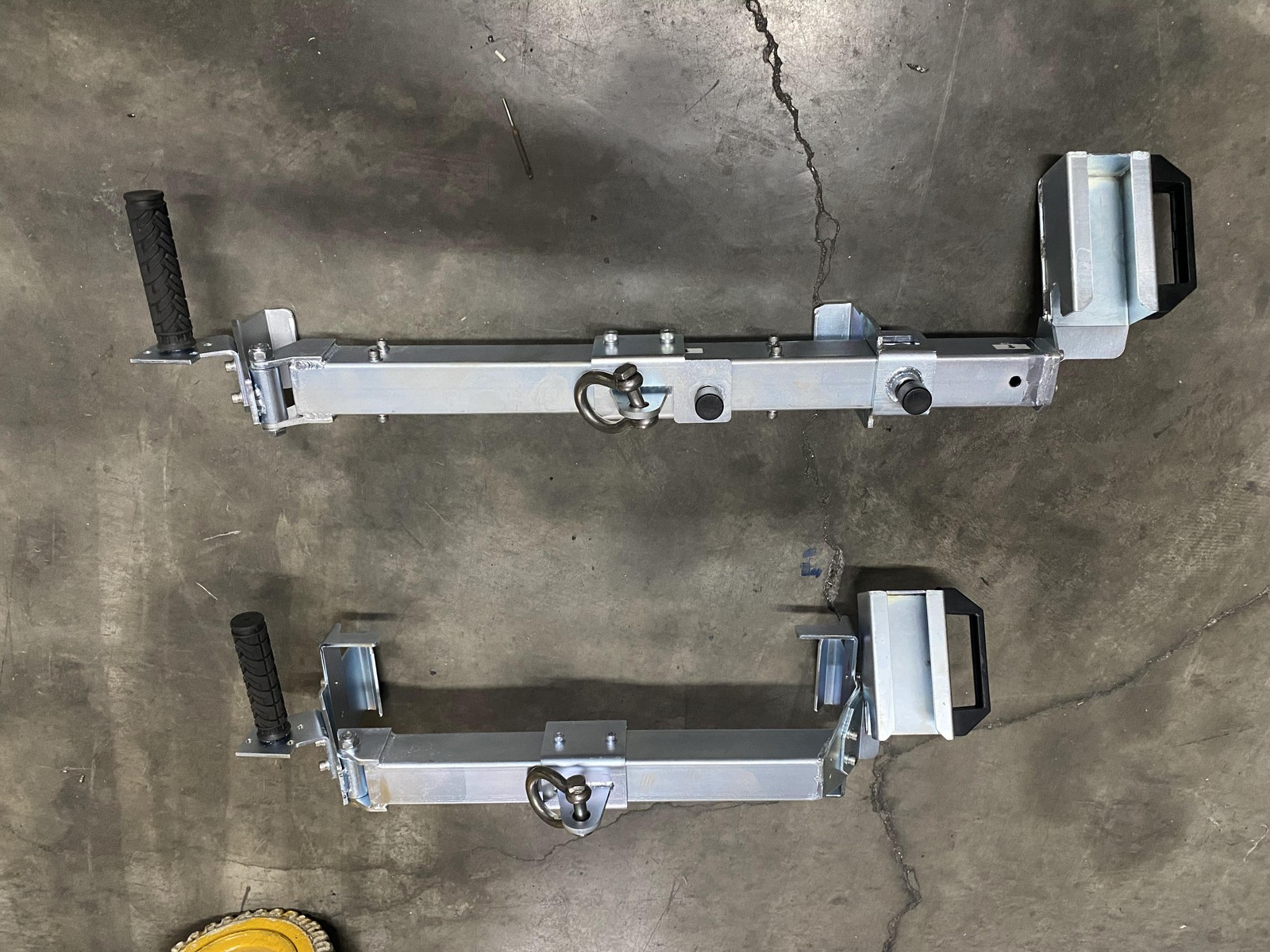

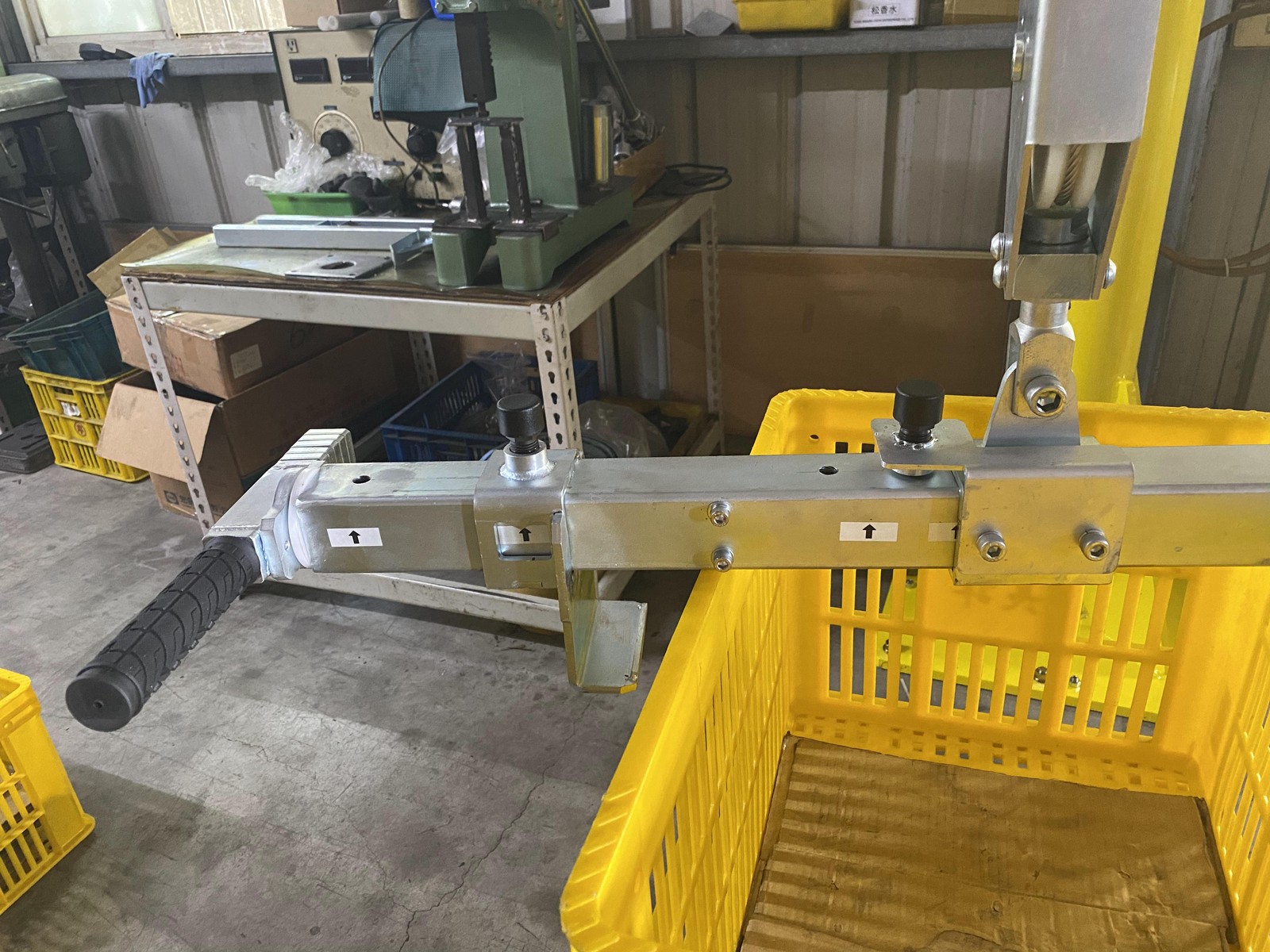

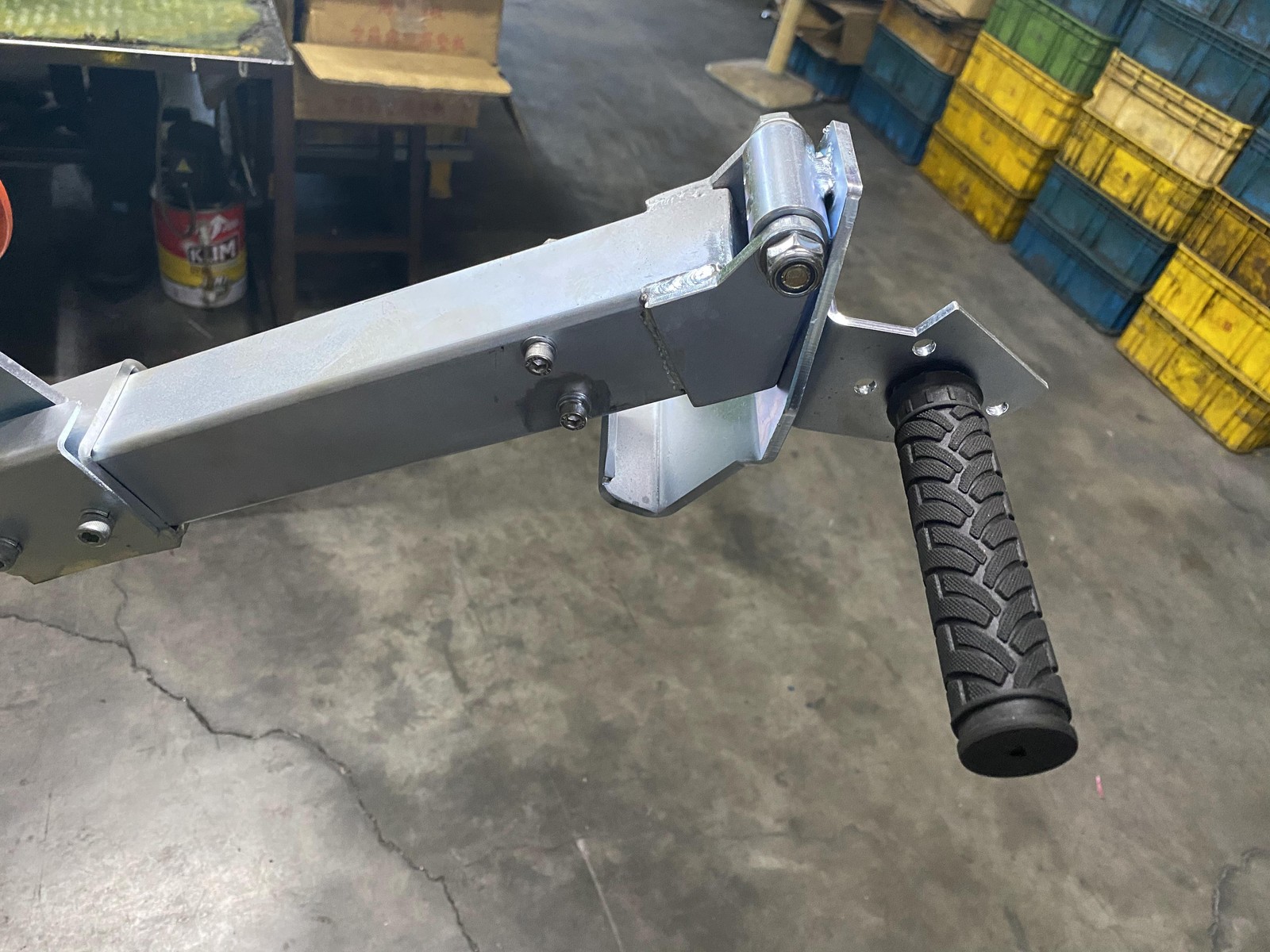

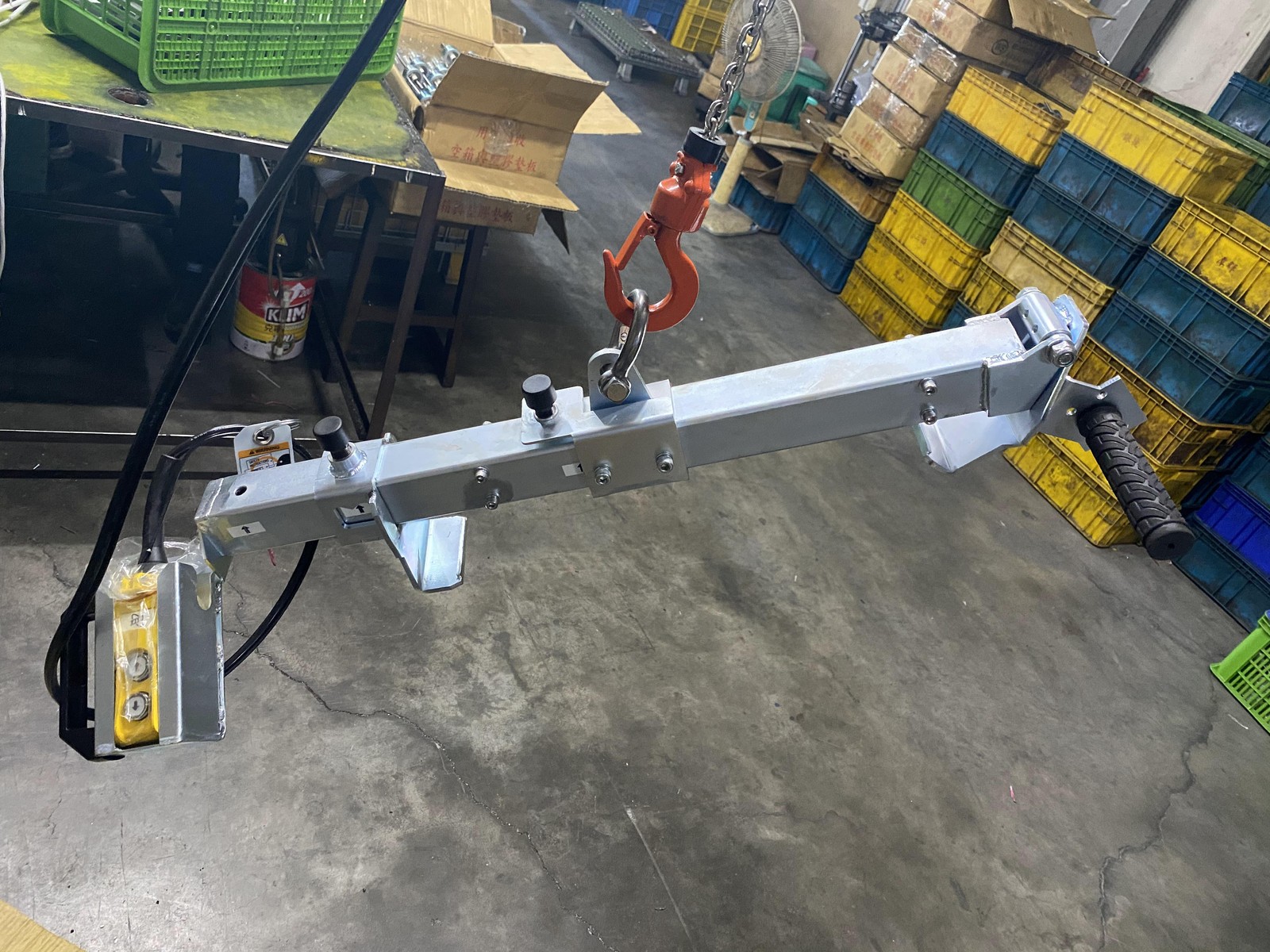

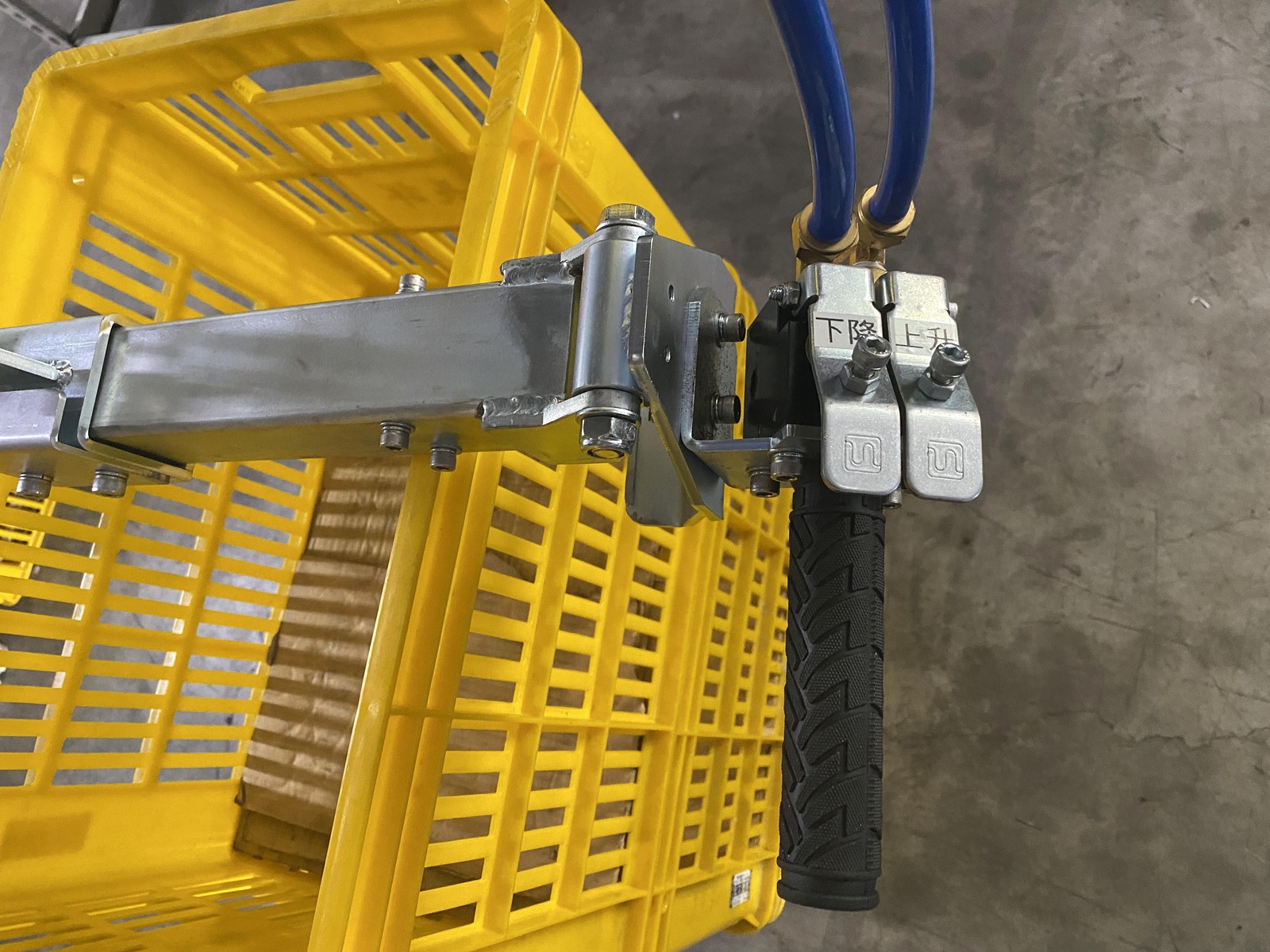

Plastic tray gripper tool: jaws hug the tray sides tightly, keeping the tray level without pressing on the components.

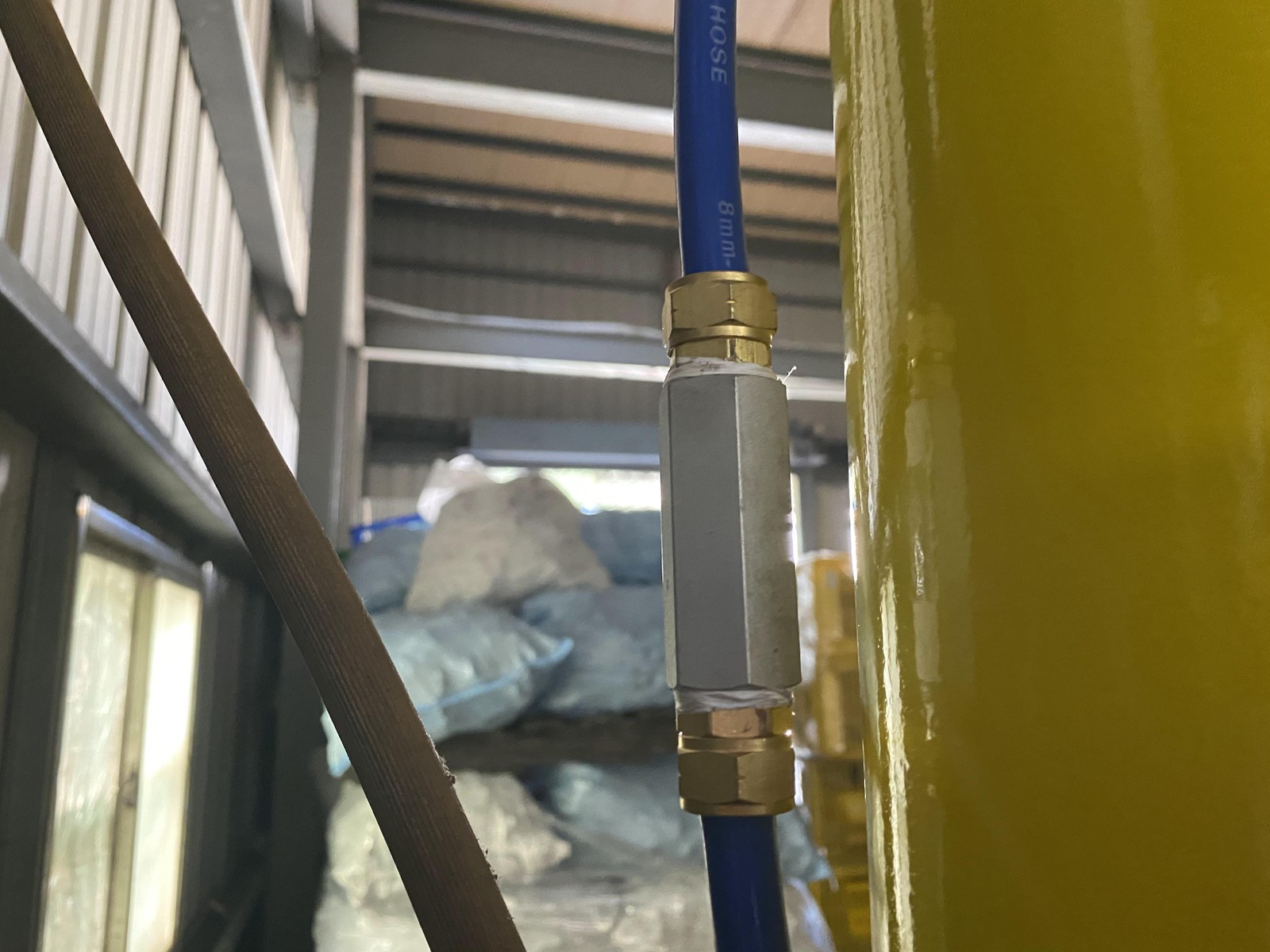

Grip-holding safety valve: if air pressure is lost, the jaws still hold the tray so nothing falls.

Key Specifications

Rail load capacity200 kg
RailModel 5T
Rotation angle360 degrees
End toolPlastic tray gripper

Benefits for Your Plant

Tray always level

The tool grips both tray sides evenly so the tray never tilts. Components inside don't shift.

Fast tray transfer

Gripping and releasing run on compressed air, with no need to re-stack items on the tray. Line rhythm stays steady.

No floor space used

The rail hangs from the existing beam. Aisles and rack areas below stay clear.

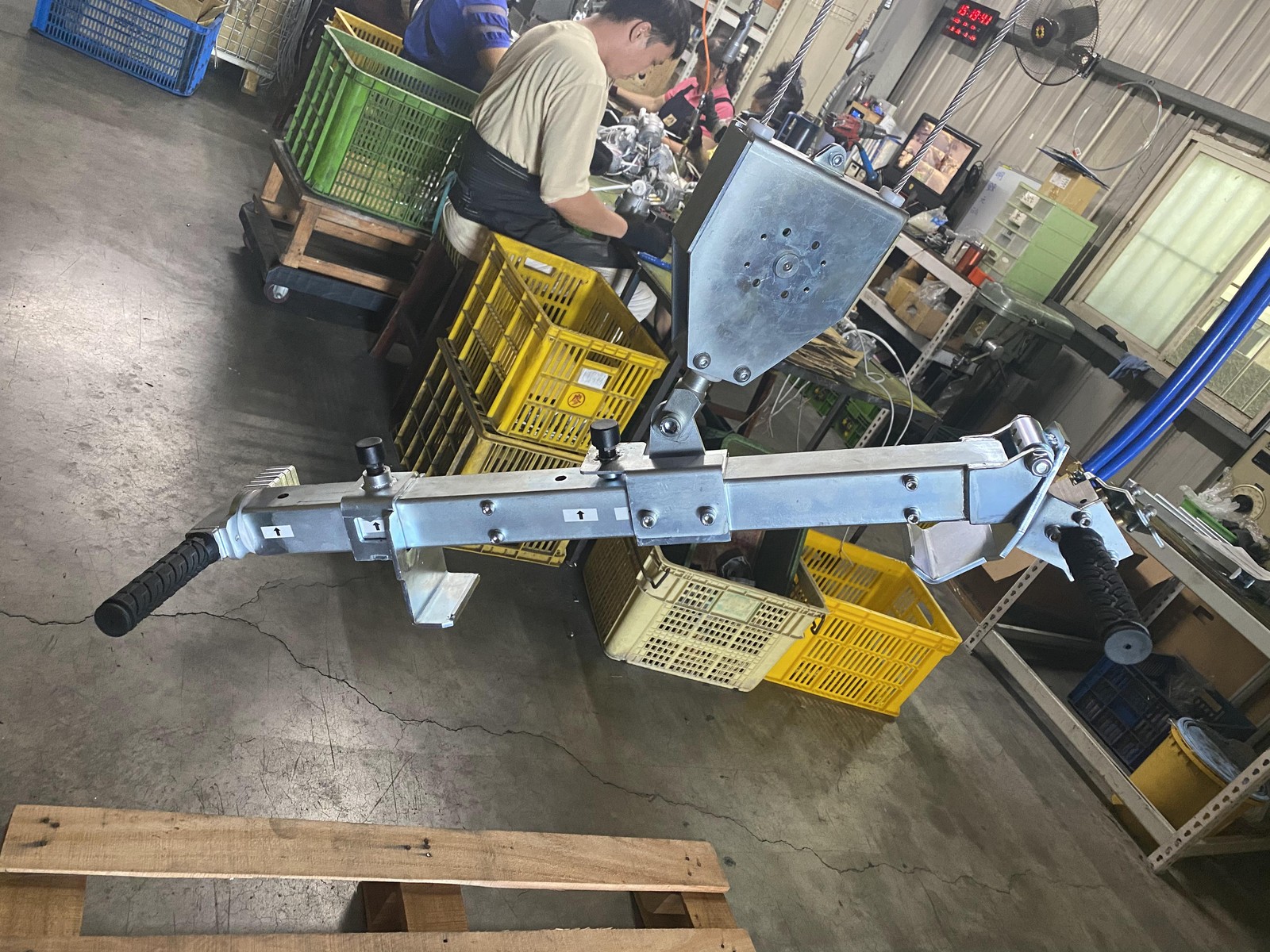

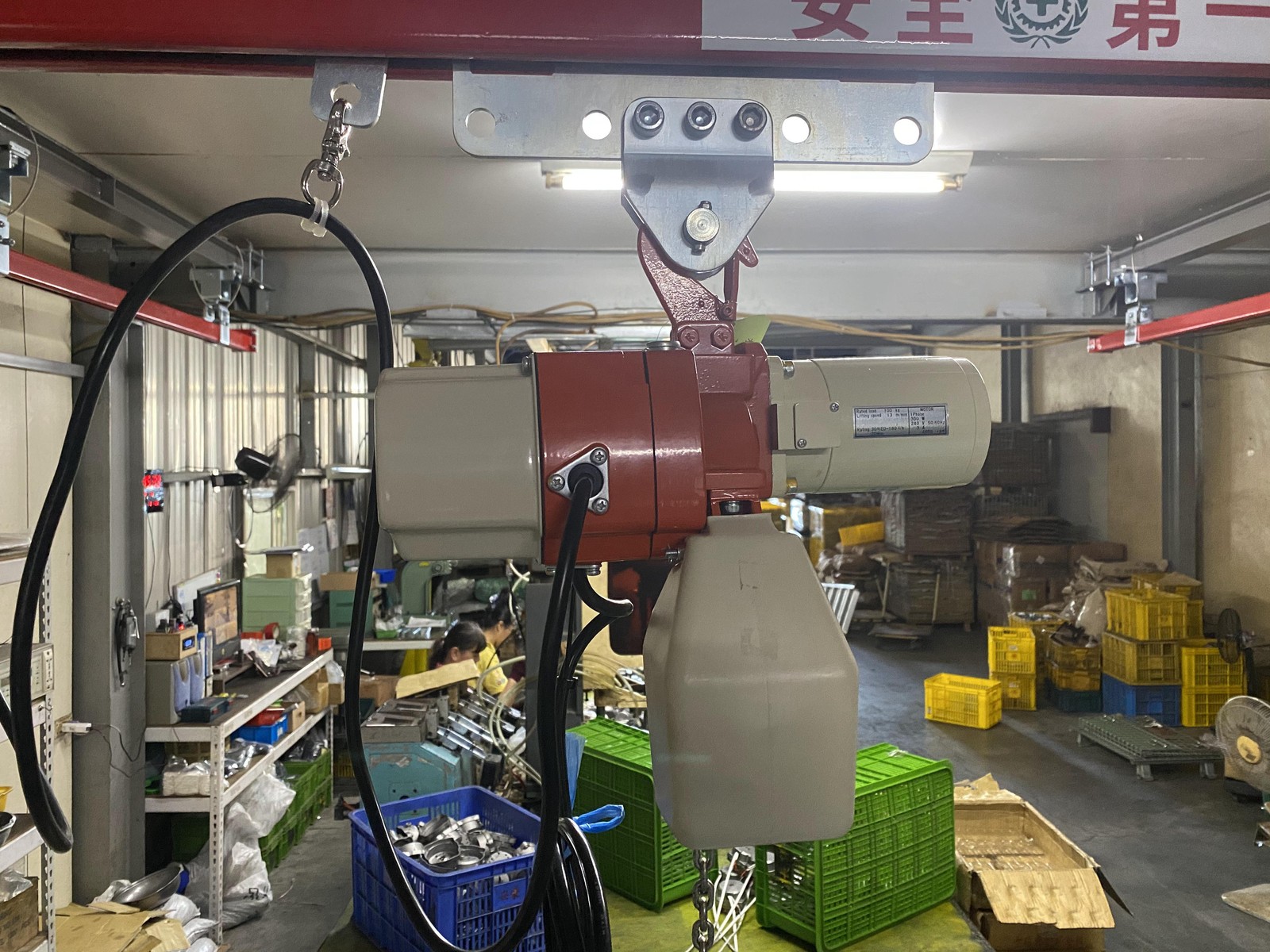

Actual Installation Photos

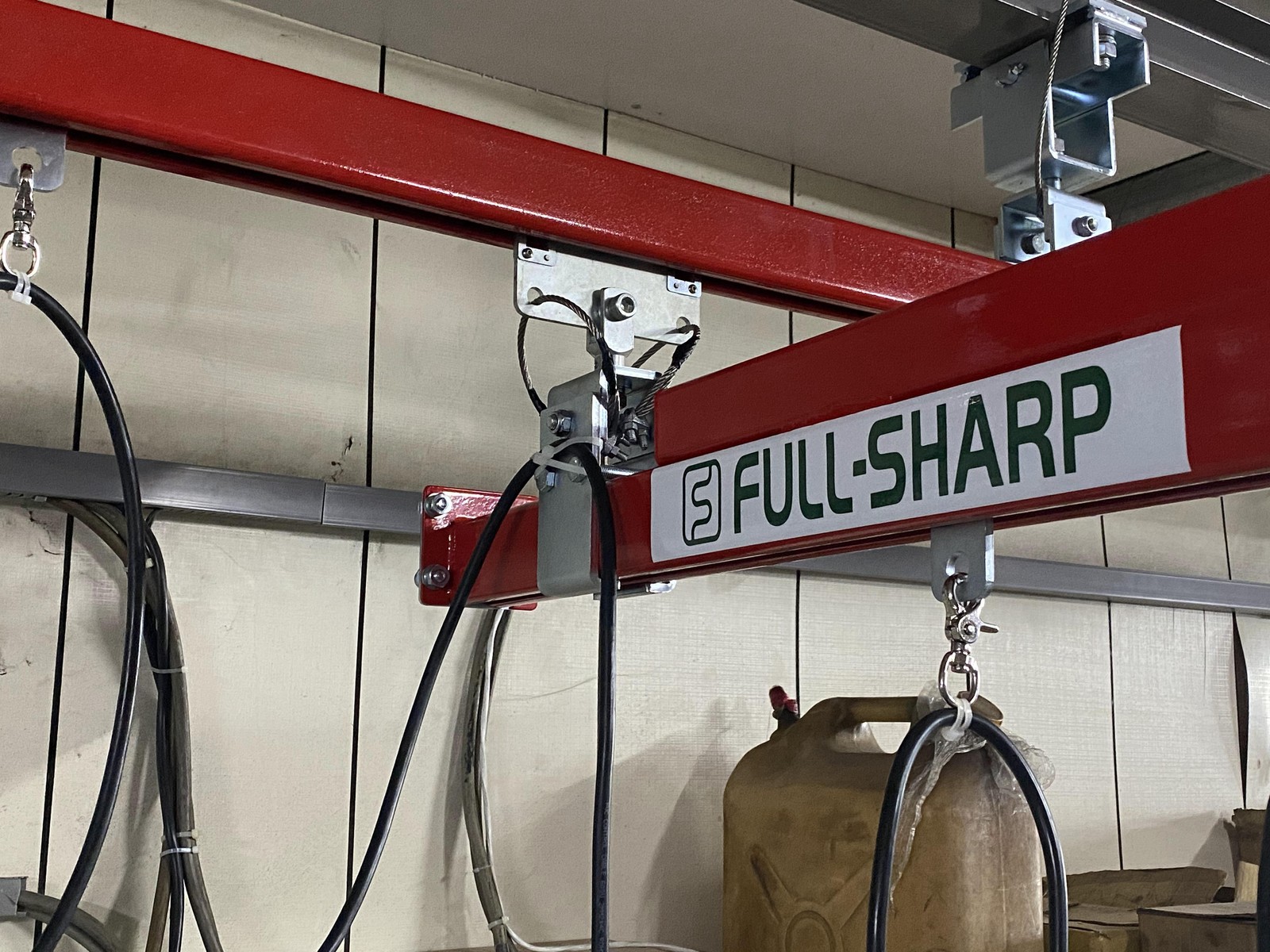

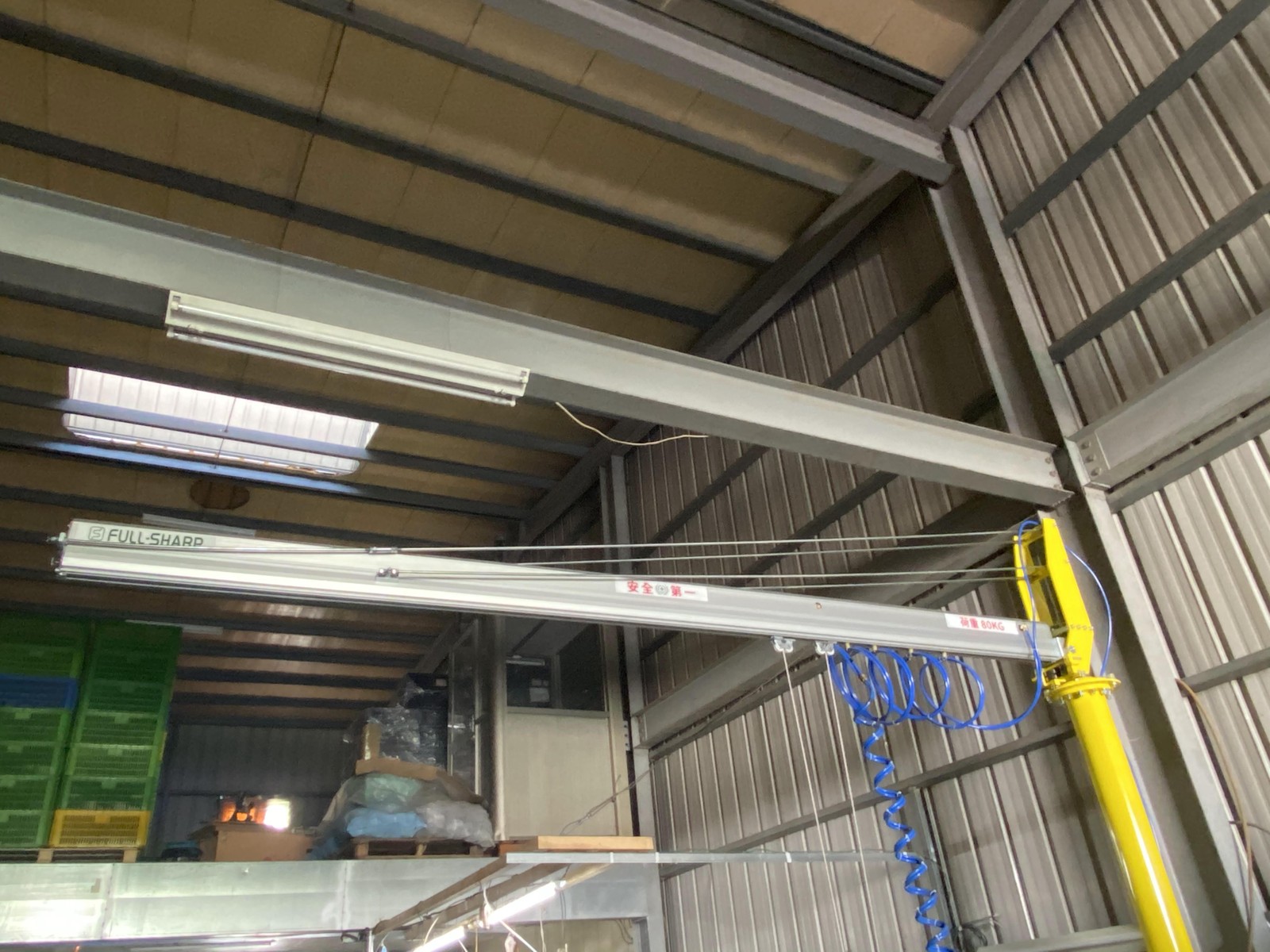

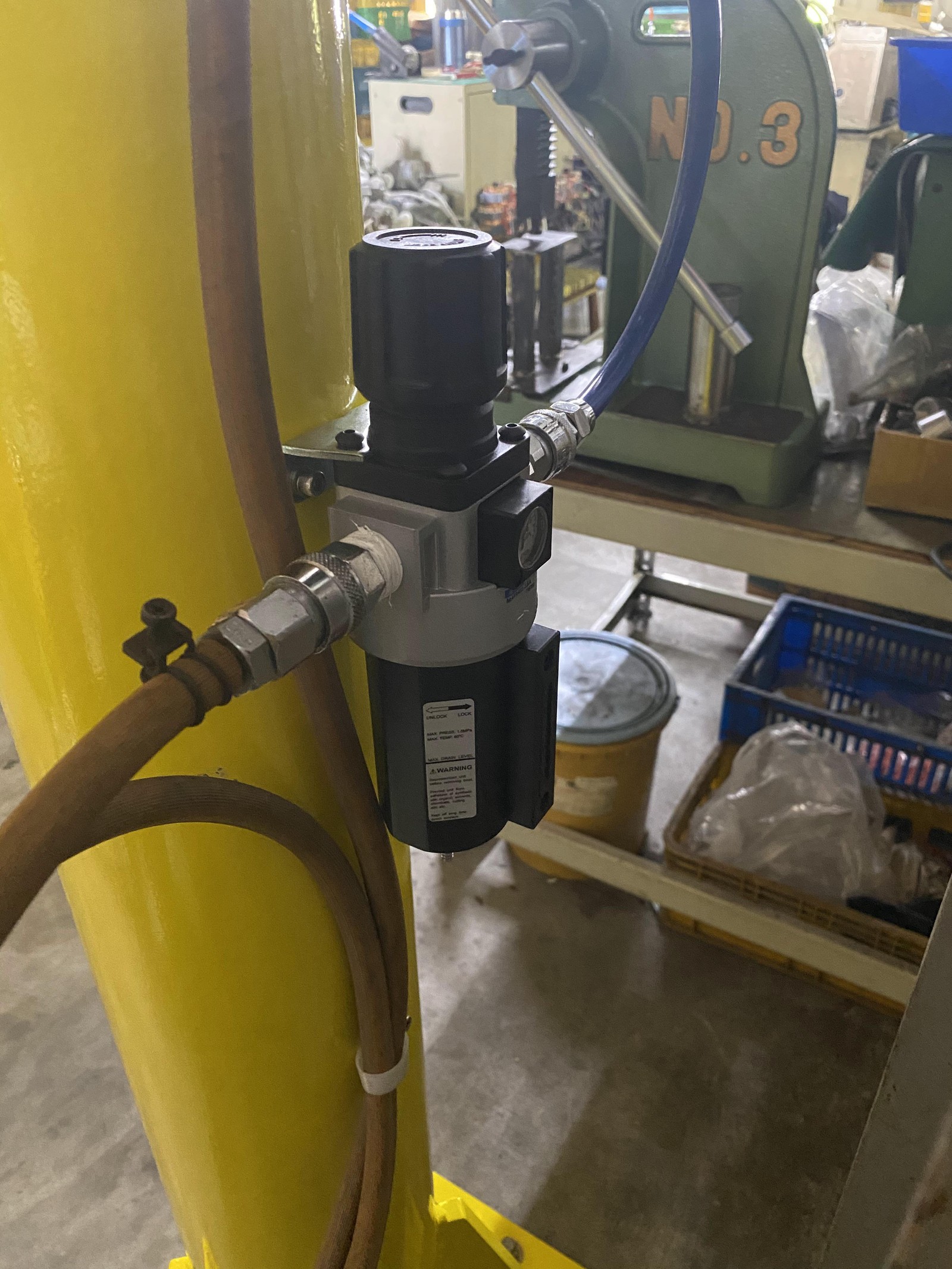

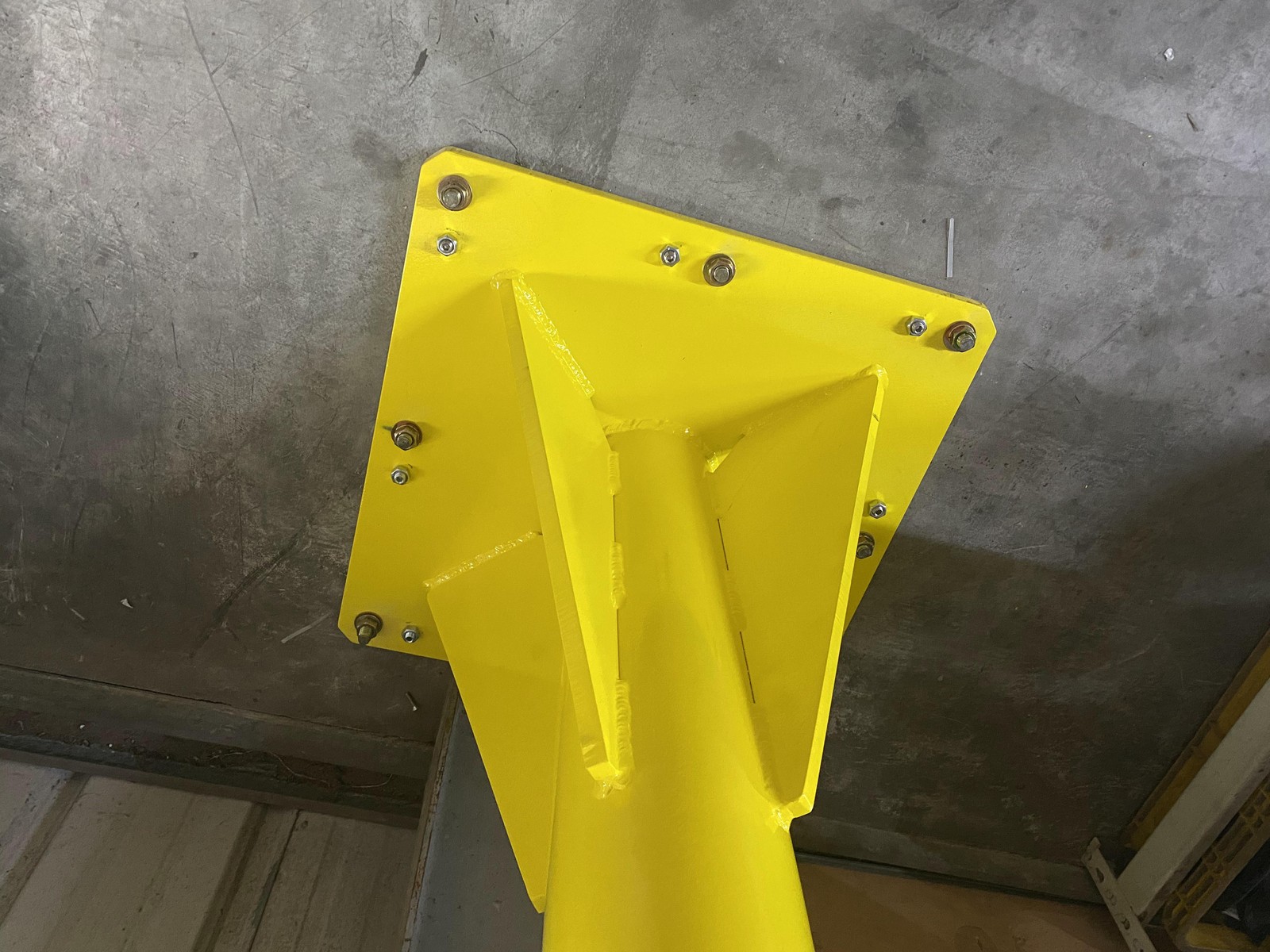

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 1

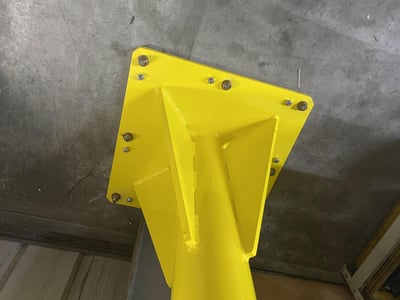

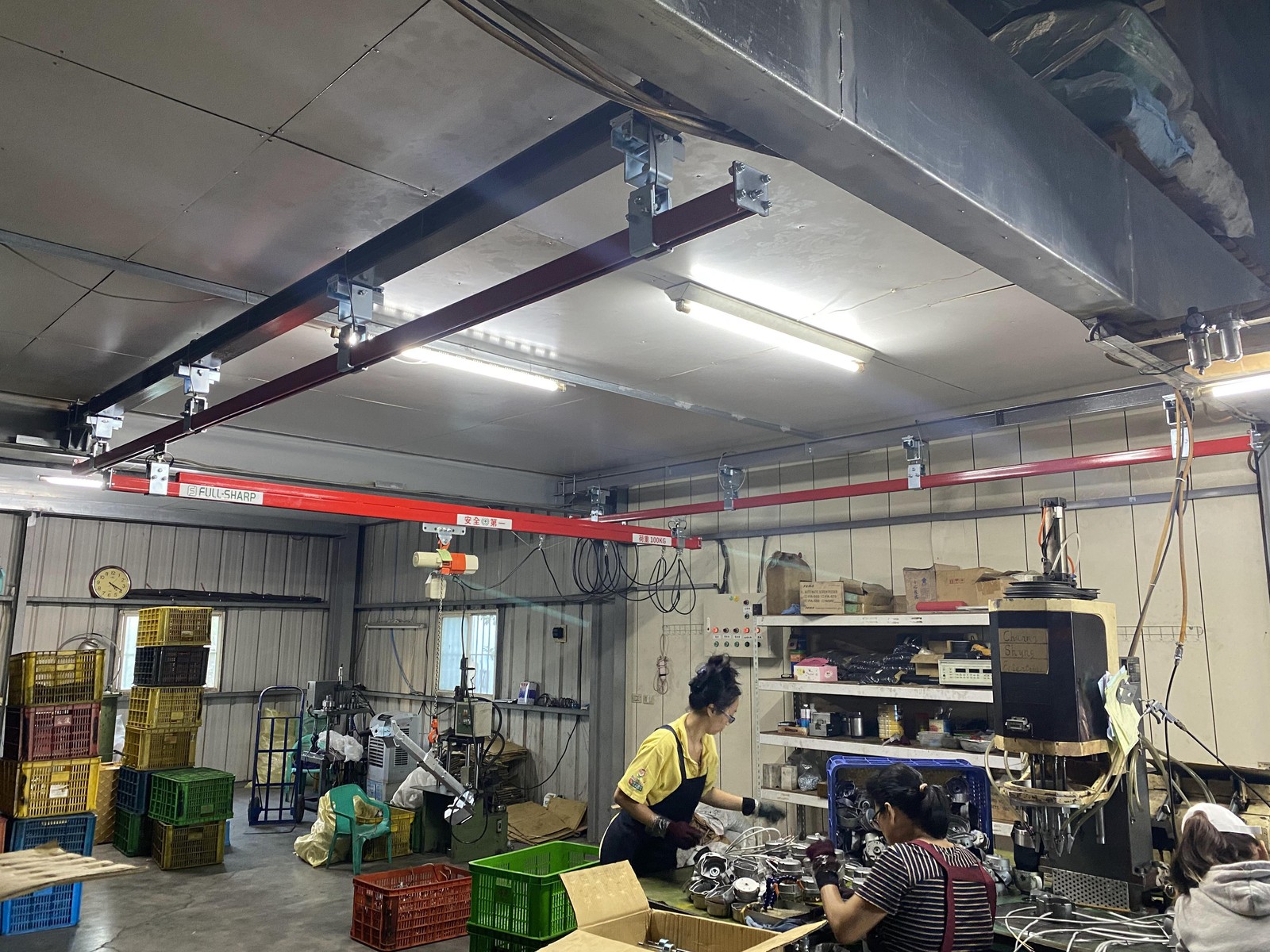

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 2

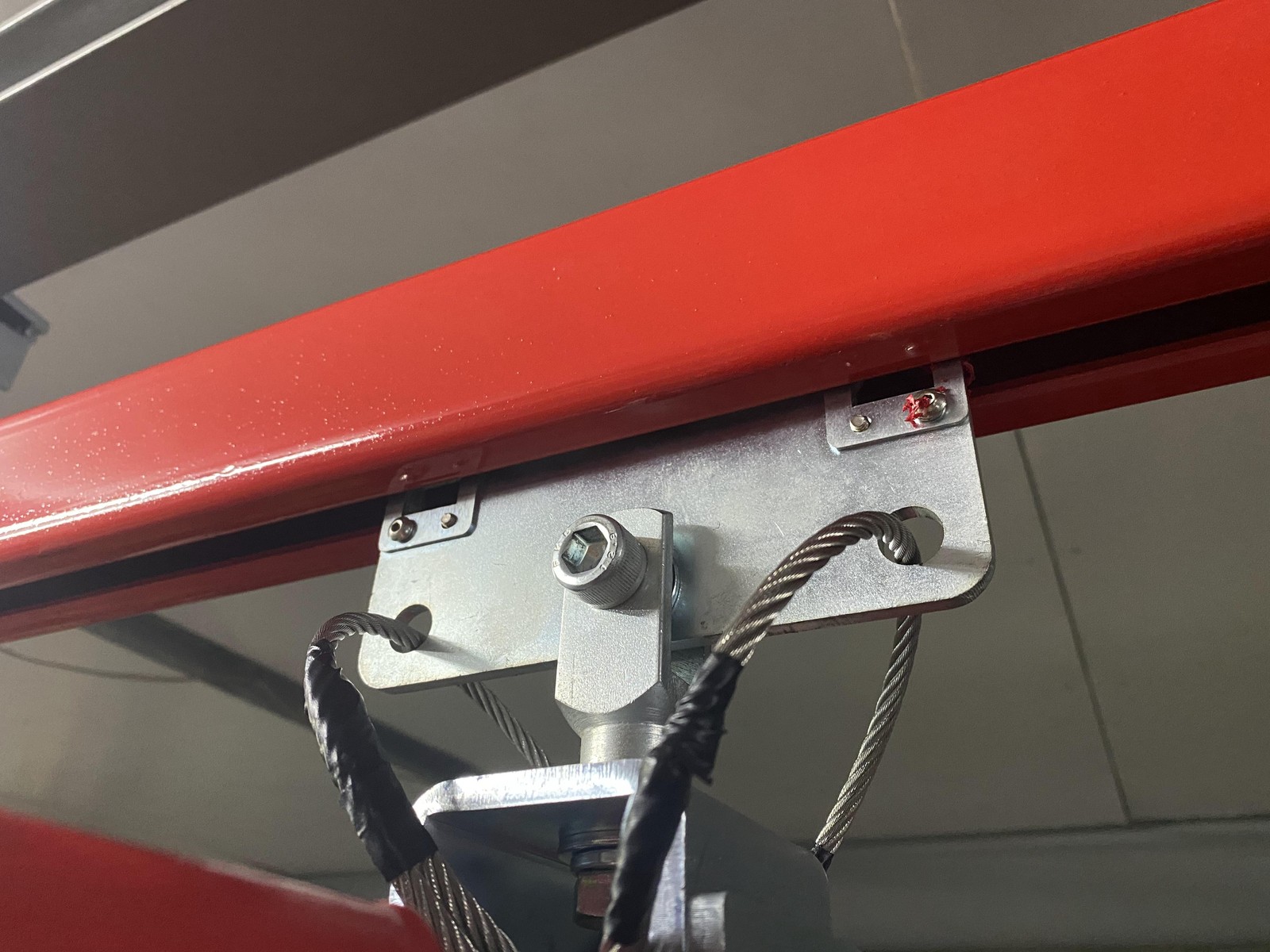

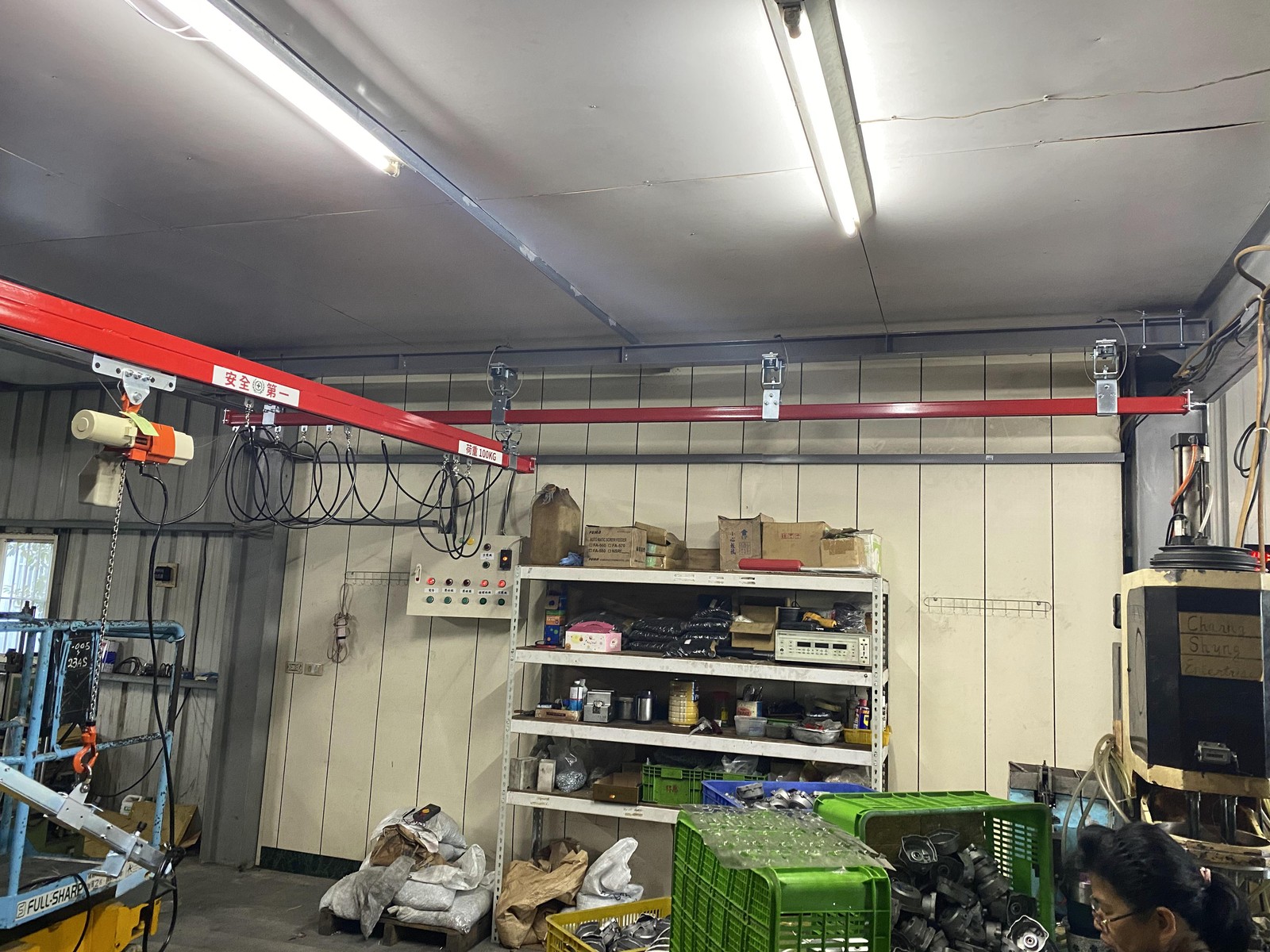

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 3

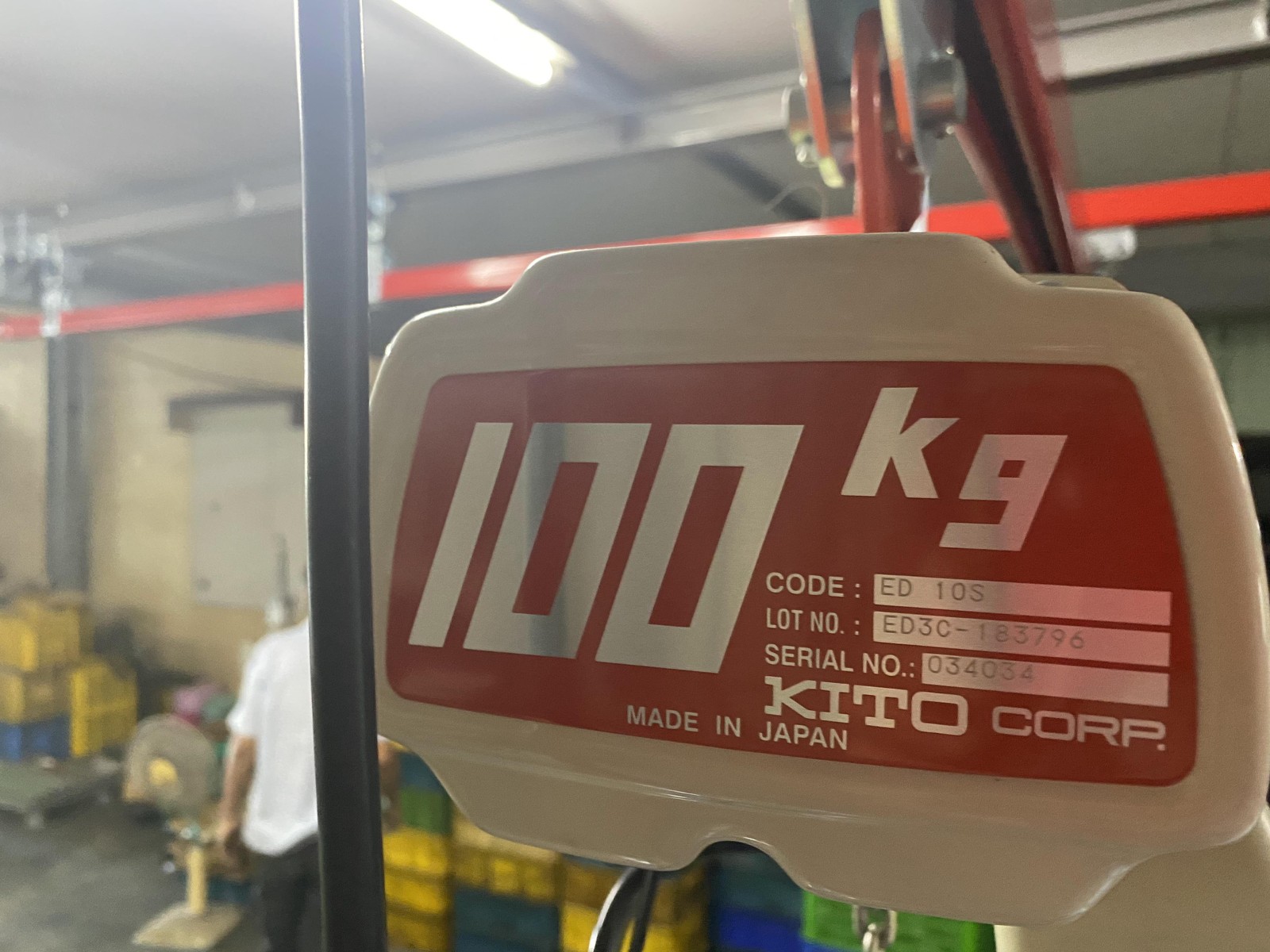

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 4

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 5

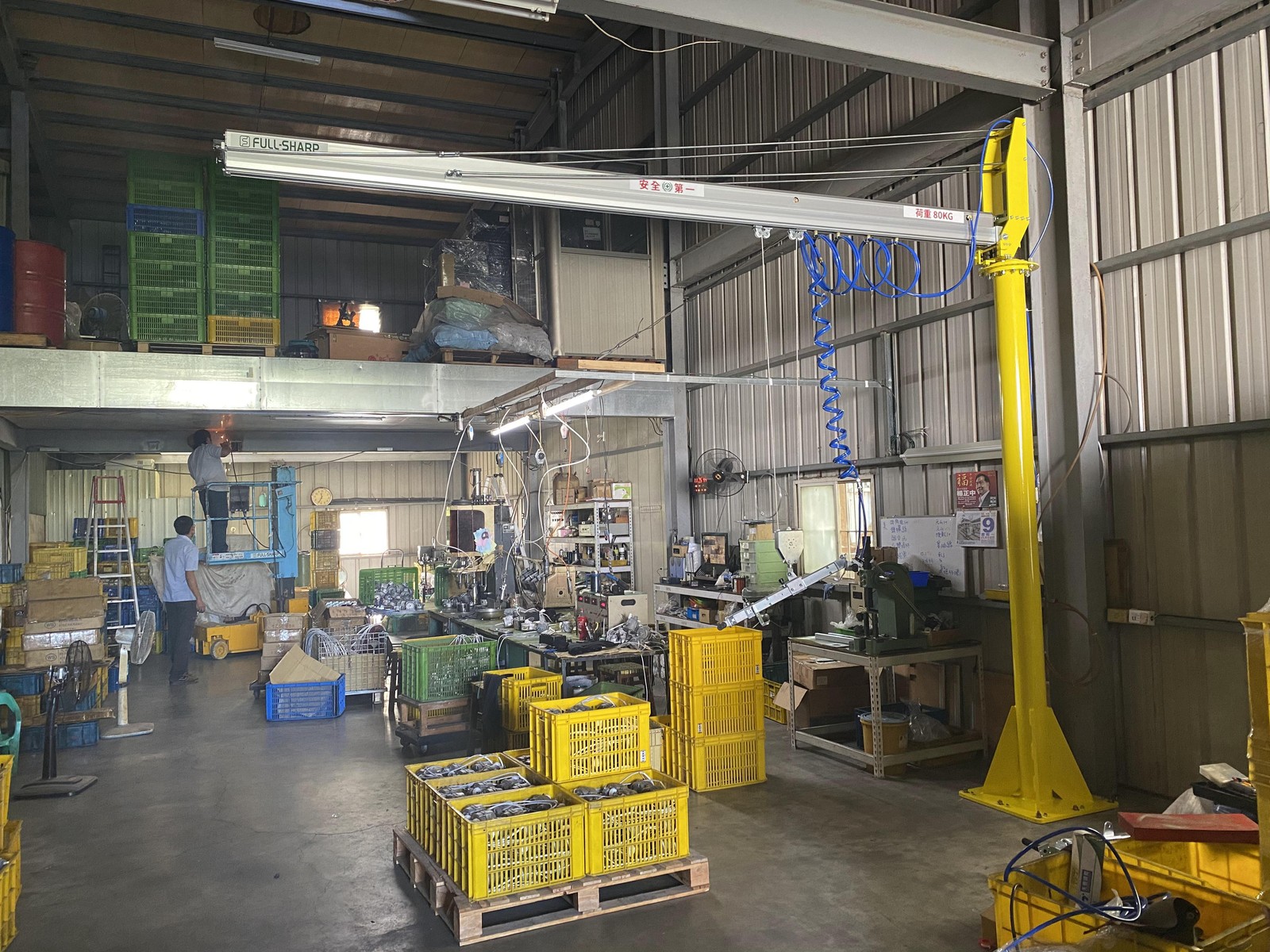

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 6

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 7

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 8

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 9

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 10

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 11

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 12

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 13

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 14

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 15

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 16

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 17

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 18

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 19

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 20

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 21

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 22

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 23

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 24

Suspended Pneumatic Jib Crane on 5T Rail with 200 kg Plastic Tray Gripper - ảnh 25

Click a photo to enlarge. 25-photo album taken on site.

Suitable Applications

Electronics factories and component assembly
Quality inspection lines
Tray and plastic container storage
Line feeding areas

Installation Consulting for Your Plant

FullSharp visits the plant to measure tray dimensions, tray weight when full, and the travel path between stations. We design the gripper jaws to match the exact tray profile and choose the right rail length and suspension points. Call FullSharp to schedule a survey.
