Ceiling-Mounted 5T Rail for Electric Hoist

The plant has a low ceiling and a floor already packed with machines; installing a crane with floor-mounted columns would take up the aisle and the storage space. Yet lifting work still needs to run along a long line.

FullSharp suspends a 5T rail from the ceiling structure and runs an electric hoist on it. The rail can be joined in multiple sections, so the line can be as long as needed, while the floor stays completely clear for machines and carts.

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant

Ceiling-mounted 5T rail forming a running track for an electric hoist in the plant.

Installed Equipment

5T rail: formed steel rail, joined at flanges to extend the running line.

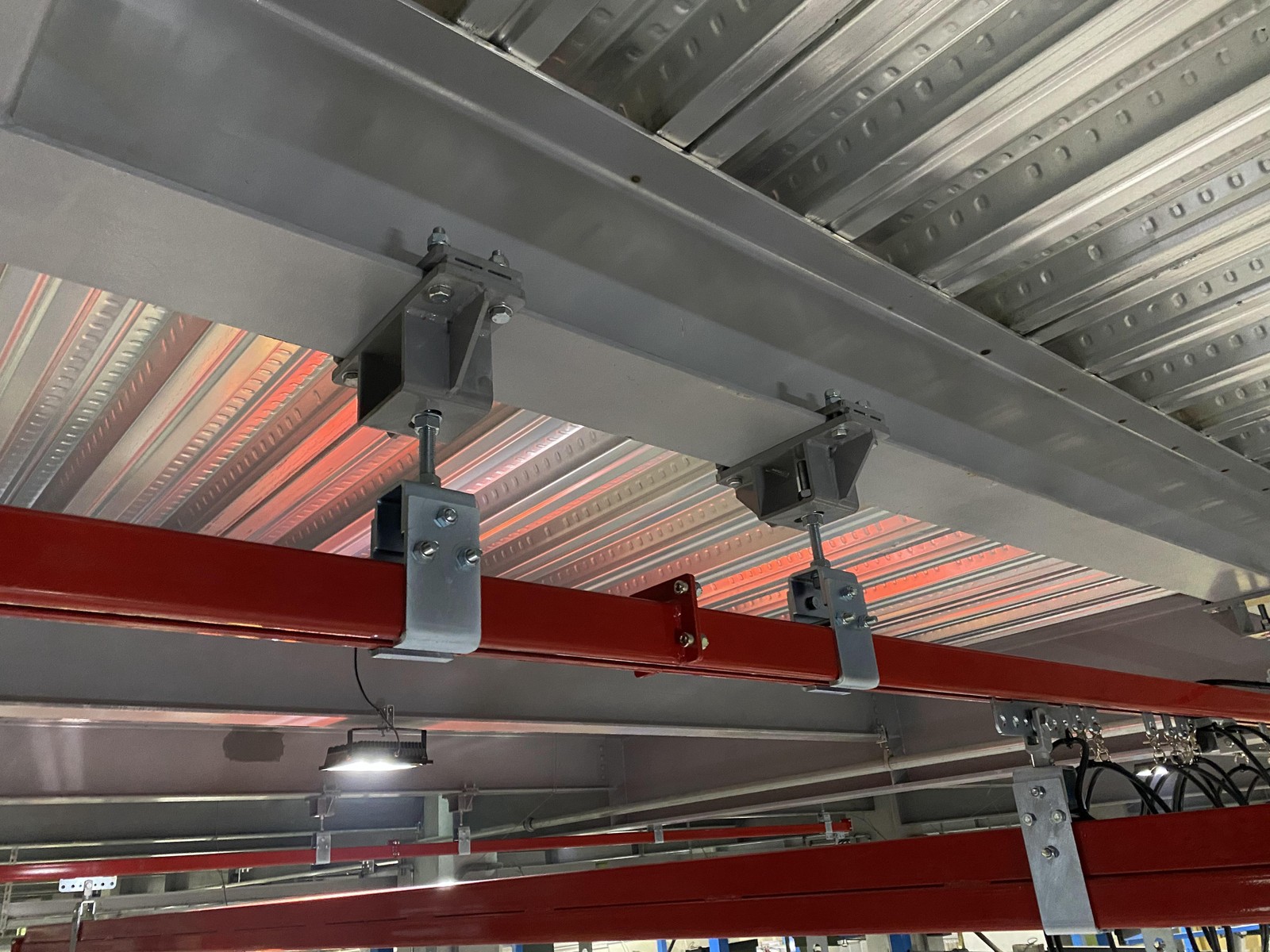

Ceiling suspension set: threaded rods and clamps bolted to the purlin, height-adjustable to keep the rail straight and level.
Hoist trolley: wheels run inside the rail track, carrying the electric hoist along the line.
End stops: mounted at both ends of the line to prevent the trolley from running past the limit.

Key Specifications

Rail model5T

Benefits for Your Plant

Floor stays clear

The entire system hangs from the ceiling, so the plant loses no floor space to columns.

Suits low-ceiling plants

The thin rail takes up little headroom while still leaving enough lifting stroke.

Easy to extend

Extending the line only requires adding another rail section and suspension set.

Actual Installation Photos

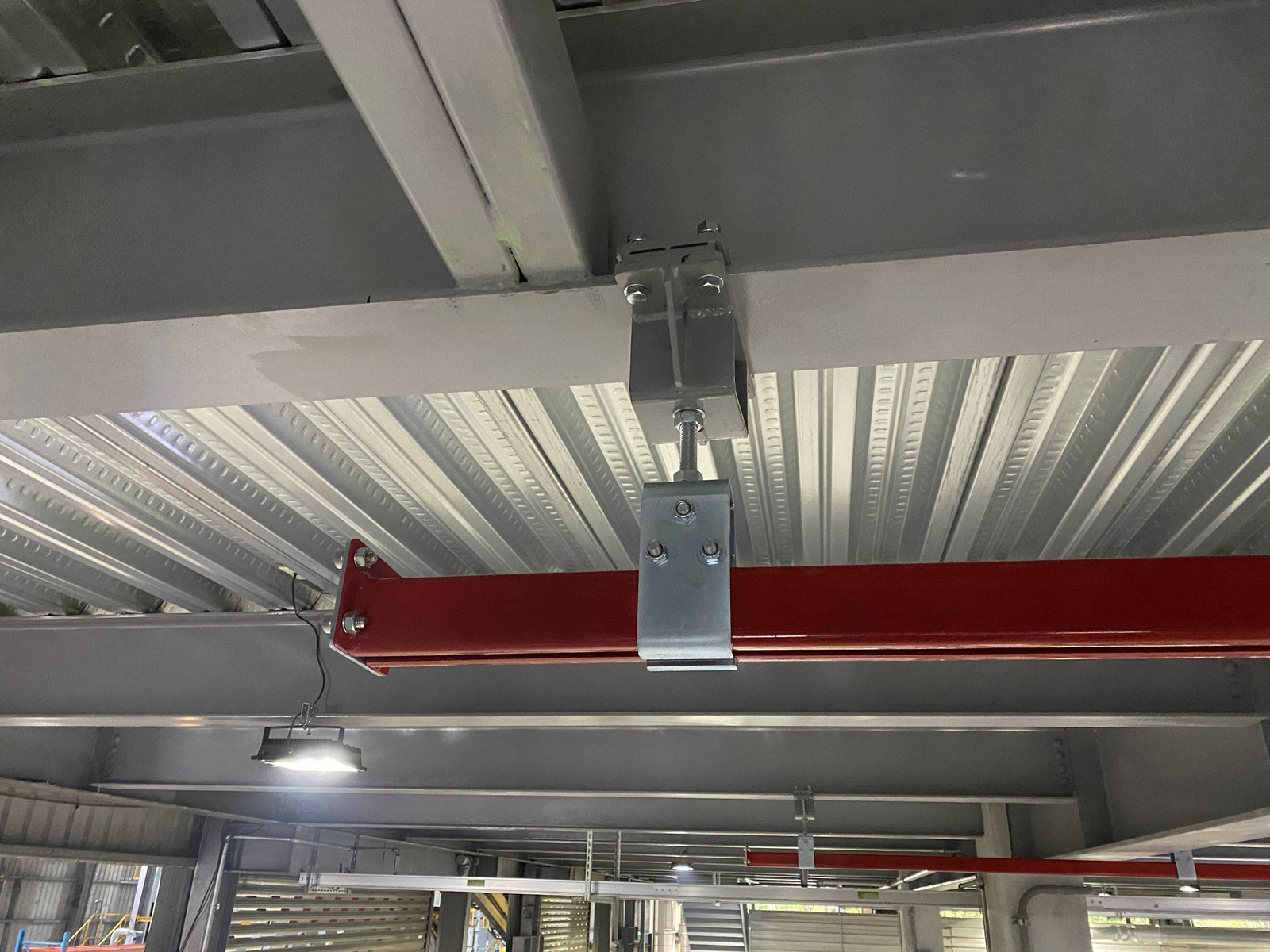

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 1

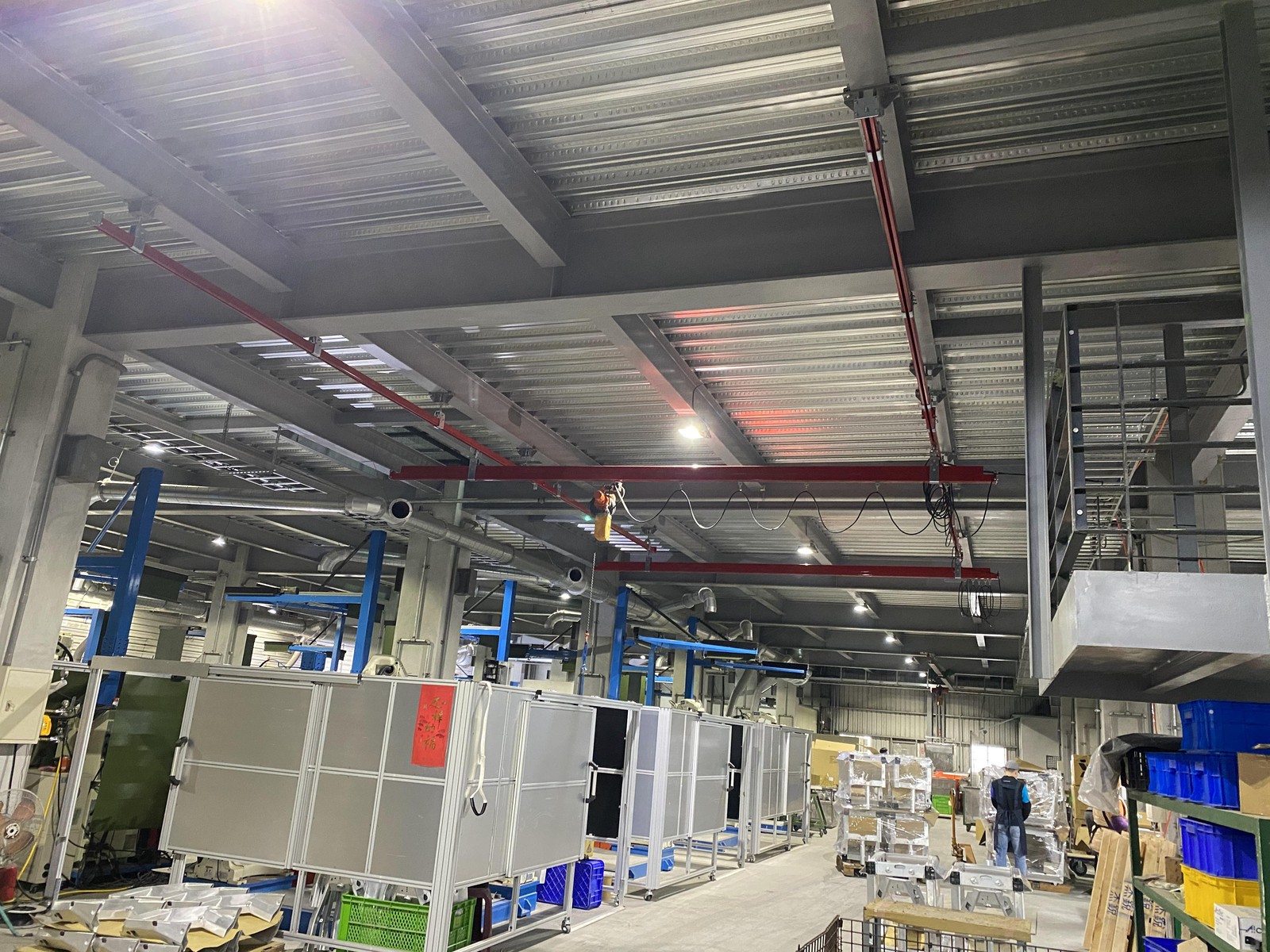

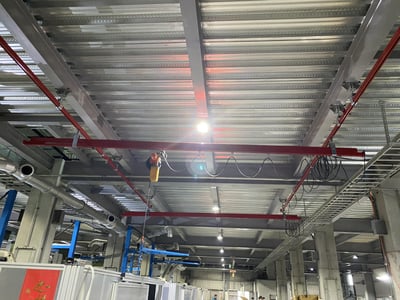

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 2

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 3

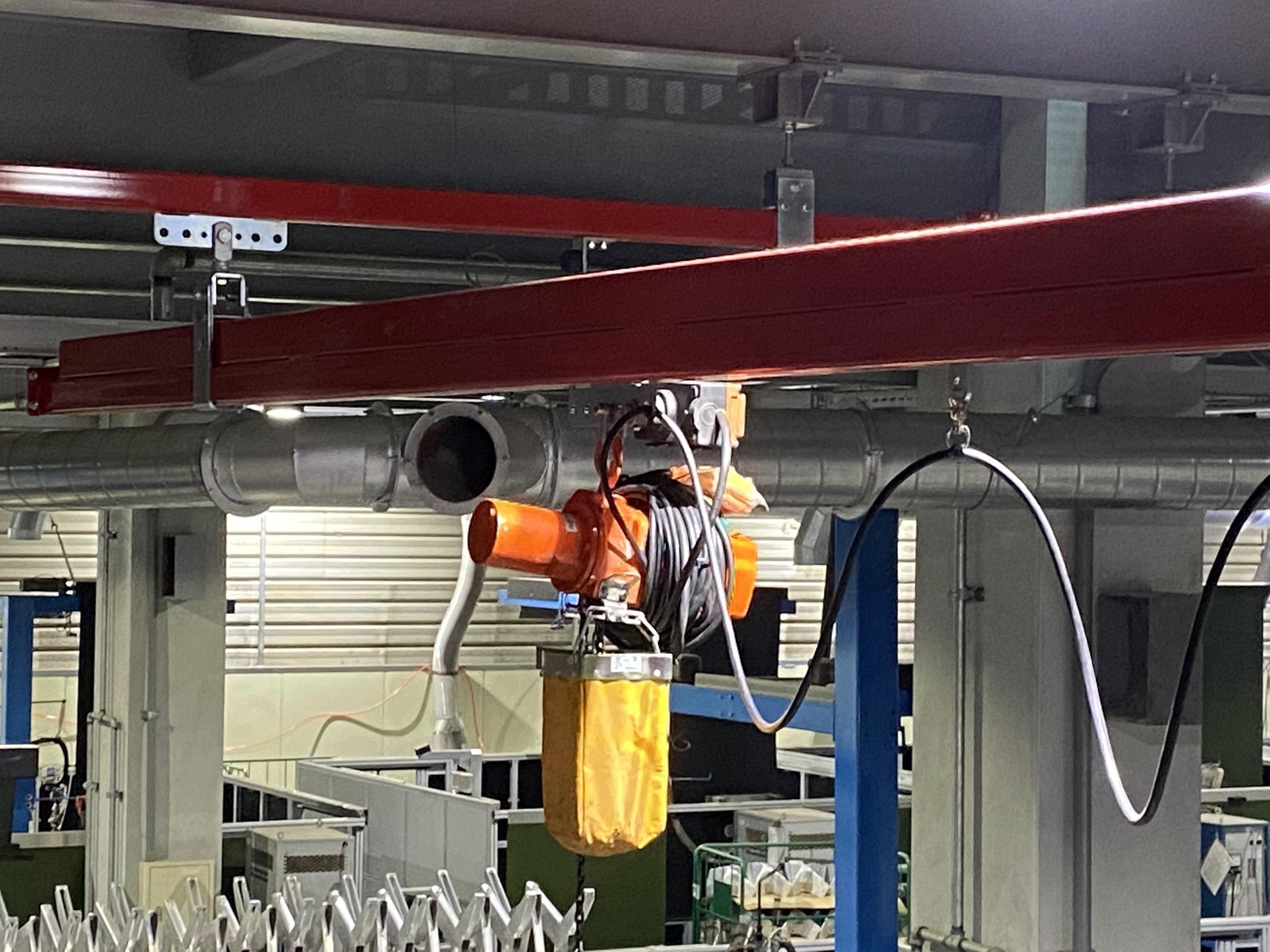

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 4

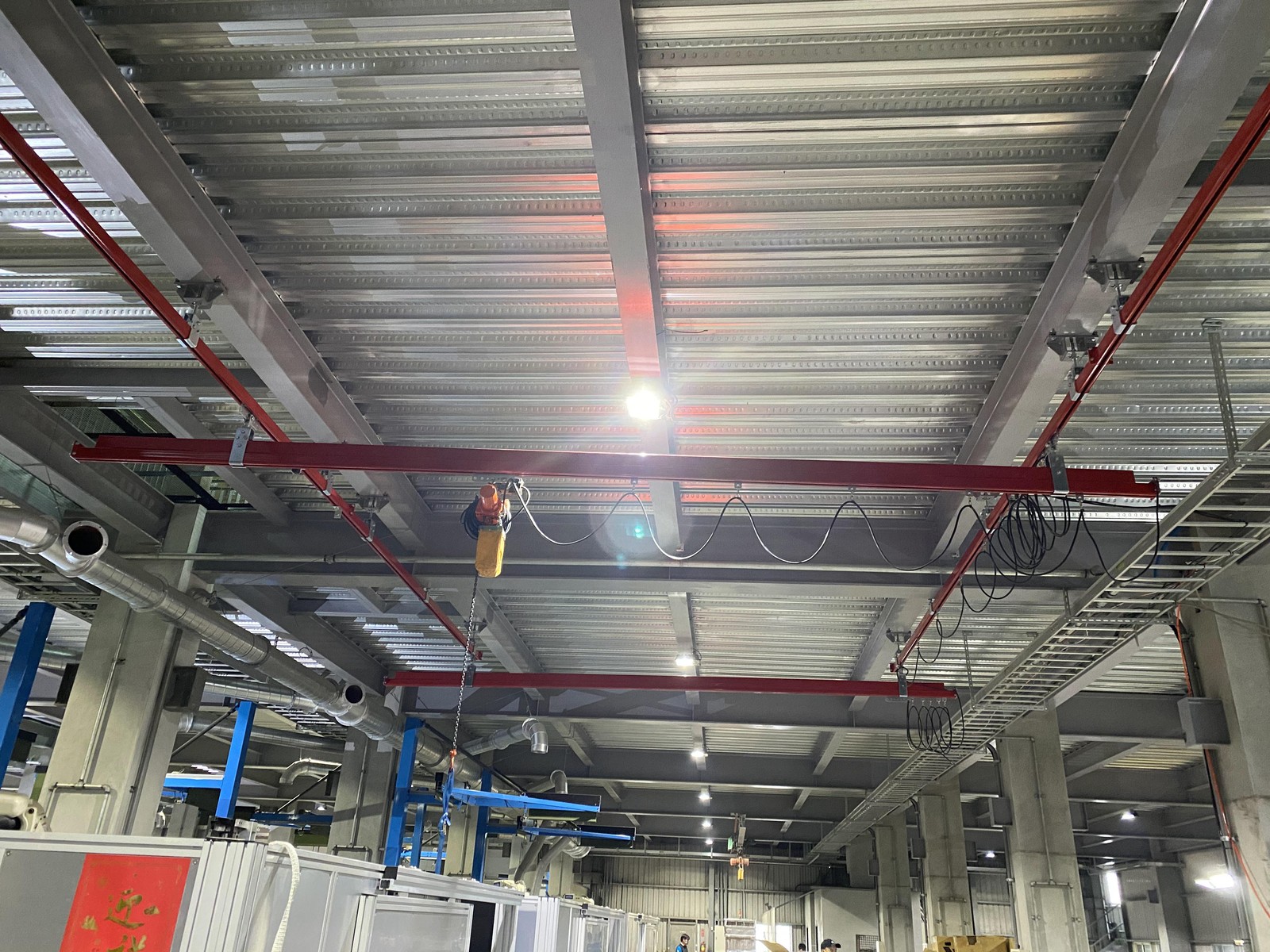

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 5

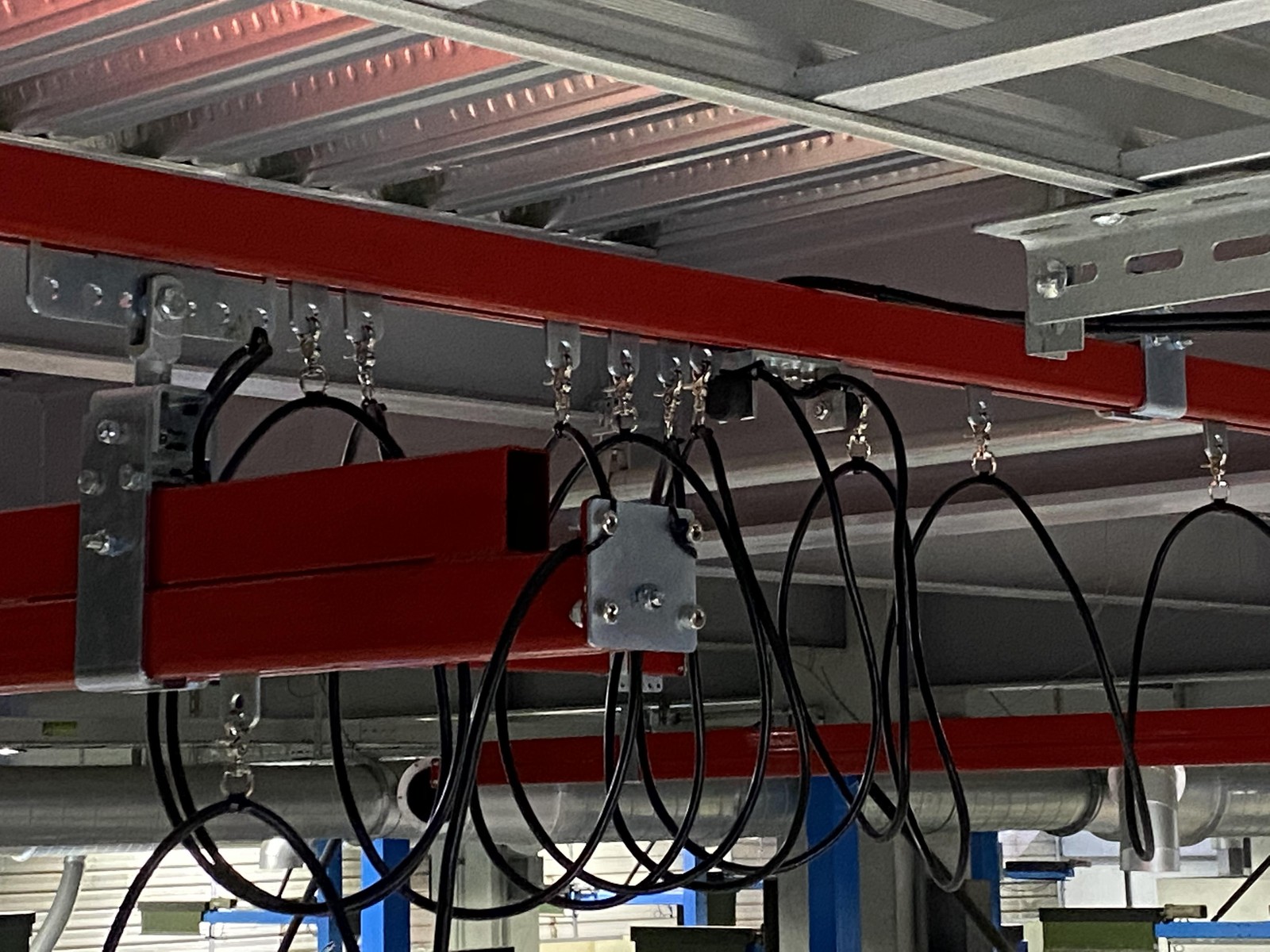

Ceiling-Mounted 5T Rail for Electric Hoist in the Plant - ảnh 6

Click a photo to enlarge. 6-photo album taken on site.

Suitable Applications

Mechanical fabrication workshops
Machine maintenance areas
Industrial warehouses
Equipment assembly lines

Installation Consulting for Your Plant

FullSharp checks the purlin structure and allowable suspended load, then measures the running line to divide the suspension points for the rail. Our technicians finalize the electric hoist type, lifting stroke, and how power is supplied to the trolley. Contact FullSharp to schedule a survey.
