FS-BSQ500-6S

Safe load500 kg
PowerCompressed air 0.6–0.8 MPa, no electricity
Suction cups6 × Φ230
Size2000 × 800 mm
ControlManual
Works withPillar jib crane

FS-BSQ500-6S pneumatic vacuum lifter for sheet metal

FS-BSQ500-6S runs entirely on compressed air: no power cord and no battery, so nothing to charge. It connects to an air compressor and uses 0.6–0.8 MPa air as its power source. A vacuum generator turns the compressed air into negative pressure to hold the sheet, and an air cylinder does the lifting and lowering.

The lifter is usually paired with a jib crane beside the laser cutter. The cylinder raises and lowers the sheet while the operator swings the jib to bring it over the table. If the shop already has a compressed air line, just connect the hose and it is ready to work: simple and economical.

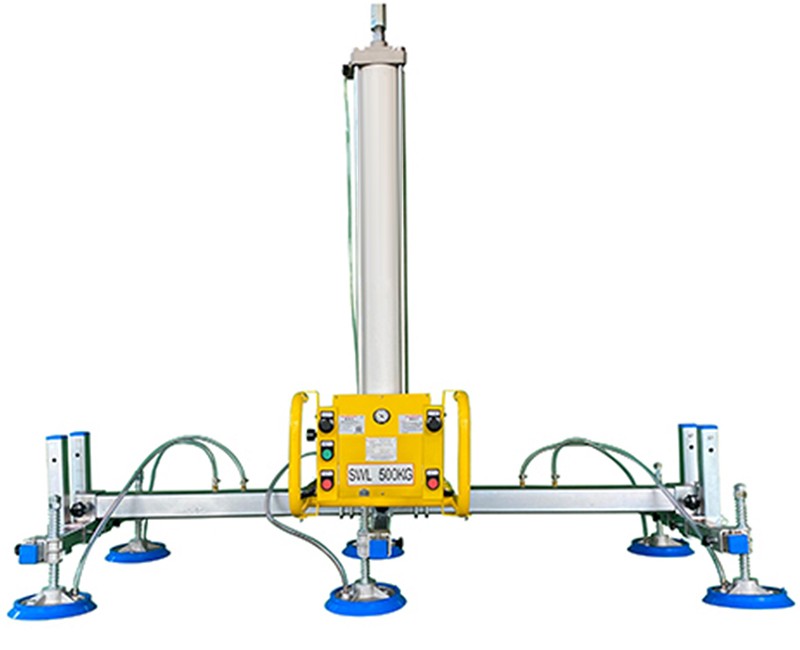

FS-BSQ500-6S pneumatic vacuum lifter with lifting cylinder

Specifications

Item	Value
Model	FS-BSQ500-6S
Safe load	500 kg (1,102 lbs)
Length × width	2000 × 800 mm (78 × 31 in)
Suction cups	6 × Φ230 (9 in), blue nitrile rubber
Power source	Compressed air 0.6–0.8 MPa
Vacuum source	Air-driven vacuum generator
Lifting	Φ160 air cylinder
Control	Manual
Used with	Jib crane

Main components

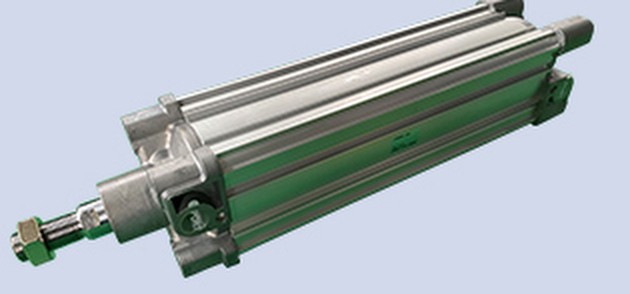

Air cylinder

Internationally known brand / Dia. 160 mm, bears 500 kg / Low air consumption / Stable output

Vacuum suction cup

Dia. 230 mm, single horizontal load 100 kg / Carbon steel base / Nitrile rubber, detachable from the base

Equipment frame

Custom made by the factory / National standard structural steel / Welded, machined, shaped, baked paint and galvanised surface, durable

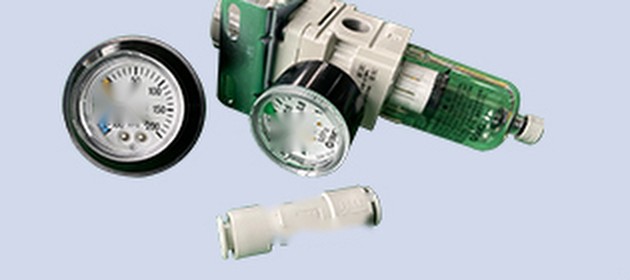

Other spare parts

Check valve, air source treatment unit and negative pressure gauge from internationally known brands

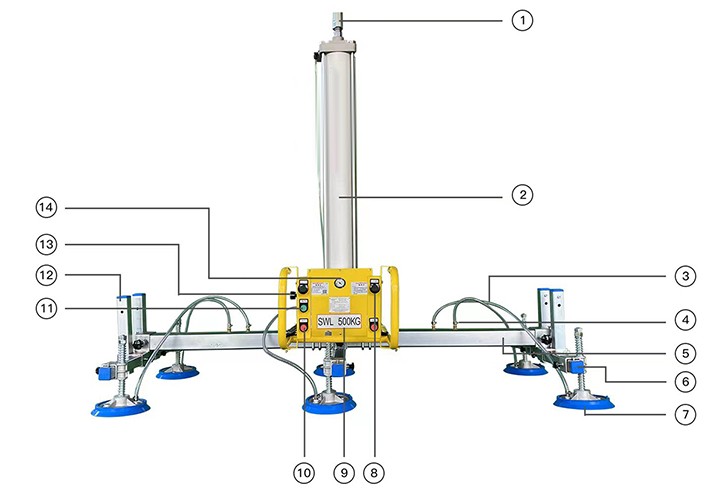

Parts diagram

Numbers on the diagram match the part names below.

Lifting lug
Air cylinder
Vacuum hose
Ball valve
Main beam
Crossbeam
Vacuum suction cup
Up / down buttons
Vacuum system control box
Attach switch
Release switch
Supporting feet
Positive pressure gauge
Negative pressure gauge

On-site photos

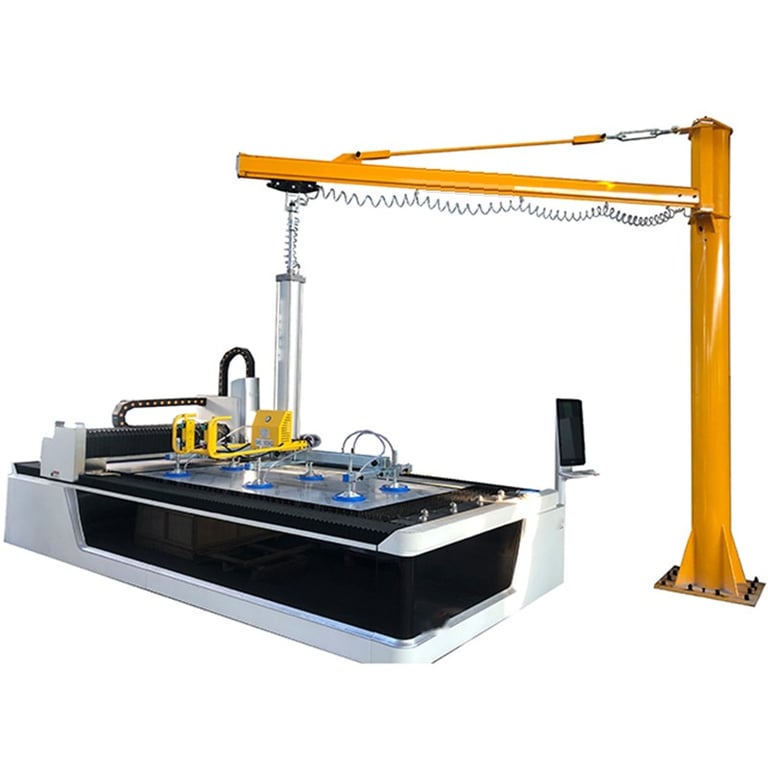

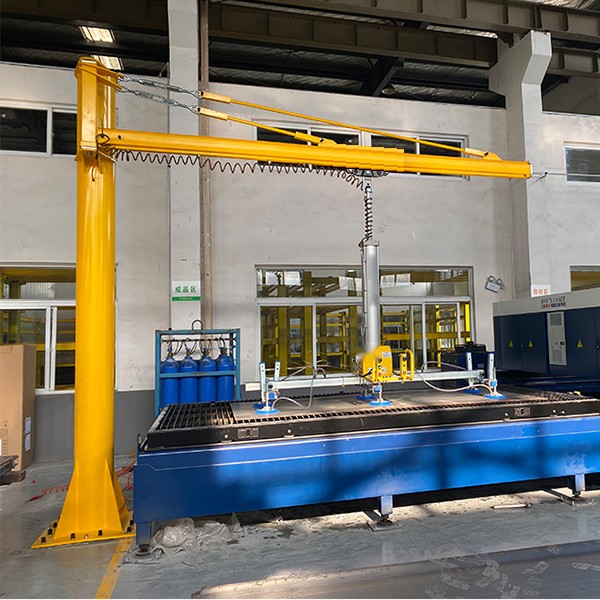

**Jib crane feeding sheets to a laser cutter**

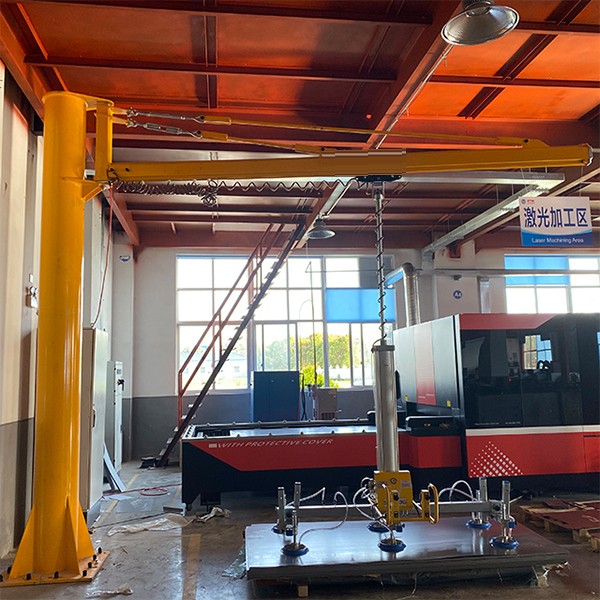

**Picking steel sheet beside a laser cutter**

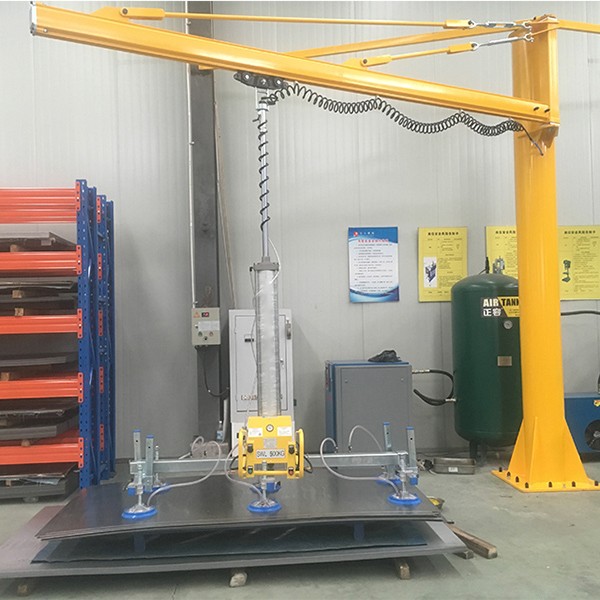

**Lifting stacked steel sheets, air tank alongside**

Advantages

No power, no charging

Only 0.6–0.8 MPa compressed air is needed. No power cable and no battery to replace or recharge.

Air for both gripping and lifting

The vacuum generator holds the sheet and the Φ160 cylinder lifts it. No electric hoist is needed on the jib.

Pressure visible while working

The control box carries a supply air gauge and a vacuum gauge, with a check valve in the vacuum line.

Compact and economical

One 500 kg model with 6 cups covers most standard laser-cut sheets. Cups detach for quick replacement.

The pneumatic version comes in a single 500 kg model with manual control. For heavier sheets or remote control, choose FS-BSZ (battery) or FS-BSJ (AC).
