FS-BSJ

Safe load500–2,500 kg
PowerAC 208–460 V (±10%)
Suction cups6–12 × Φ230 / Φ300
ControlManual or remote
Best forLaser cutter loading, rough sheet surfaces, continuous multi-shift use

FS-BSJ AC-powered vacuum lifter for sheet metal

FS-BSJ runs on AC 208–460 V (±10%) mains power, which drives a rotary vane vacuum pump inside the control box. Frame, beams, suction cups and the 500 to 2,500 kg load range are the same as the battery version of the same load; only the power supply and pump differ.

This version suits laser cutting lines that run continuously over several shifts, and sheets with poor surface condition that are hard to seal. The high-flow pump grips fast, reaches a high vacuum level and gives the lifter a long service life.

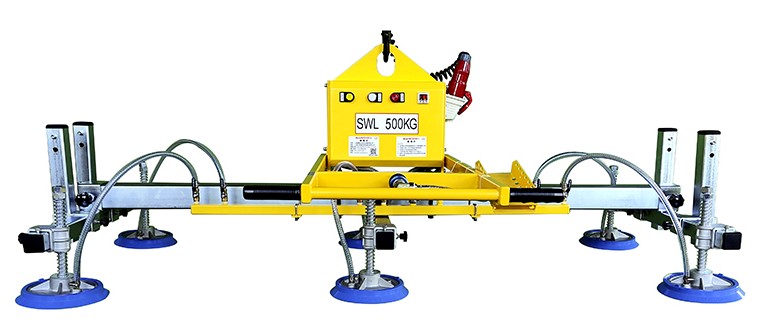

FS-BSJ AC powered vacuum lifter with 6 suction cups

Specifications

Model	Safe load	Size (mm)	Suction cups	Dead weight
FS-BSJ500-6S	500 kg	2000×800×720	6 × Φ230	120 kg
FS-BSJ1000-6S	1,000 kg	2000×800×720	6 × Φ300	125 kg
FS-BSJ800-8S	800 kg	2800×800×720	8 × Φ230	140 kg
FS-BSJ1500-8S	1,500 kg	2800×800×720	8 × Φ300	150 kg
FS-BSJ1000-10S	1,000 kg	(1000+3000+1000)×1000×950	10 × Φ230	250 kg
FS-BSJ2000-10S	2,000 kg	(1000+3000+1000)×1000×950	10 × Φ300	260 kg
FS-BSJ2500-12S	2,500 kg	(1000+3000+1000)×1000×950	12 × Φ300	280 kg

Each model is also available as the FS-BSZ battery version with the same size and dead weight.

Technical details

Item	Value
Models	FS-BSJ500-6S to FS-BSJ2500-12S
Safe load	500–2,500 kg
Power supply	AC 208–460 V (±10%) via industrial plug
Vacuum pump	Oil-free rotary vane, 0.22 or 0.26 kW
Pump flow	7 or 8.4 m³/h
Suction cups	Φ230 or Φ300, 6 to 12 cups
Control	Manual or remote

Main components

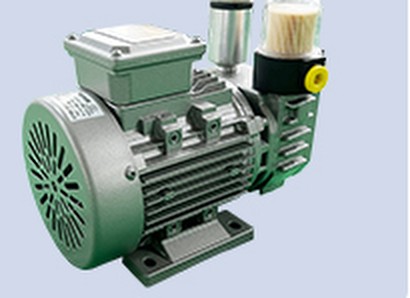

Vacuum pump

Rotary vane type, oil-free / 0.22 or 0.26 kW, 7 or 8.4 m³/h / High flow with less energy / Lowest vibration and noise level

Vacuum suction cup

Dia. 230 or 300 mm, single horizontal load 100 or 200 kg / Cast aluminium base / Wear-resistant nitrile rubber, detachable from the base / Angle adjustment, floating connection

Equipment frame

Custom made by the factory / National standard structural steel / Welded, machined, shaped, baked paint and galvanised surface, durable

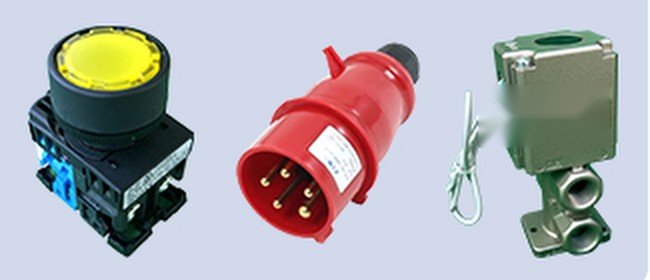

Other spare parts

Power switches and solenoid valves from internationally known brands / International certifications / Low failure rate, durable

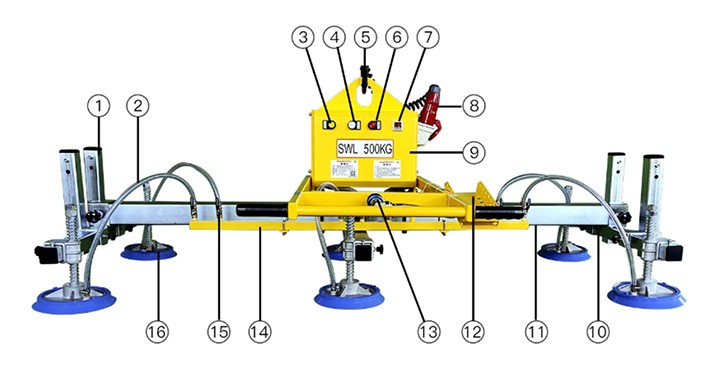

Parts diagram

Numbers on the diagram match the part names below.

Supporting feet
Vacuum hose
Power switch
Vacuum pump
Lifting lug
Warning light
Pressure switch
Power plug
Vacuum pump (inside the control box)
Crossbeam
Main beam
Remote control tray
Push-pull valve
Vacuum manifold
Ball valve
Vacuum suction cup

On-site photos

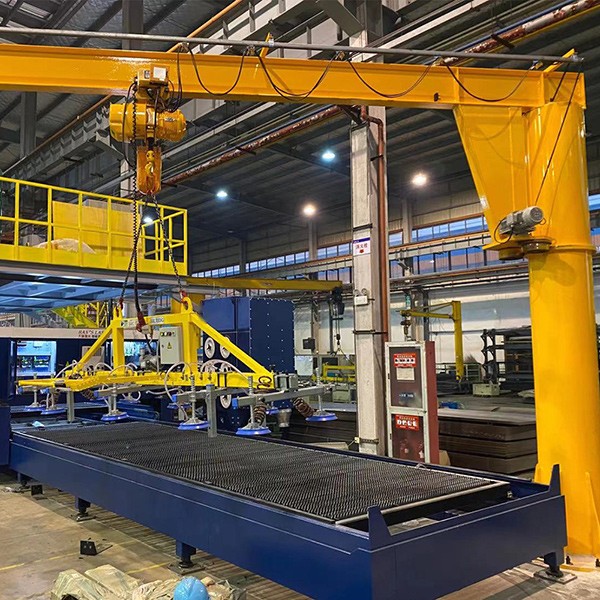

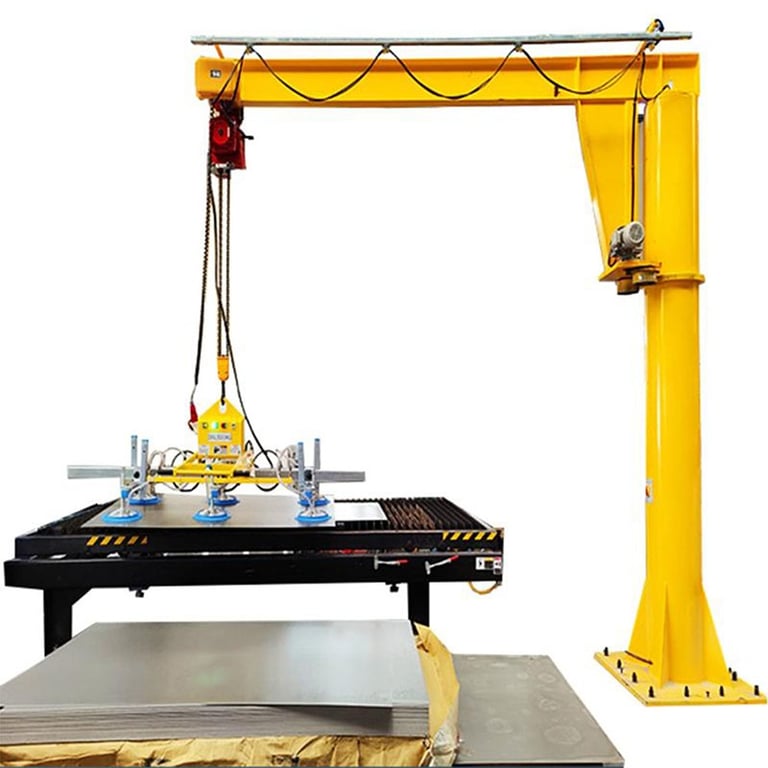

**Hung under a jib crane beside a laser cutter**

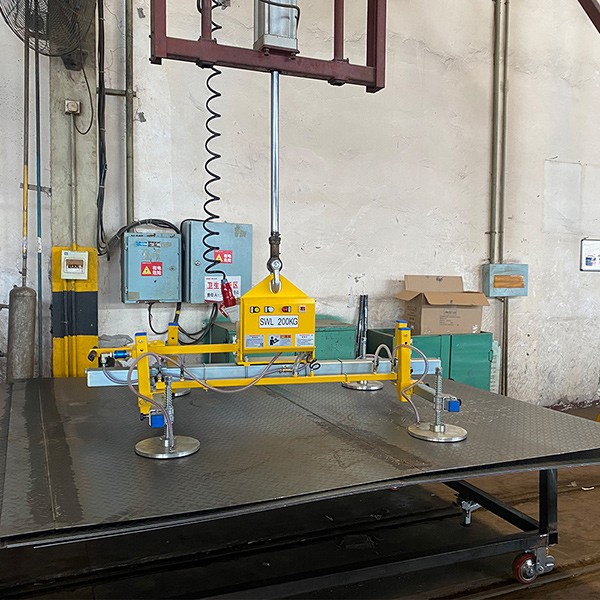

**4-cup version lifting sheet on a trolley**

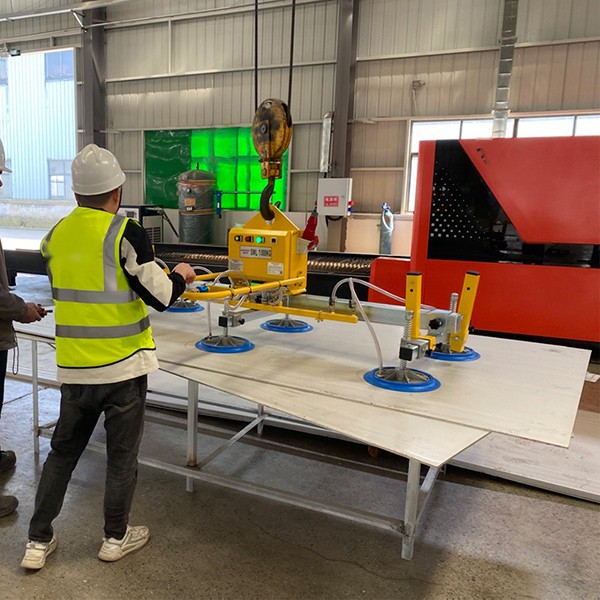

**Placing sheet on a table next to the laser cutter**

Advantages

Continuous multi-shift work

Mains powered, so there is no stopping to recharge. Suited to laser lines running day and night.

Handles poor sheet surfaces

A pump flow of 7–8.4 m³/h makes up for air leakage on rough sheets and grips faster.

High vacuum, durable pump

Oil-free rotary vane pump with low vibration and noise, little maintenance over years of use.

Reliable electrics

Switches, solenoid valve and plug from international brands, certified, with a low failure rate.

For installation you need an industrial power socket and a power cable running along the crane or hoist to the lifter.
