EHLK SERIES (CE MARKED MODEL)

EHLK SERIES (CE MARKED MODEL) is part of the ENDO Air Hoist (Chain Type) range. ENDO AT, ATC, EHL-TS, EHL-TW, EHV and EHLK chain air hoists from 60 kg to 6 tons with surface-hardened alloy steel load chain.

Its capacity is 1000kg-2000kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance.

Since the overload protector is built into the main unit, the risk of damage to the overload protector module is reduced .
The load chain is extendable.
EHLK series are equipped with an emergency stop button on the pendant switch as standard.

ATEX class : EHLK SERIES (CE MARKED MODEL) II3GD Ex h IIB T4 Gc / Ex h IIIB T135°C Dc

Dimensions

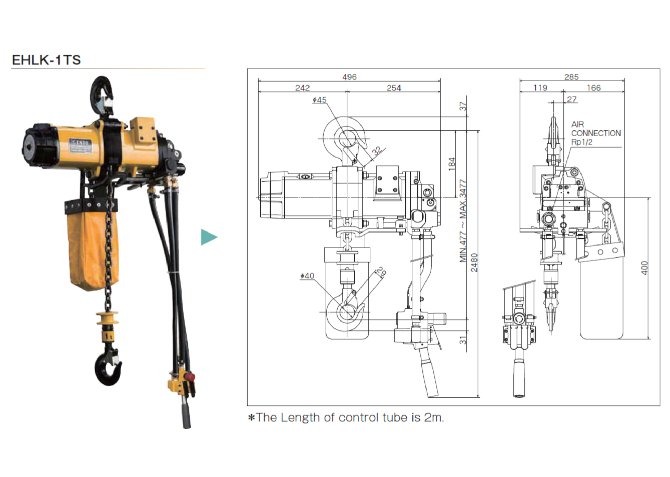

■EHLK-1TS

Rated load is 1000kg.
Single fall chain type.
The Length of control tube is 2m.
Emergency stop button is equipped on pendant controle.

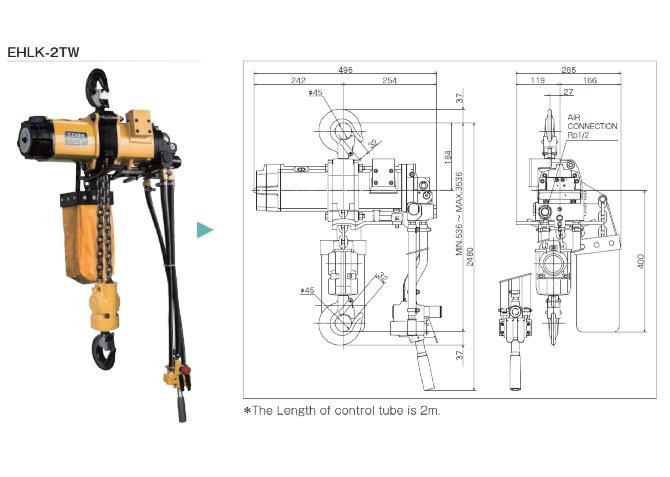

■EHLK-2TW

Rated load is 2000kg.
Double fall chain type.
The Length of control tube is 2m.
Emergency stop button is equipped on pendant controle.

Specifications

Model	Rated load (kg)	Stroke (m)	Air pressure Mpa(kgf/c㎡)	Lifting speed (m/min)	Air consumption (m³/min)	Chain (size x fall)	Air inlet	Mass (kg)
EHLK-1TS	1000	3	0.4(4)	3.3	1.3	7.1×1	Rp 1/2	38.0
			0.5(5)	4.3	1.4
			0.6(6)	5.3	1.5
EHLK-2TW	2000	3	0.4(4)	1.6	1.3	7.1×2	Rp 1/2	46.0
			0.5(5)	2.1	1.4
			0.6(6)	2.6	1.5

Optional Accessories

Plentrolly

By attaching it to the hanging source, it enables smooth lateral movement manually.

Air Motor Trolley

This type of trolley is powered by air and transports a suspended load horizontally.
