Fixed-Base Aluminum Rail Crane for Carton Boxes

Once a work position is fixed, what's needed is a sturdy system that runs reliably every day. Carton boxes come out continuously, manual carrying tires workers and dents the goods, while makeshift equipment wears out fast. Not every part of the ceiling can support a suspended hoist either.

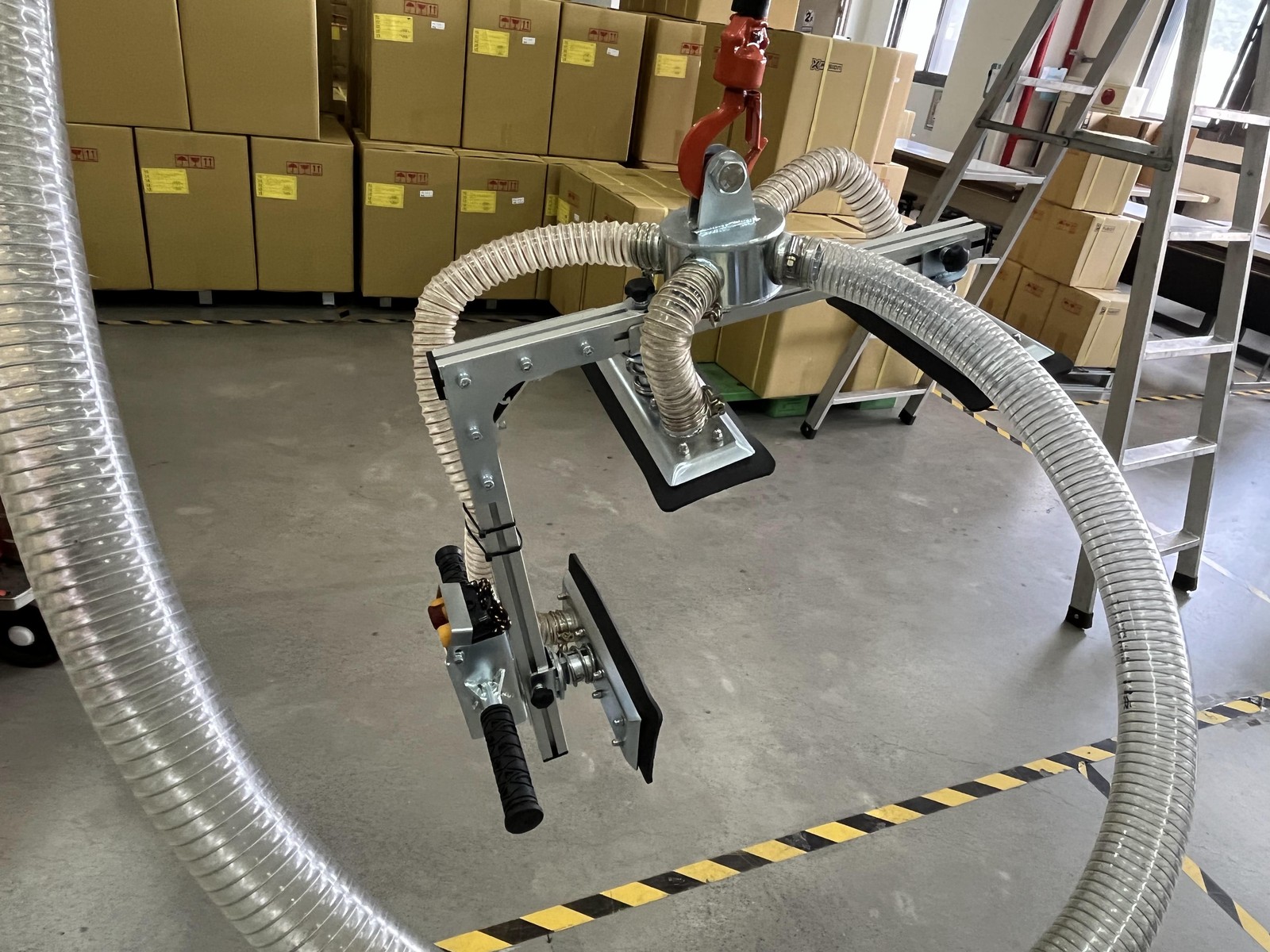

FullSharp builds an aluminum rail jib crane on a fixed base anchored to the floor, carrying a KITO electric hoist and Becker vacuum motor. The lightweight aluminum rail keeps the load on the column light, letting the trolley run smoothly. The suction head grips the box surface, and the swing arm moves the load over to the pallet.

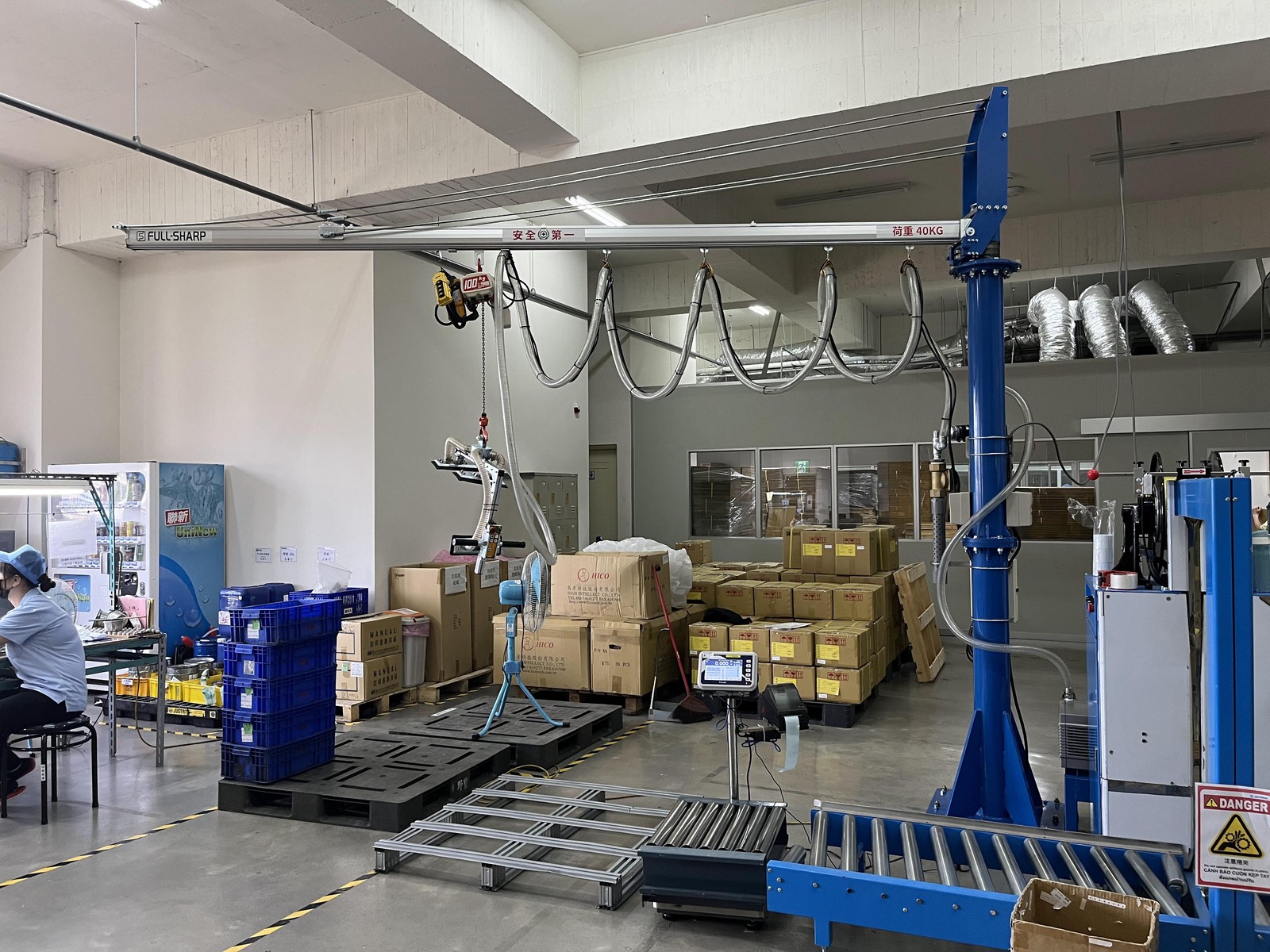

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction

An aluminum-rail jib crane on a fixed base with a KITO hoist and Becker vacuum motor lifting a carton box.

Equipment Included

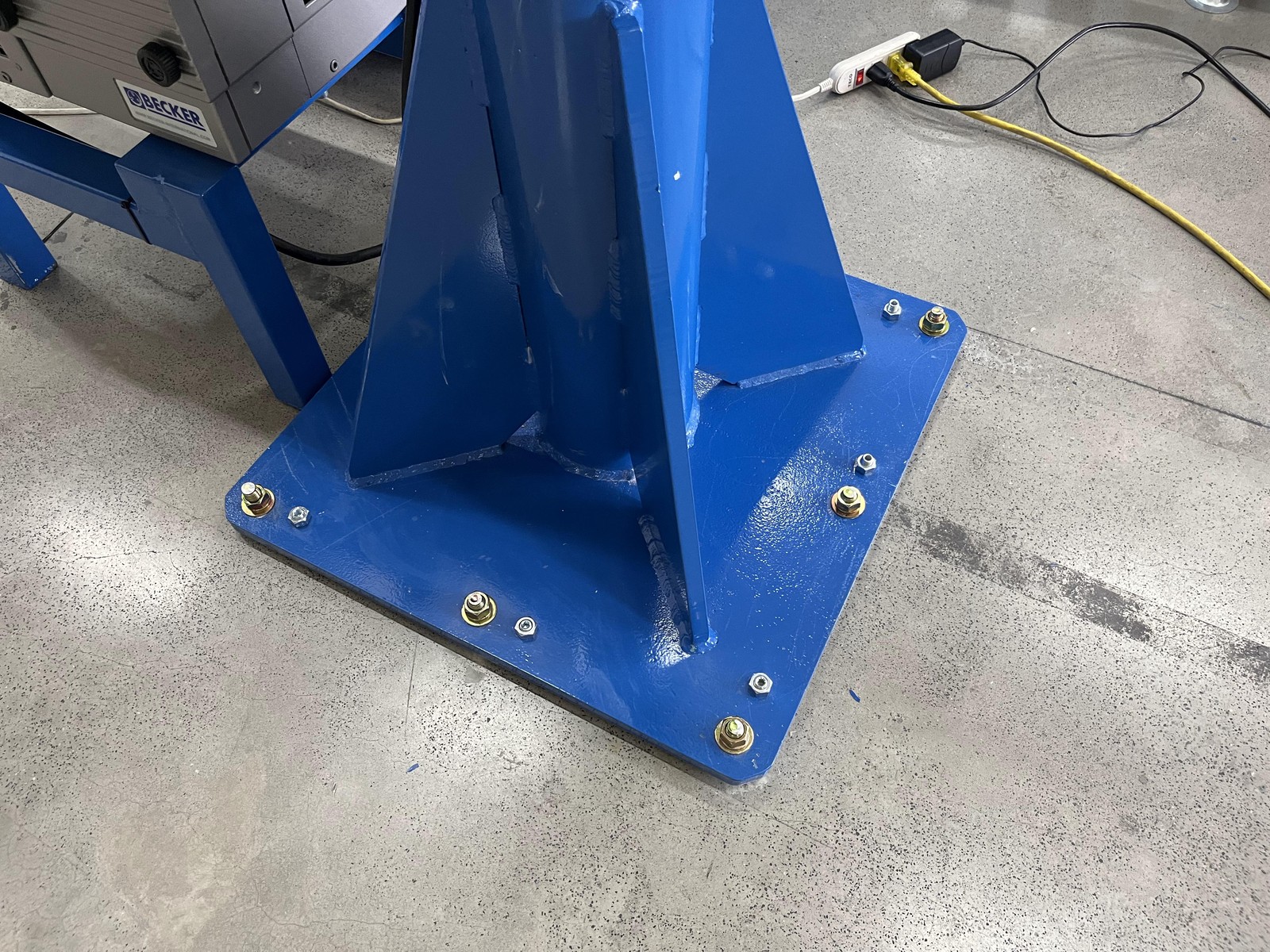

Fixed base: bolted to the floor at the work station, independent of the ceiling structure.
Aluminum rail: lightweight and corrosion-resistant, reducing load on the column and keeping the trolley running smoothly.

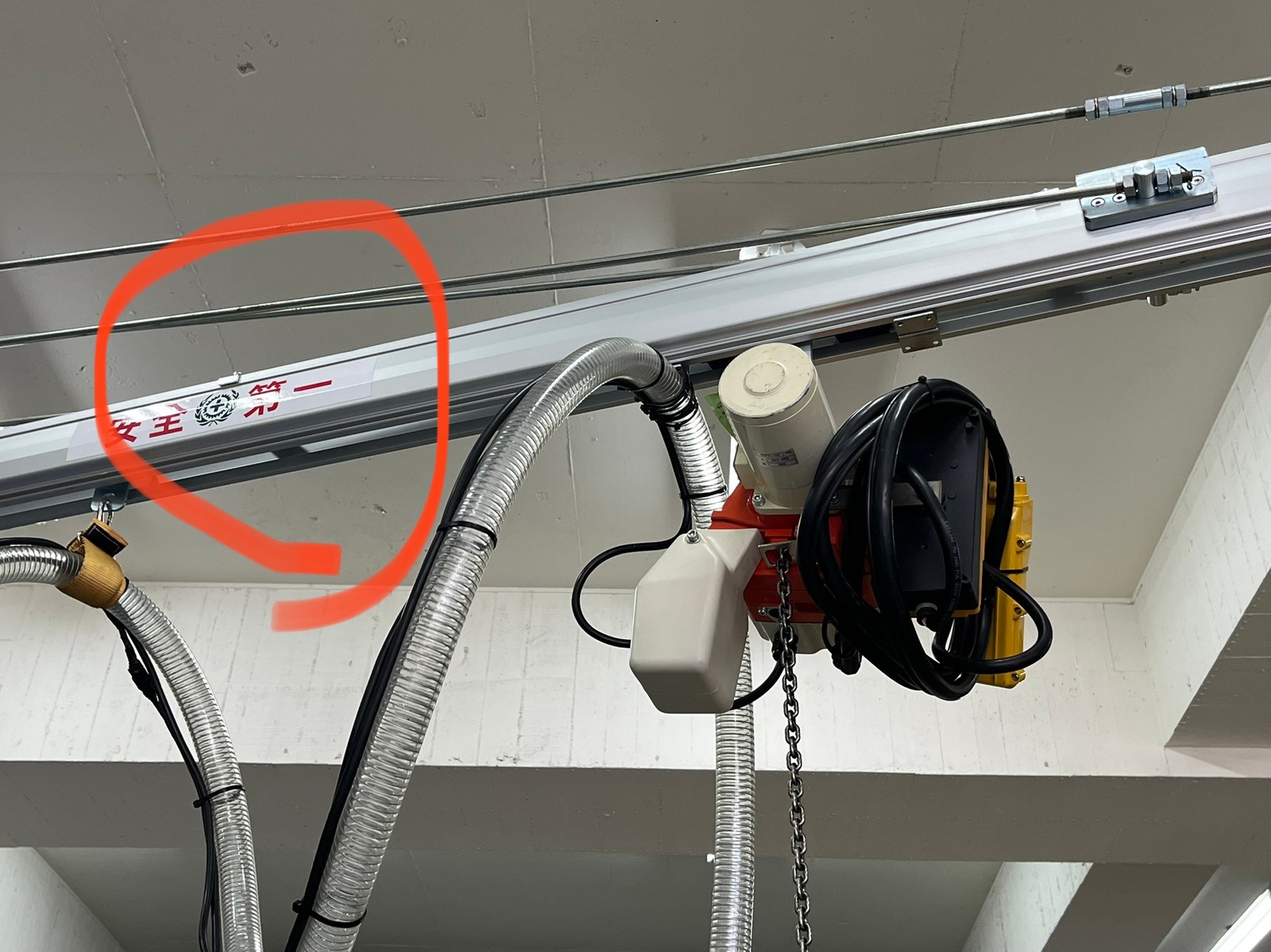

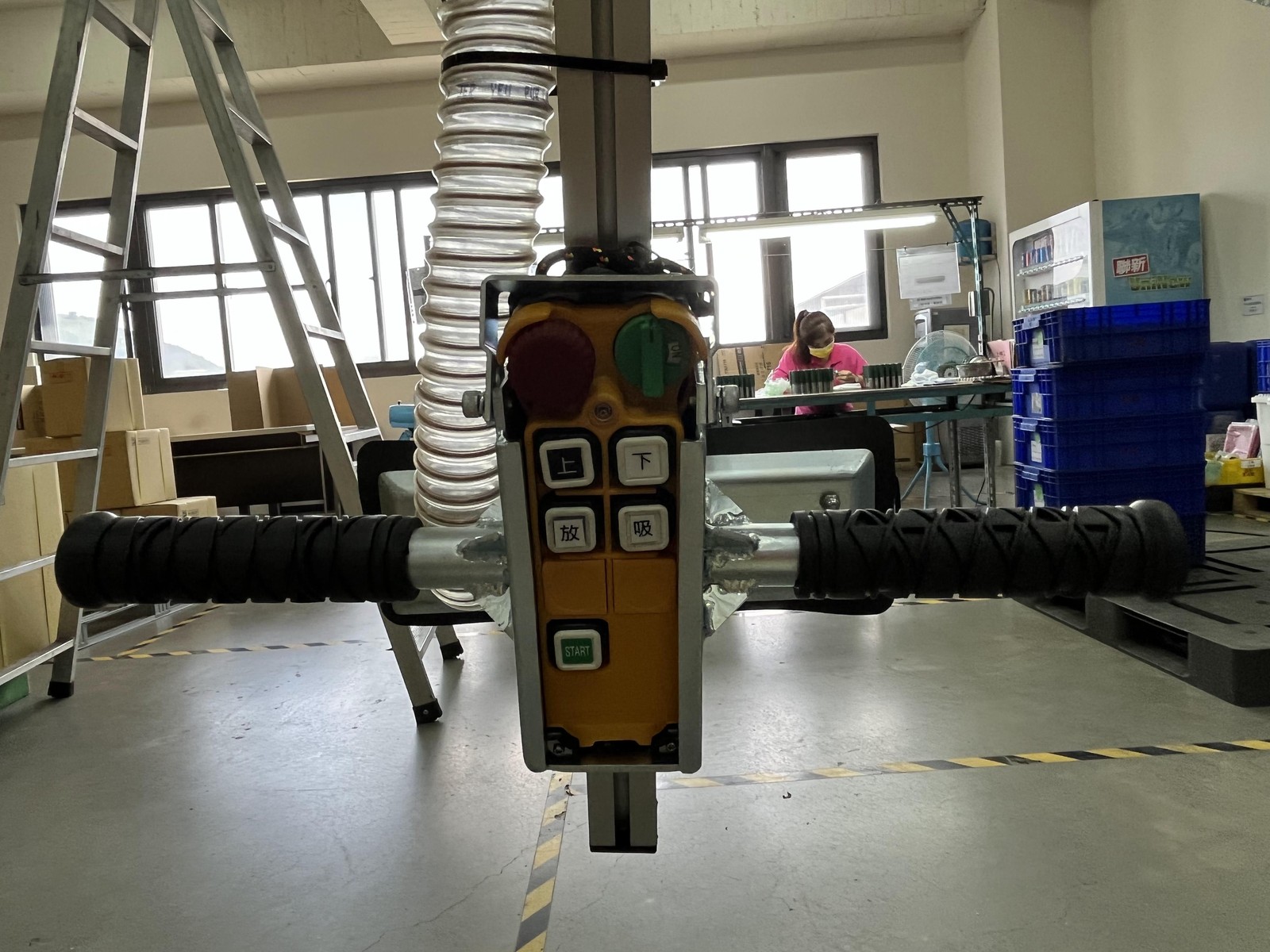

KITO electric hoist: pushbutton lifting and lowering, with a holding brake for high-frequency use.

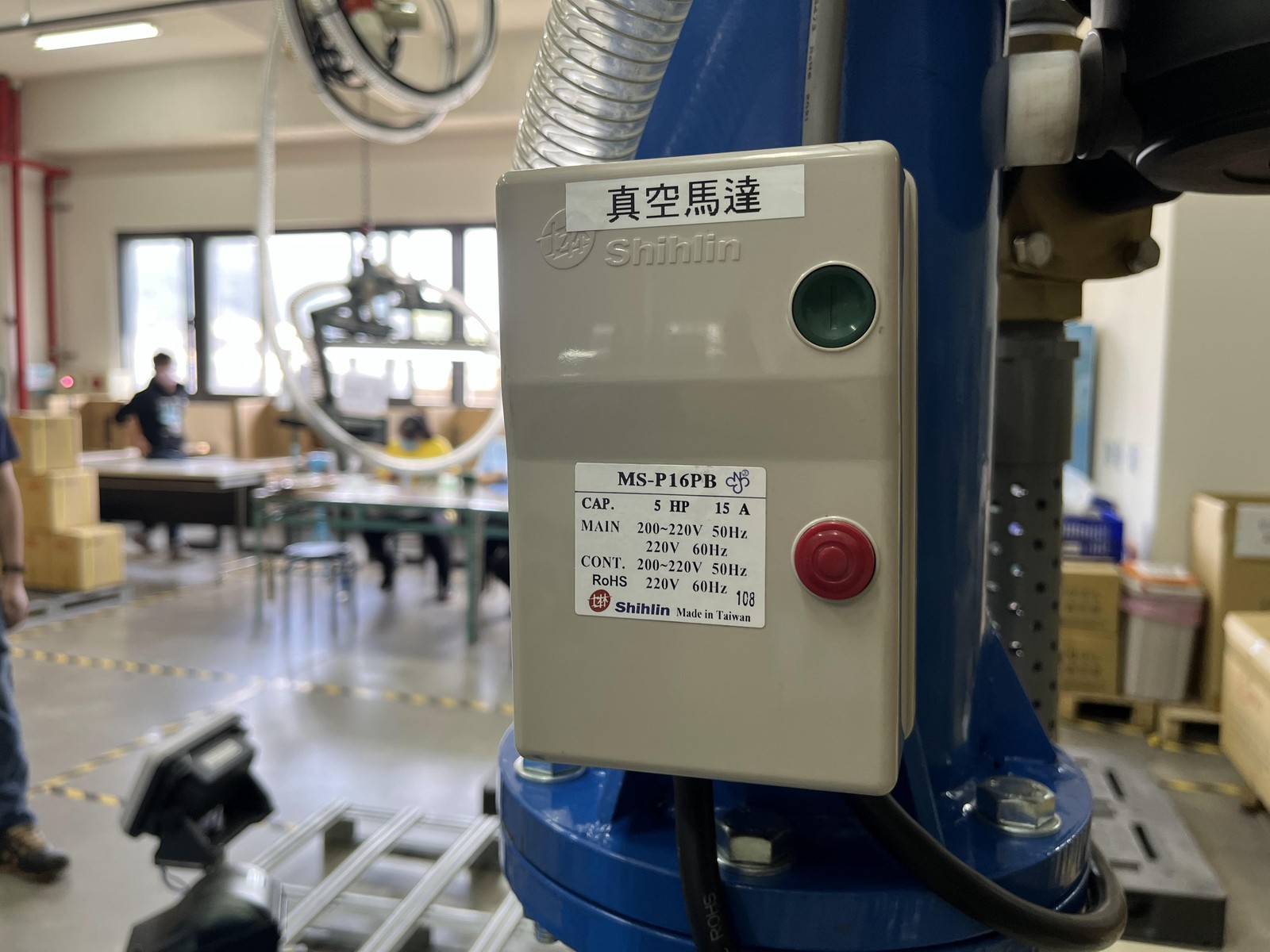

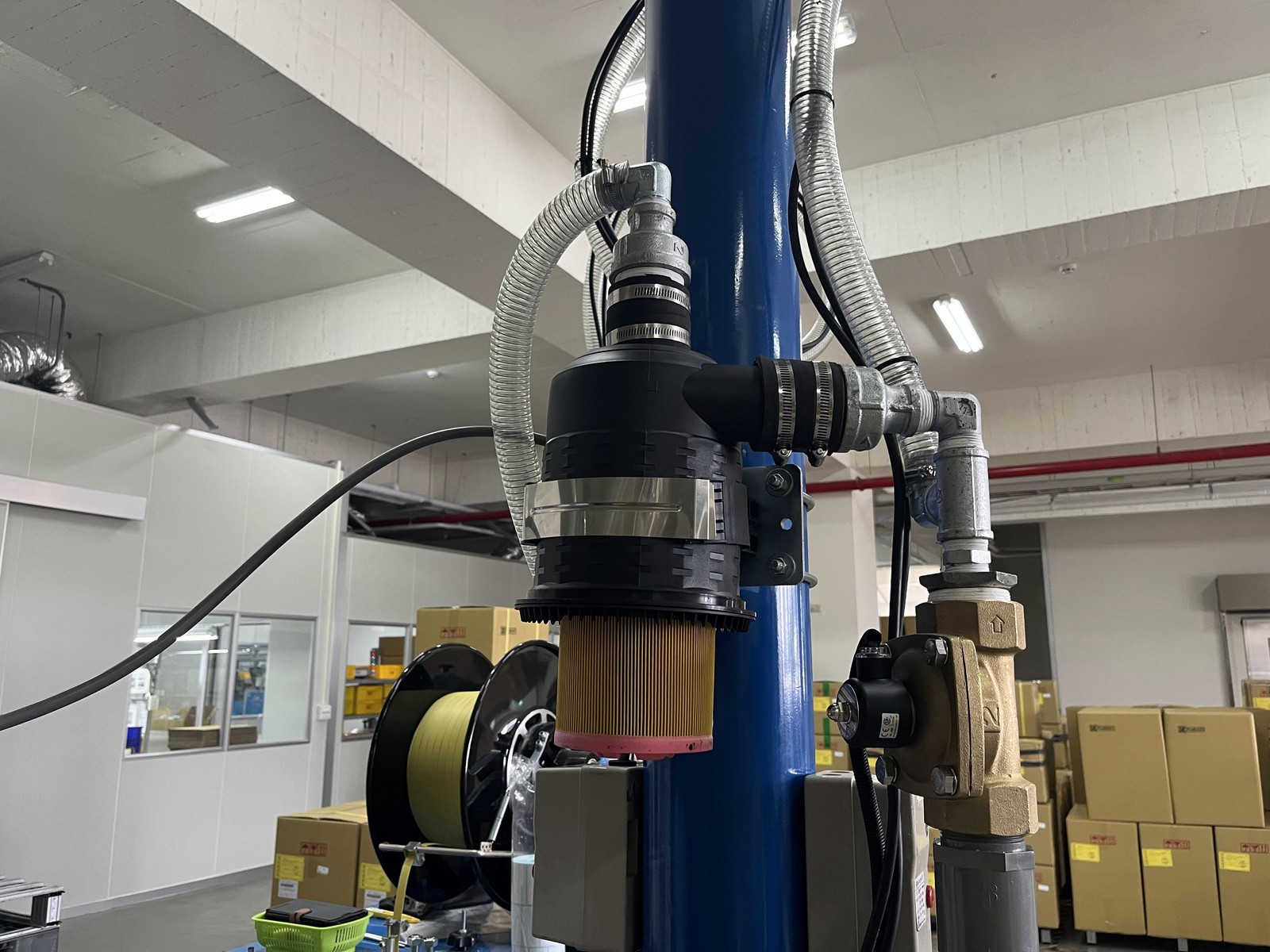

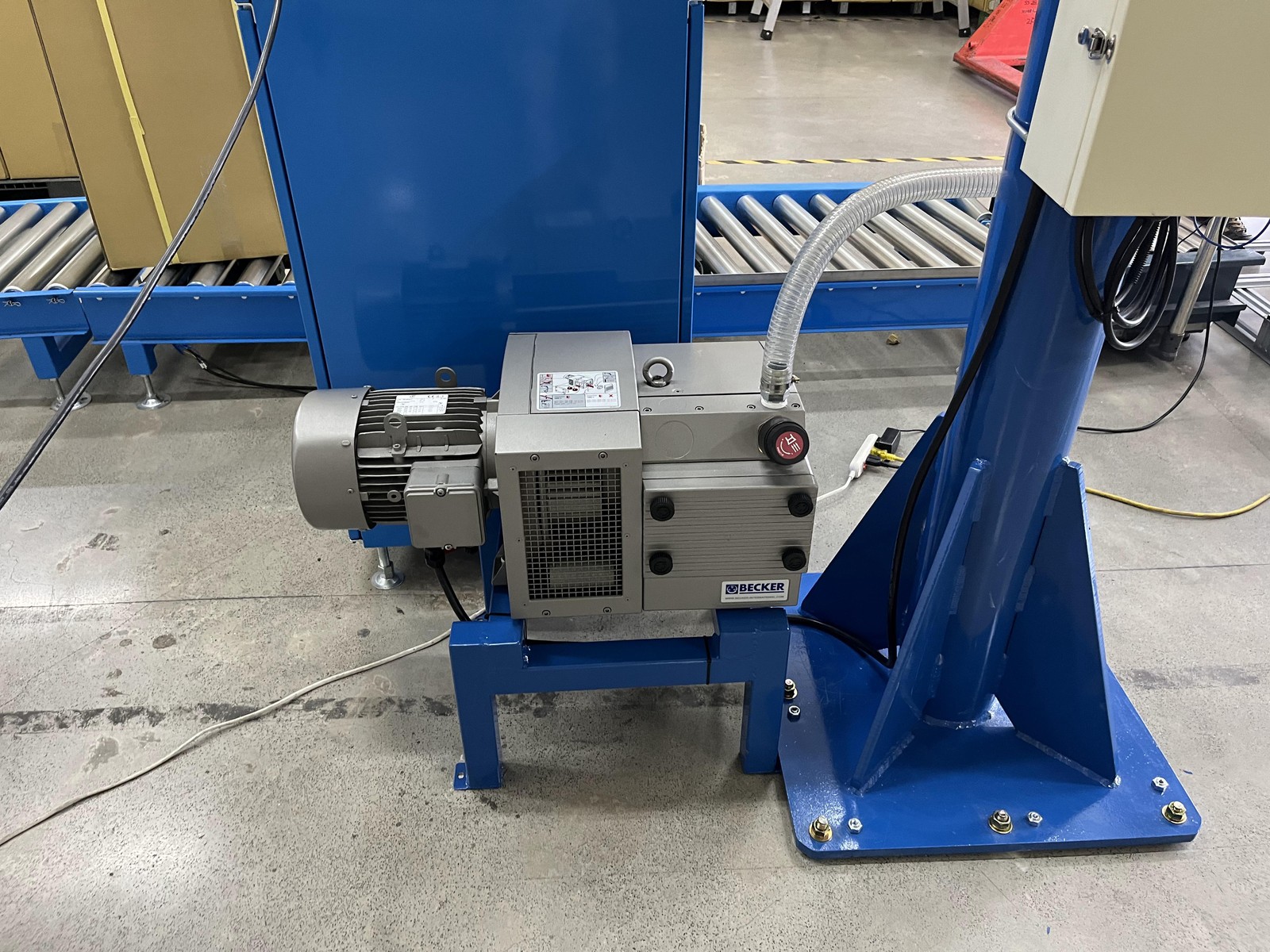

Becker vacuum motor: steady suction power, keeping the carton box secure throughout the lift.
180-to-360-degree rotating jib: chooses the swing angle to suit the floor area around the machine's position.

Key Specifications

Jib rotation angle180 to 360 degrees

Benefits for Your Facility

Runs reliably every day

The fixed base and KITO hoist give a sturdy system, suited to a work station used continuously.

No load on the ceiling

All the load goes to the base, so the workshop doesn't need to reinforce the ceiling structure.

Carton boxes stay intact

Suction on the flat surface with a gentle release keeps the packaging free of dents and tears.

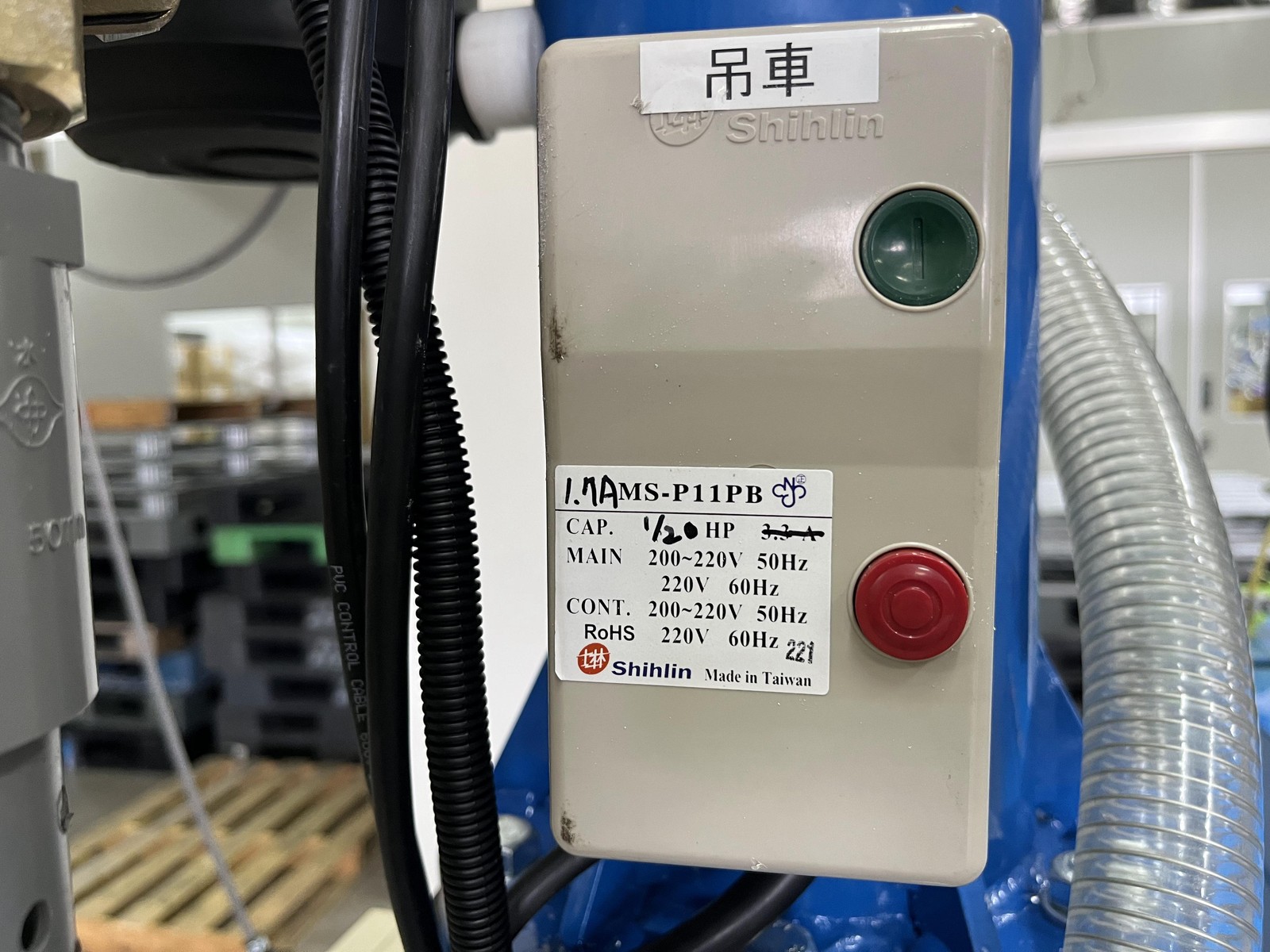

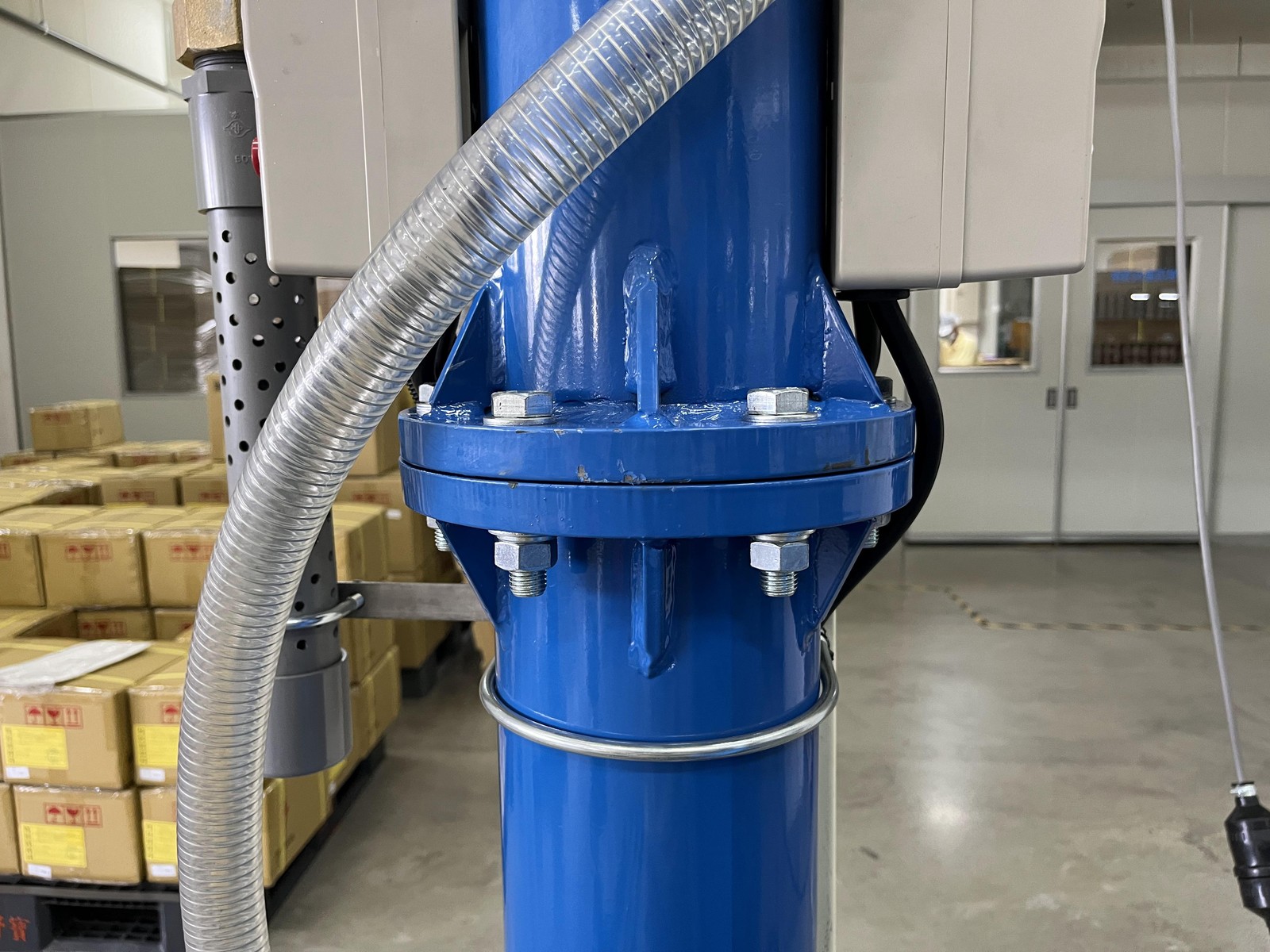

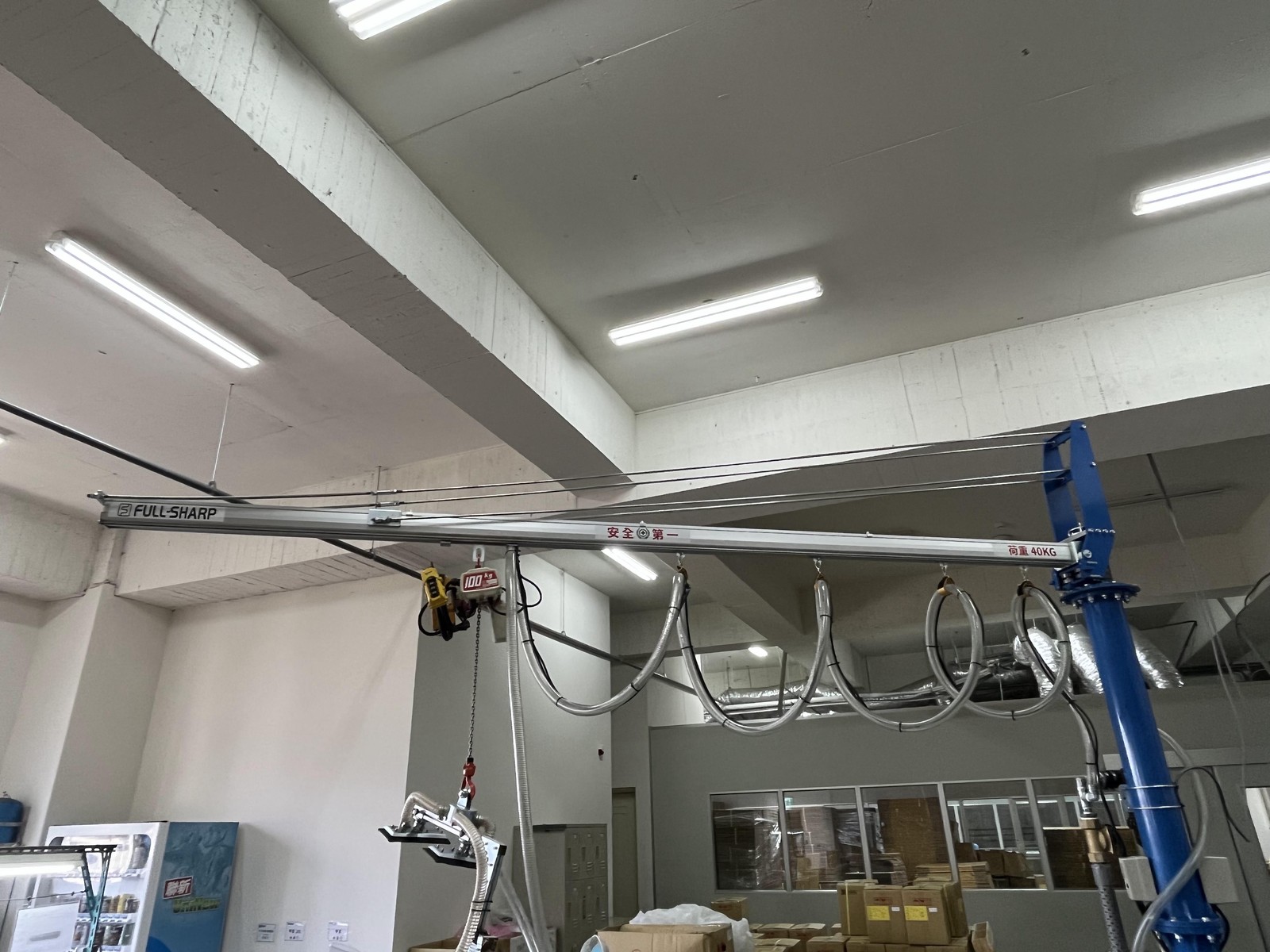

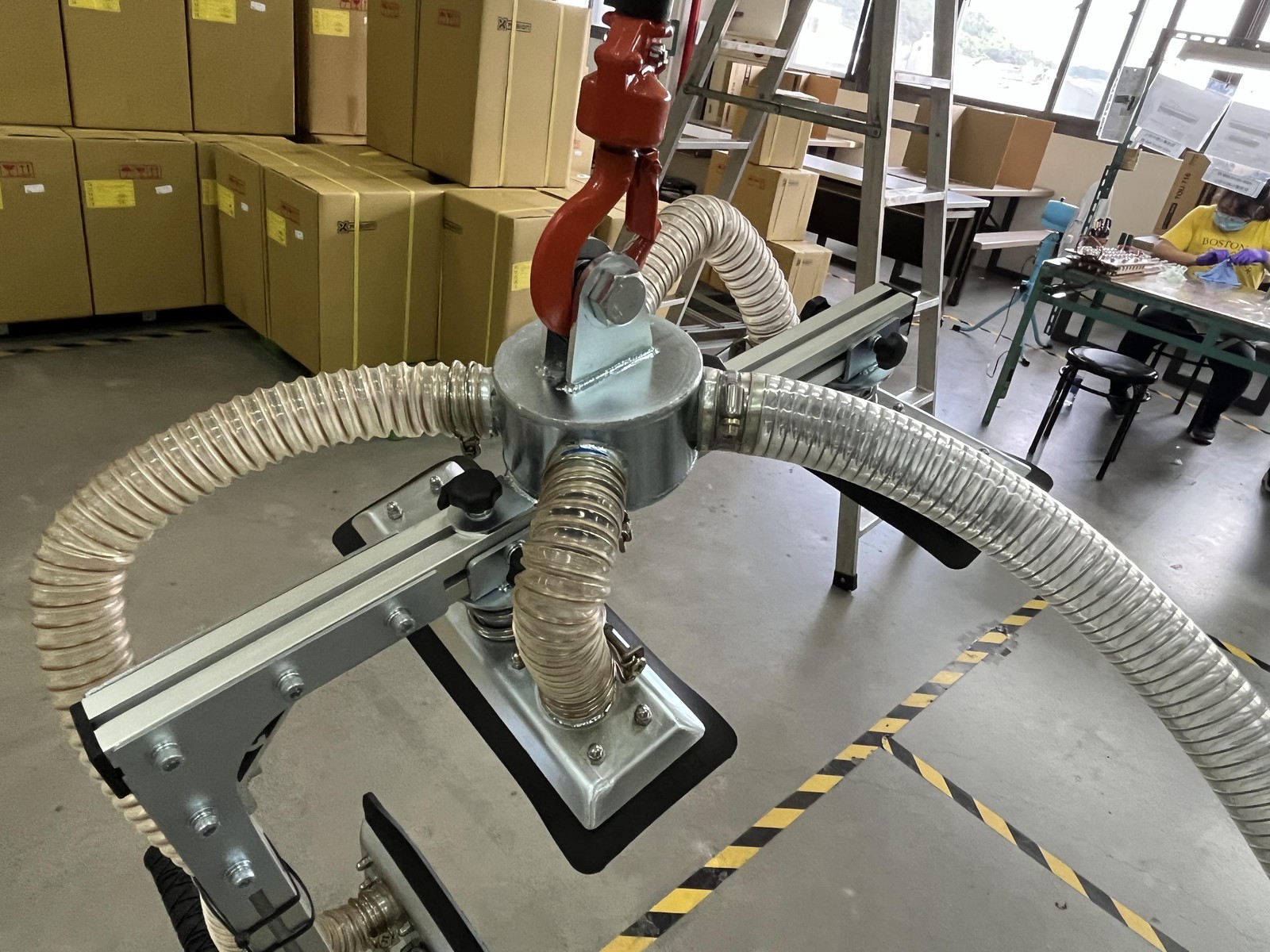

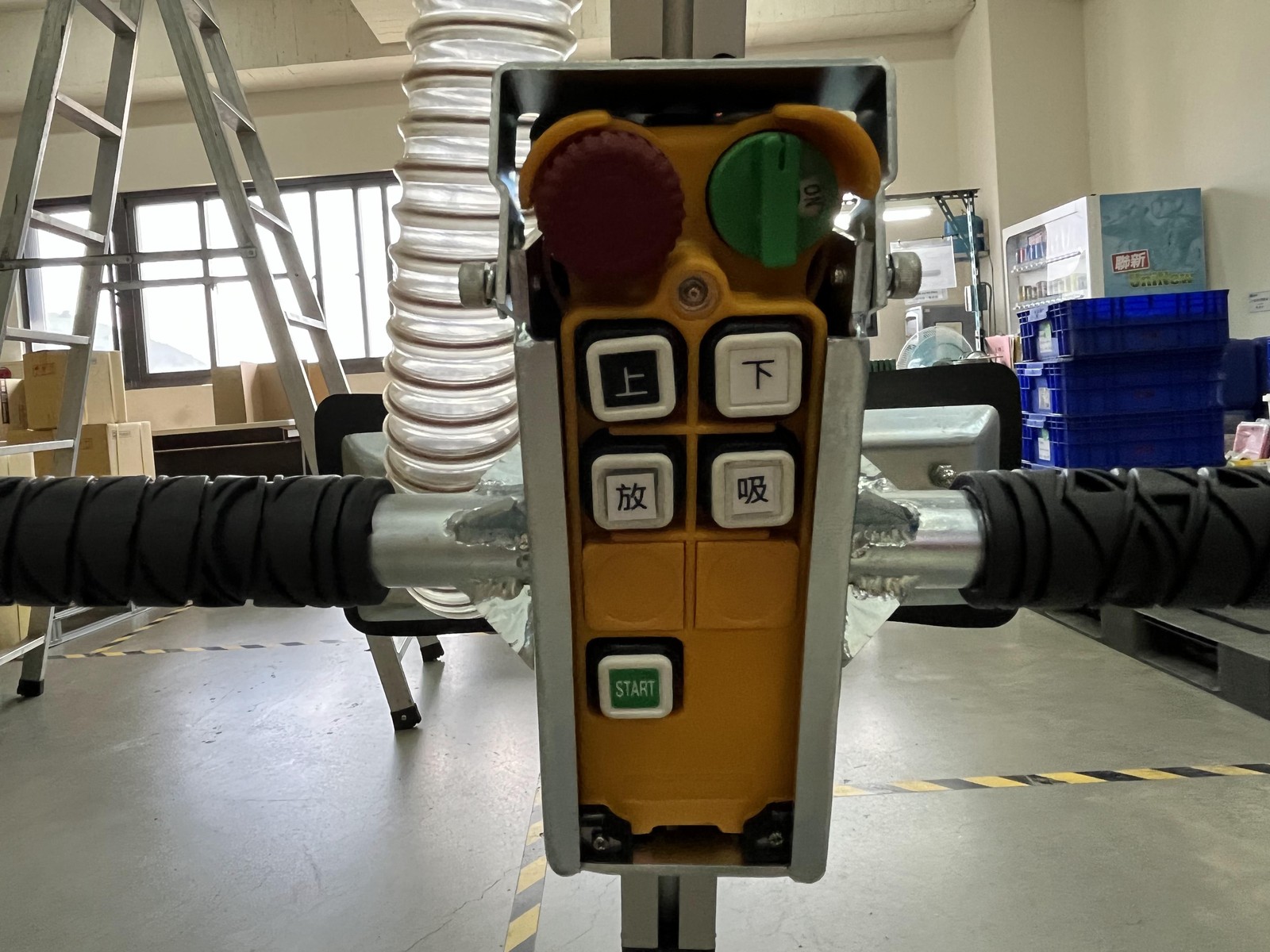

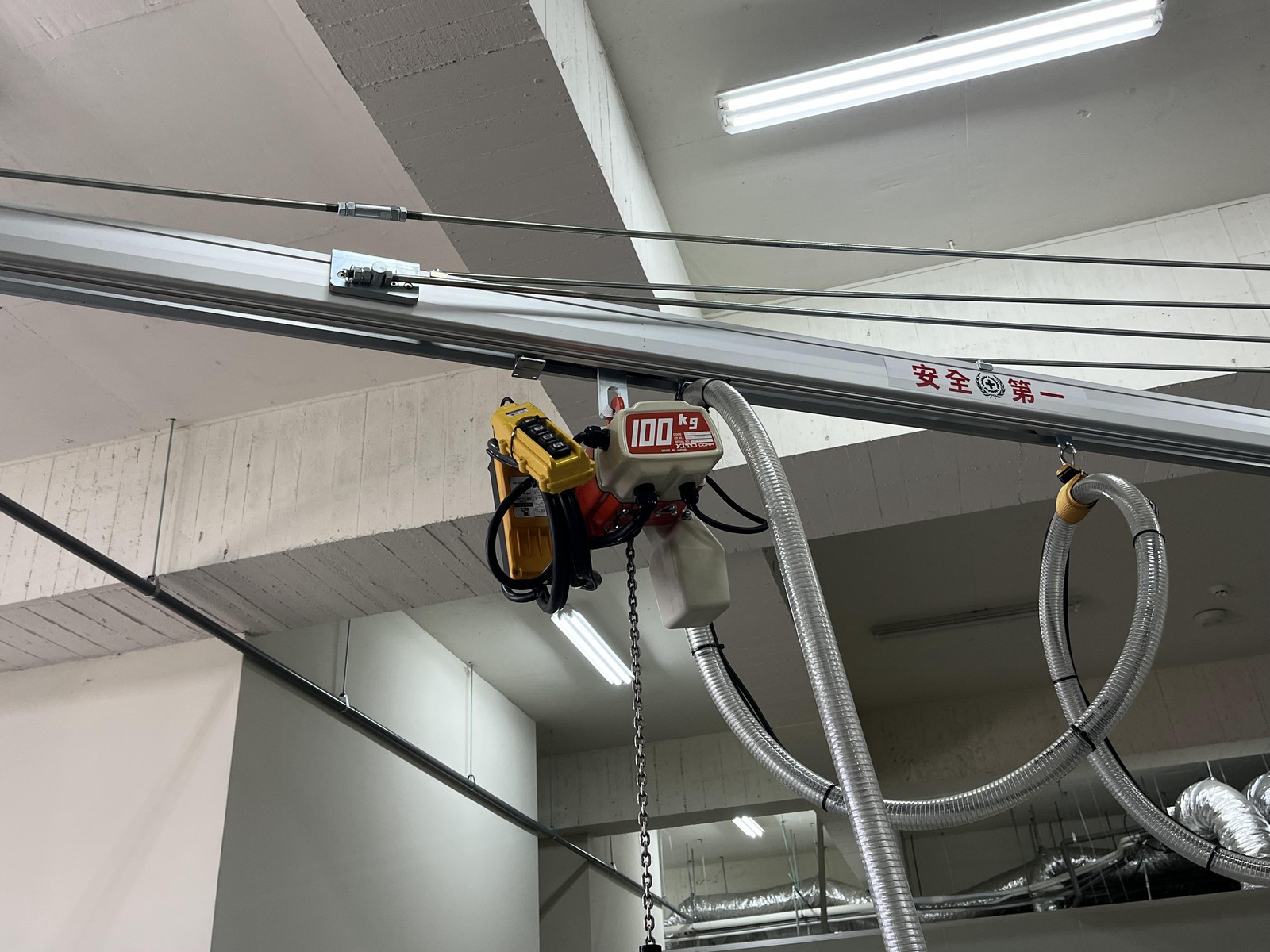

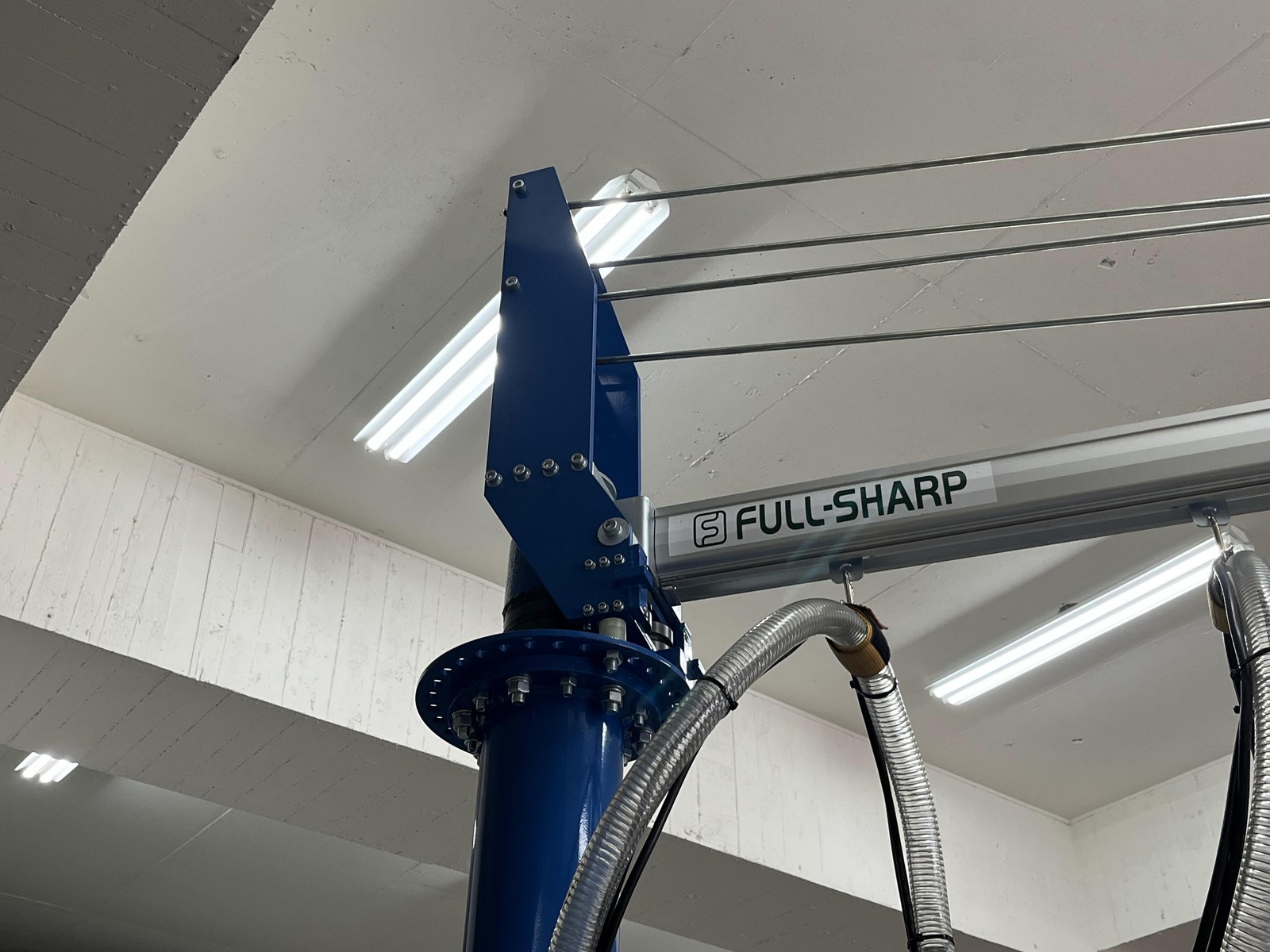

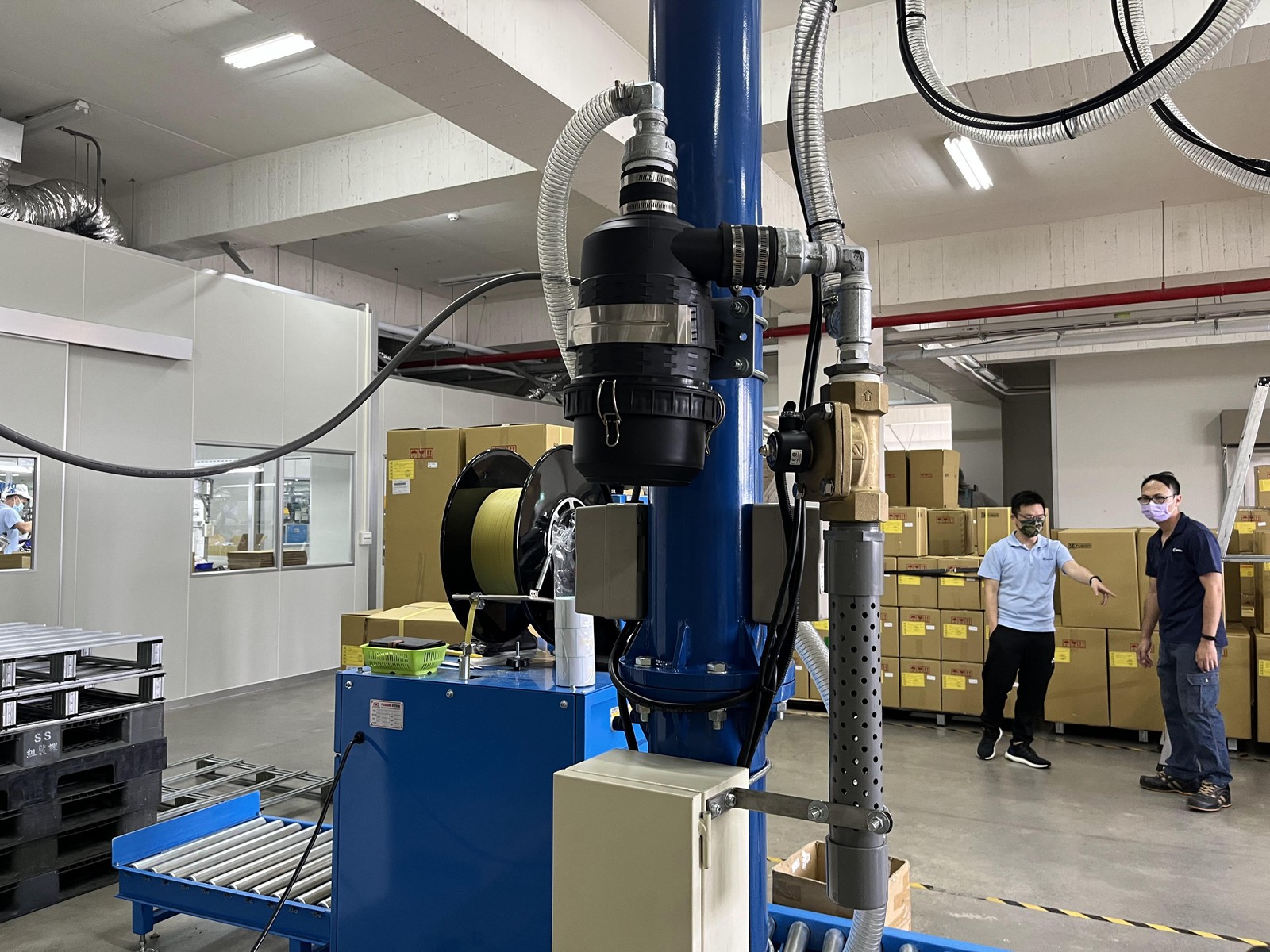

Real Installation Photos

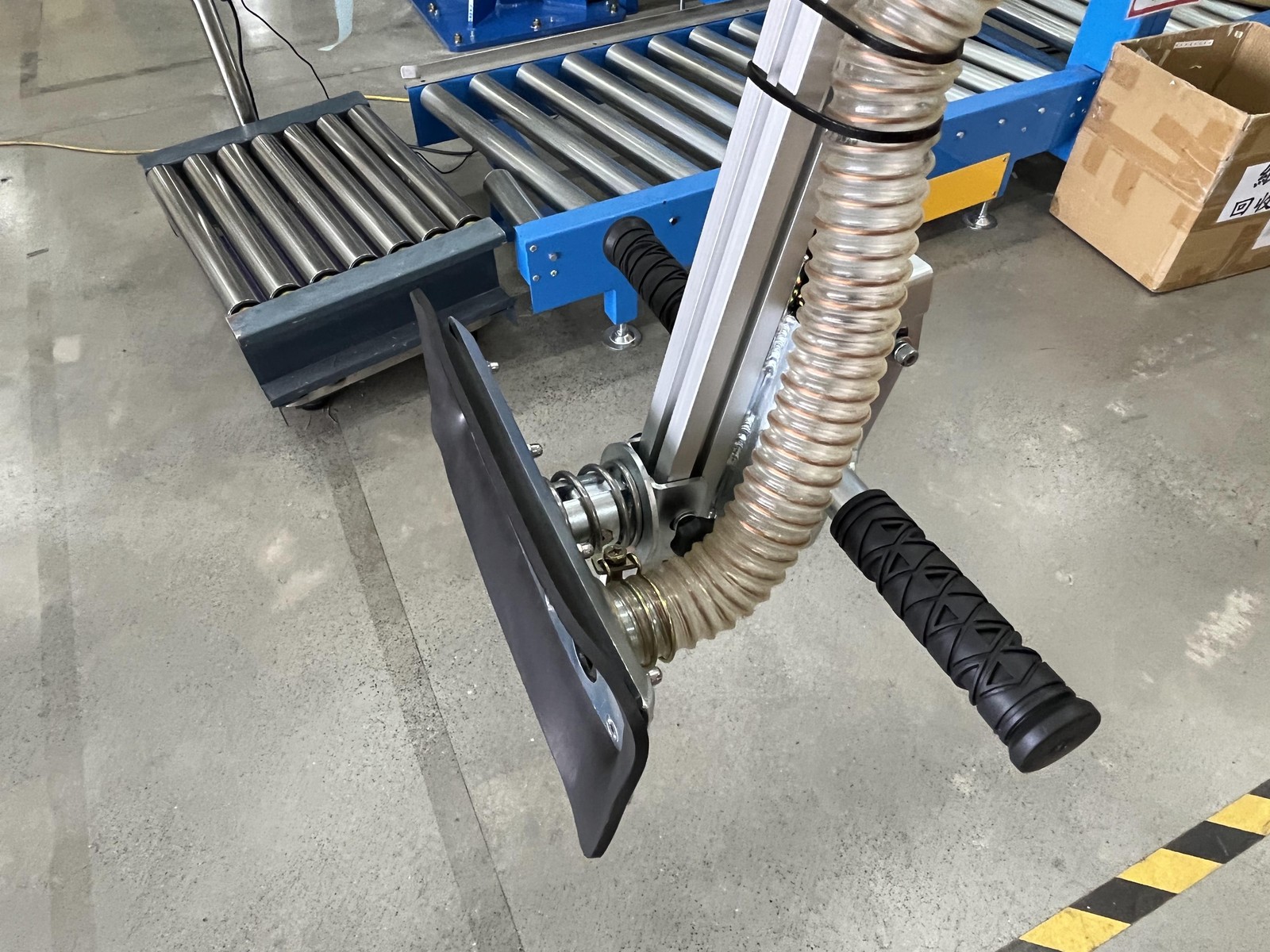

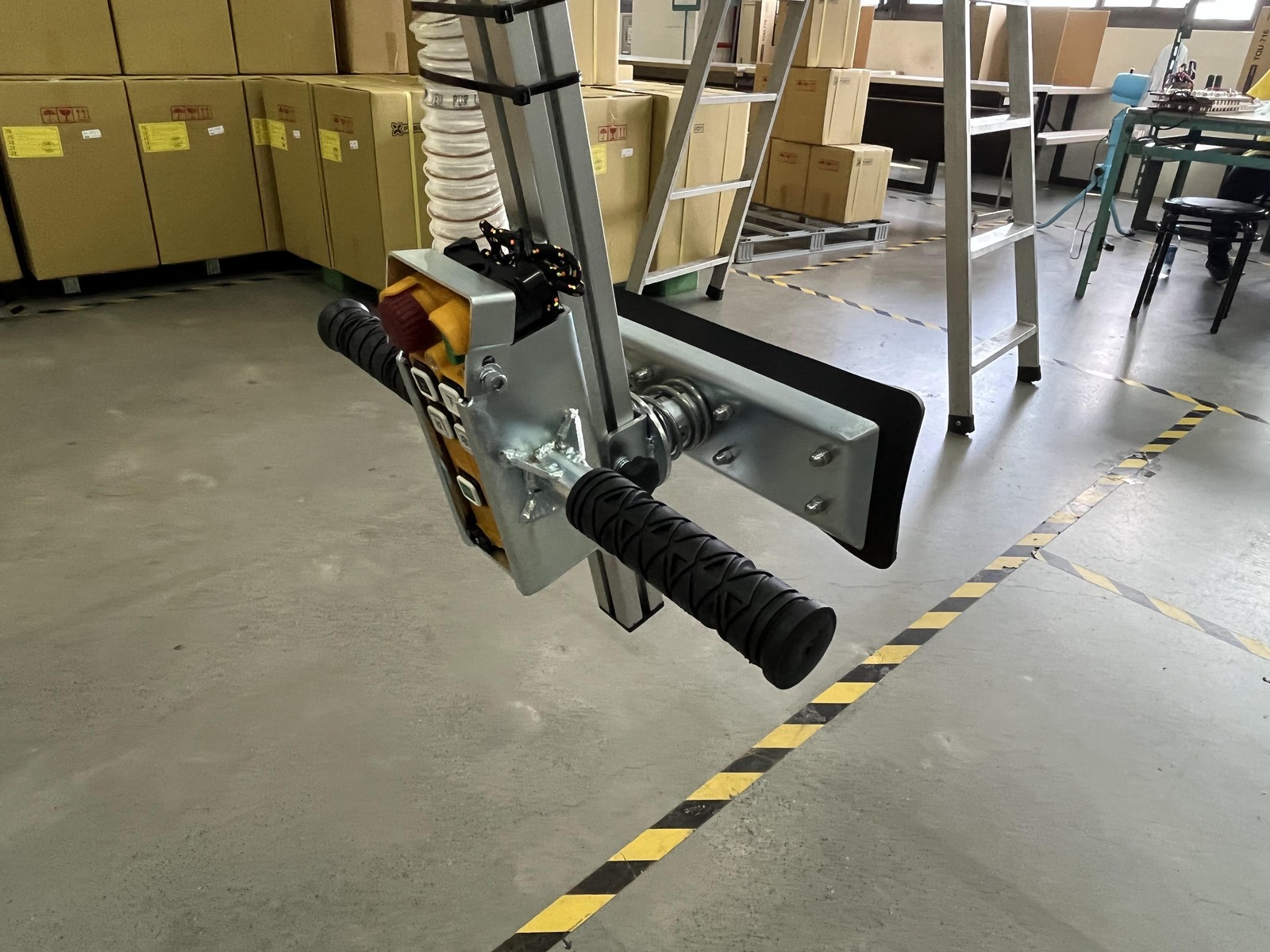

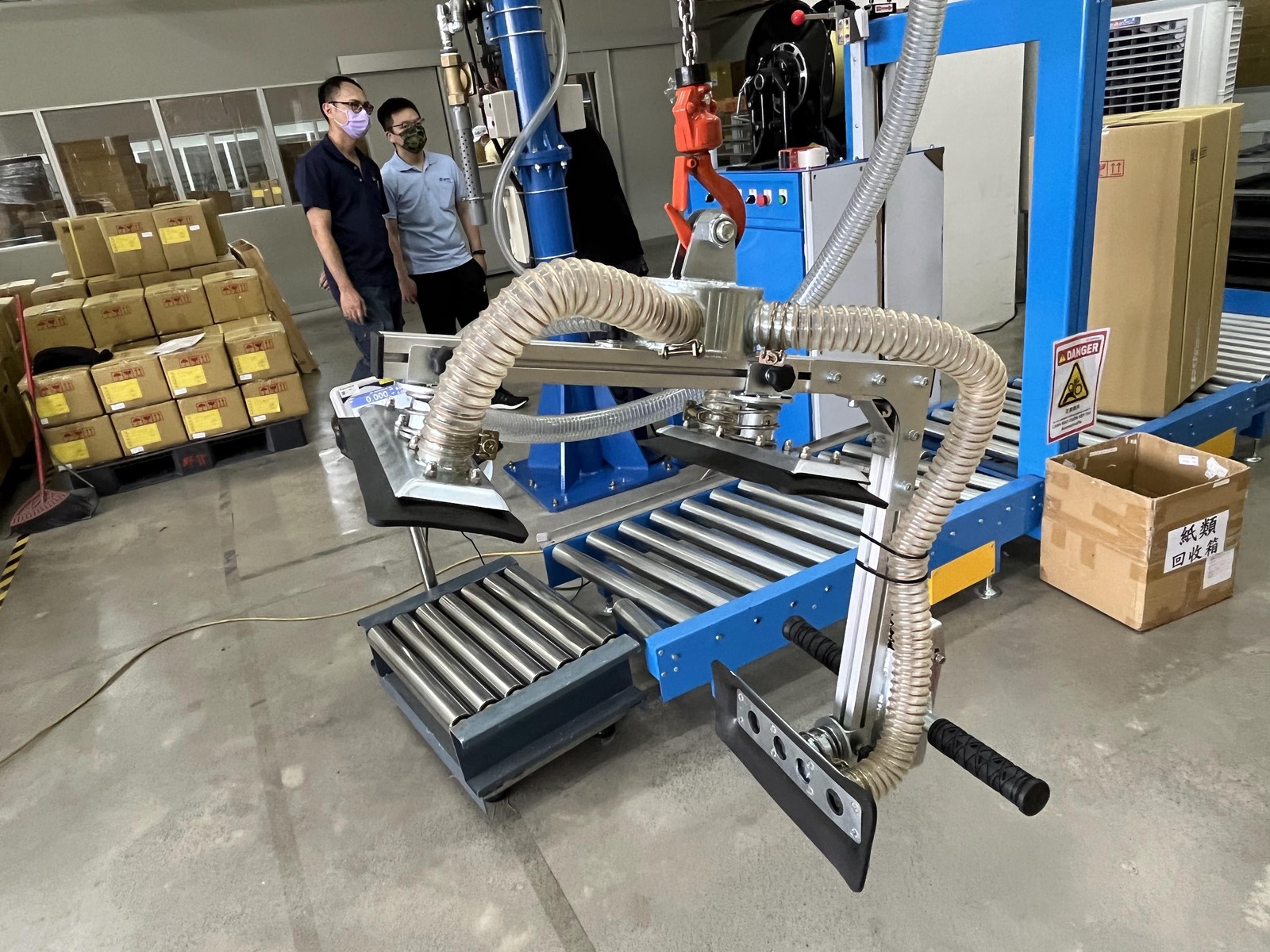

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 1

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 2

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 3

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 4

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 5

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 6

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 7

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 8

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 9

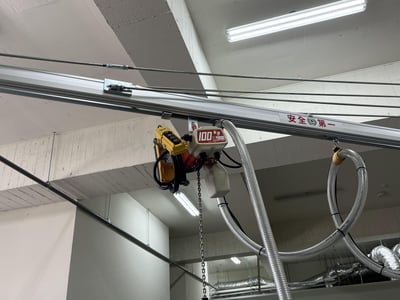

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 10

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 11

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 12

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 13

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 14

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 15

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 16

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 17

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 18

Fixed-Base Aluminum Rail Jib Crane with KITO Hoist for Carton Box Suction - ảnh 19

Click a photo to enlarge. Album of 19 photos taken on site.

Suitable Applications

Paper mills and carton packaging plants
Warehouses and packing workshops
Light industrial production lines
Logistics and distribution centers

Consultation for Your Facility

FullSharp measures the load, box dimensions, and the distance from pickup to drop-off to finalize the reach. Our engineers also check that the workshop floor is thick enough to anchor a fixed base. Contact FullSharp to schedule a survey.
