Pneumatic Jib Crane Lifts Metal Sheets

Stainless steel and thin steel sheets pick up fingerprints and scratches easily, which manual handling almost never avoids. Large sheets also sag in the middle when two workers lift from opposite ends, causing warping that has to be straightened out before machining.

FullSharp installs a pneumatic jib crane fitted with a vacuum lifting pad at the sheet storage area. The suction cups grip the top surface and distribute the load evenly across the sheet; compressed air lifts it and the jib arm swings it straight onto the cutting table, keeping the sheet flat the whole way.

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets

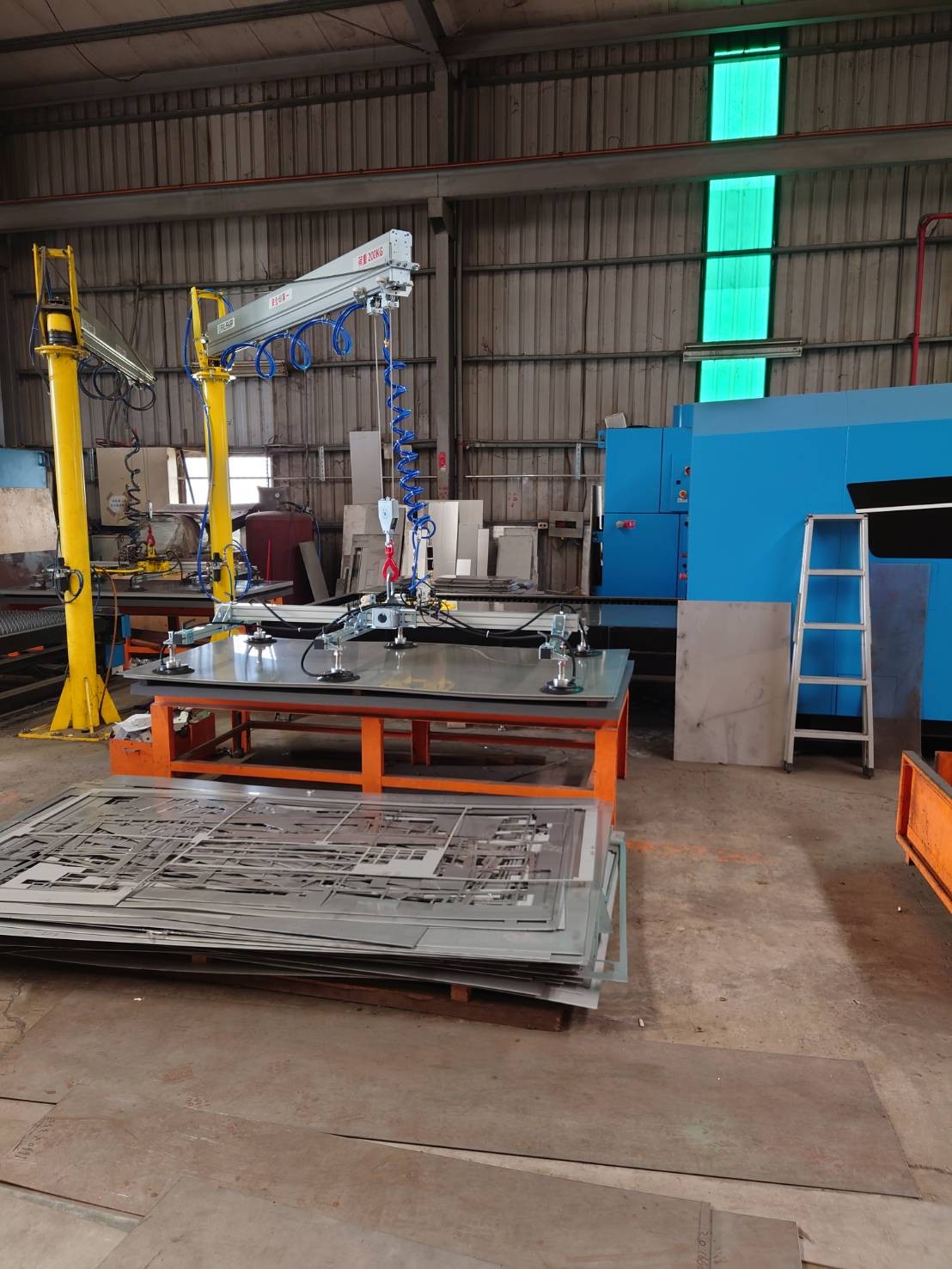

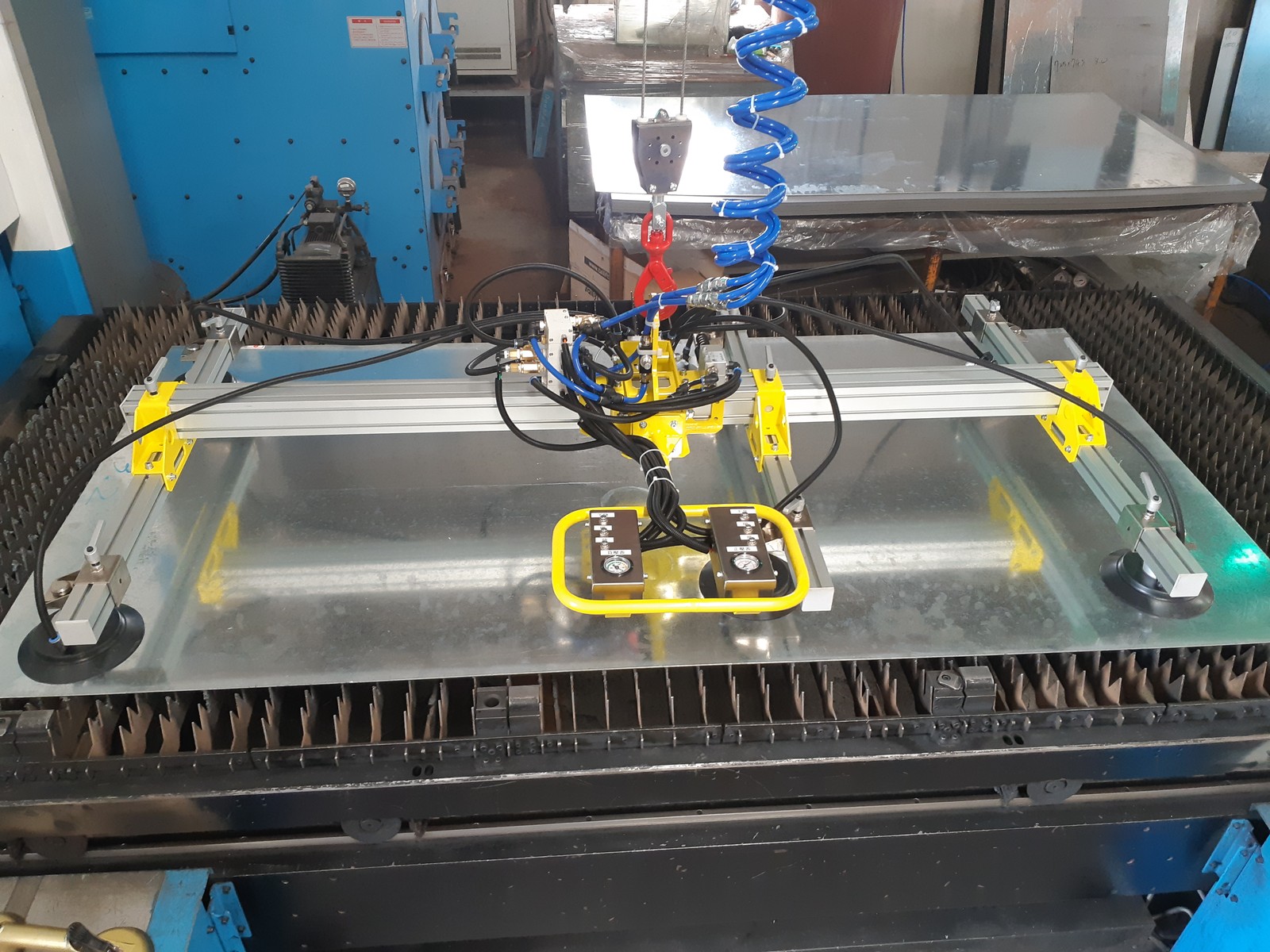

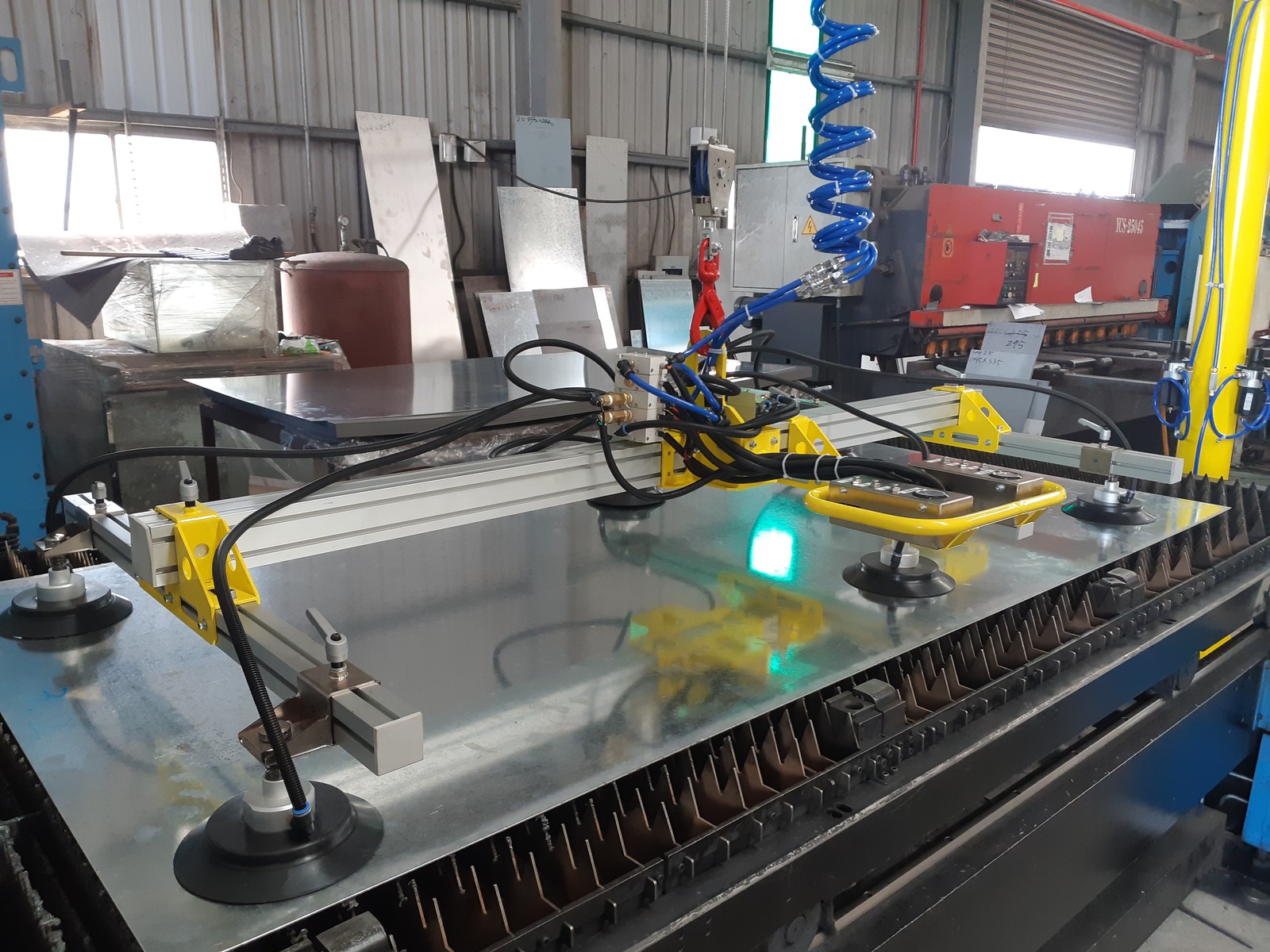

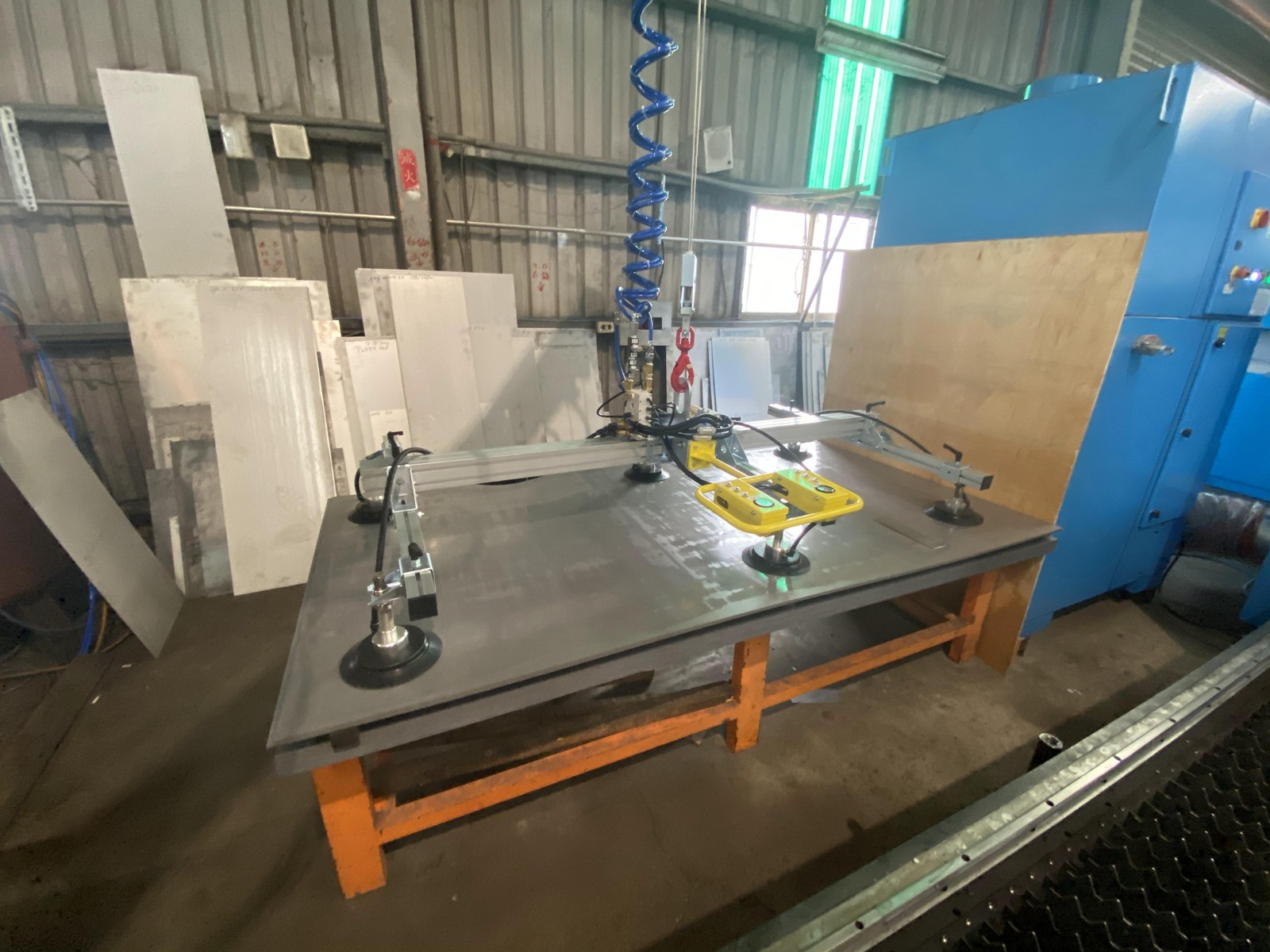

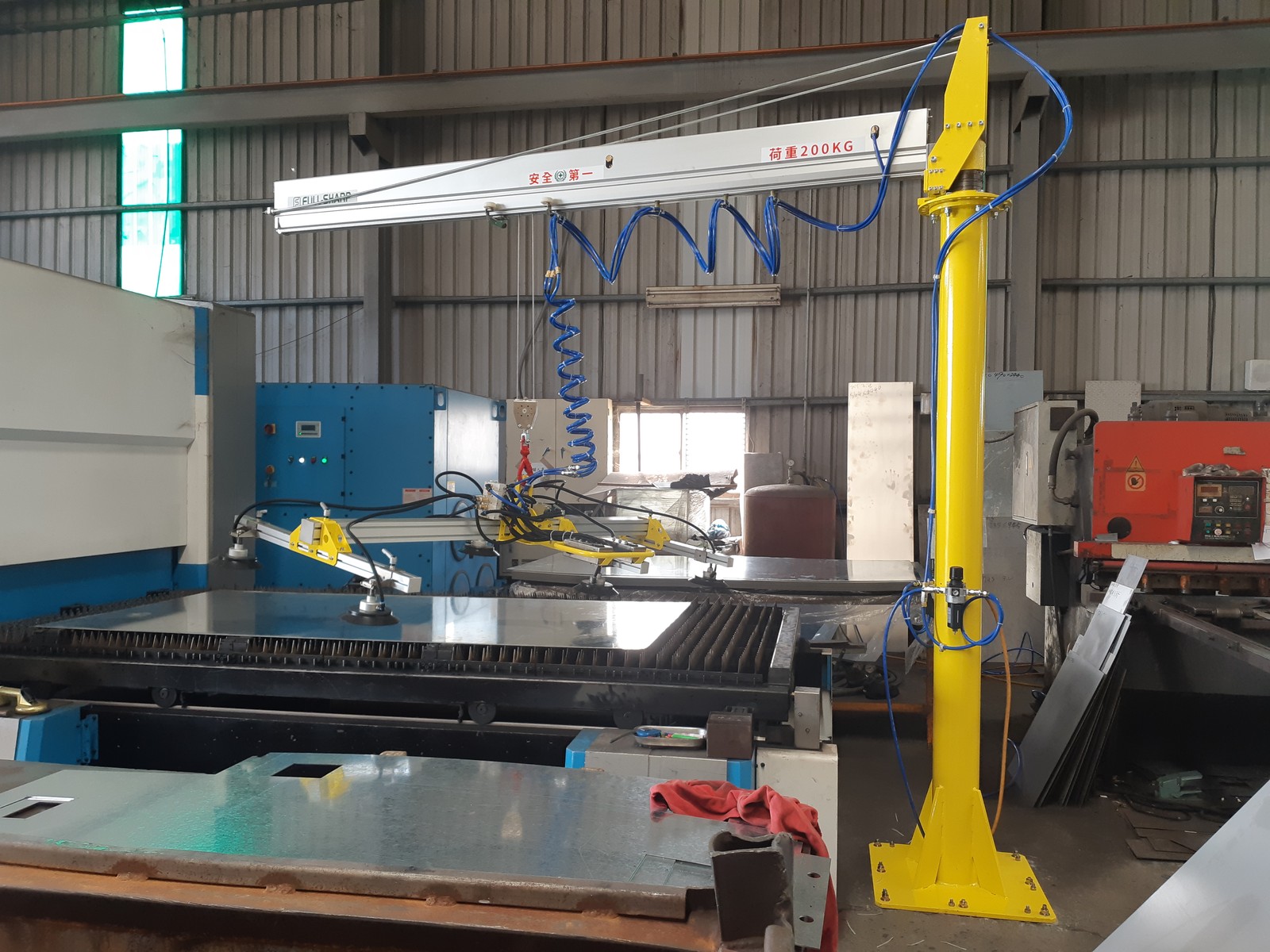

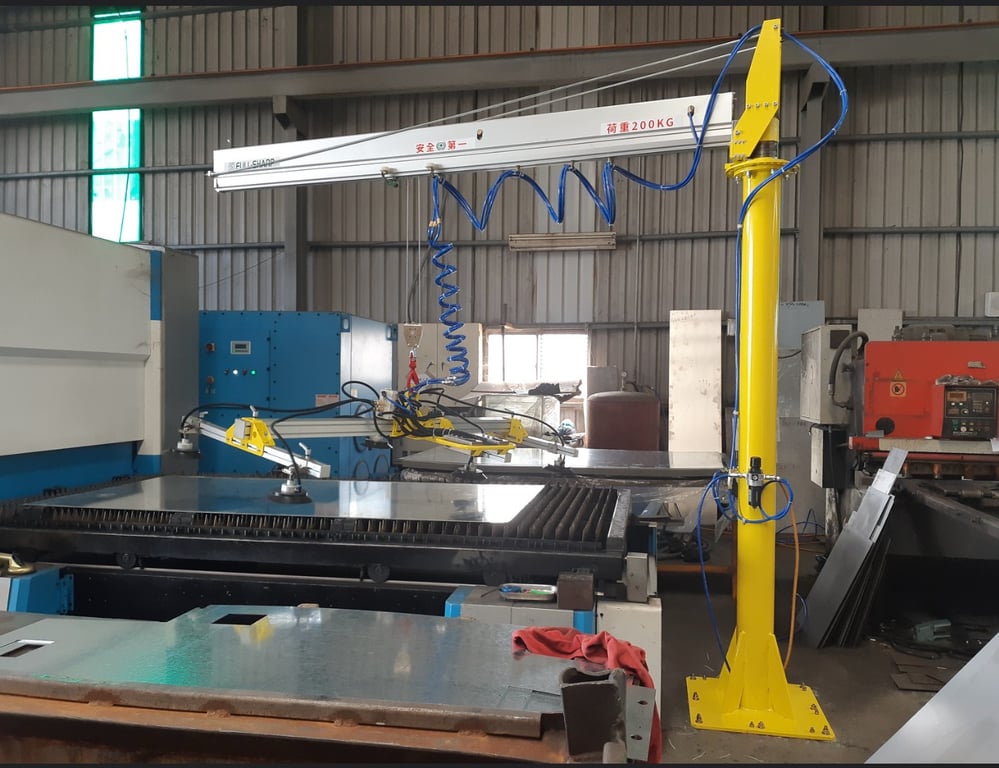

Pneumatic jib crane with a vacuum lifting pad lifting a metal sheet in a machine shop.

Installed Equipment

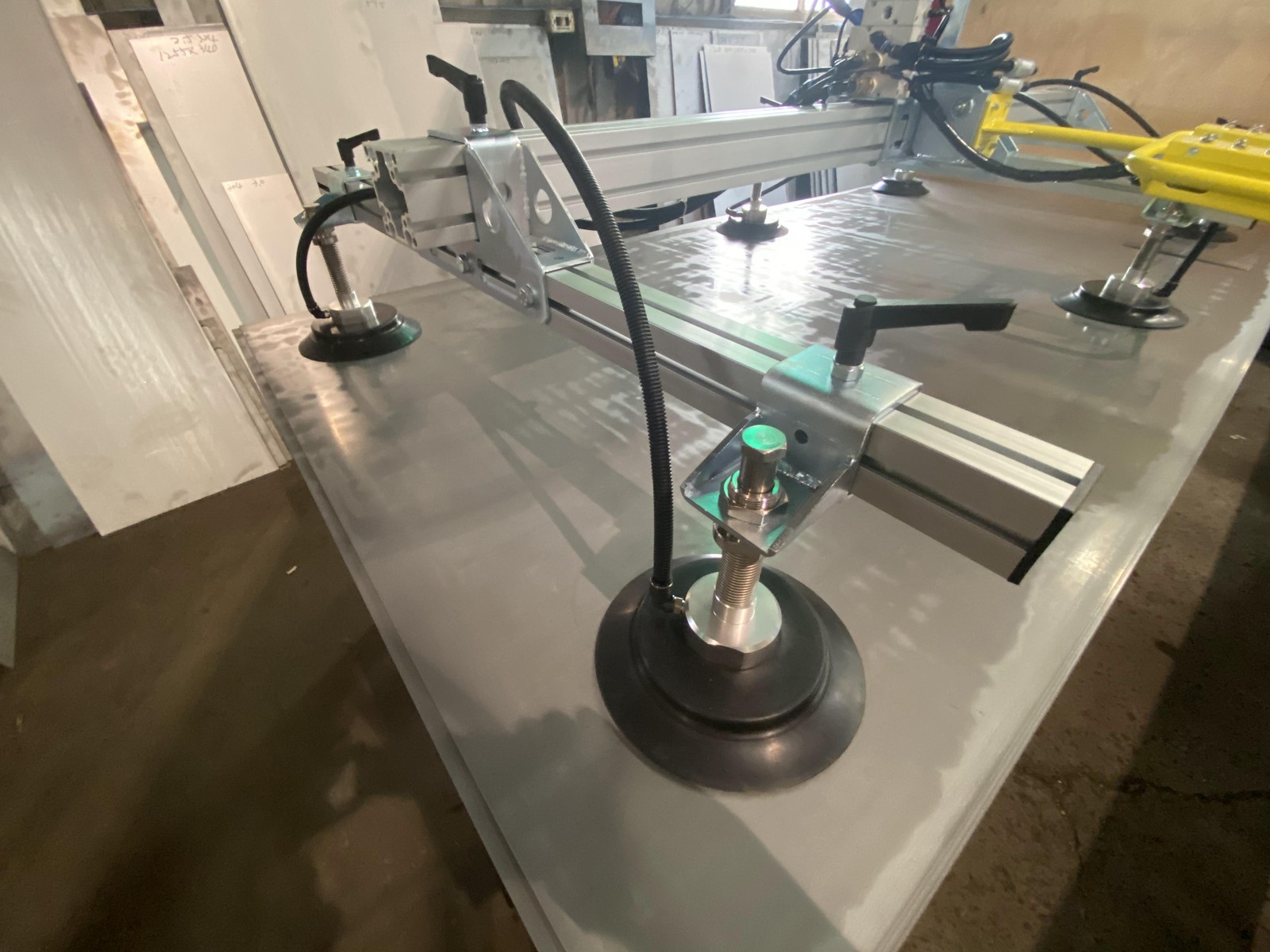

Vacuum lifting pad frame: suction cups arranged to match sheet size, keeping the sheet flat and marking-free.

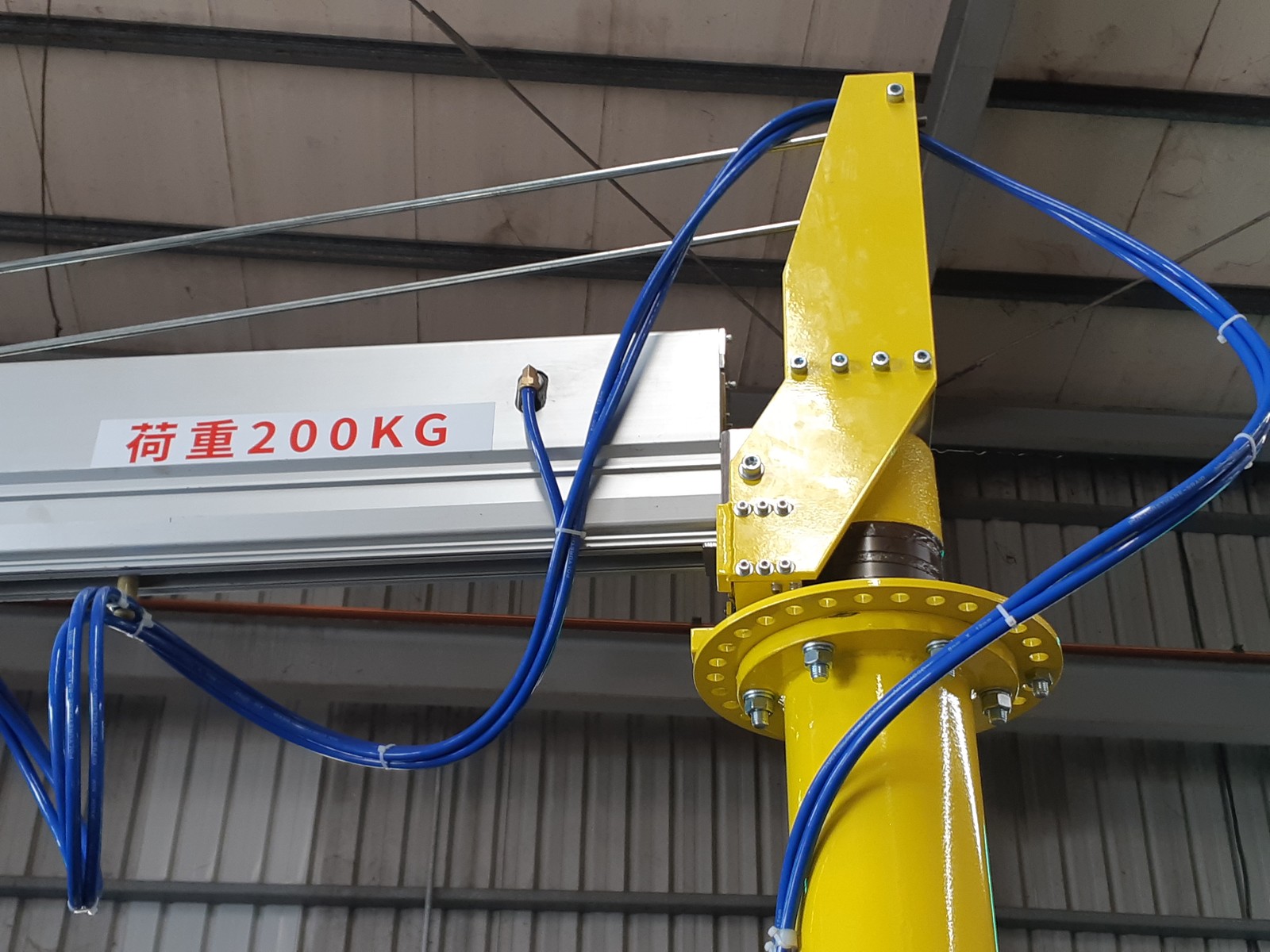

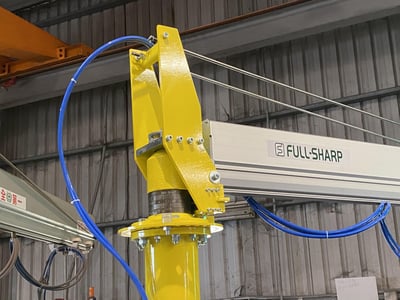

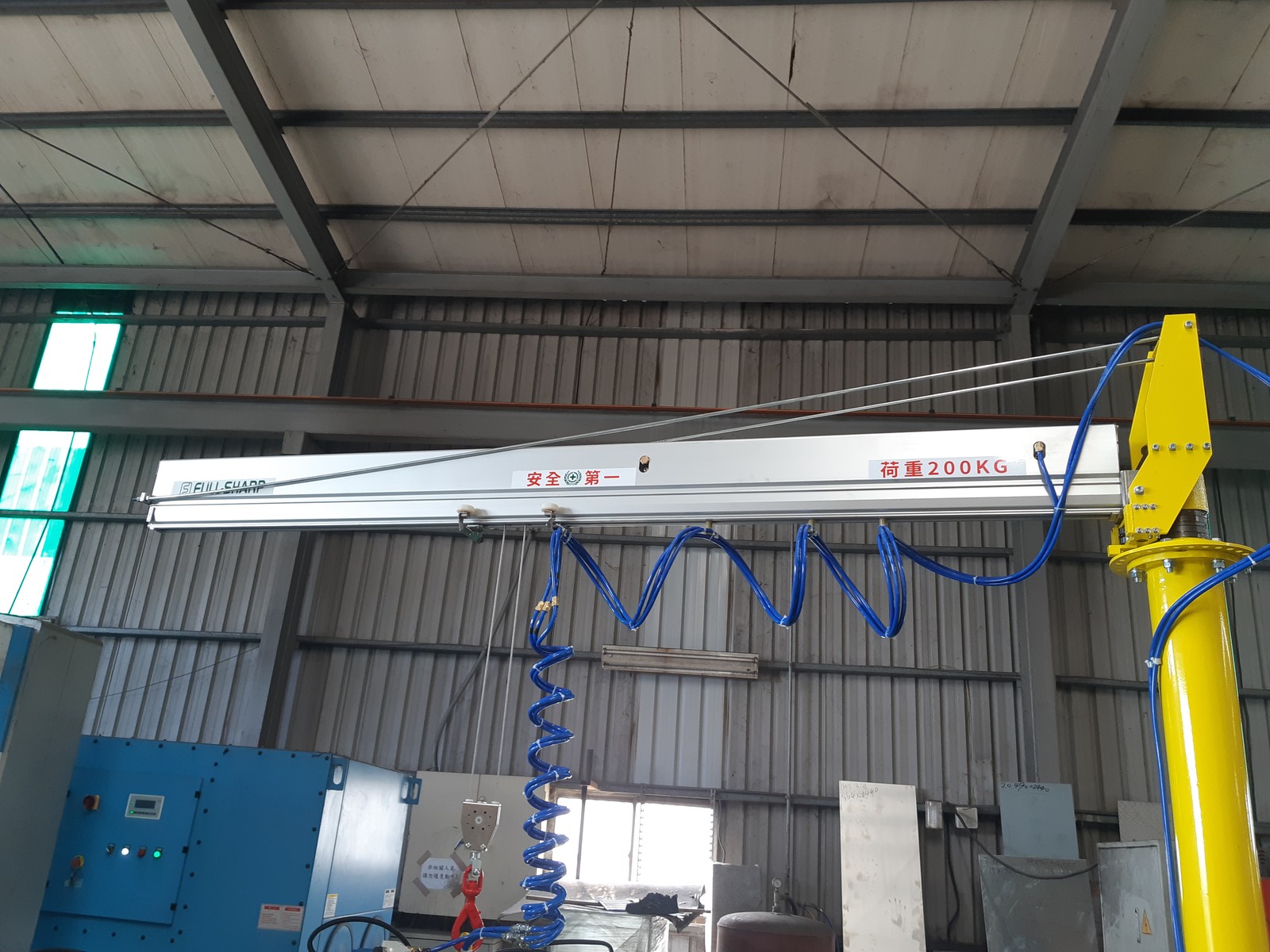

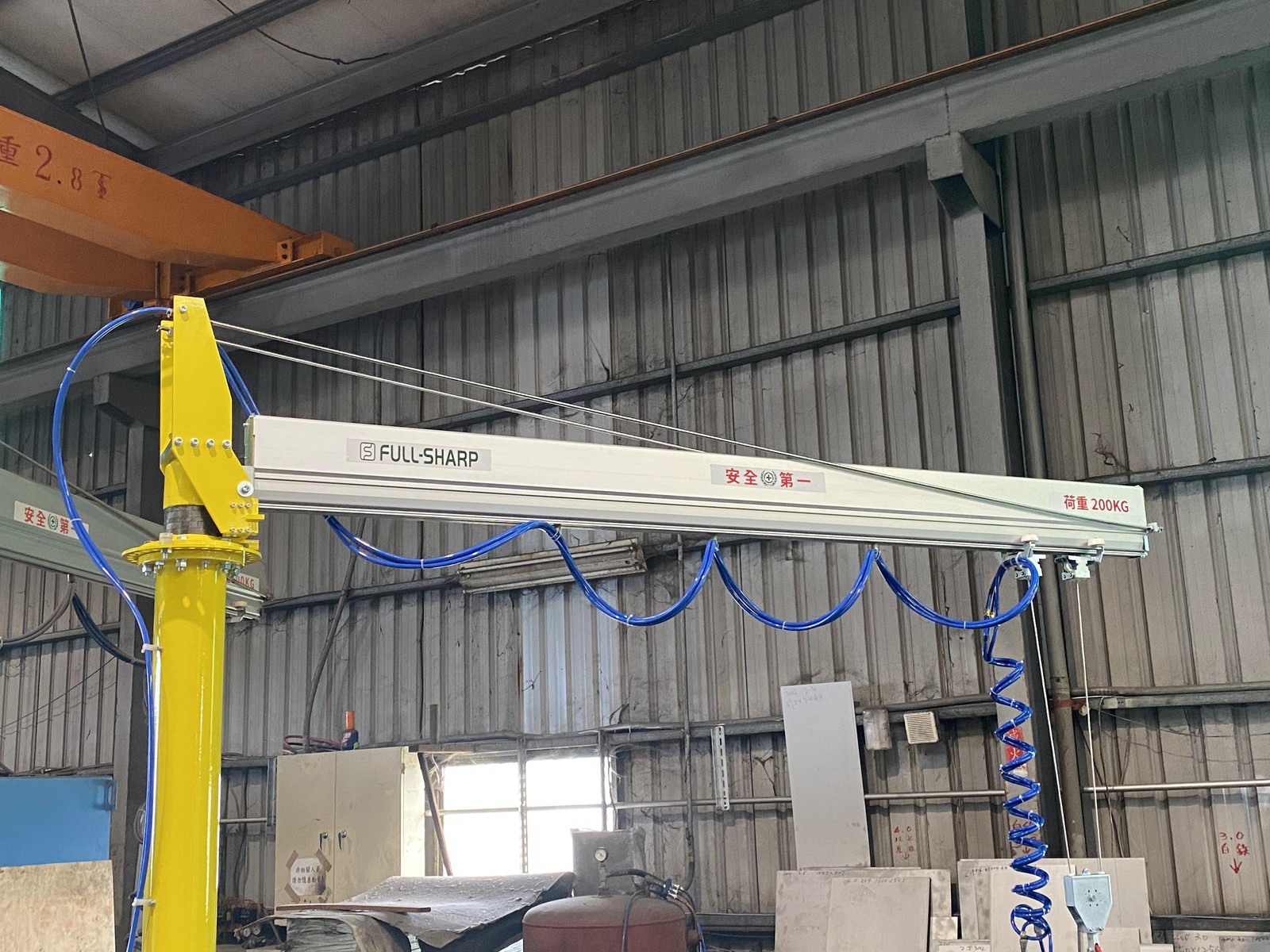

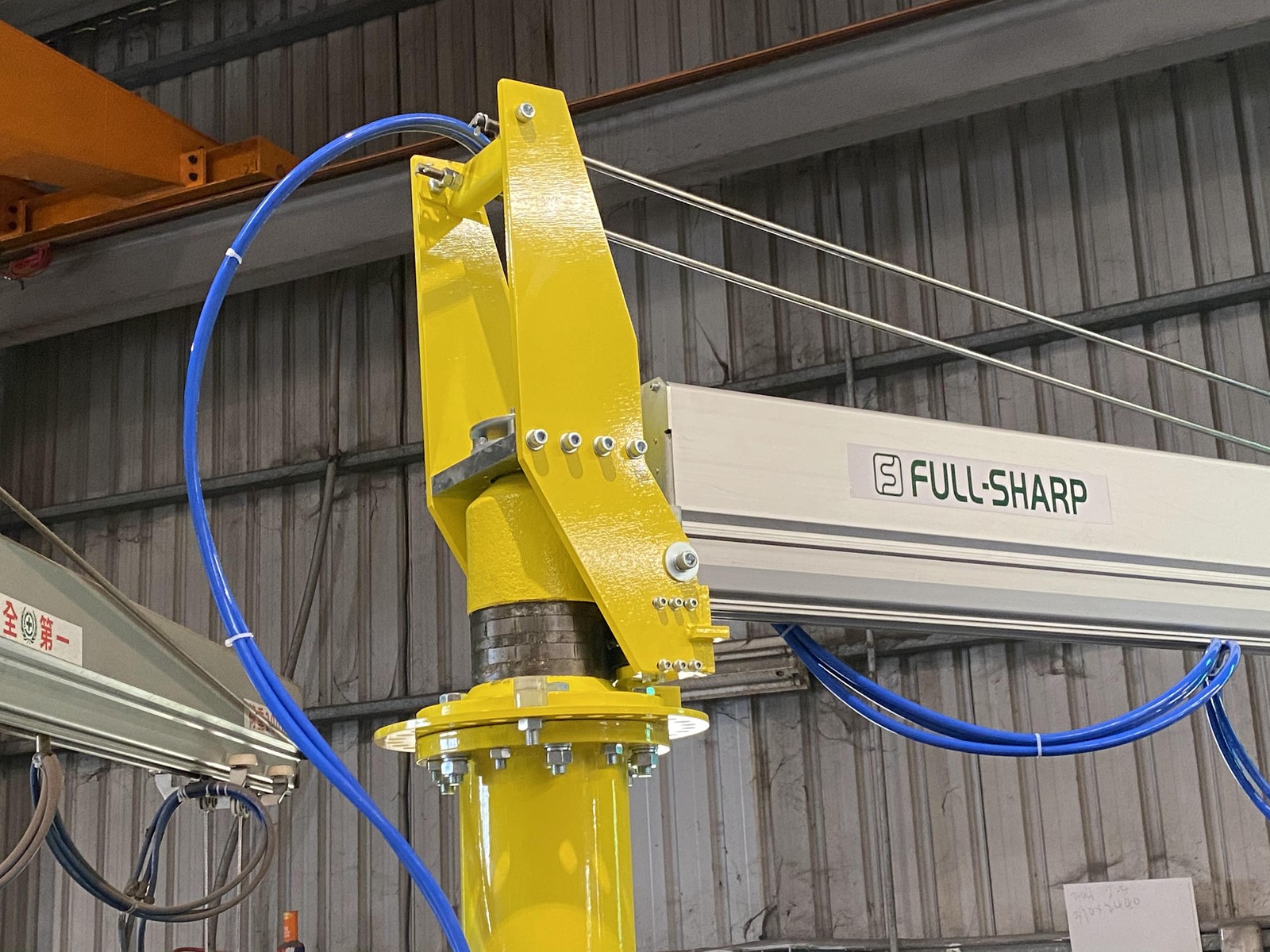

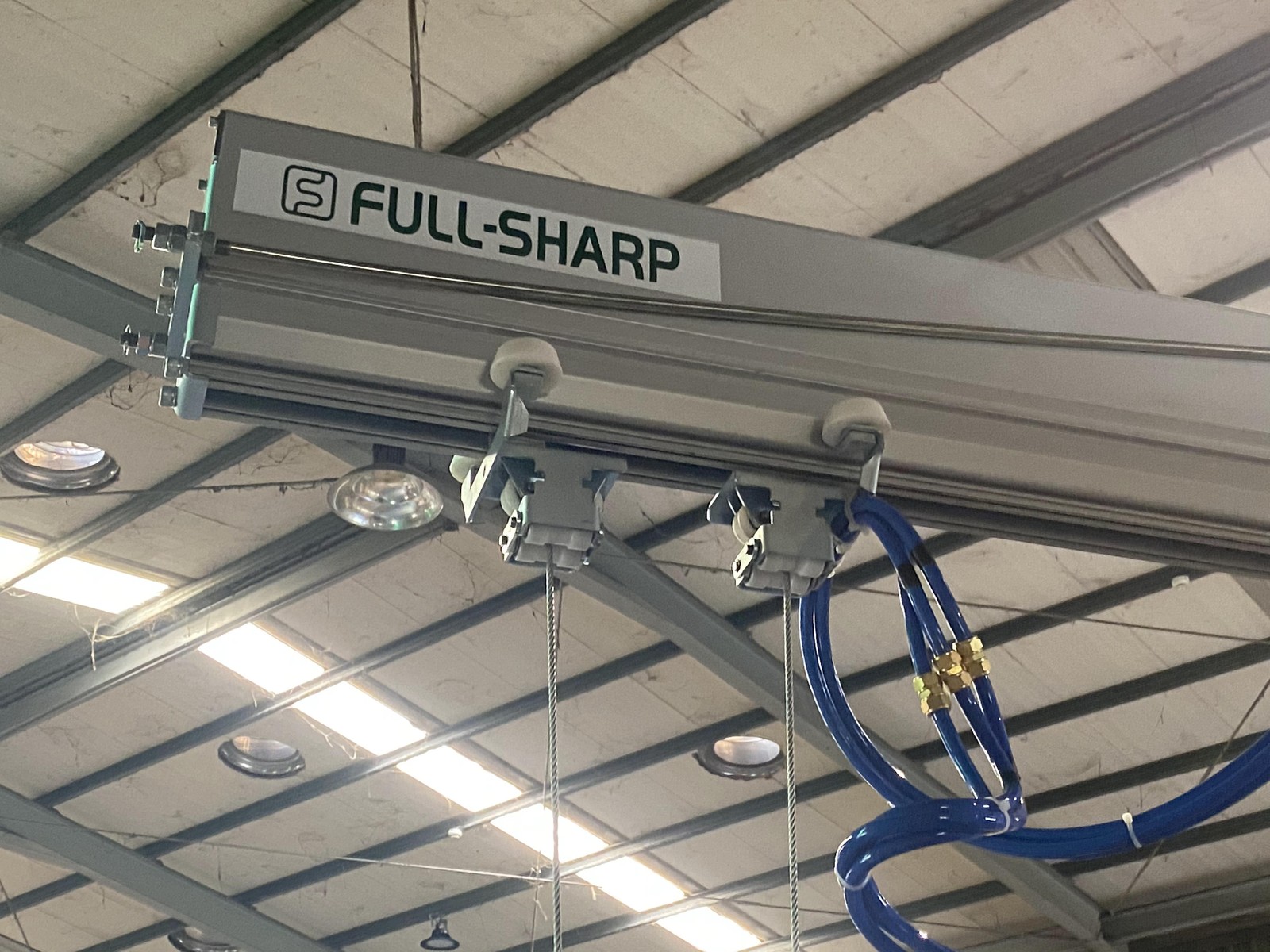

Pneumatic jib arm: connects the sheet storage area to the machine table in a single swinging motion.

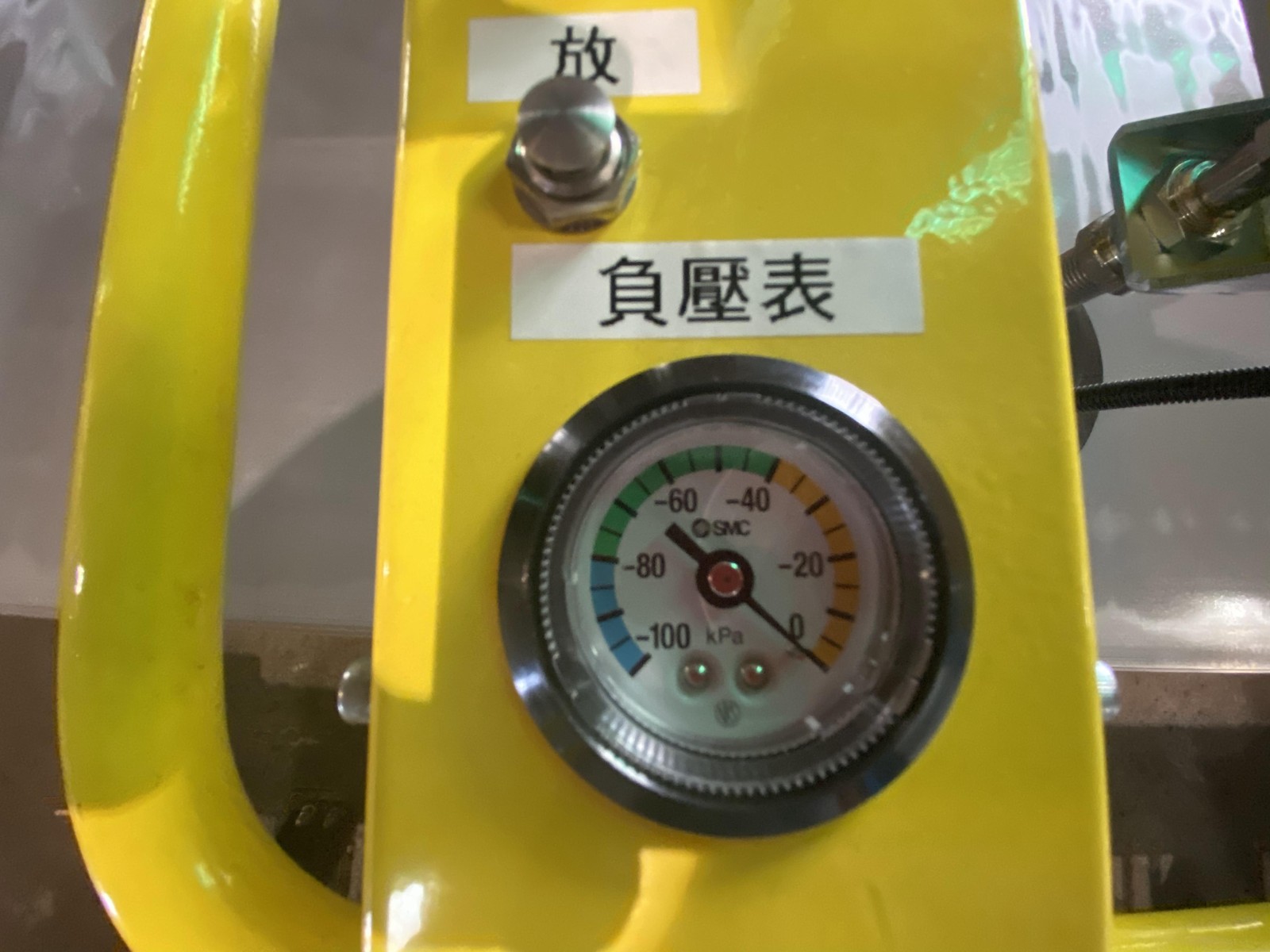

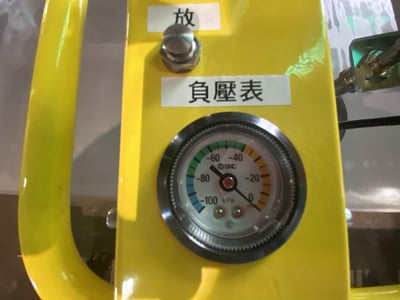

Vacuum pump and gauge: continuously monitors suction force and alerts the operator if pressure drops.
Control handle: gathers lift, lower, grip, and release commands into one hand, leaving the other free to guide the sheet.
Vacuum-holding valve: maintains suction briefly if air supply is lost, so the sheet doesn't drop immediately.

Benefits for Your Facility

Scratch-Free Surfaces

The sheet only touches soft suction cups, preserving the finish, especially on stainless steel.

No Warping

Lifting force spreads evenly across the sheet, reducing sag when handling thin sheets.

Faster Material Feeding

One person can pick up and place a sheet on the machine, without waiting for two or three workers to carry it.

Installation Photos

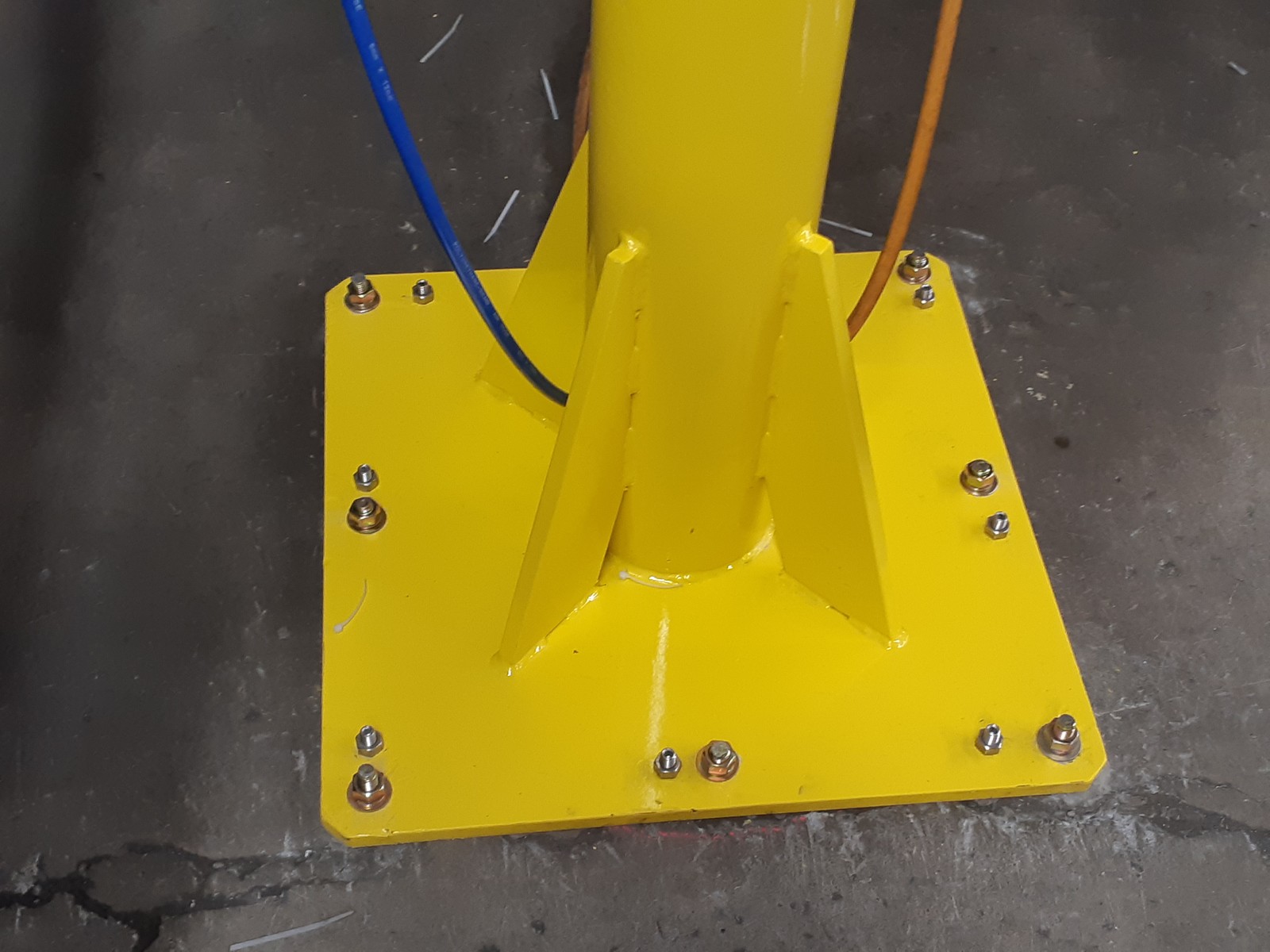

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 1

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 2

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 3

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 4

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 5

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 6

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 7

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 8

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 9

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 10

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 11

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 12

Pneumatic Jib Crane with Vacuum Lifter for Metal Sheets - ảnh 13

Click a photo to enlarge. Album of 13 photos taken on site.

Suitable Applications

Machine shops processing steel and stainless steel sheets
Material feed areas for laser and plasma cutting machines
Manufacturers of cabinets and equipment housings
Sheet material warehouses in factories

Get a Consultation for Your Facility

FullSharp measures the sheet size, thickness, weight, and material surface to calculate the number of suction cups needed. Our engineers position the pivot column to cover both the sheet storage area and the machine table, then install, load-test, and guide you through the daily safety checks.
