Mobile Pneumatic Jib Crane for Carton Lifting

Cartons are light but numerous and repetitive — lifting them by hand all shift tires the shoulders and easily dents the corners. The packing area also changes location depending on orders, so a fixed column mounted to the floor isn't practical.

FullSharp installs a pneumatic jib crane on a mobile base with a multi-pad vacuum lifting head. The suction pads grip the box surface evenly, spreading the suction force so it leaves no marks. Workers simply push the handle to move boxes from the conveyor onto the pallet.

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons

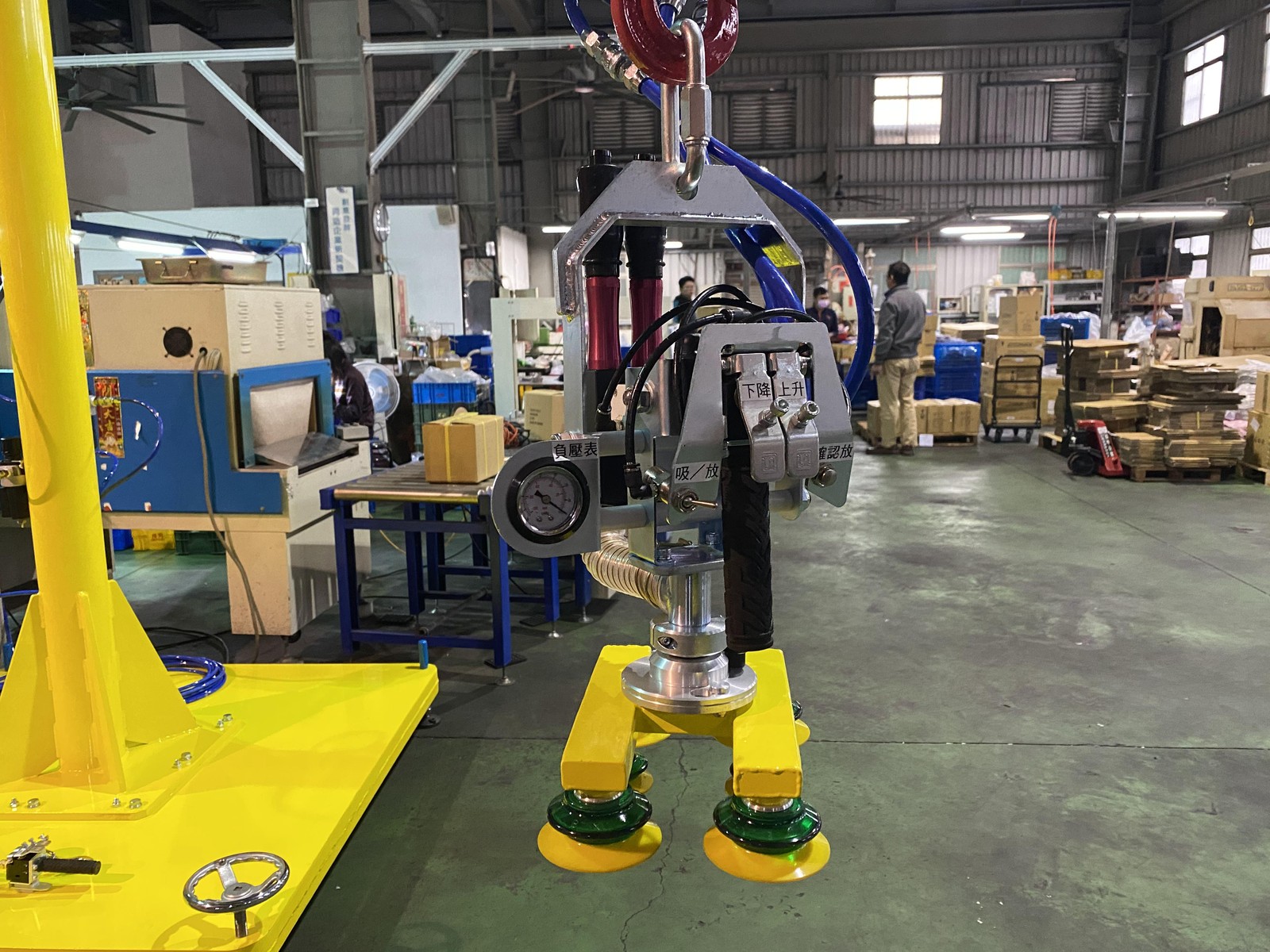

Vacuum lifting pad mounted on a mobile base pneumatic jib crane, used in the carton packing area.

Installed Equipment

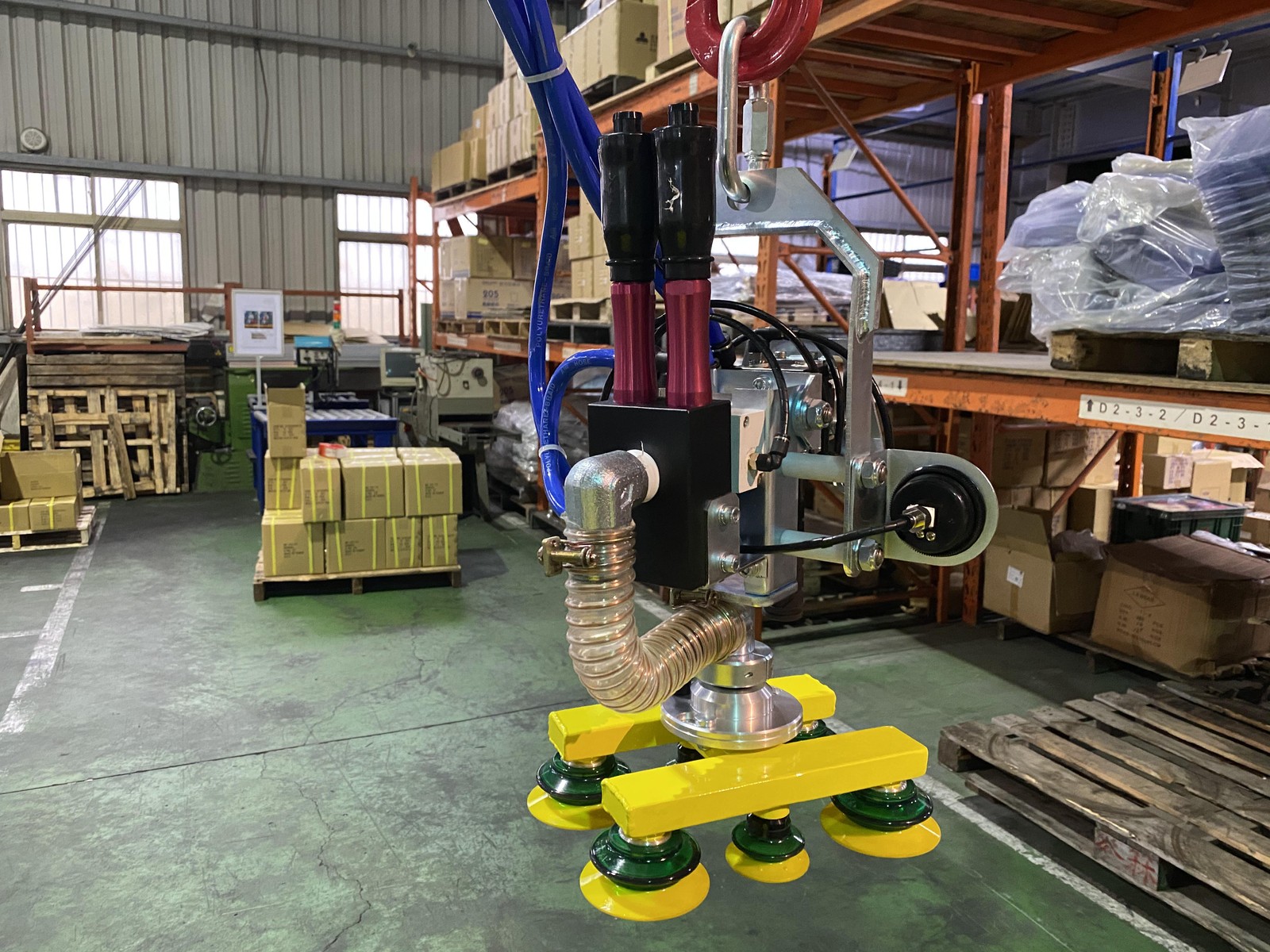

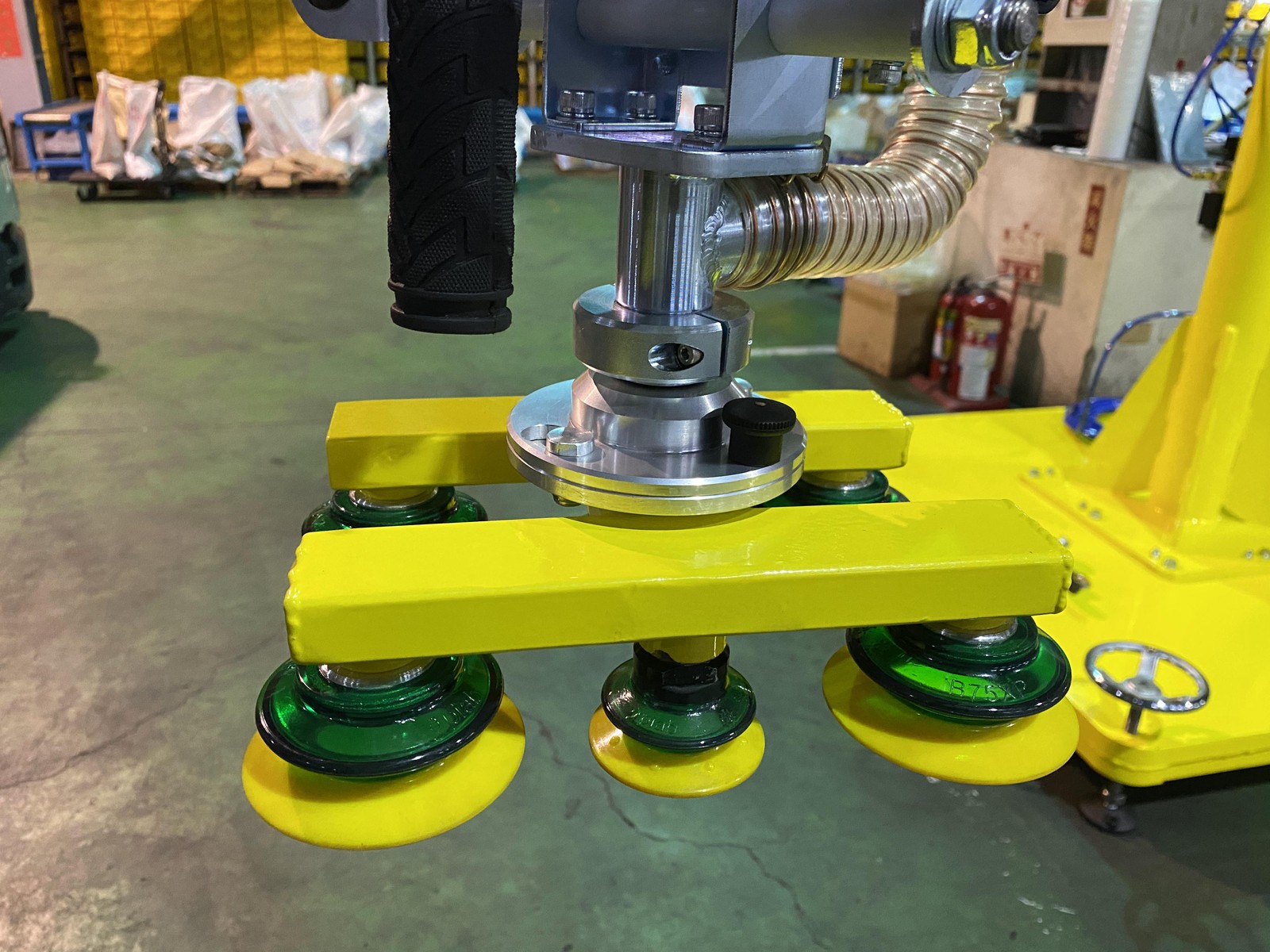

Vacuum lifting pad: a suction frame spread across the box surface, holding it firmly without denting the cardboard.
Vacuum generator unit: runs on compressed air, with a vacuum-holding valve so the box doesn't drop if pressure falls.
Pneumatic jib crane: the arm rotates around the column, with a reach that covers the whole span between the conveyor and pallet.

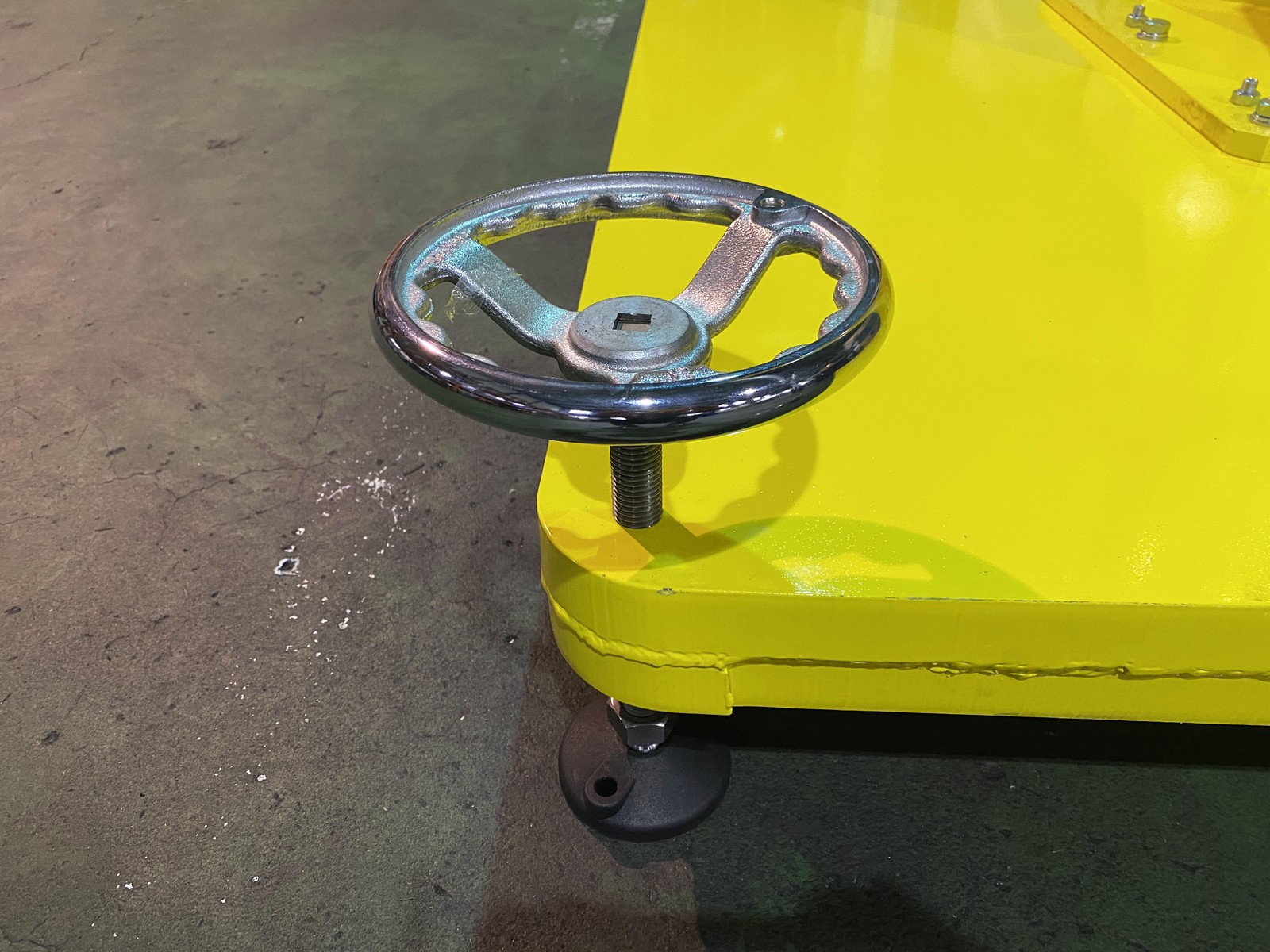

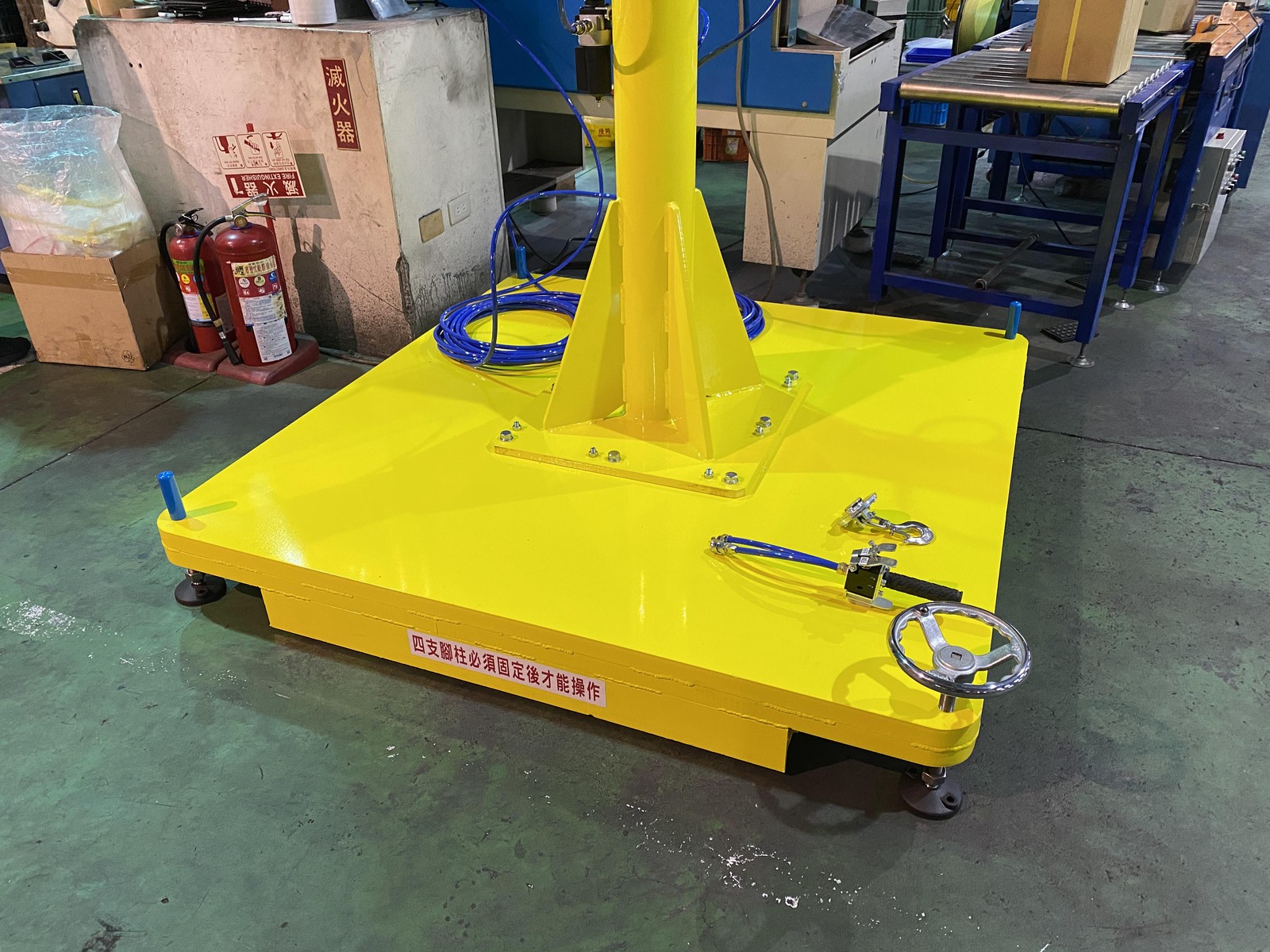

Mobile base: a heavy wheeled base, allowing the unit to be pushed to another line when orders change.

Benefits for Your Plant

No dented boxes

Suction pads spread evenly over the box surface, so the cardboard keeps its shape and goods look good going into storage.

Ready to run instantly

The mobile base needs no floor drilling or columns, so moving it along the line is quick.

Less shoulder strain

Vacuum carries the box's full weight, so the operator only guides the direction.

Actual Installation Photos

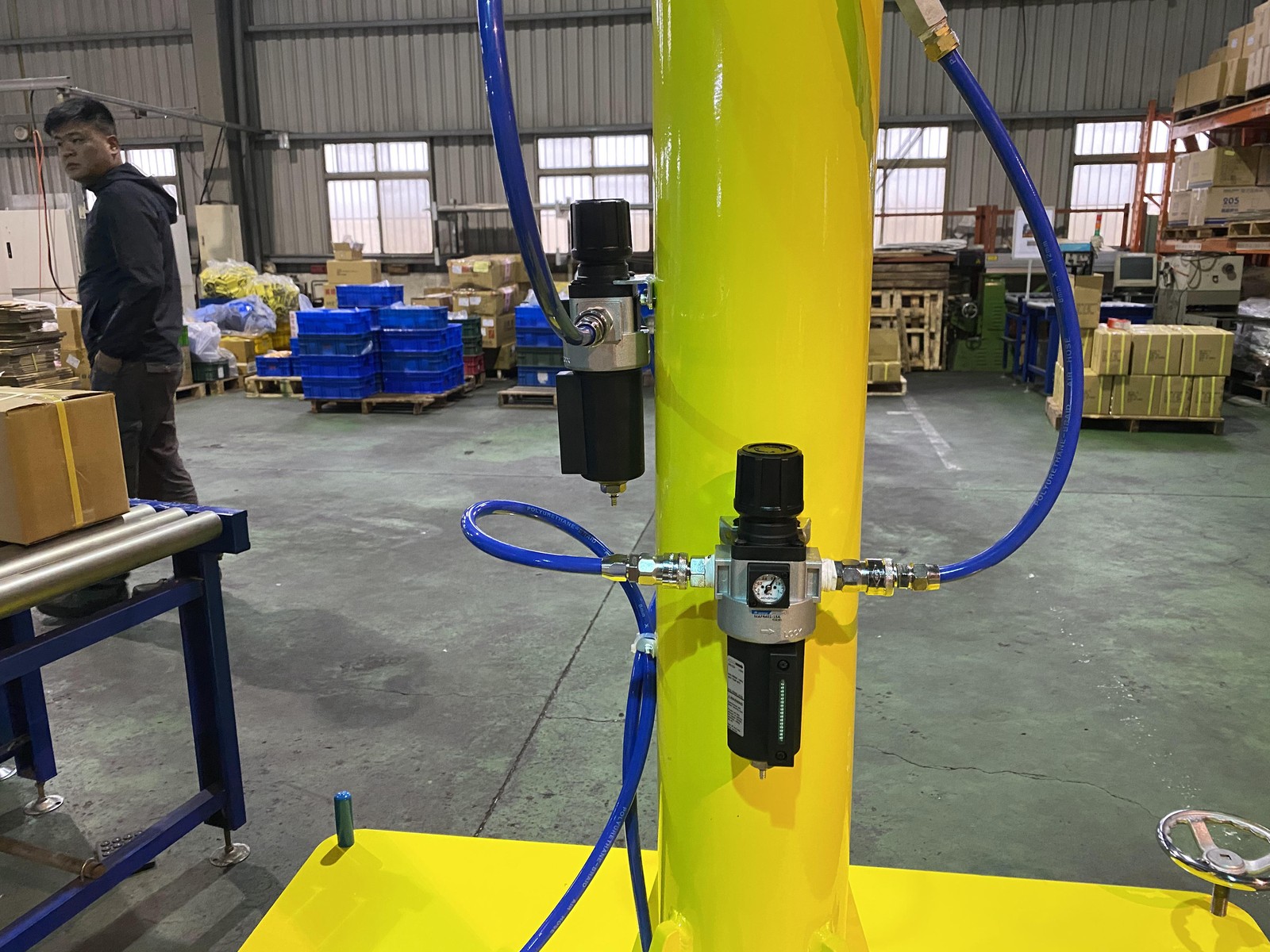

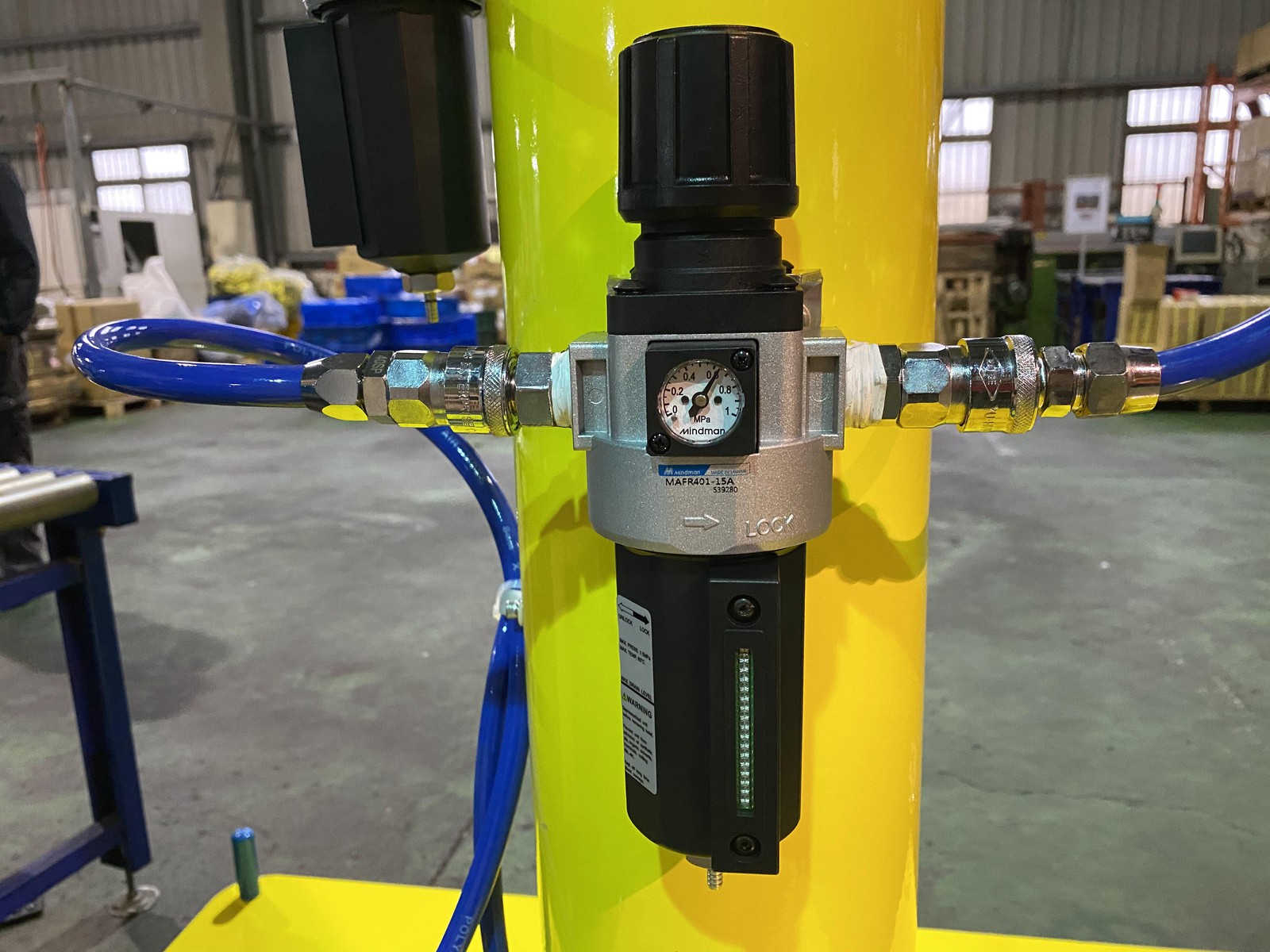

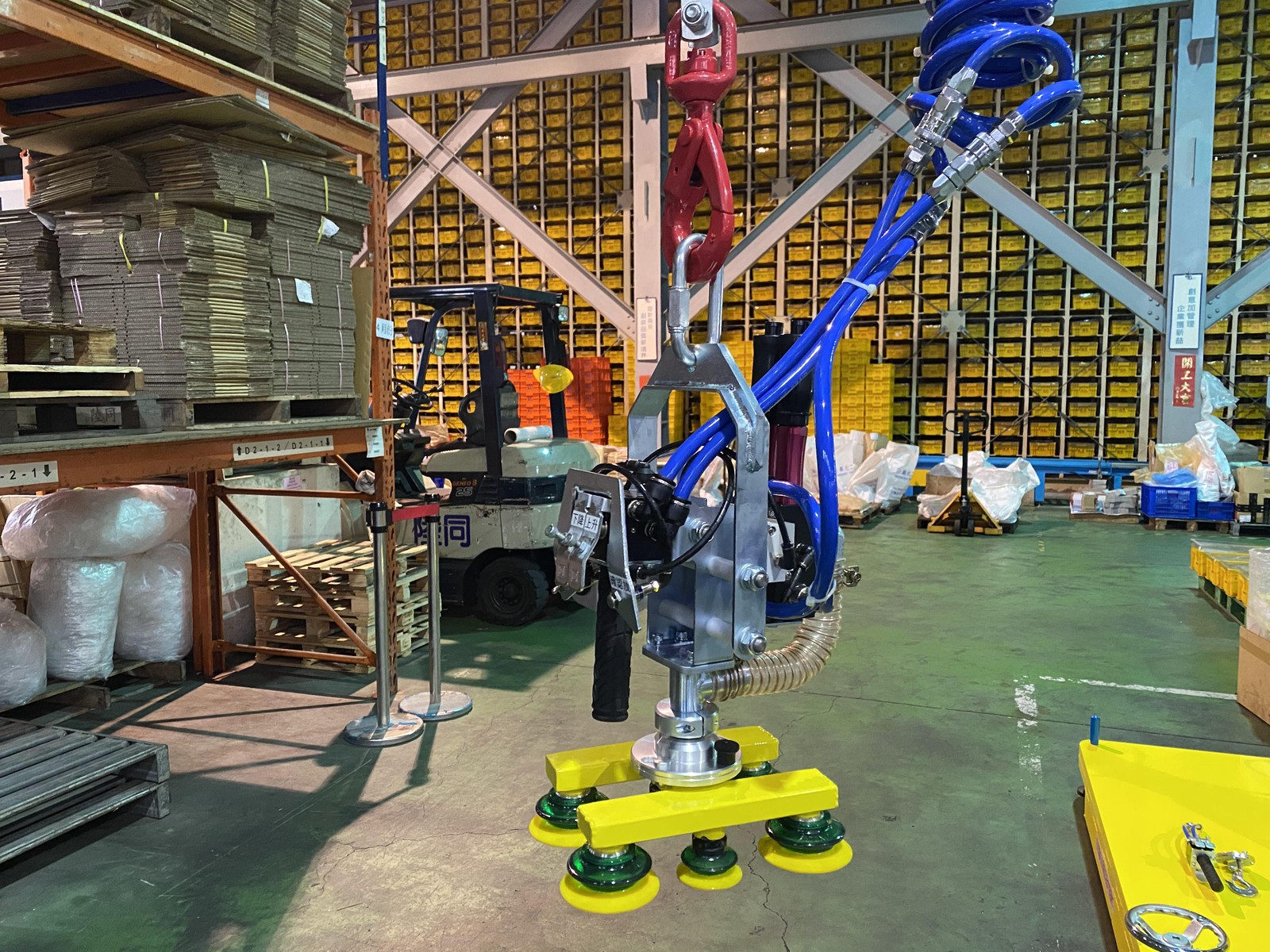

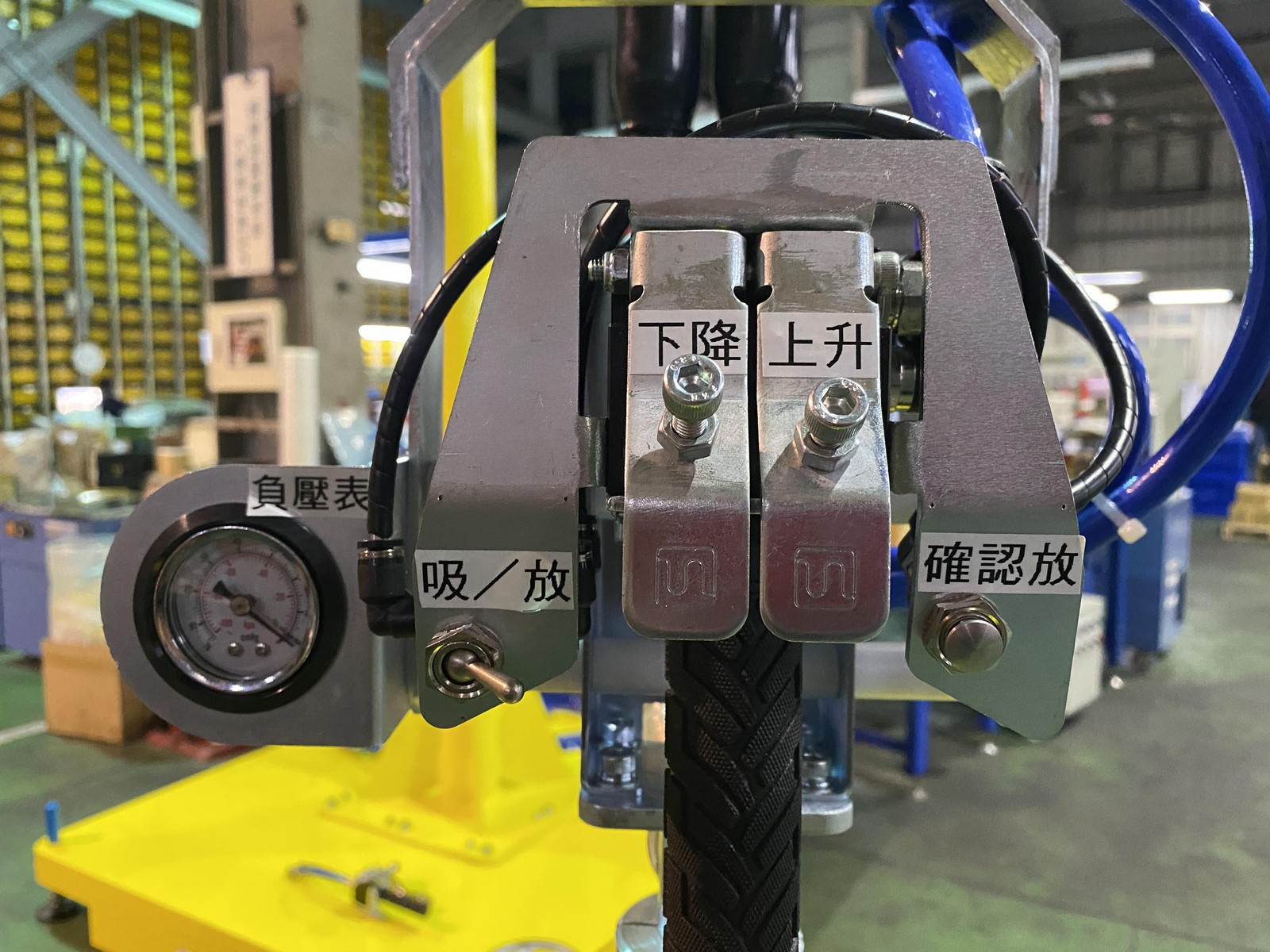

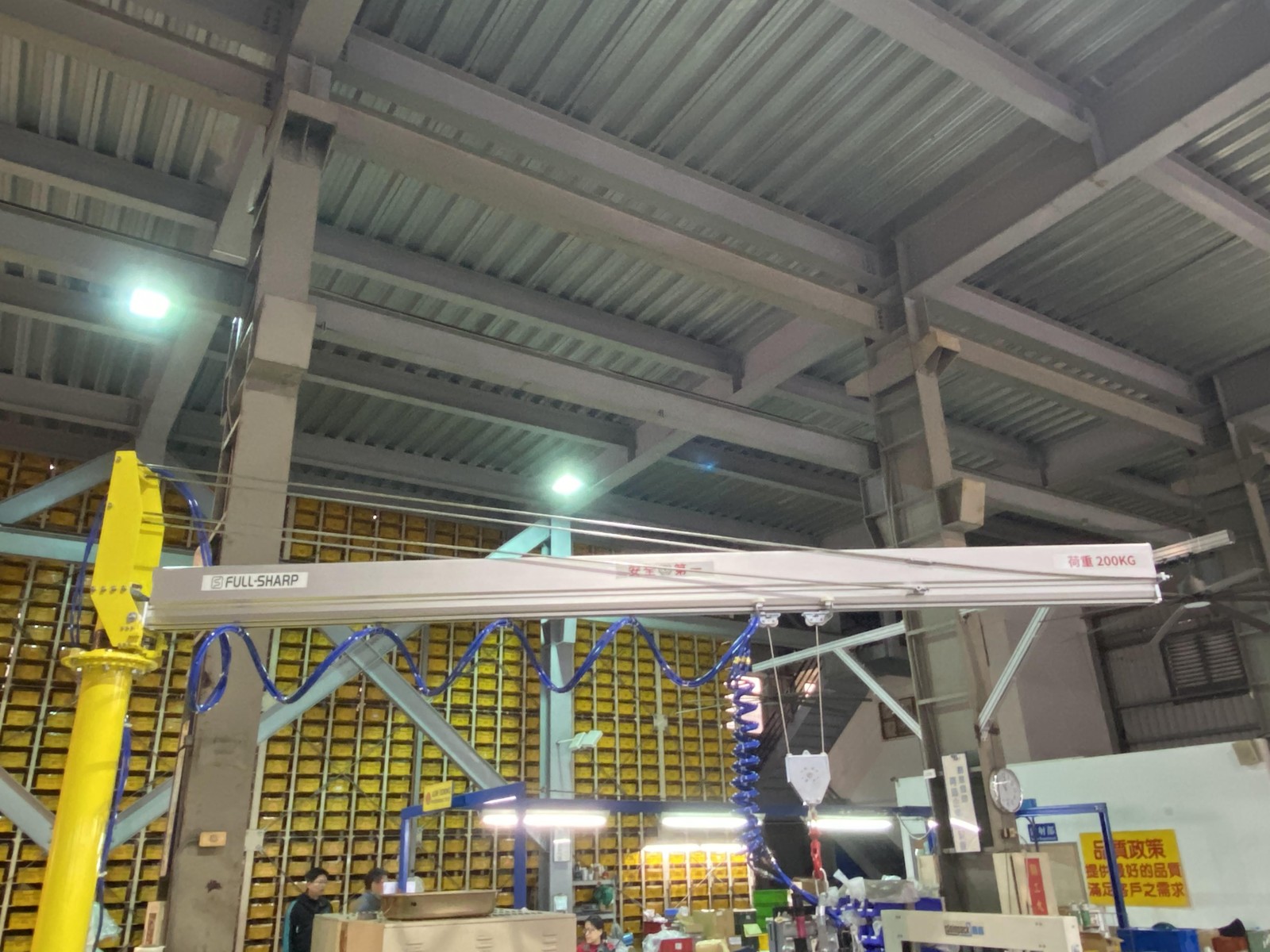

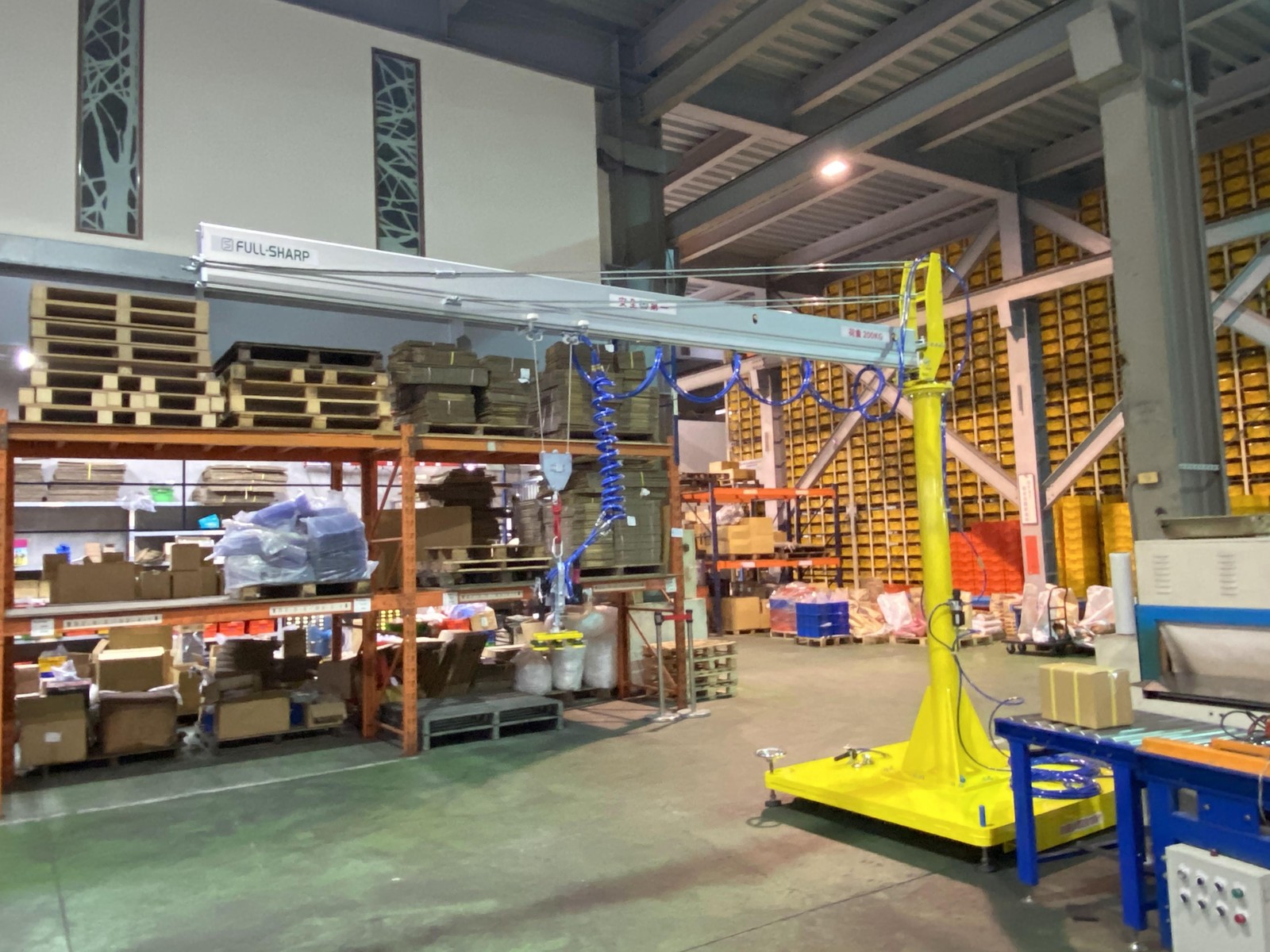

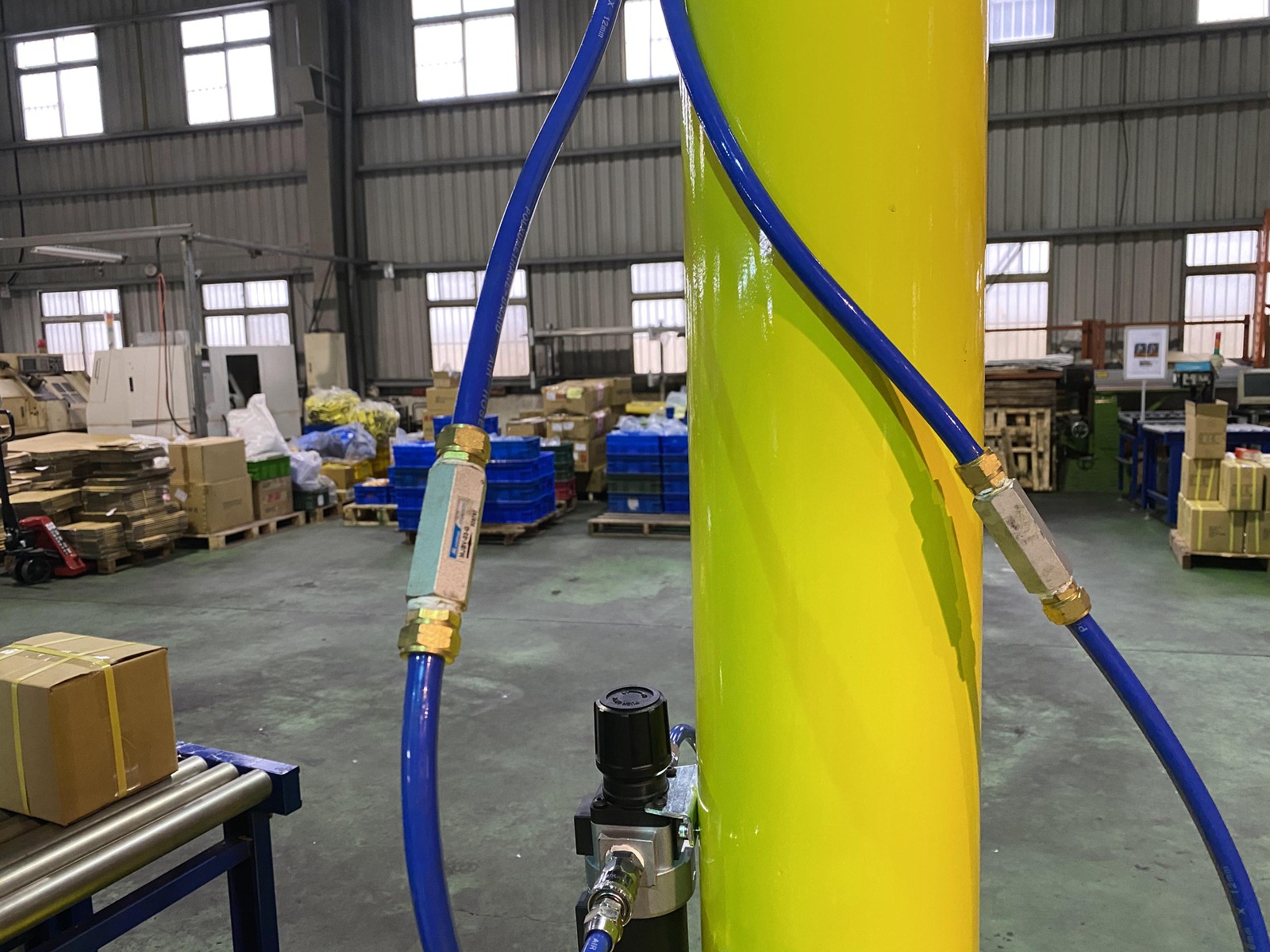

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 1

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 2

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 3

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 4

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 5

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 6

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 7

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 8

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 9

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 10

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 11

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 12

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 13

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 14

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 15

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 16

Mobile Base Pneumatic Jib Crane with Multi-Pad Vacuum Lifter for Cartons - ảnh 17

Click a photo to enlarge. 17-photo album taken on site.

Suitable Applications

Carton packaging plants
Distribution warehouses, logistics centers
End-of-line at food production plants
Palletizing areas

Installation Consulting for Your Plant

FullSharp measures box size and weight, checks the cardboard surface to choose the number of suction pads and rubber cushion type. Our technicians also check available compressed air supply and aisle width to size the base. Call FullSharp to schedule a survey.
