Pneumatic Jib Crane, Mobile Base, Column

Plastic trays are stacked on multi-level racks, each level at a different height. Workers reaching for a heavy tray can easily lose balance, and a tray slipping from their hands damages what's inside. The plant also changes layout often, so it does not want a jib crane fixed permanently to the floor.

FullSharp introduces a pneumatic jib crane with a mobile base and a height-adjustable column. Lower the column for low tables, raise it for shelves. All lifting runs on compressed air, so it's smooth and produces no electrical sparks.

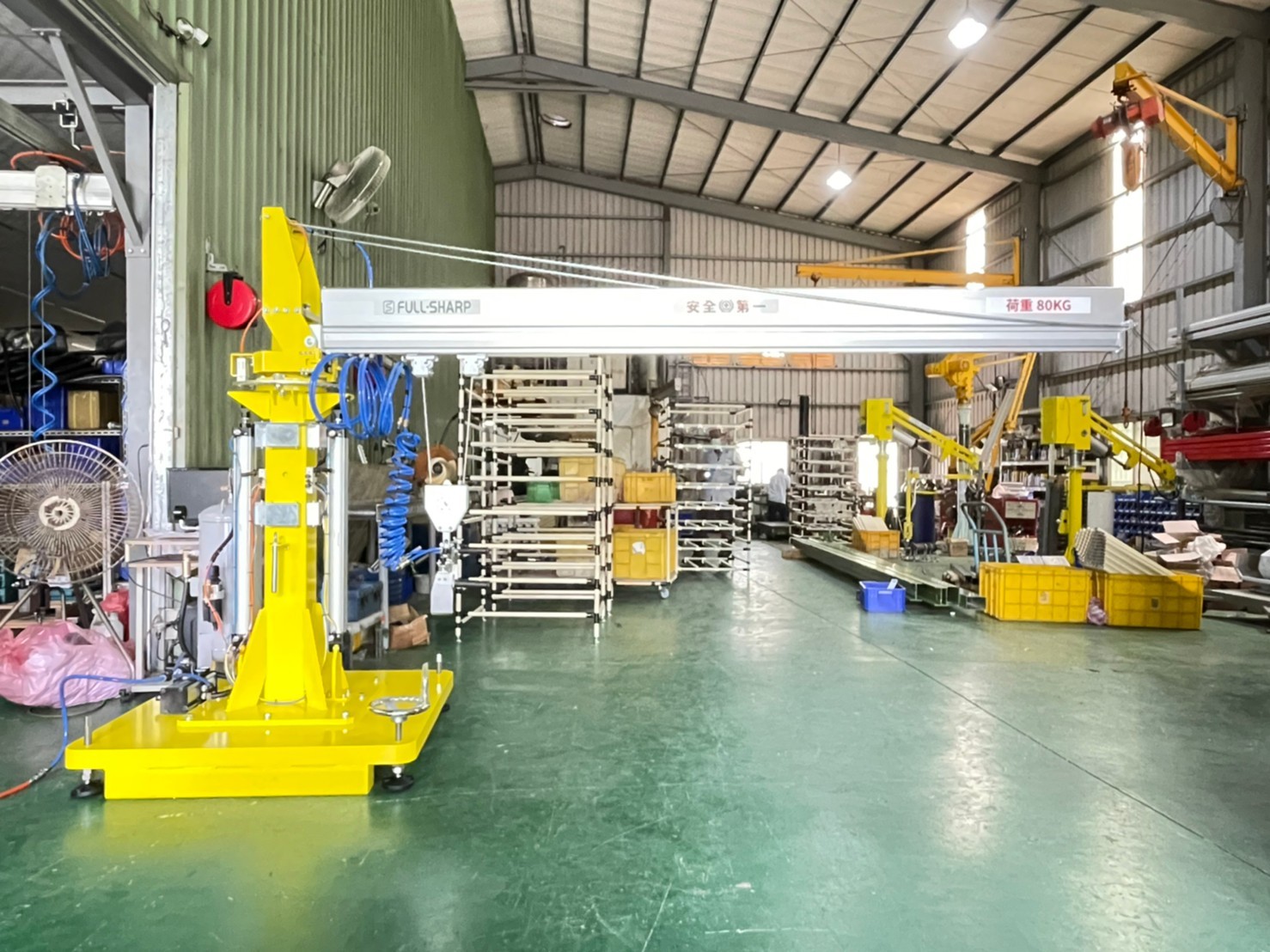

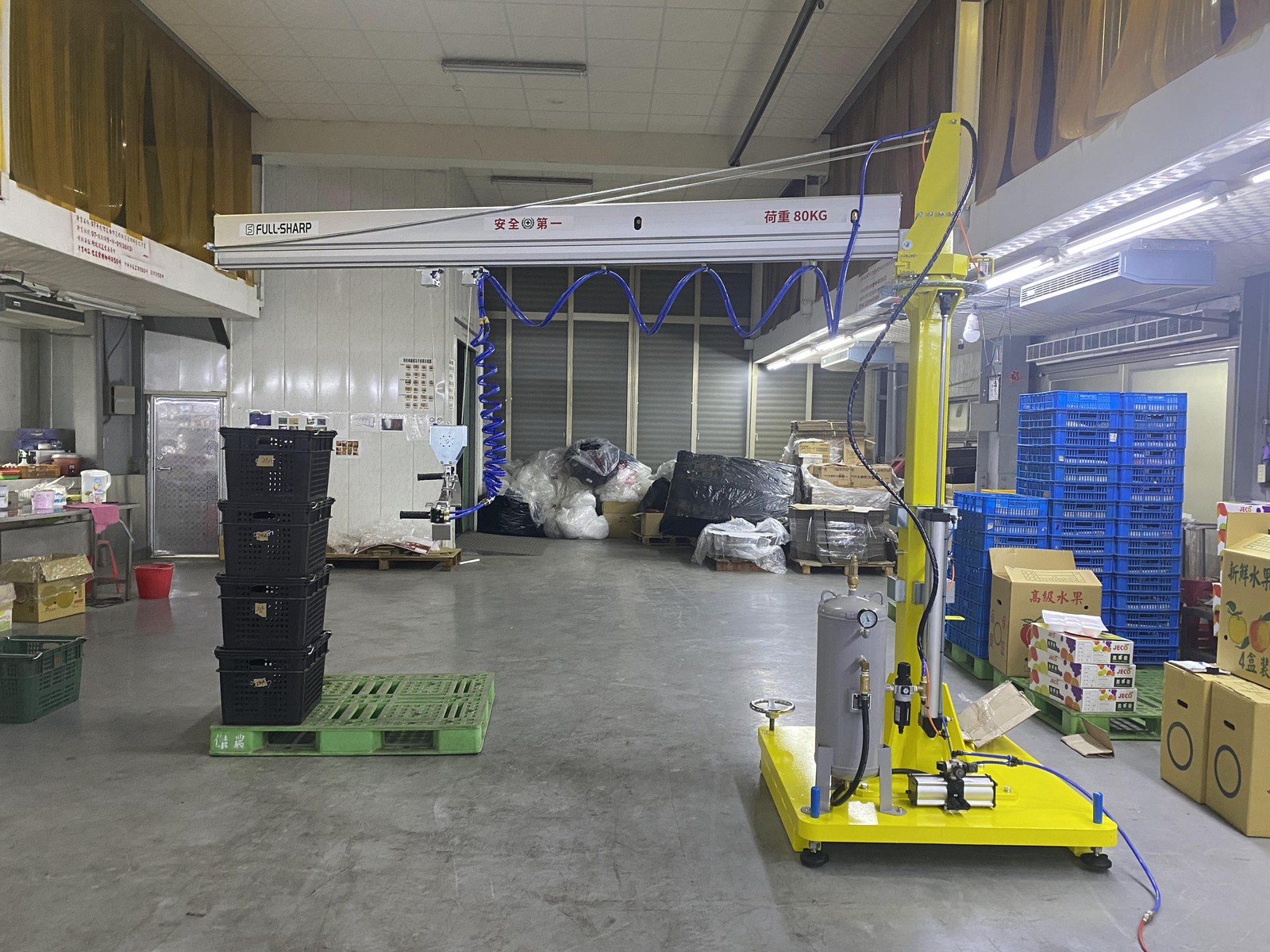

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column

Pneumatic jib crane with a mobile base and height-adjustable column handling plastic trays.

Equipment installed

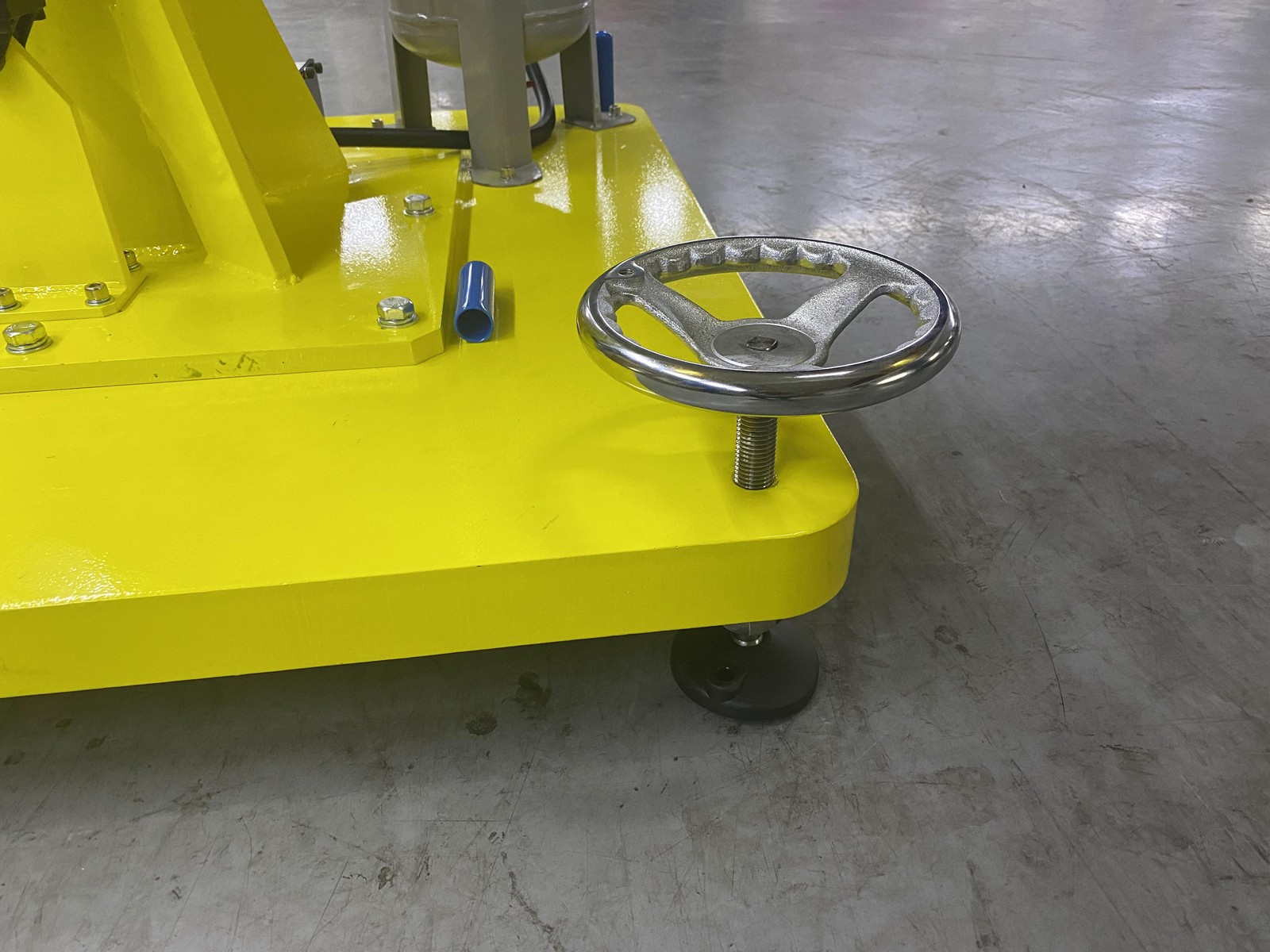

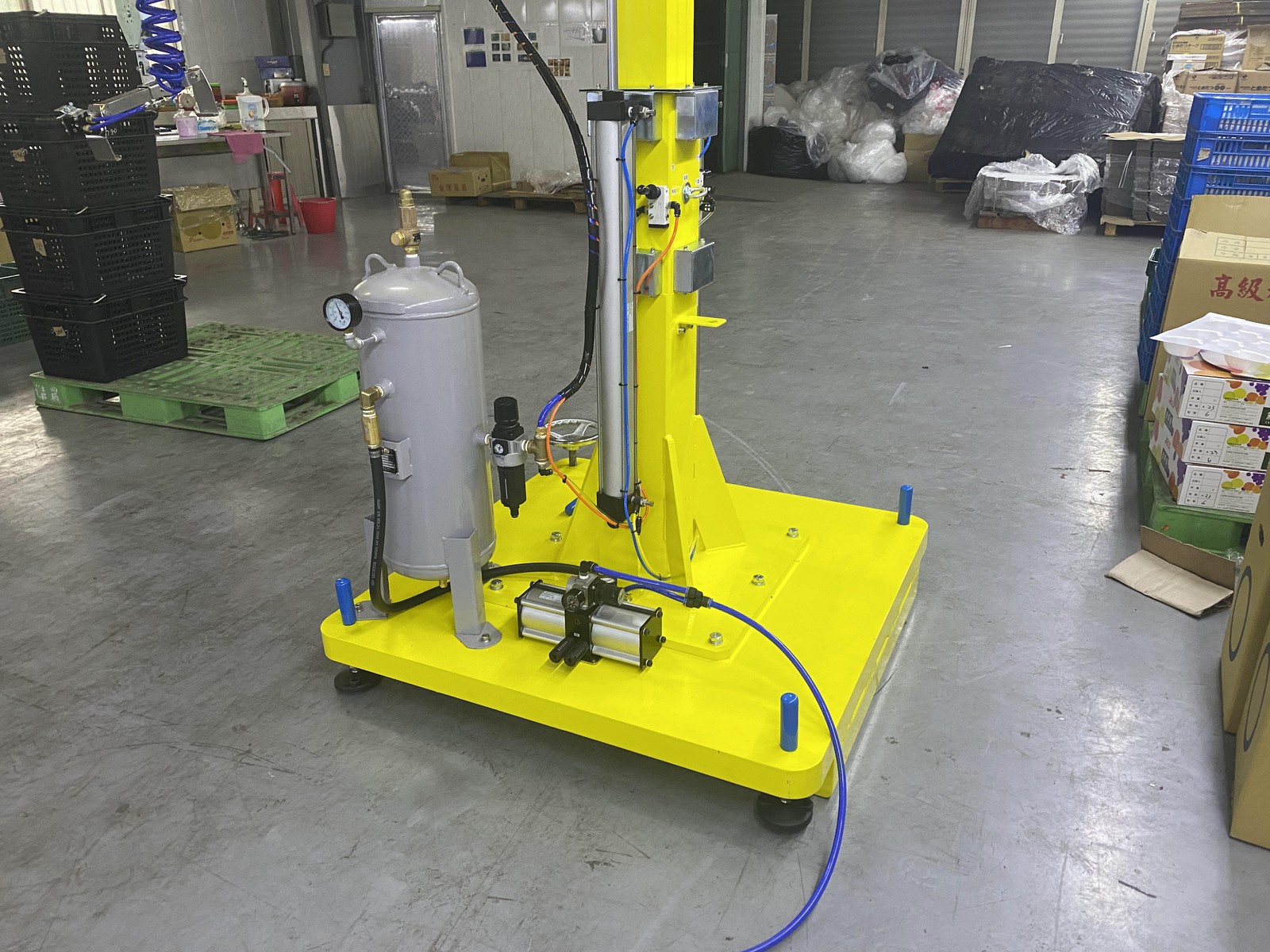

Wheeled mobile base: pushed between rack rows, with wheel locks to hold steady during lifting.
Height-adjustable column: adjusts to the pickup height, so one unit serves many shelf levels.

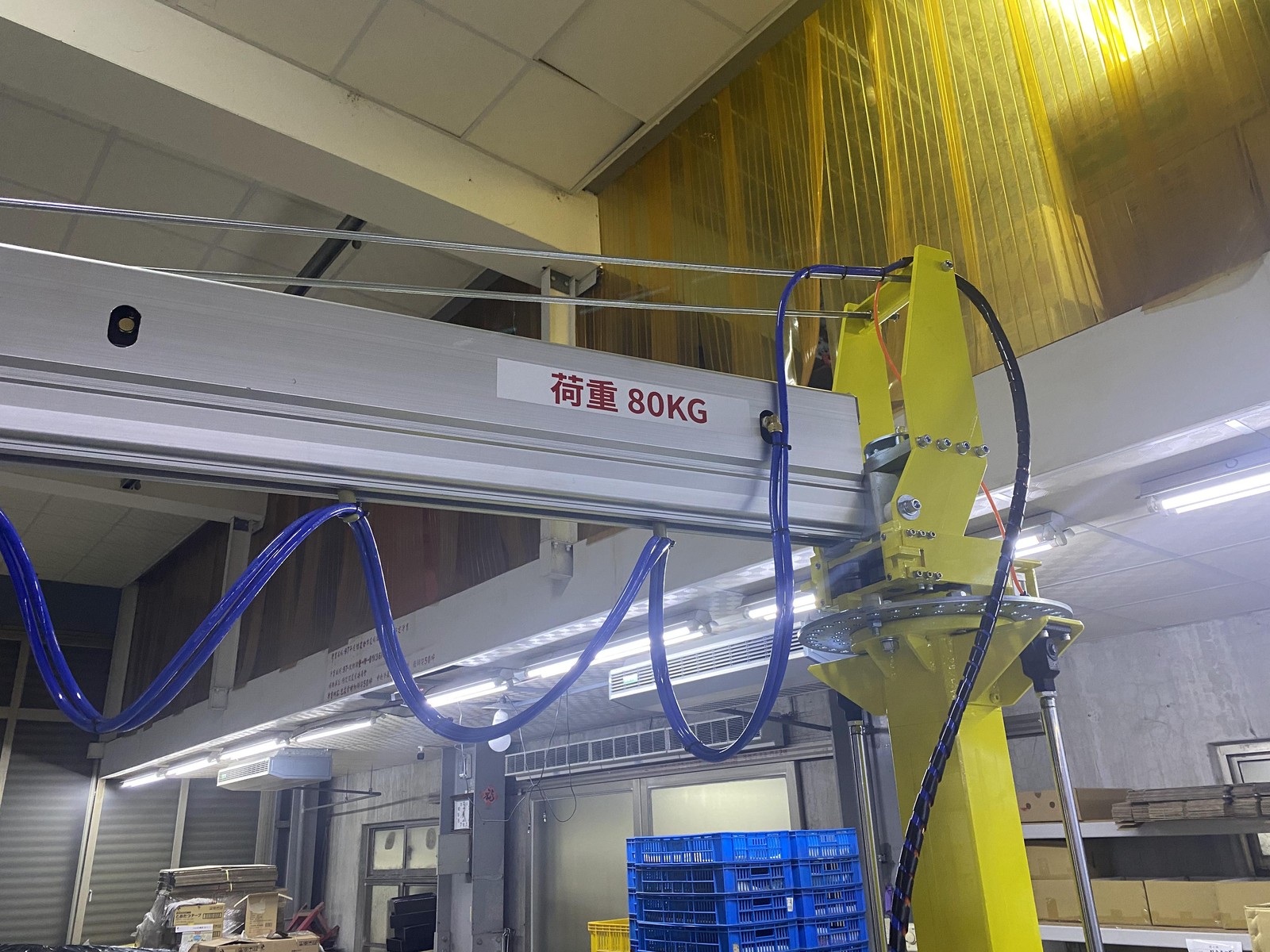

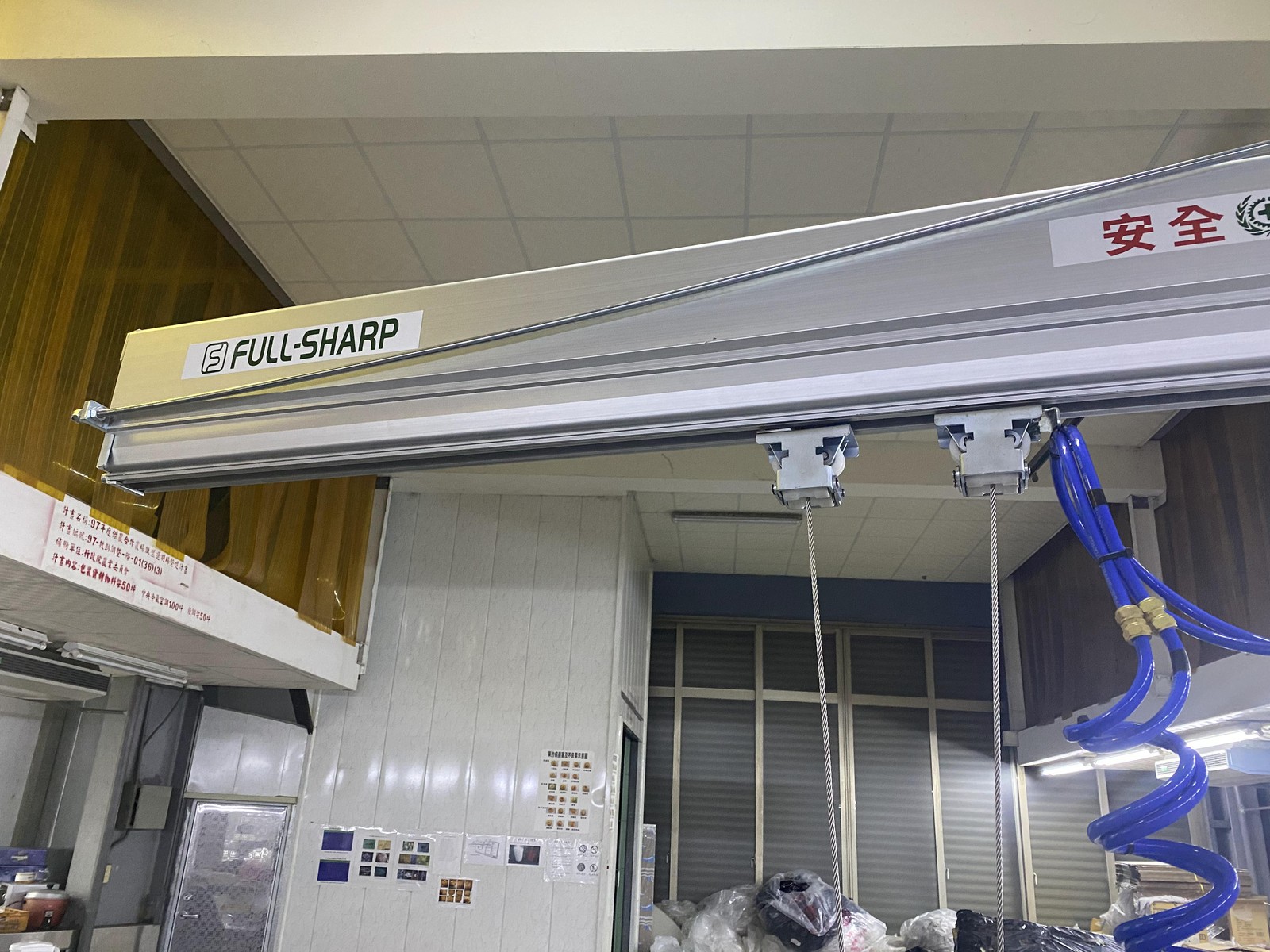

Pneumatic swinging arm: runs as soon as air is supplied, no electrical cabinet needed, suited to spark-restricted areas.

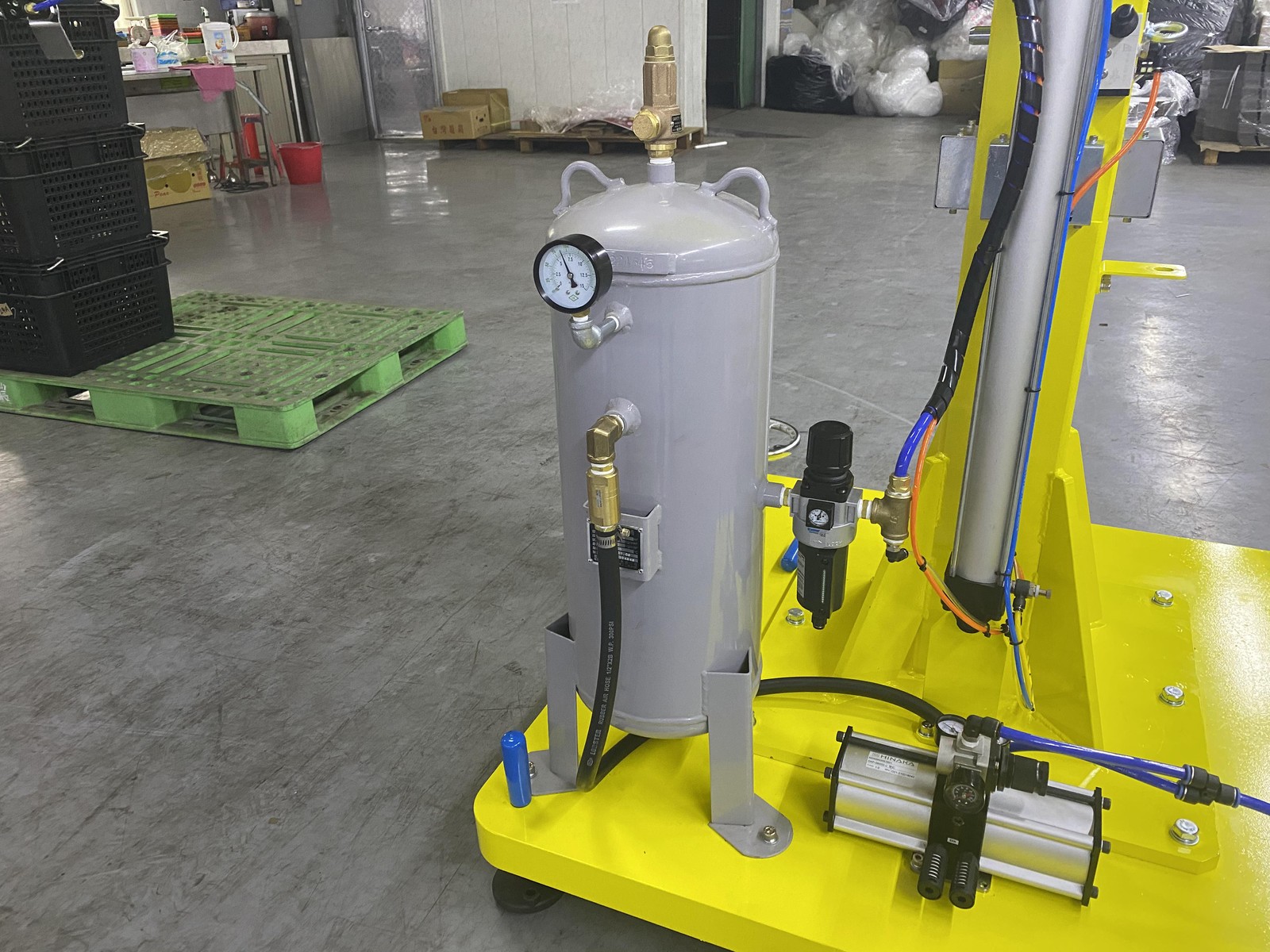

Air control valve assembly: holds the load suspended, tapping the valve lowers it in short, precise steps.

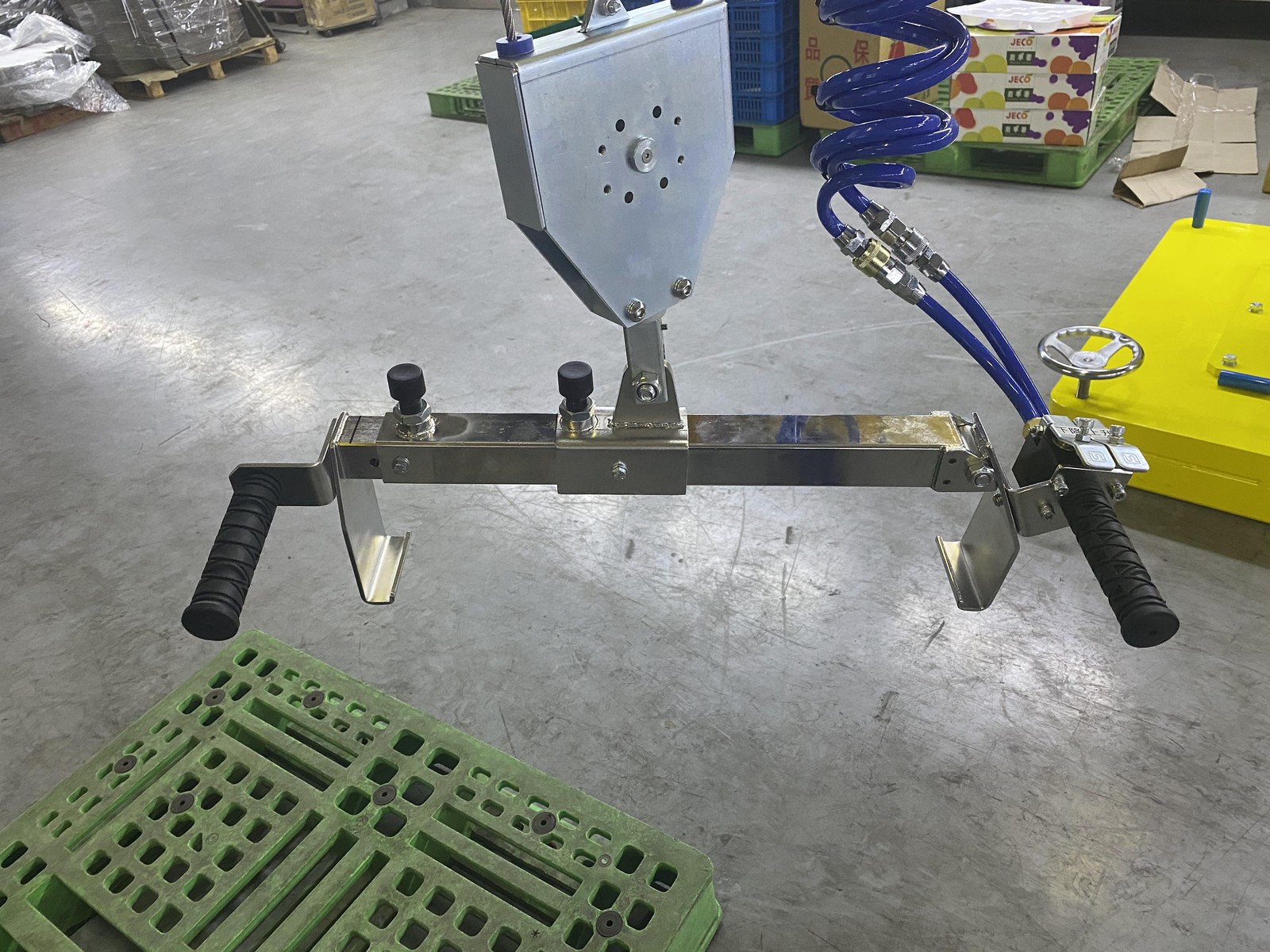

Plastic tray gripping tool: cradles the tray sides, gripping evenly on both sides so it doesn't tilt or slip while moving.

Benefits for the plant

Handles multiple heights

The adjustable column lets the same machine work both low tables and high shelves.

Explosion-proof safety

Runs entirely on compressed air with no electric motor, limiting spark sources in the plant.

Easy to relocate

The wheeled base allows moving to another line without re-drilling the floor or ceiling.

Installation photos

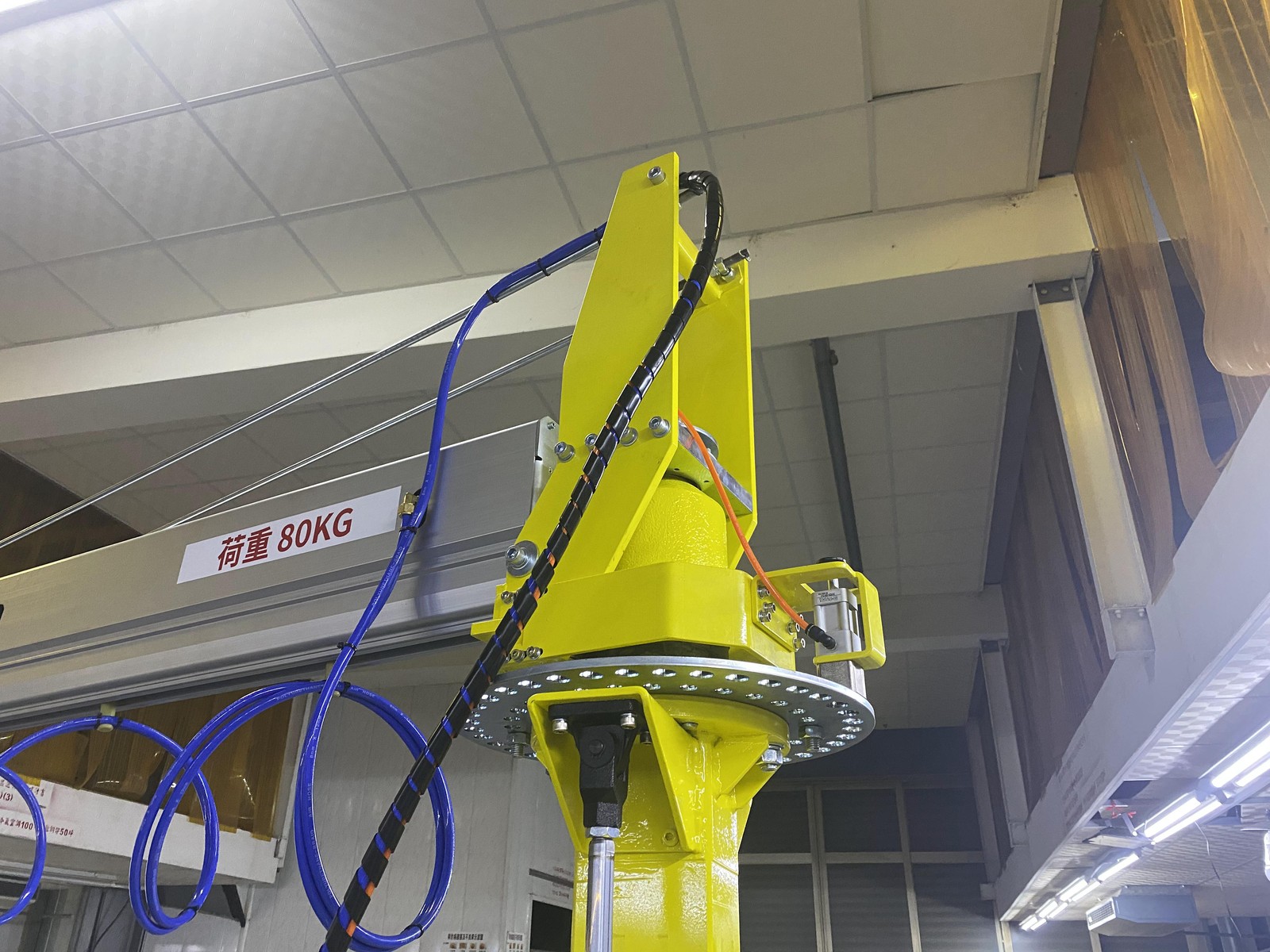

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 1

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 2

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 3

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 4

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 5

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 6

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 7

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 8

Pneumatic Jib Crane with Mobile Base and Height-Adjustable Column - ảnh 9

Click a photo to enlarge. 9-photo album taken on site.

Suitable applications

Machining and manufacturing workshops
Warehouses with multiple shelf levels at different heights
Assembly lines that change work positions often
Areas requiring spark restriction

Get an installation plan for your plant

FullSharp weighs a full tray, measures the distance from pickup to drop point, and checks the plant's available air pressure. From there we set the column stroke, arm reach, and gripping tool type. Call FullSharp to schedule a survey date.
