5T Rail Jib Crane with Black Bear 250kg Hoist

Industrial pipe workshops need to move pipe sections onto the machine table many times per shift. Two workers carrying them by hand is slow and risks denting the pipe surface. The space around the machine is also tight, so a forklift cannot get in.

FullSharp installs a 5T rail jib crane mounted on a support column, with a Black Bear 250 kg electric hoist hanging below. The 5T rail is FullSharp's steel section code, rated for 200 kg, enough to lift one pipe section at a time. The arm swings around the column so the operator can move pipes from the rack to the machine right from their standing position.

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist

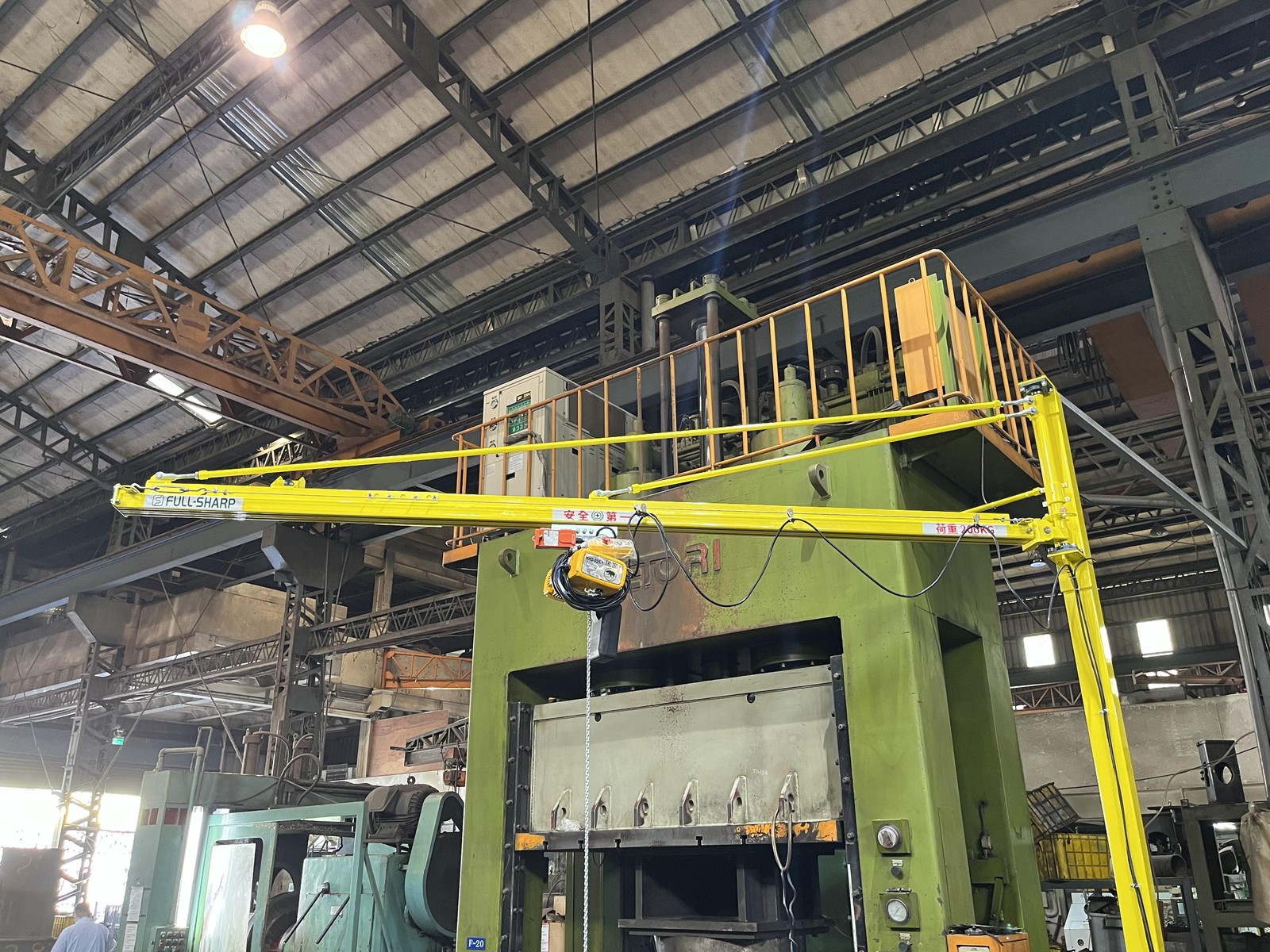

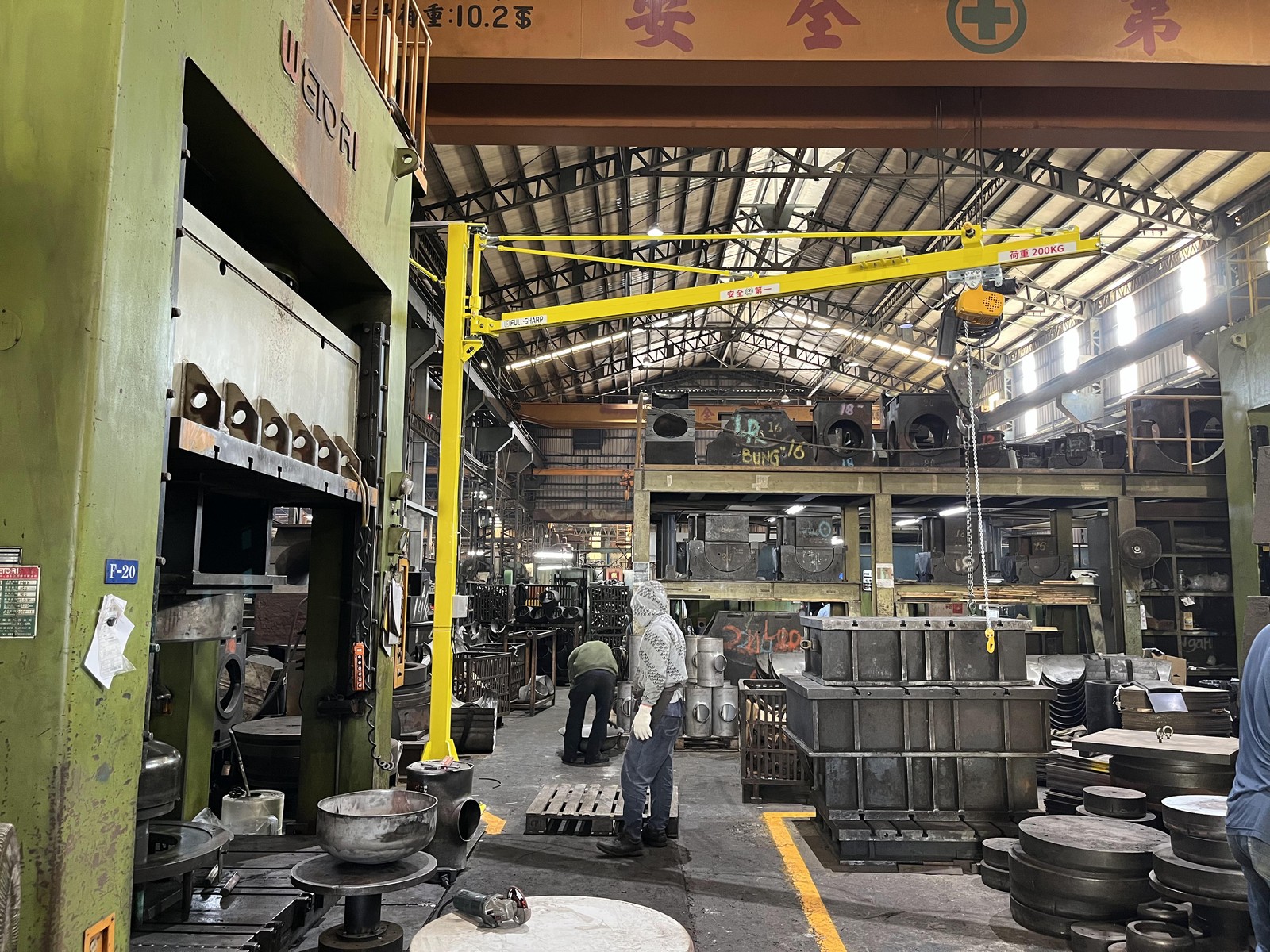

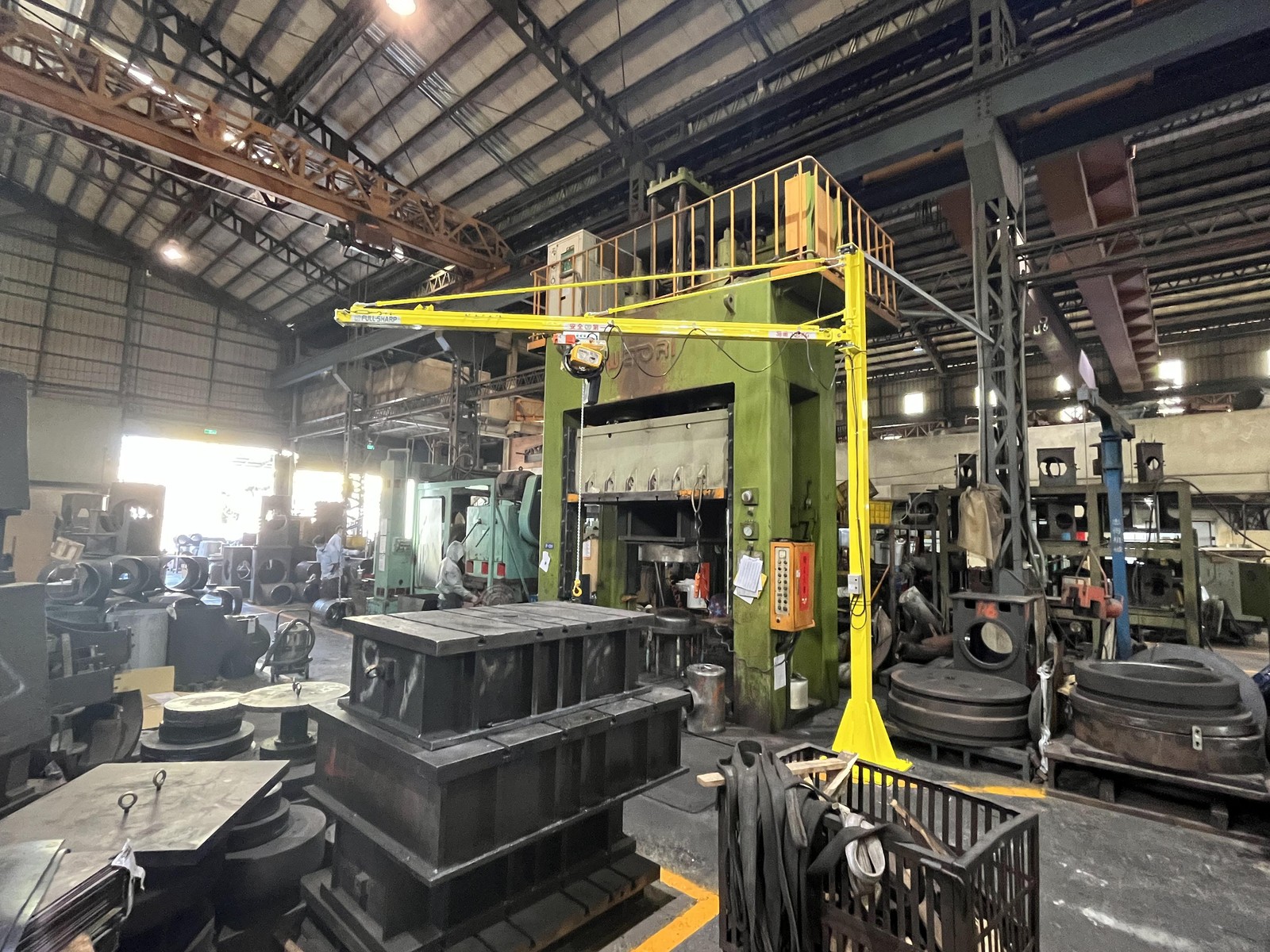

A 5T rail jib crane mounted on a support column, carrying a Black Bear 250 kg electric hoist at the pipe processing area.

Equipment Installed

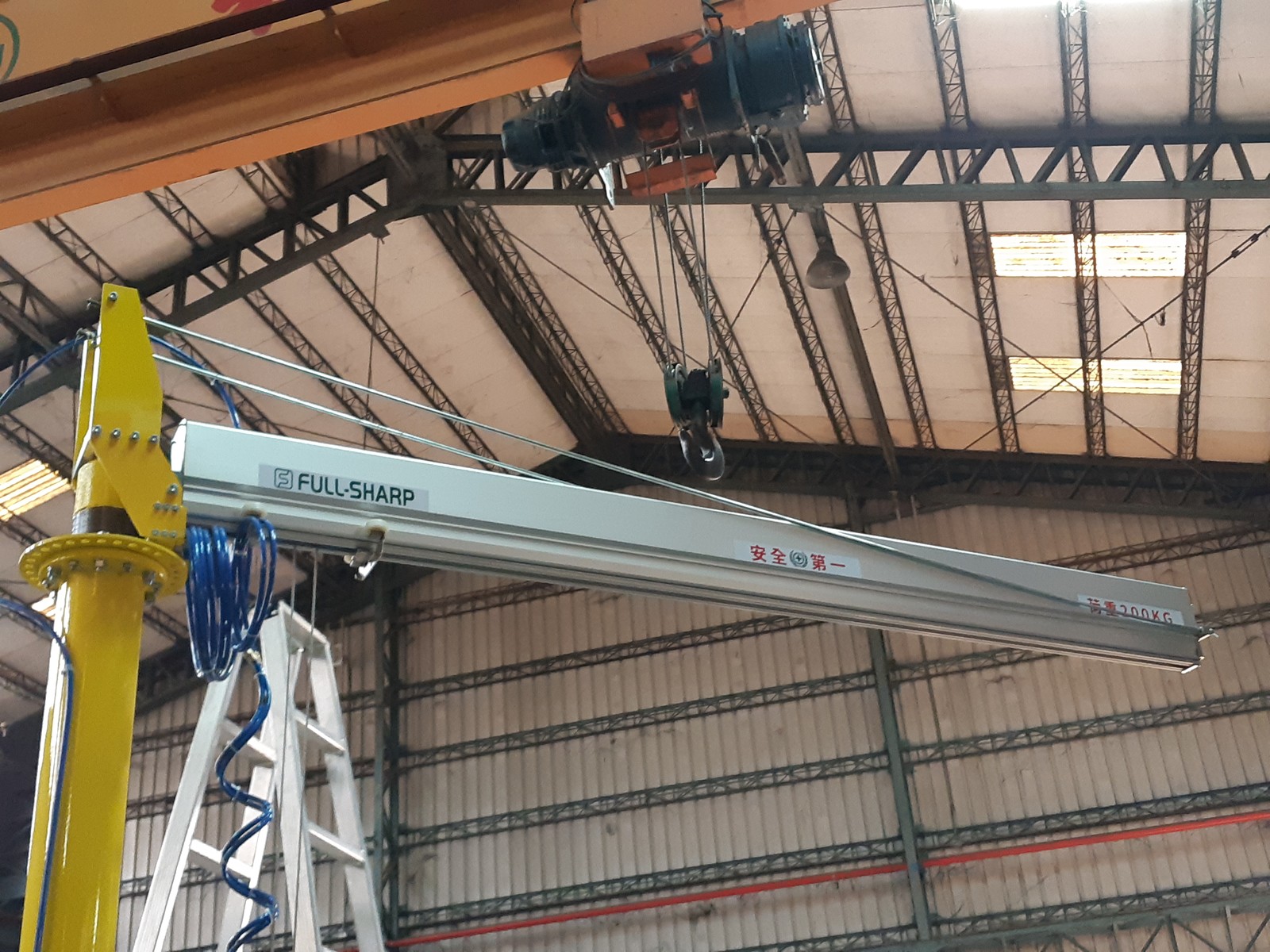

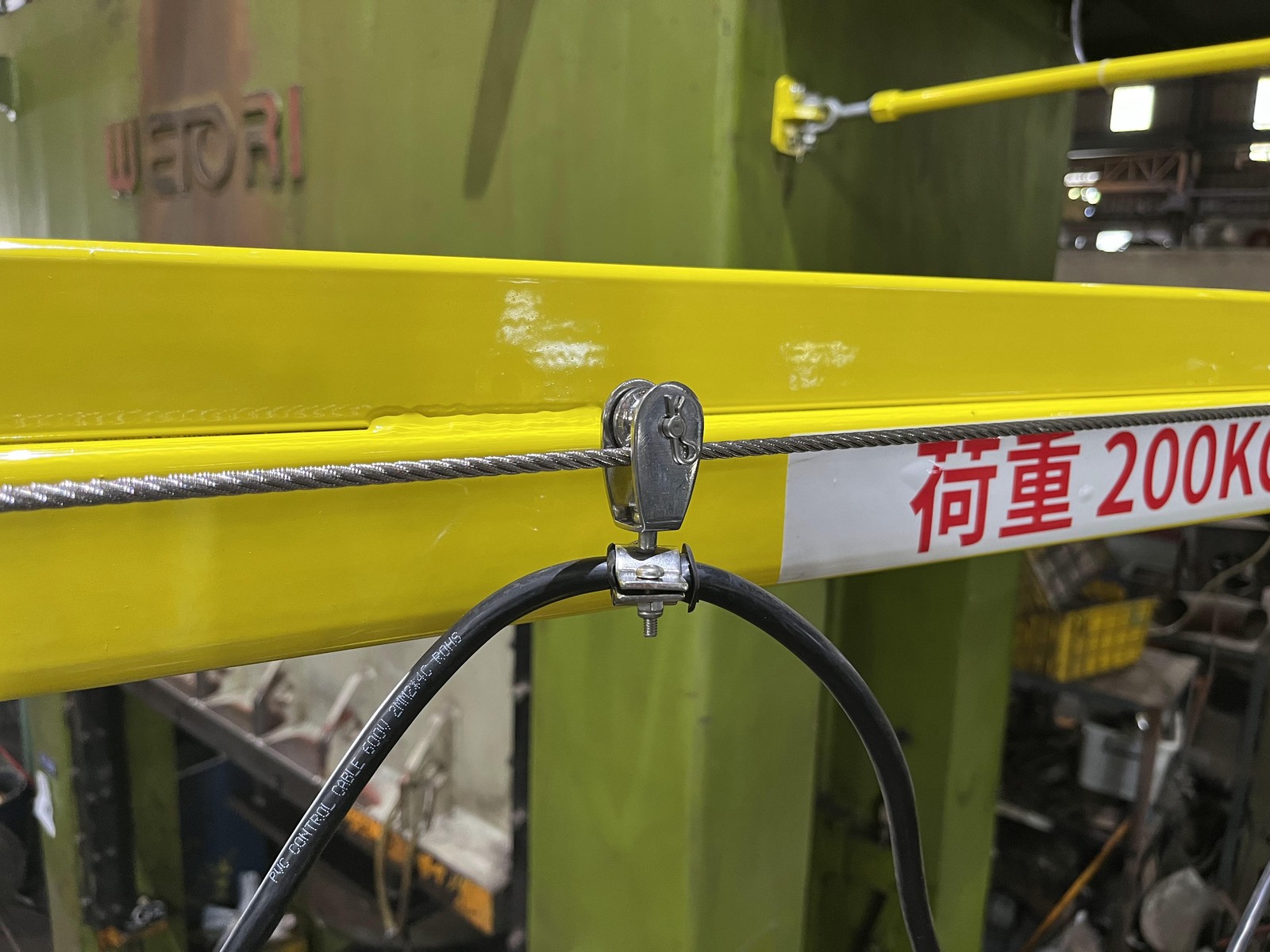

5T steel rail: FullSharp's rail section code, rated for 200 kg, forming the trolley track arm for the jib crane.

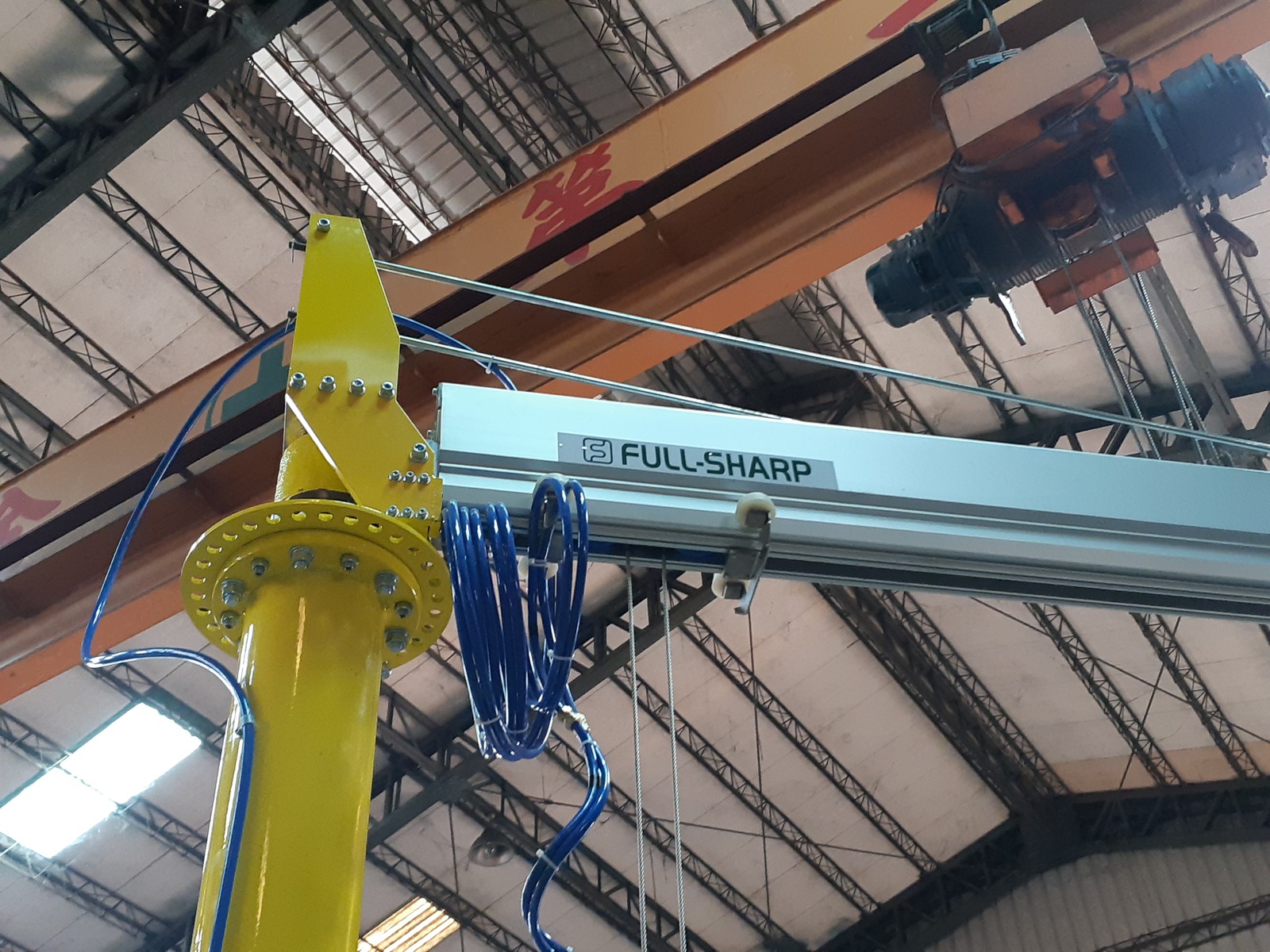

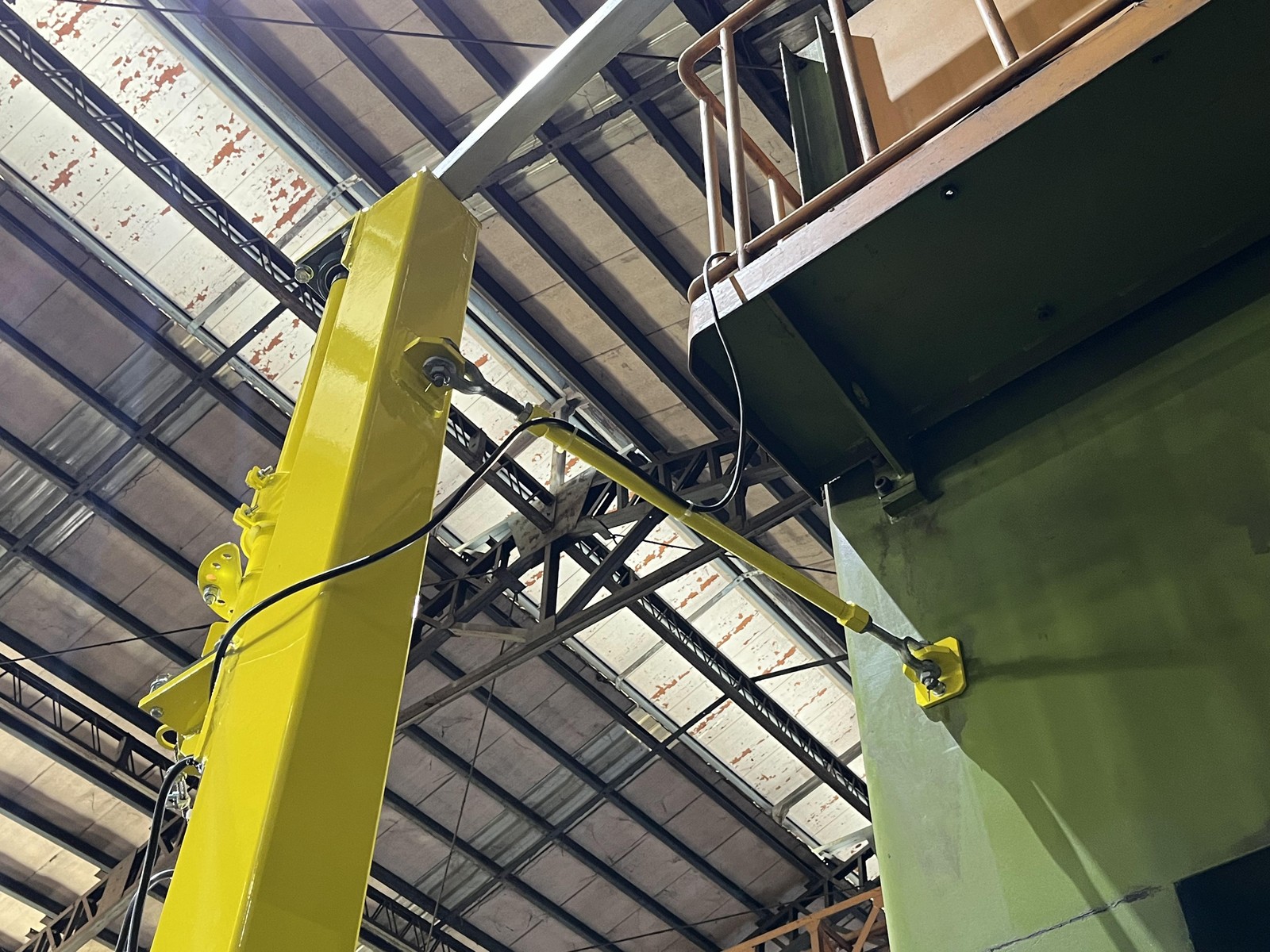

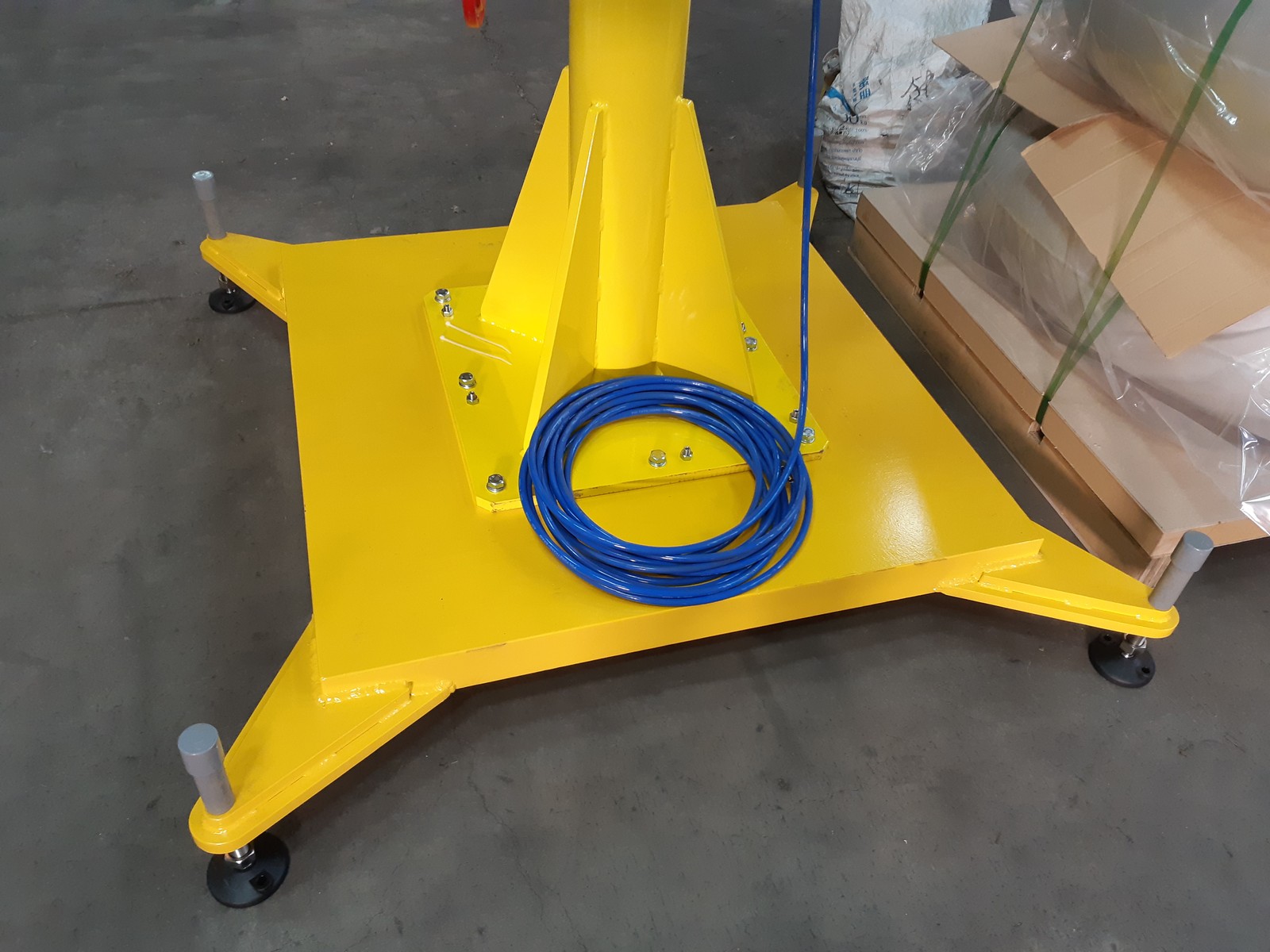

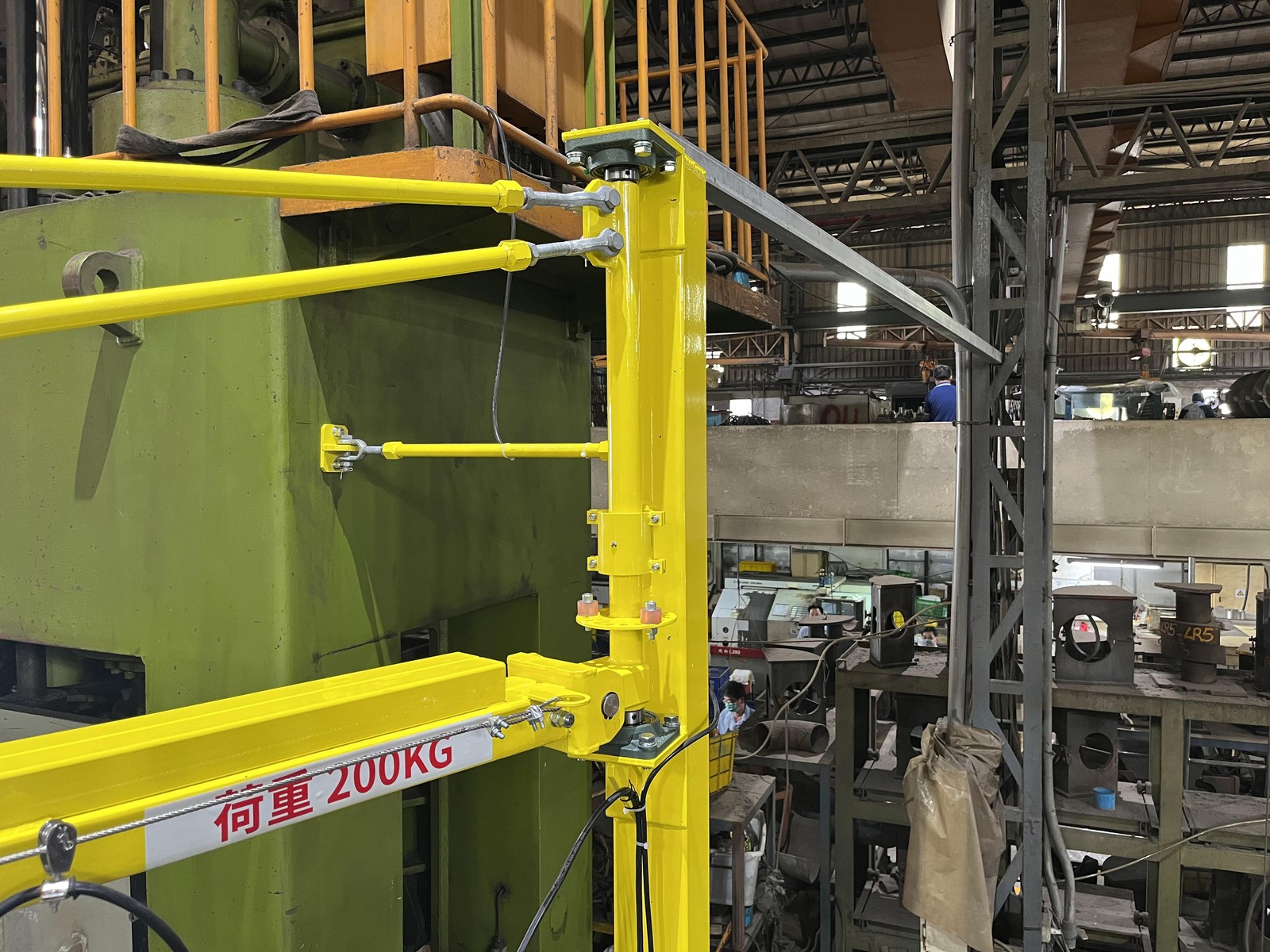

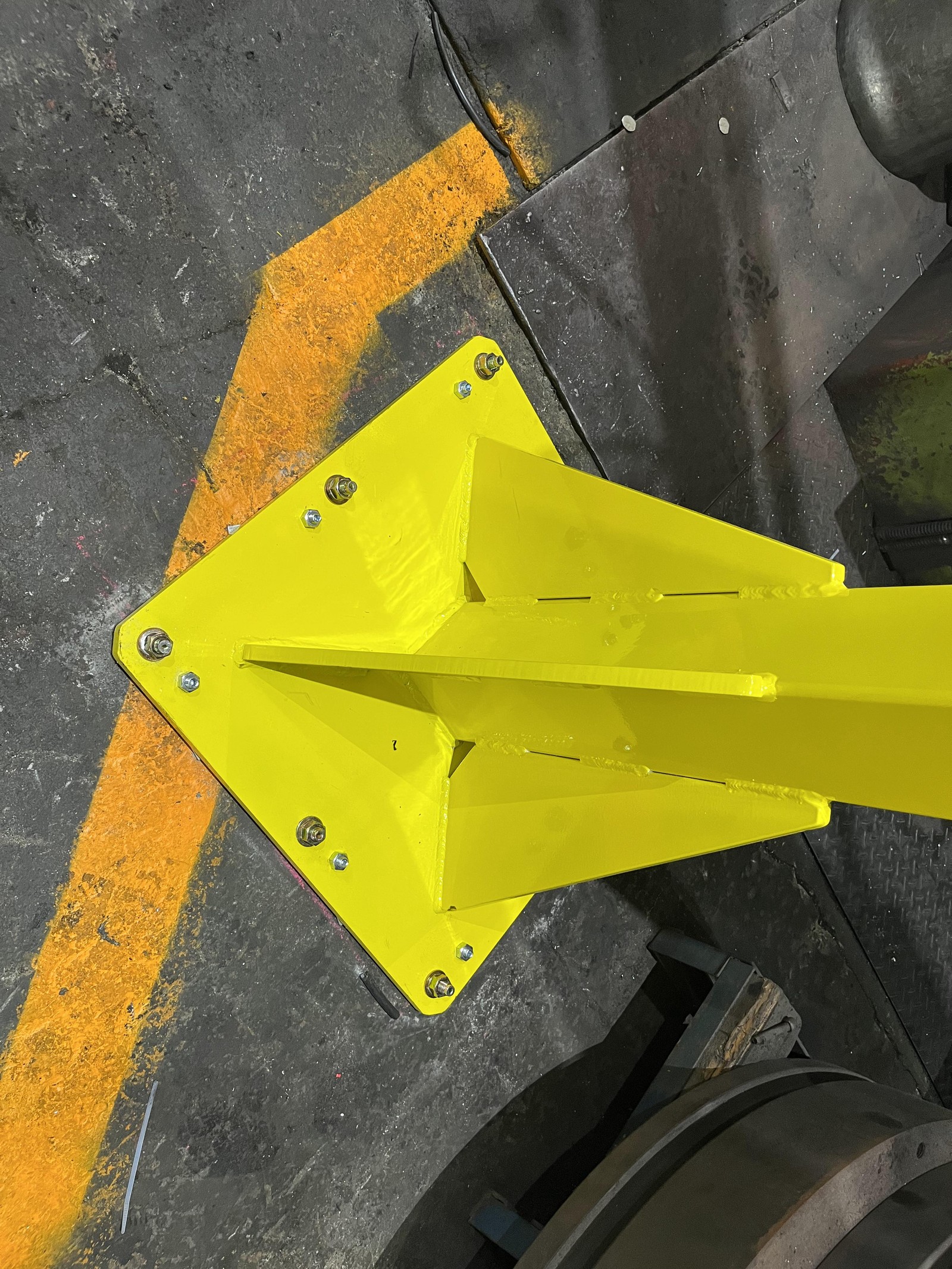

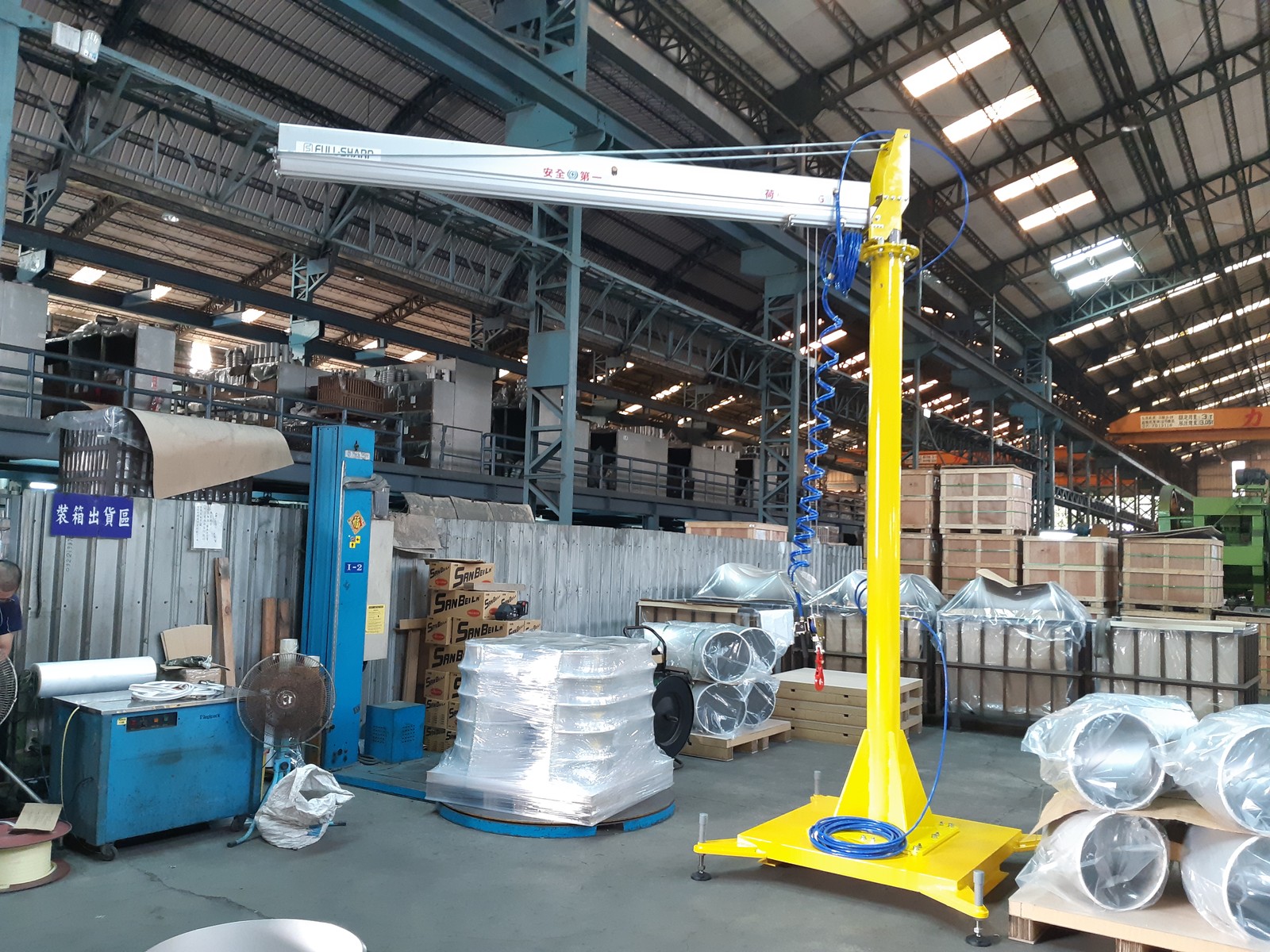

Support column and rotating joint: fixed to a column or building post, the arm rotates around the joint to cover the work area around the machine.

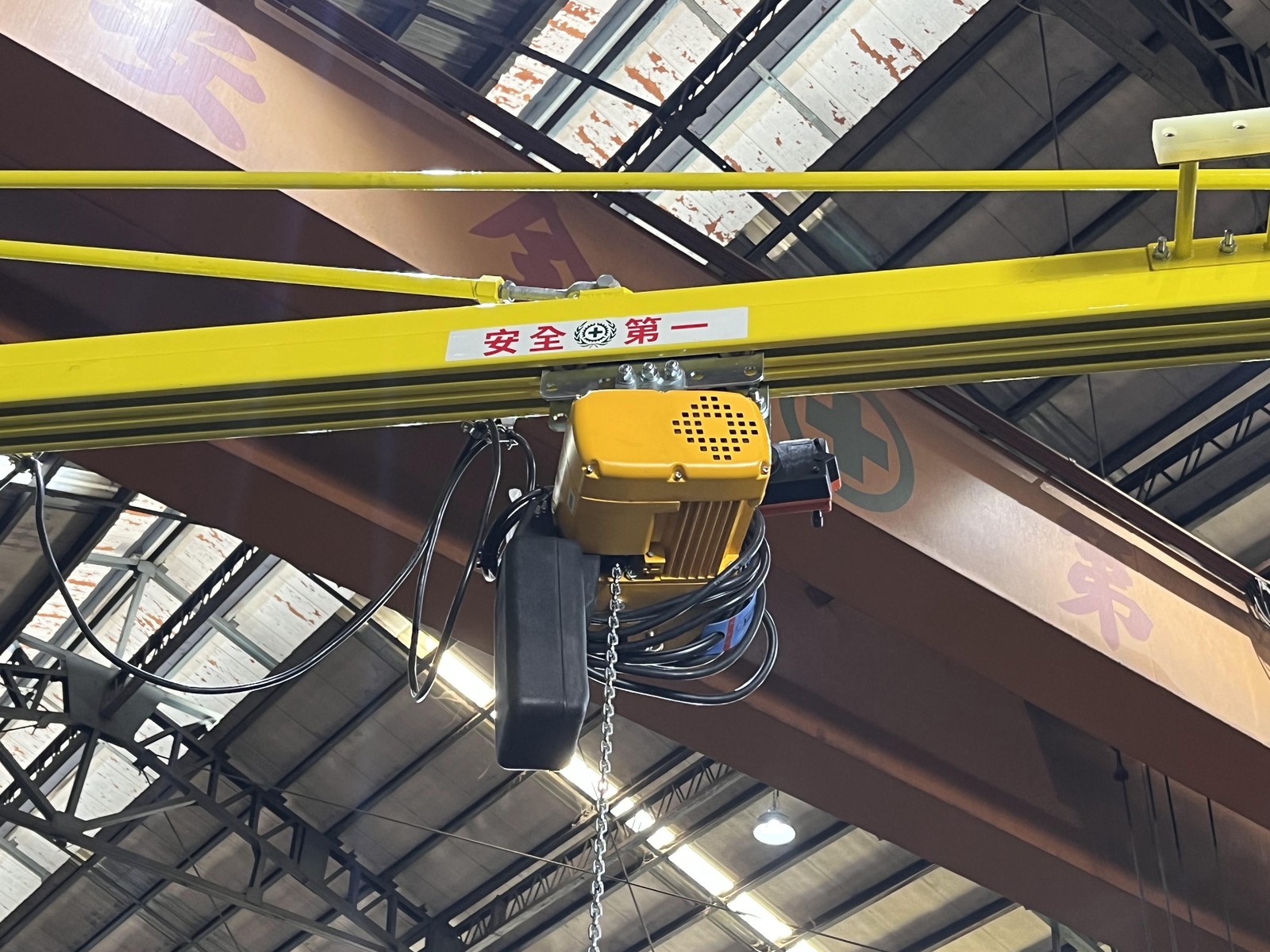

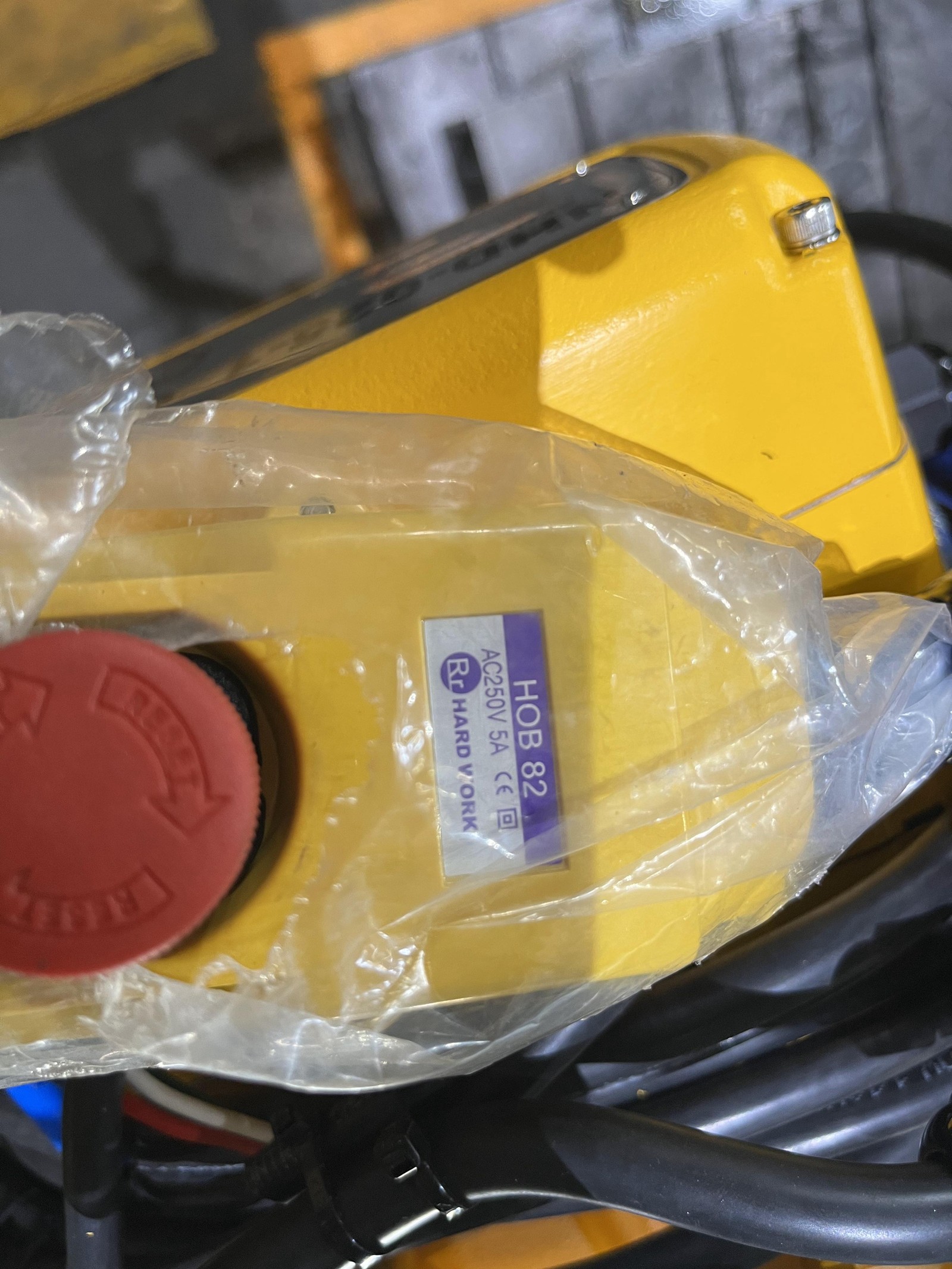

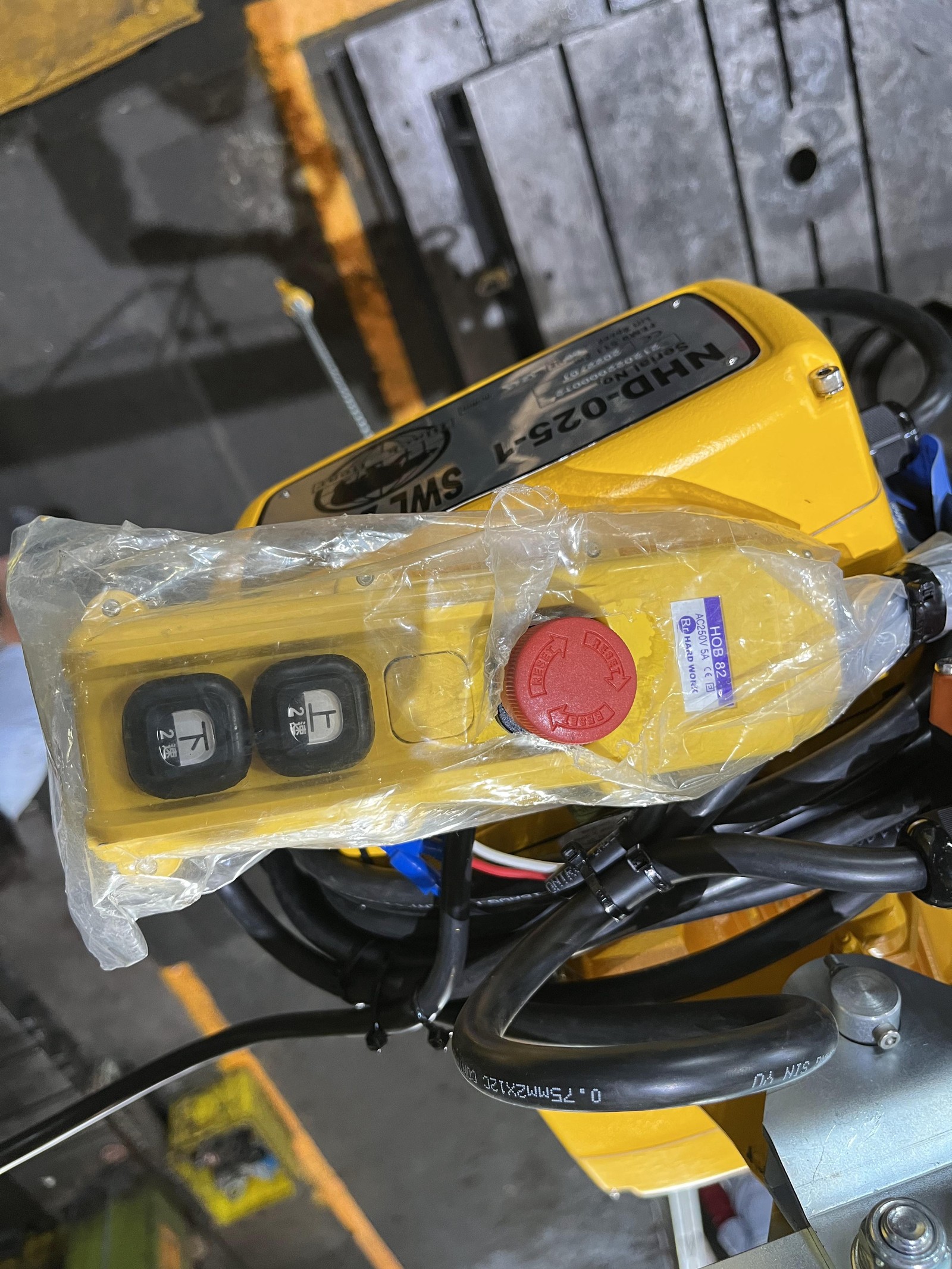

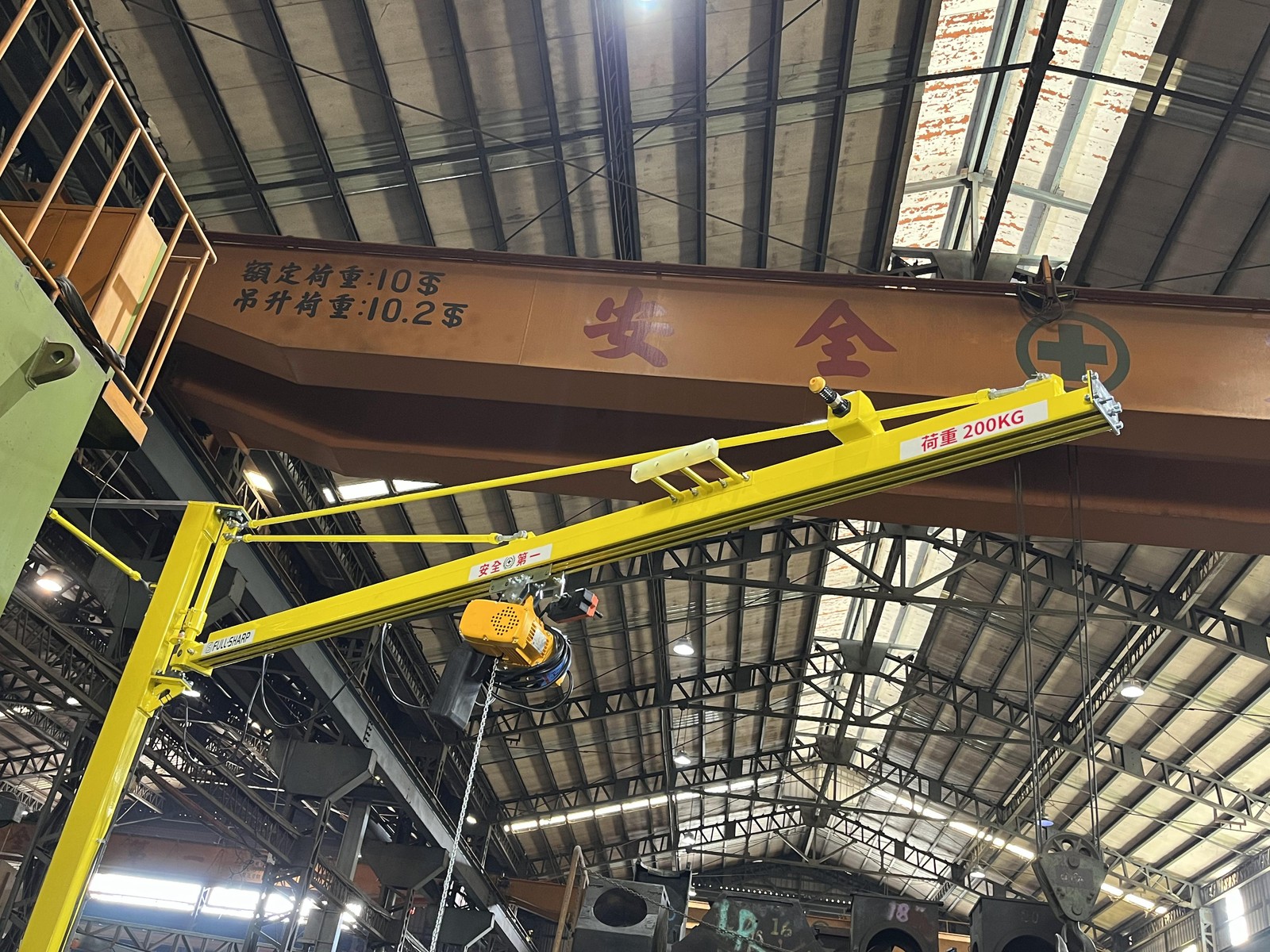

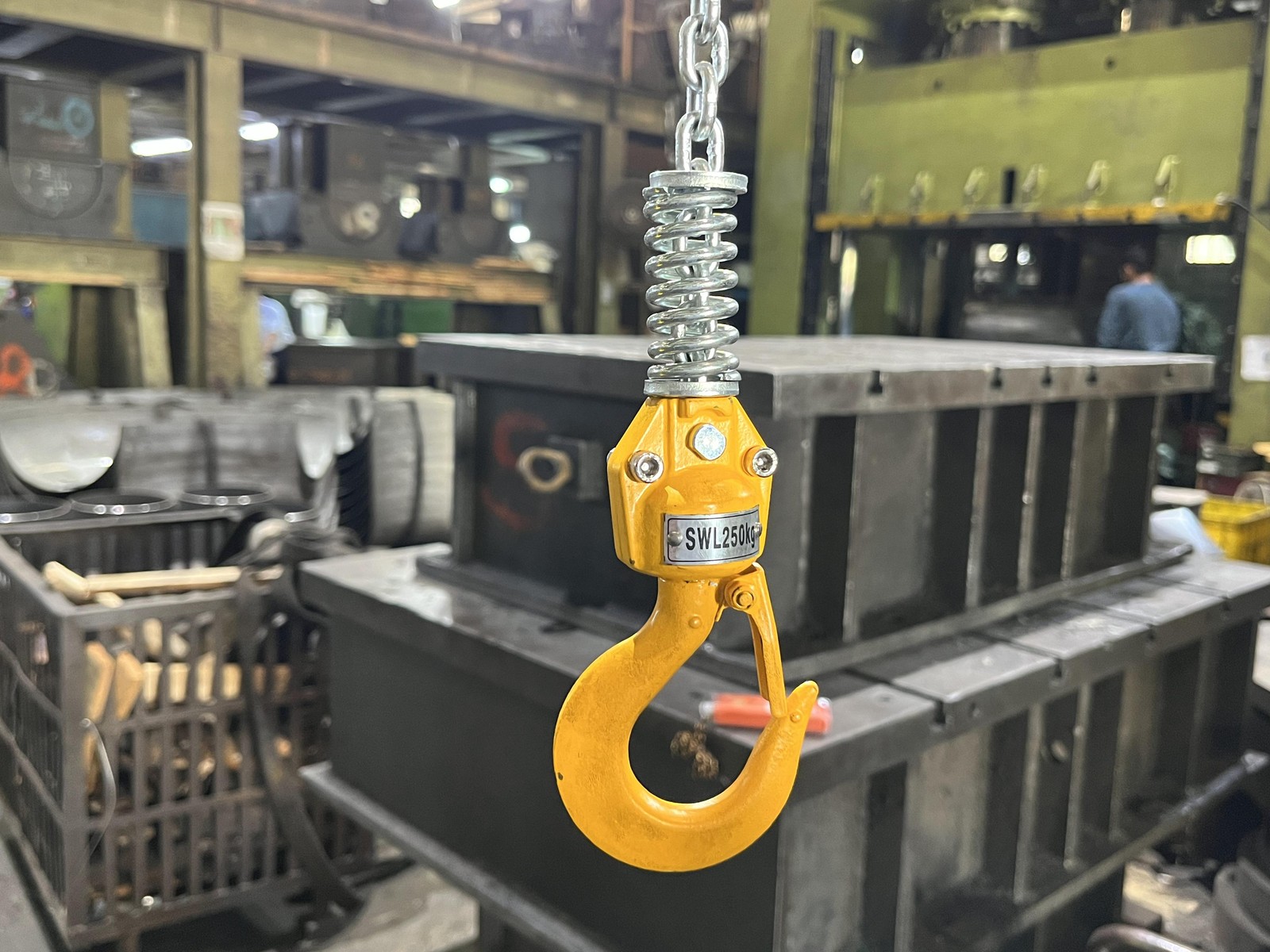

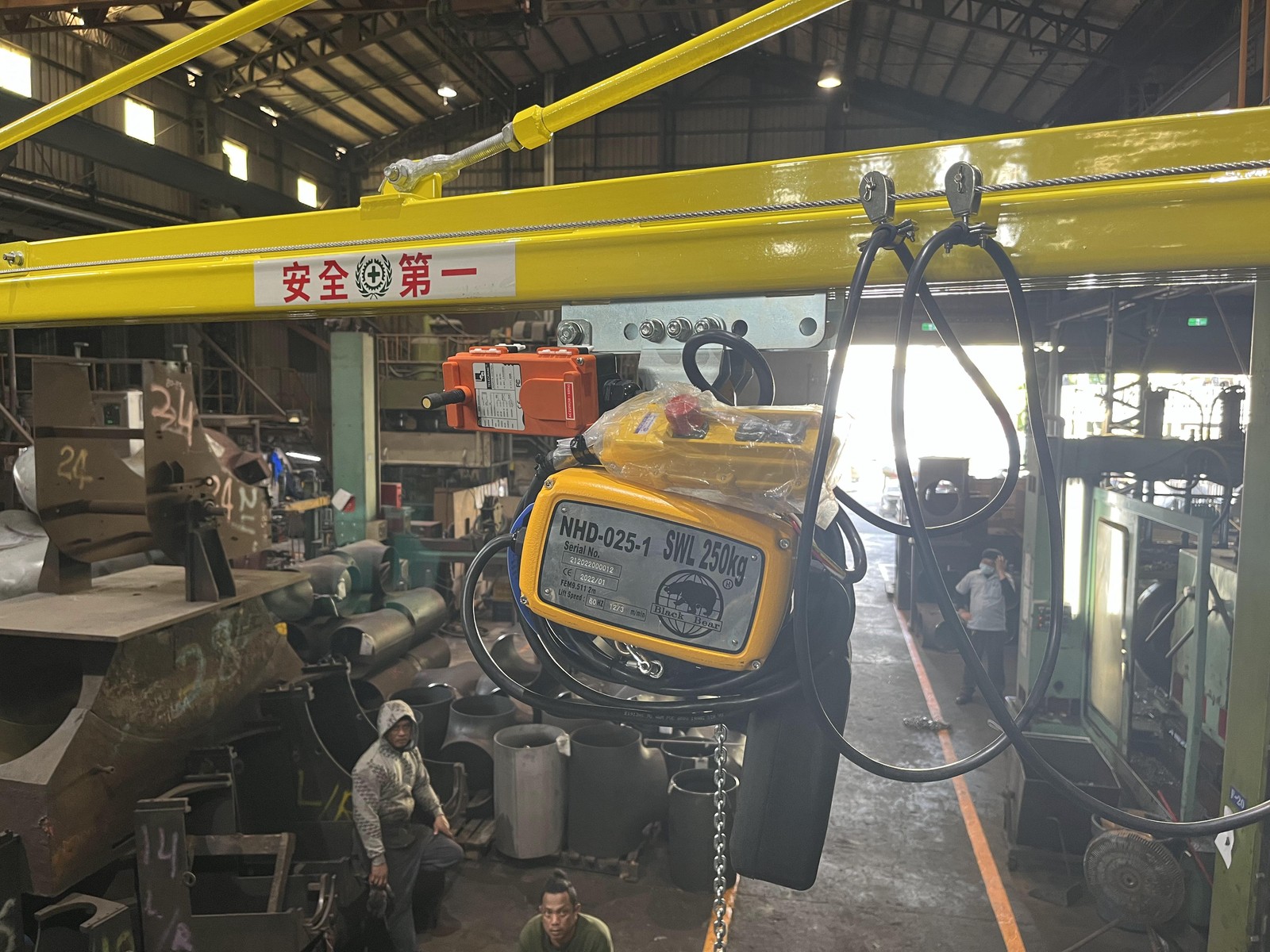

Black Bear 250 kg electric hoist: motor-driven lifting and lowering at a steady speed, controlled by a pendant push-button.

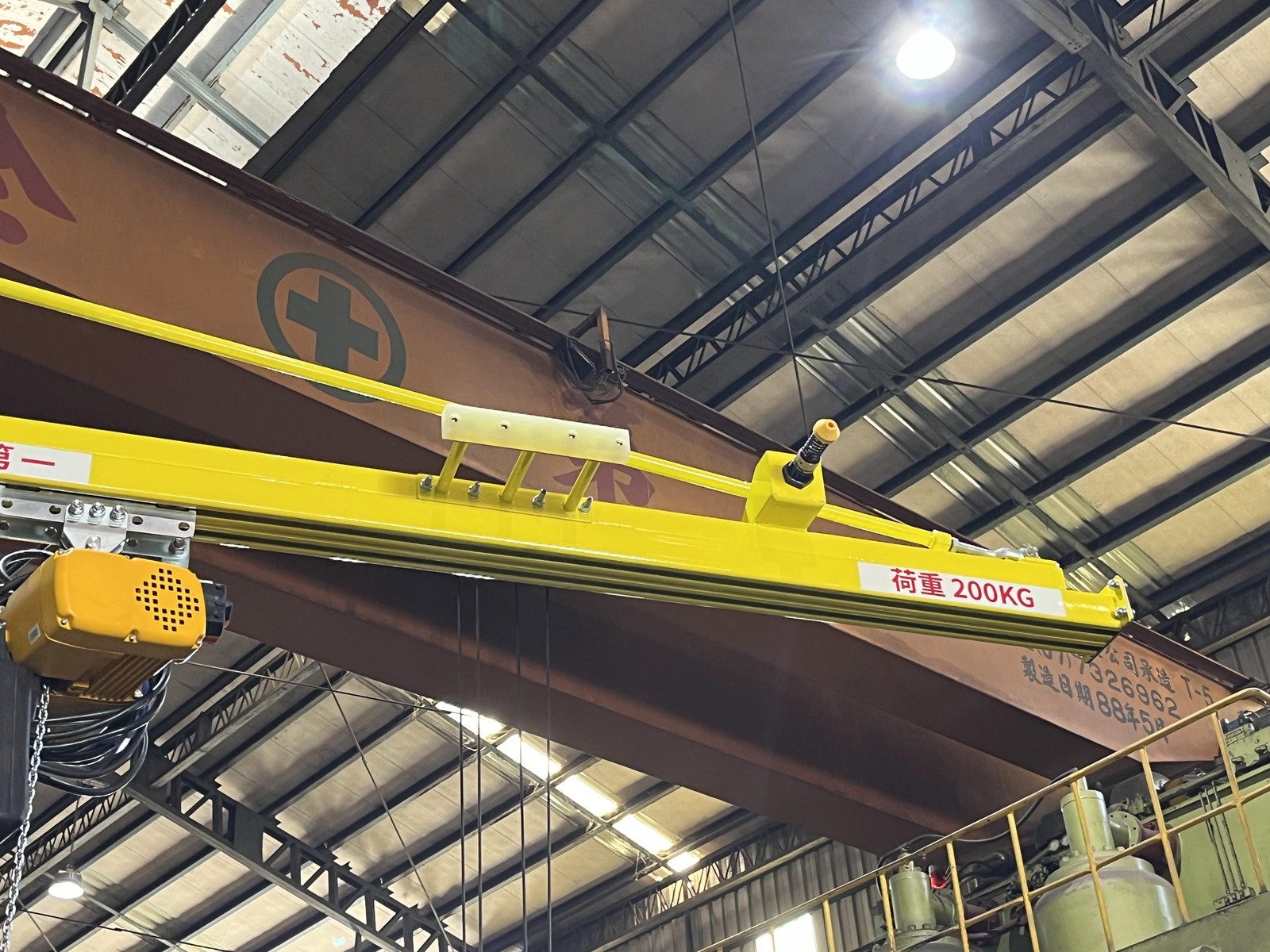

Rail-mounted trolley: slides along the arm, moving with a light push to position the lifting point exactly where needed.

Key Specifications

Rail Code5T Steel Rail
Rated Load200 kg
Electric HoistBlack Bear 250 kg
Hoist OriginTaiwan

Benefits for Your Plant

Saves manpower

One person presses a button to lift and swing the pipe section, no need to call in extra workers to carry it.

Keeps floor space free

The rotating column stays in one spot, leaving the aisle and work area around the machine clear for other tasks.

Gentle pipe placement

The hoist runs smoothly, lowering the pipe onto the machine table gradually with minimal impact that could scratch the surface.

Actual Installation Photos

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 1

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 2

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 3

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 4

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 5

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 6

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 7

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 8

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 9

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 10

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 11

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 12

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 13

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 14

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 15

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 16

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 17

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 18

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 19

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 20

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 21

5T Rail Jib Crane with Black Bear 250 kg Electric Hoist - ảnh 22

Click a photo to enlarge. Album of 22 photos taken on site.

Suitable Applications

Pipe cutting, turning, and threading workshops
Material feed areas for machining equipment
Pipe and profile storage warehouses
Piping assembly teams
Machine shops with tight floor space around equipment

Consultation for Your Plant Installation

FullSharp visits your workshop to measure the intended column or post for mounting the crane, the ceiling height, and the arm radius needed. Our engineers verify the actual load weight to select the correct rail size, hoist, and column anchoring method. After the survey, you receive a layout drawing and a specific installation schedule.
