Horizontal Roll Lifter

Electric Horizontal Roll Lifter 300 kg – 1 ton

Capacity 300 kg, 600 kg or 1,000 kg, lifting height 1,600 mm or 2,500 mm
U-shaped curved forks cradle the roll shaft, with electric width adjustment and side shift
Fully electric lifting and travel, stand-on operator
24V/200Ah battery, electromagnetic brake, CE, ISO, TUV, GS certified
Designed for film, paper, lithium battery electrode and metal foil rolls

Aligns precisely with the shafts of coating, slitting and winding machines for loading, unloading, stacking and transporting material rolls.

Electric Horizontal Roll Lifter 300 kg – 1 ton

The horizontal roll lifter is a fully electricstand-on lift truck equipped with U-shaped curved roll forks with electric width adjustment and side shift. It is designed for loading, unloading and transporting rolls in the coating, film and paper industries, and is also known as a film roll transporter or roll lifter.

The U-forks adjust in width and shift sideways electrically, allowing precise alignment with the shafts of coating, calendering and winding machines. Five models are available with capacities of 300 kg, 600 kg and 1,000 kg and lifting heights of 1,600 mm or 2,500 mm.

Horizontal Roll Lifter nhìn từ phía trước

Càng chữ U đỡ cuộn của xe nâng cuộn nằm ngang

U-Fork Roll Cradle, a Complete Solution

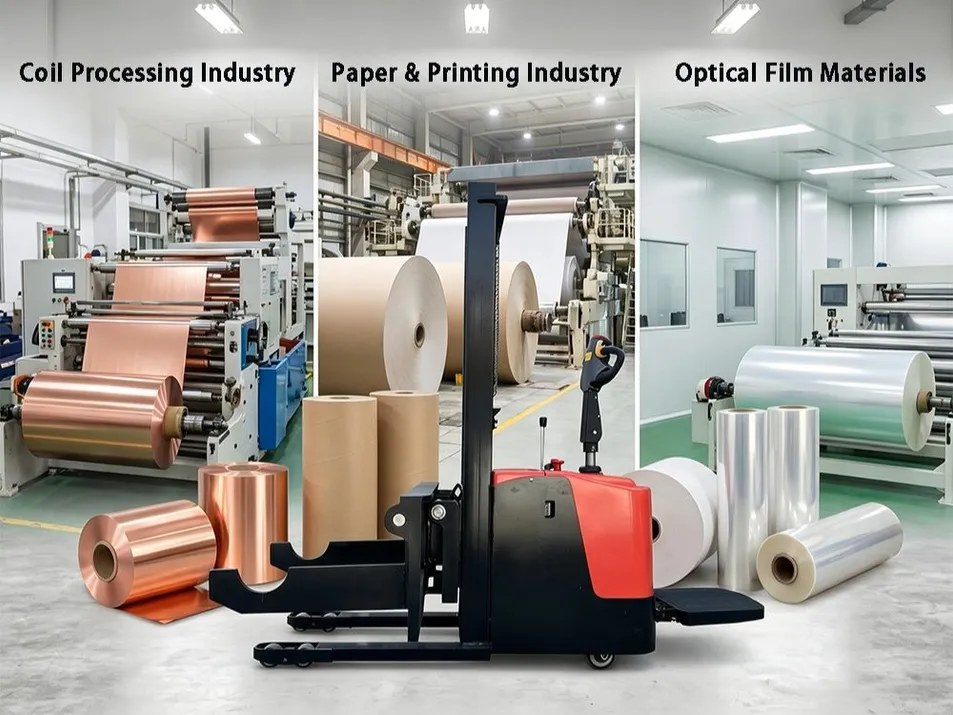

Horizontal Roll Lifter dùng trong ngành cuộn, giấy in và màng quang học

When handling cylindrical rolls, the shaft through the roll core sits securely in the inner groove of the curved U-fork. The curved surface spreads the roll weight evenly, so the roll surface is not dented, and the locking groove holds the shaft and roll so they cannot slip or fall.

With electric width adjustment and side shift, the lifter handles rolls of many widths and aligns precisely with the shafts of coating, slitting and winding machines for loading, unloading, stacking and transport. Used for optical film, printing paper, copper foil, aluminum foil and battery electrode rolls.

Specifications

Model	FSCDD0316-CZ	FSCDD0616-CZ	FSCDD1016-CZ	FSCDD0325-CZ	FSCDD0625-CZ
Capacity (kg)	300	600	1.000	300	600
Lifting height (mm)	1.600	1.600	1.600	2.500	2.500
Truck weight (kg)	552	566	630	592	616
Dimensions L × W × H (mm)	1.247 × 1.624 × 1.941	1.850 × 860 × 1.780	1.850 × 880 × 2.100	1.850 × 880 × 2.050	1.850 × 880 × 2.050

Common specifications for all models

Fork width970 – 1,530 mm, electrically adjusted
Min. / max. fork height300 – 1,880 mm
Roll core50 mm
Battery24V / 200Ah
Charger24V / 30A
Lift motor2.5 kW
Rear wheelsØ180 × 50 mm
Front wheelsØ80 × 70 mm
Required aisleTurning 2,100 mm, straight travel 900 mm
Lifting speed (laden / unladen)60 / 100 mm/s
Lowering speed (laden / unladen)90 / 70 mm/s
BrakeElectromagnetic
CertificationCE, ISO, TUV, GS
PackingWooden pallet 185 × 88 × 205 cm, 616 kg (model FSCDD0625-CZ)

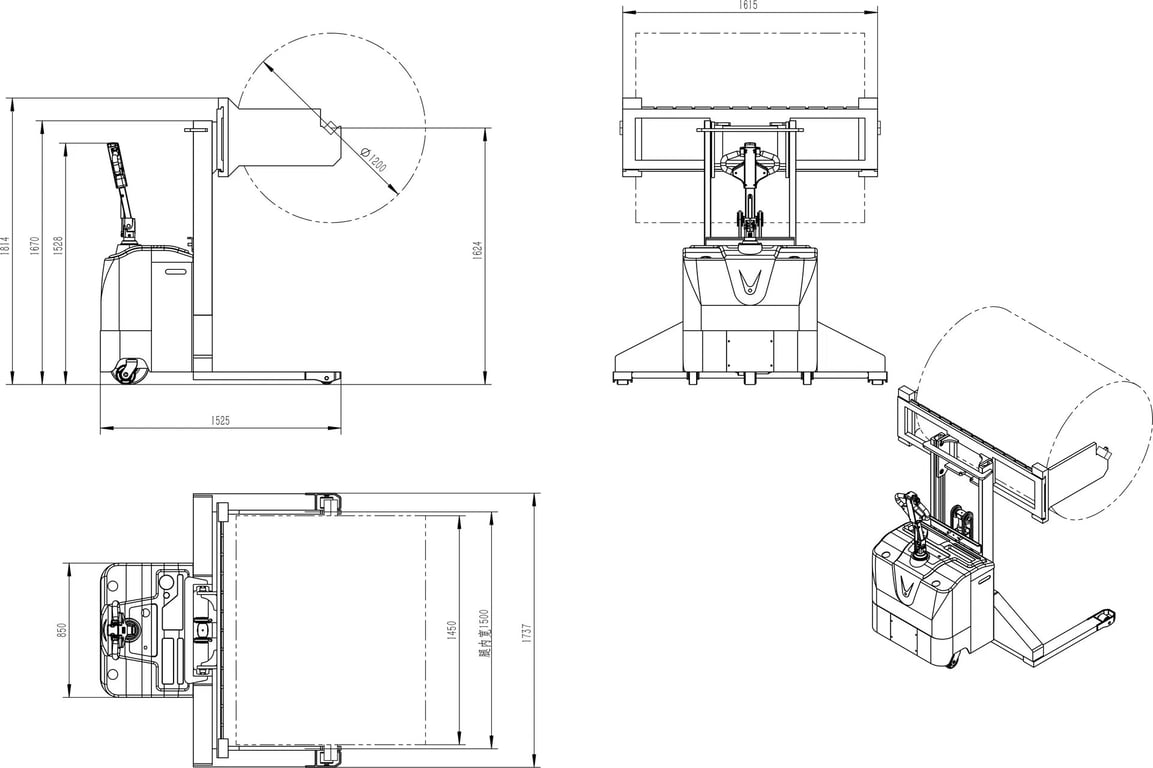

Dimension drawing

Bản vẽ kích thước xe nâng cuộn nằm ngang

Industry applications

Ngành pin lithium — **Lithium battery industry**
Coating shop: moving large cathode and anode electrode rolls and empty cores to and from the coater. Calendering, slitting and winding: short-distance transfer and roll changes between machines. Temporary stacking and storage of semi-finished rolls in clean rooms. Storage of copper and aluminum foil rolls and feeding to the line.

Ngành màng và vật liệu quang học — **Film and optical materials industry**
Optical film, protective film and release film plants: loading and unloading finished and semi-finished film rolls on slitters and rewinders. Moving and high-stacking photovoltaic film, PVC and PE film rolls in film plants.

Ngành giấy và in ấn — **Paper and printing industry**
Moving and stacking large base paper and packaging paper rolls in paper mills. Loading and unloading print rolls at presses and slitting stations in color printing and packaging plants.

Các ngành cuộn khác — **Other roll industries**
Textiles: fabric rolls and synthetic fiber rolls. Metal foil: moving small steel and aluminum coils in processing shops. Packaging: storing and feeding shrink film rolls and paper tube rolls to production.

Fork width, lifting height and capacity can be custom-designed. Contact FullSharp for advice on the right model for your material rolls and machines.

Request a quote See other roll lifters
