Servo Electric Trolley

■ Manual Push Trolley

■ Servo Electric Trolley — I-Beam Steel Track

Model	Max. Load (kg)	Speed (m/min)	Main Beam Flange Width (mm)	Power (Kw)
ED2-G	2000 kg	0~16 m/min	74-2000	0.75 Kw

ED2-G 2000kg

Max. Load2,000 kg

Speed0~16 m/min

Main Beam Flange Width (mm)74-2000

Power0.75 Kw

■ Servo Electric Trolley — KBK Light Rail

Model	Max. Load (kg)	Speed (m/min)	Power (Kw)
ED2-K	2000 kg	0~16 m/min	0.75 Kw

ED2-K 2000kg

Max. Load2,000 kg

Speed0~16 m/min

Power0.75 Kw

■ Servo Electric Trolley — C-Section Steel Rigid Rail

Model	Max. Load (kg)	Speed (m/min)	Power (Kw)
ED2-C	2000 kg	0~12 m/min	0.75 Kw

ED2-C 2000kg

Max. Load2,000 kg

Speed0~12 m/min

Power0.75 Kw

■ Servo Electric Trolley — Aluminum Rail

Model	Max. Load (kg)	Speed (m/min)	Power (Kw)
ED2-D	2000 kg	0~25 m/min	0.75 Kw
ED2-E	2000 kg	0~24 m/min	0.75 Kw

ED2-D 2000kg

Max. Load2,000 kg

Speed0~25 m/min

Power0.75 Kw

ED2-E 2000kg

Max. Load2,000 kg

Speed0~24 m/min

Power0.75 Kw

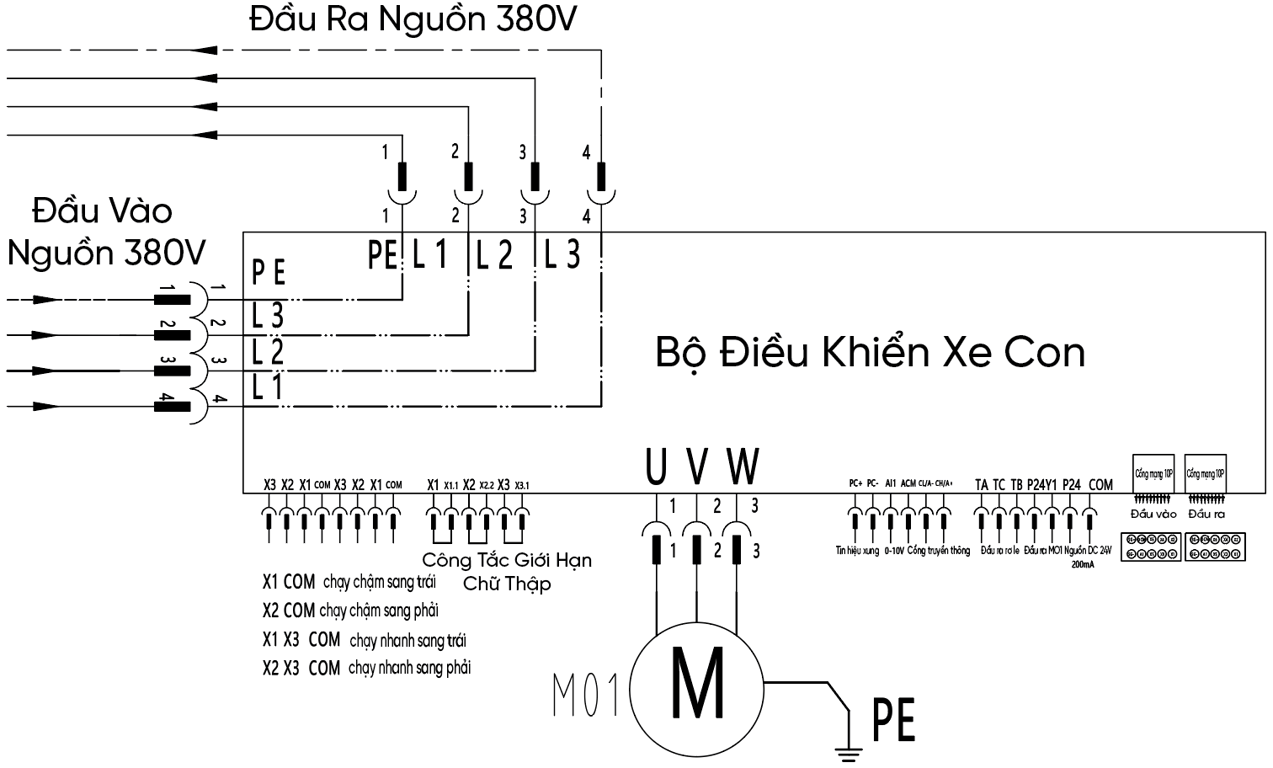

■ Wiring Diagram

Note: For reference only. The product manual prevails for the actual wiring diagram.

TRAVELLING TROLLEY
