Ceiling Manipulator for Motorcycle Frames

Motorcycle frames are heavy and bulky, and lifting one onto a fixture forces the operator to strain and twist. Doing this continuously at line pace tires the shoulders and back, and the frame can easily bump into fixtures.

FullSharp mounts a manipulator on the ceiling structure right above the assembly station, so no floor space is lost. The end effector cradles the frame closely, and the lift-assist mechanism carries the weight, so the operator only needs to guide direction and set the frame into the fixture.

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames

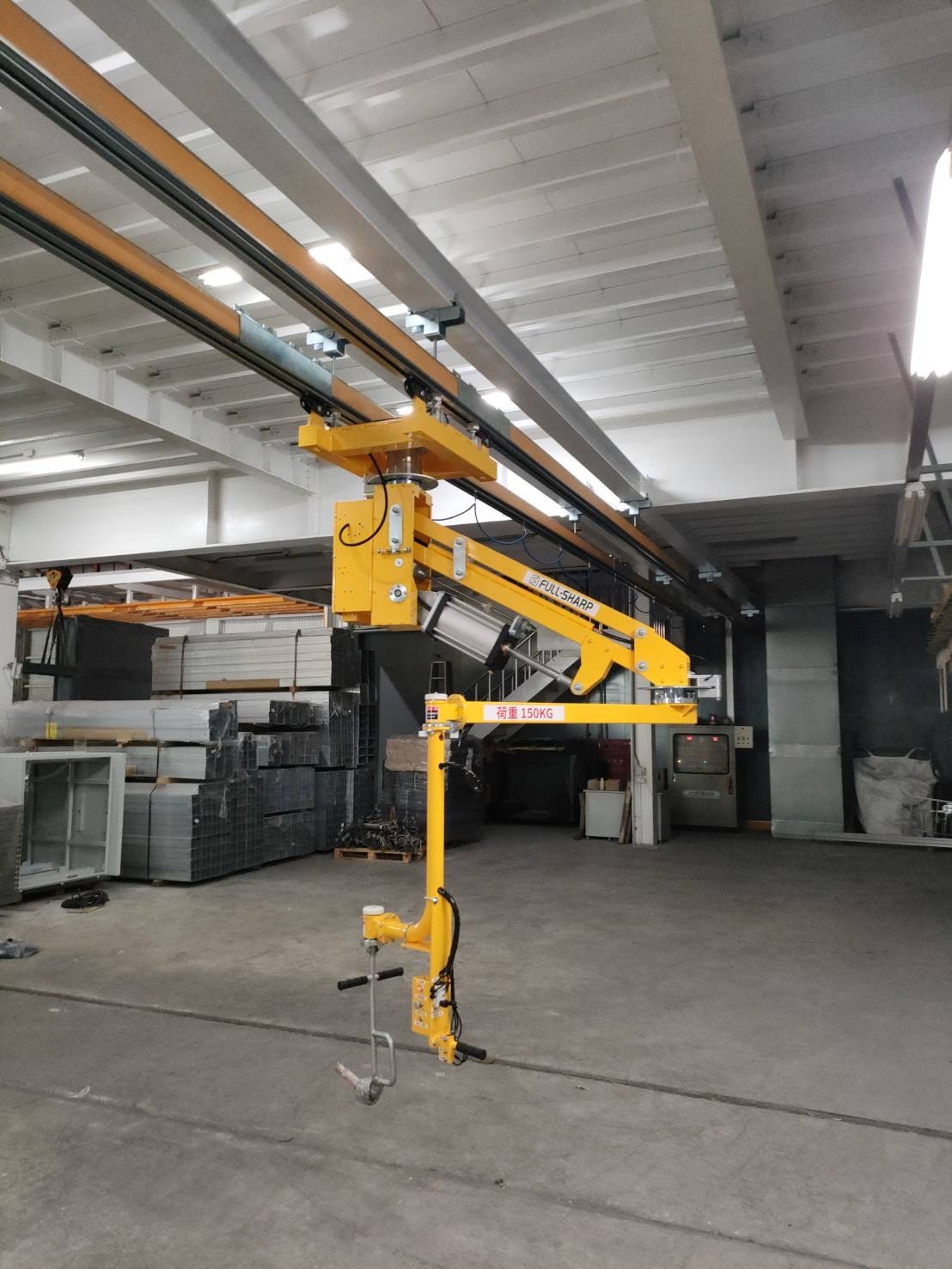

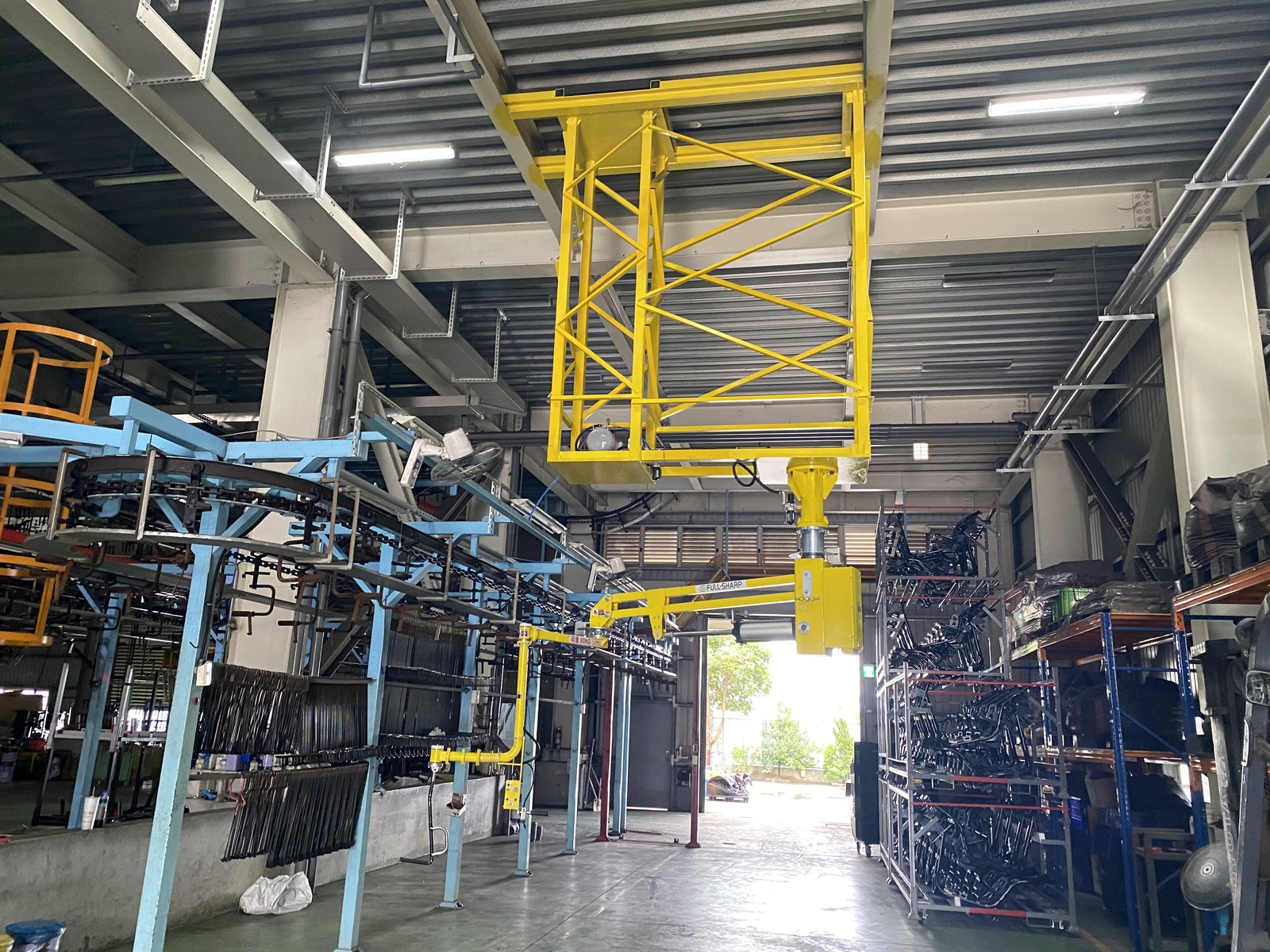

Ceiling-mounted manipulator holding a motorcycle frame at the assembly station.

Equipment installed

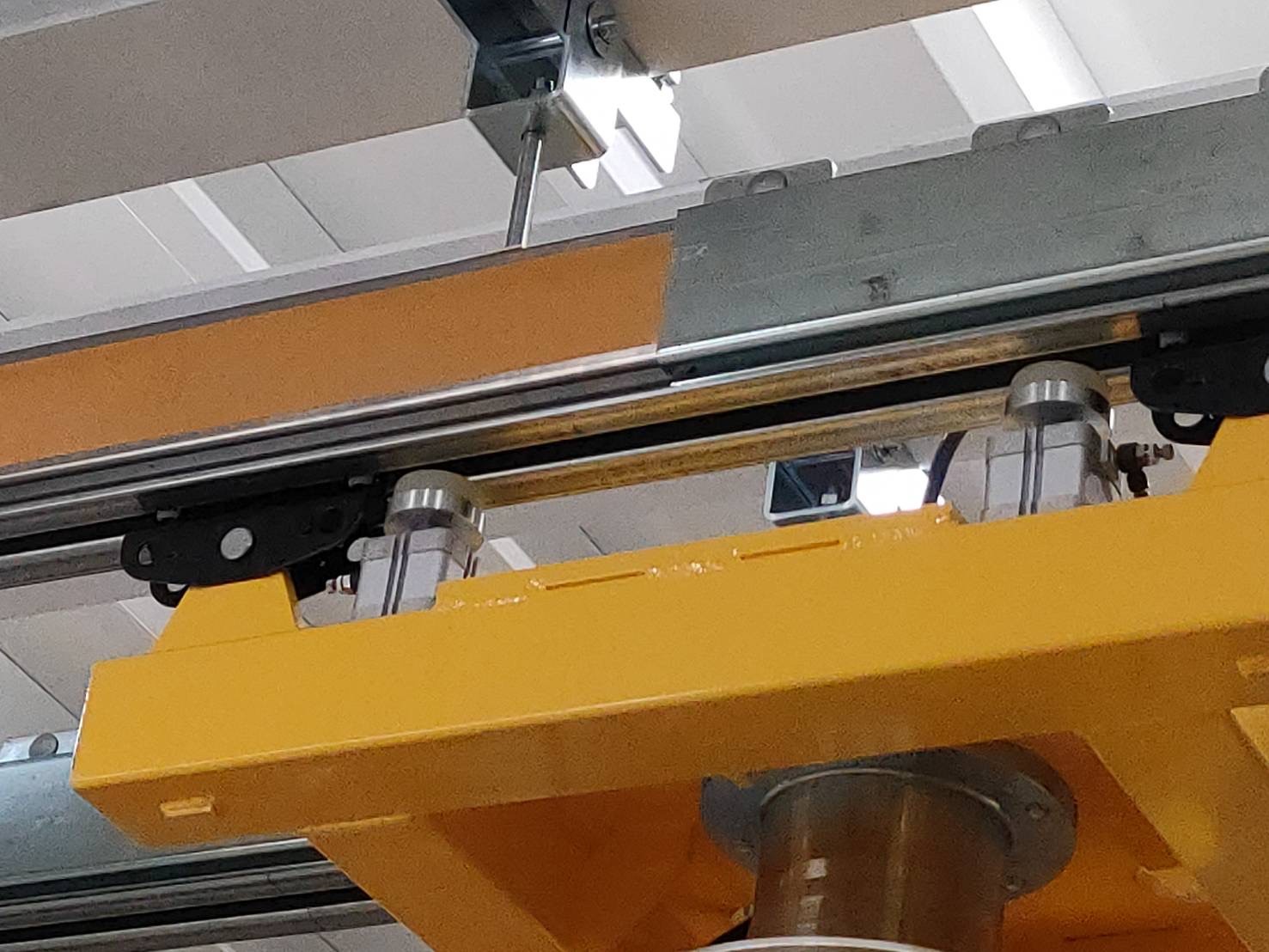

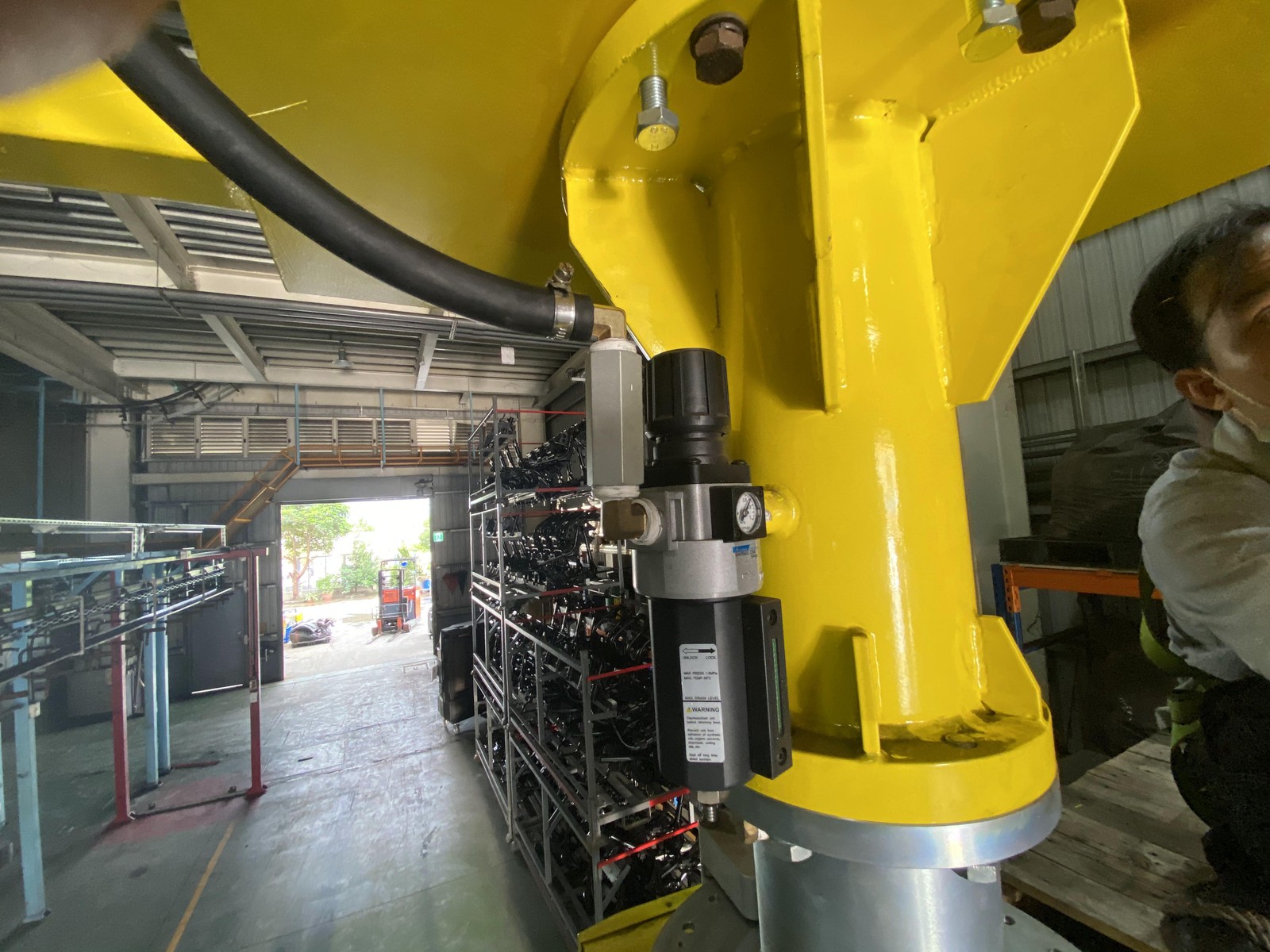

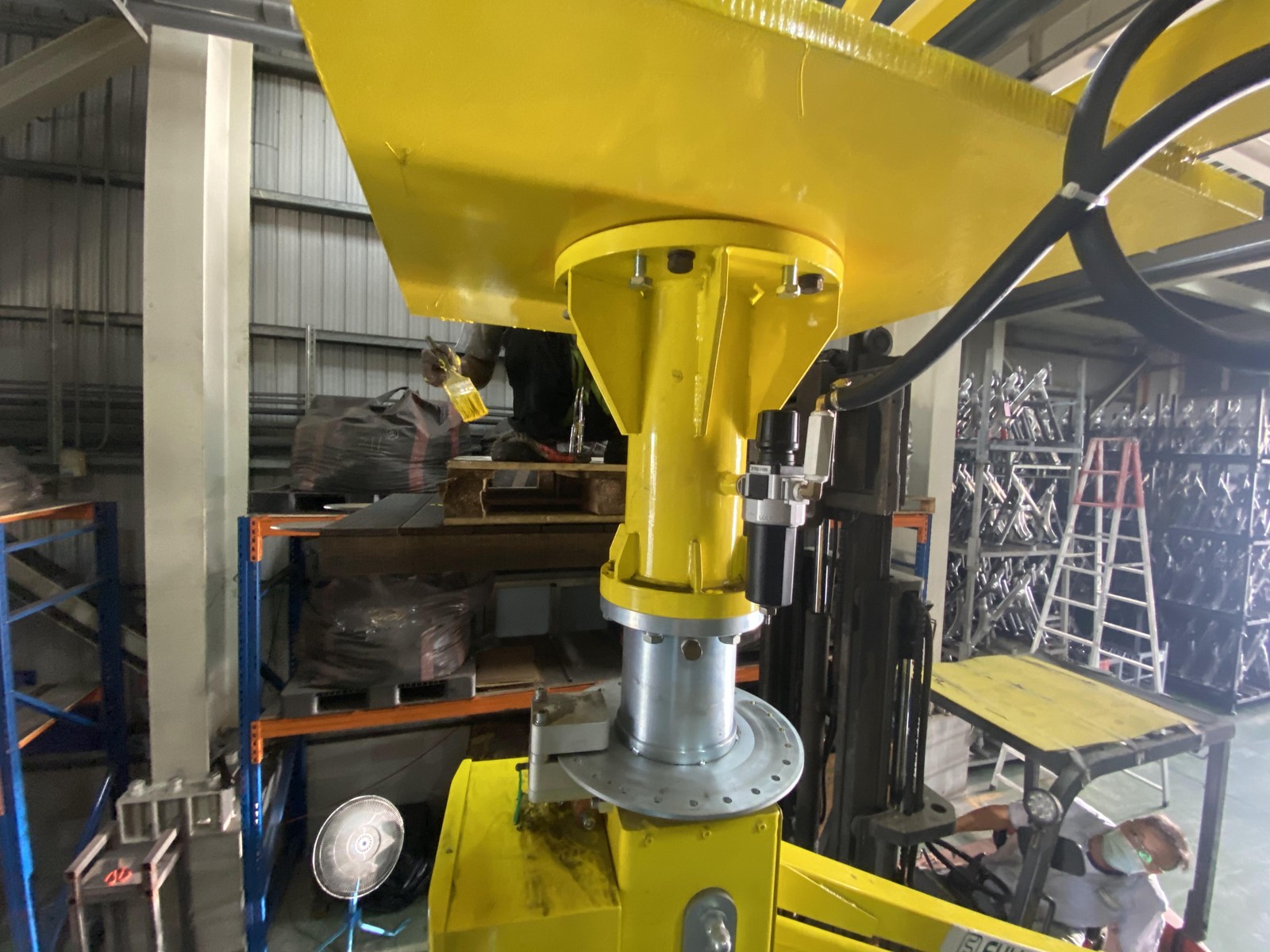

Ceiling suspension system: connects to the plant structure, bearing the load and keeping the manipulator positioned exactly at the station.

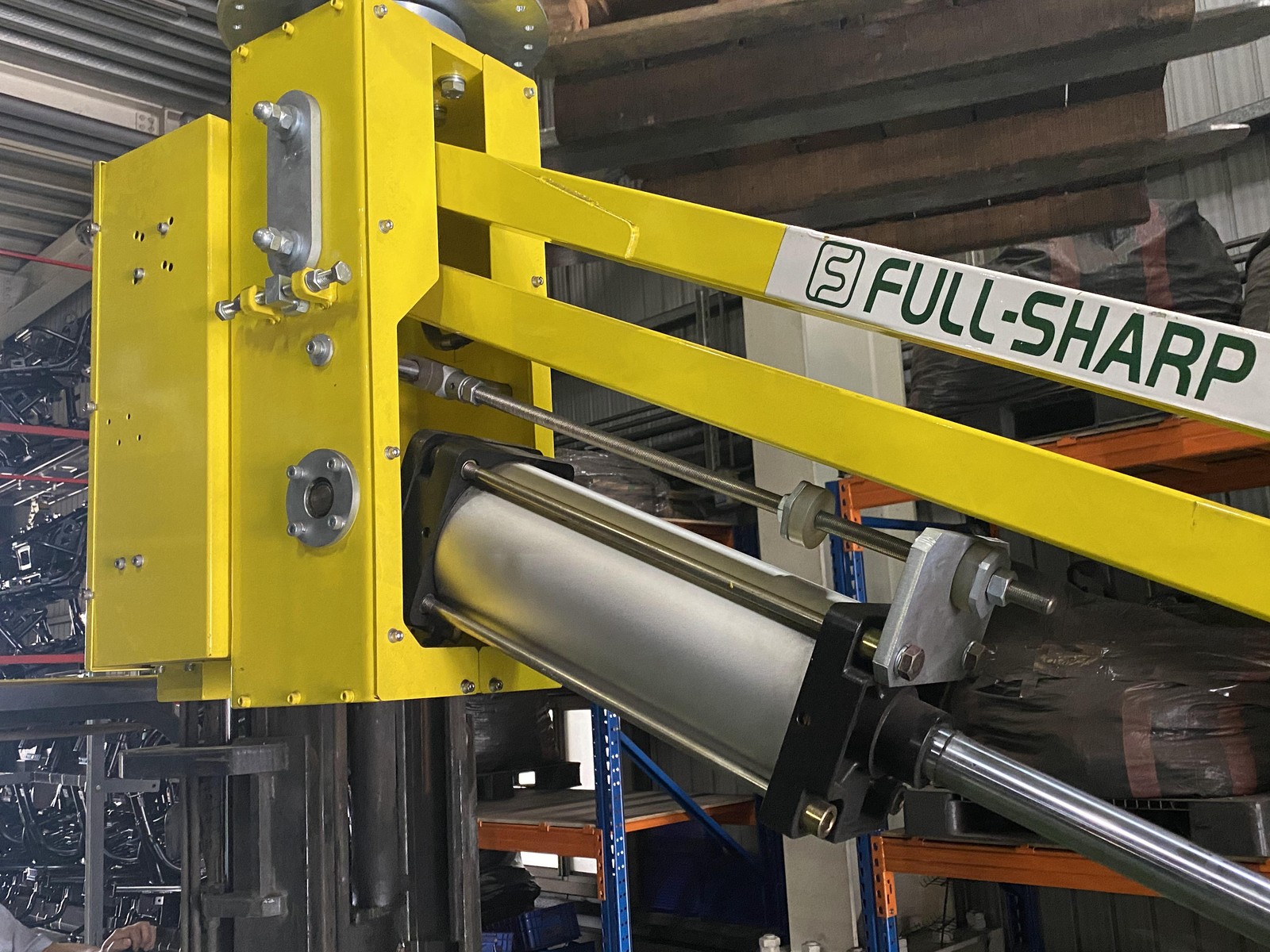

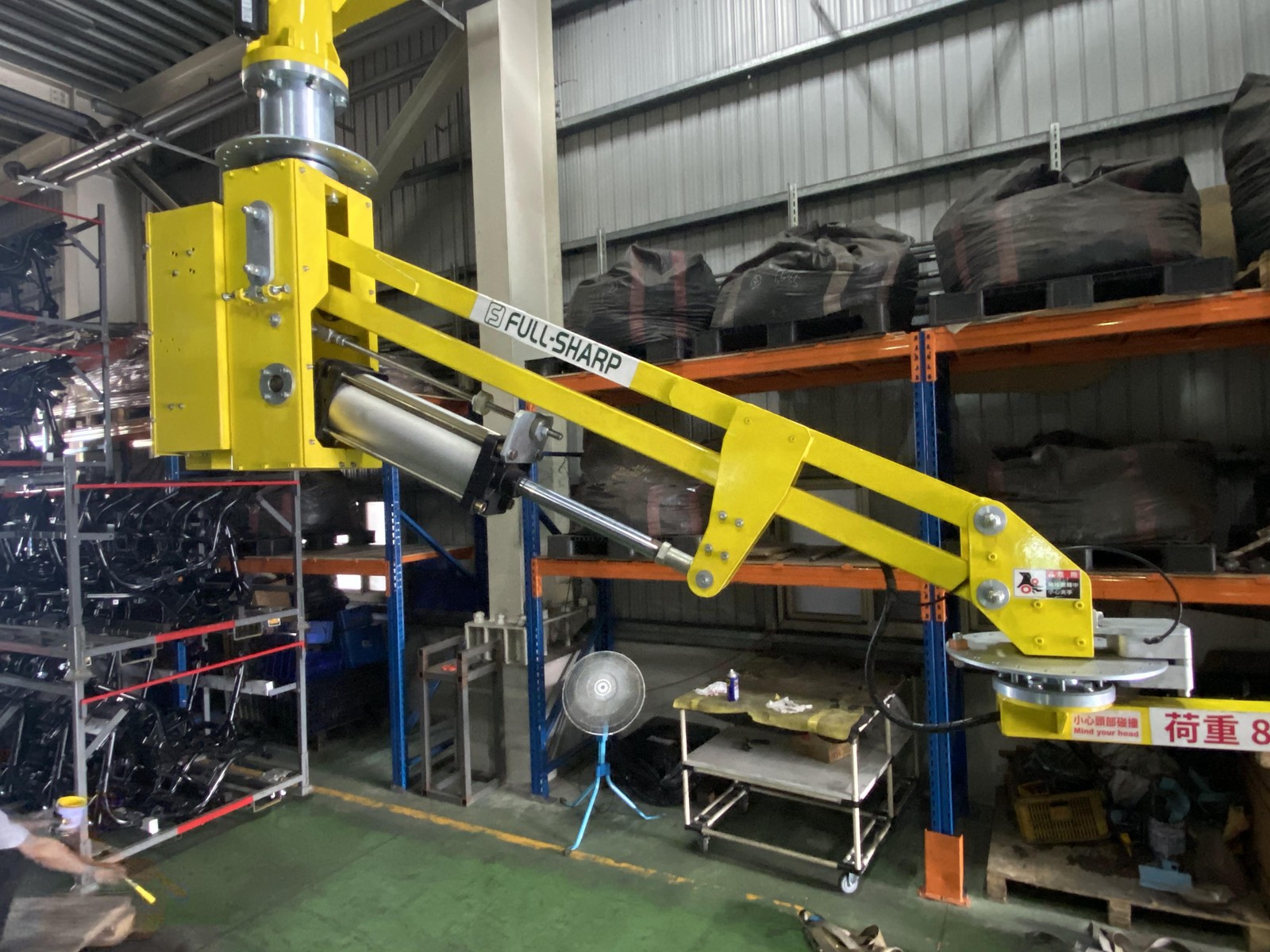

Lift-assist mechanism: balances the frame's weight, so the operator needs only light force to move it.

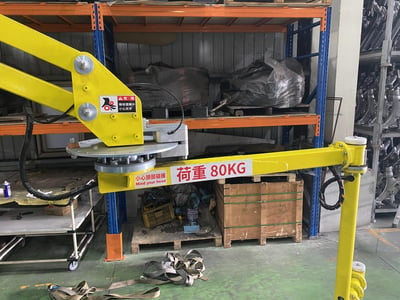

Motorcycle frame end effector: shaped to match the frame, holding it firmly without pressing against painted parts.
Control handle: lifting, lowering, and rotating right on the handle, stopping at the exact fixture height.

Benefits for the plant

Eases strain on the line

Operators no longer strain to lift the frame, preserving their energy through the whole shift.

Accurate placement

The frame hangs steadily, so it seats into the fixture correctly with little readjustment.

No floor space used

The manipulator hangs overhead, keeping the work area below clear.

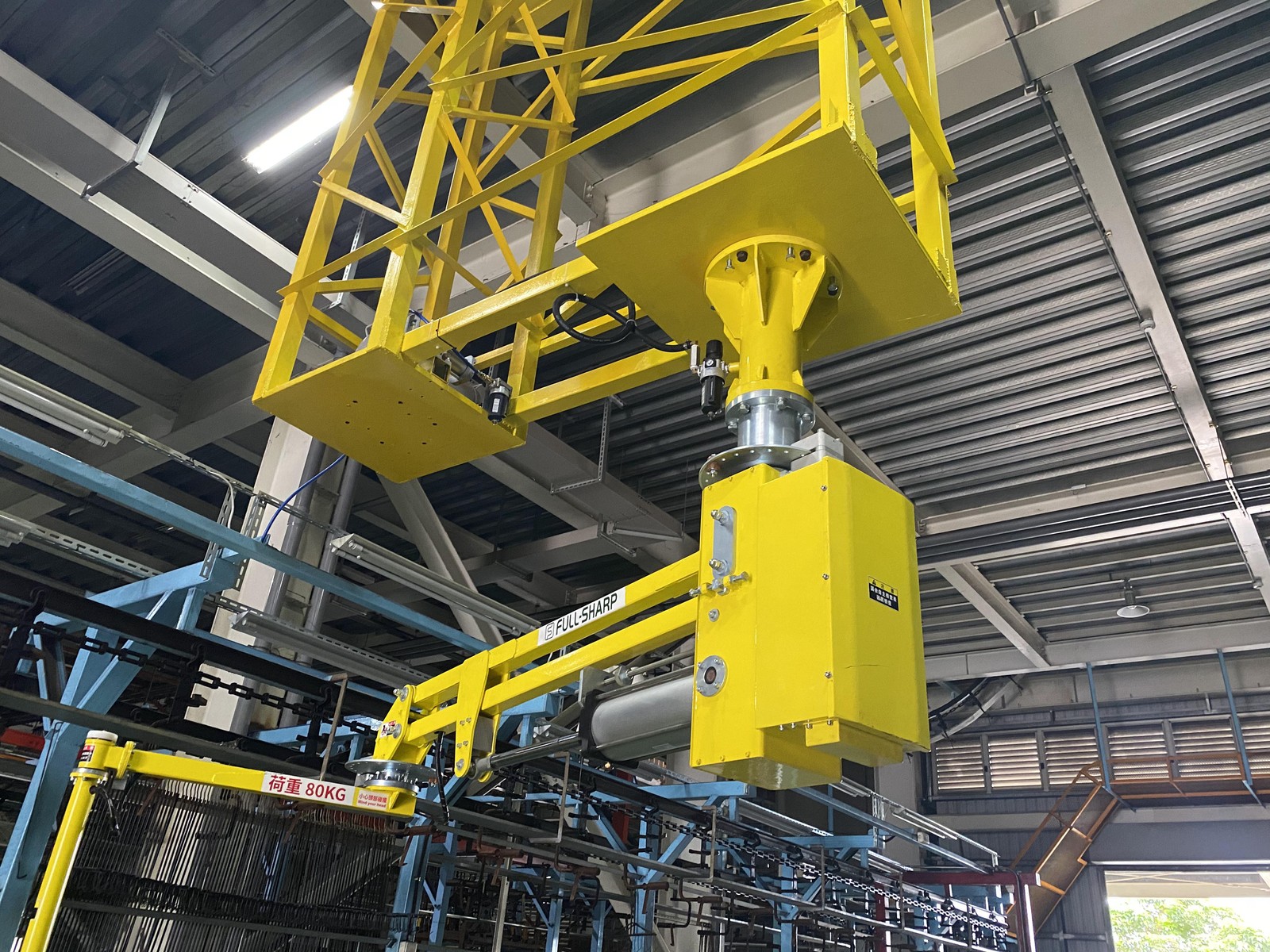

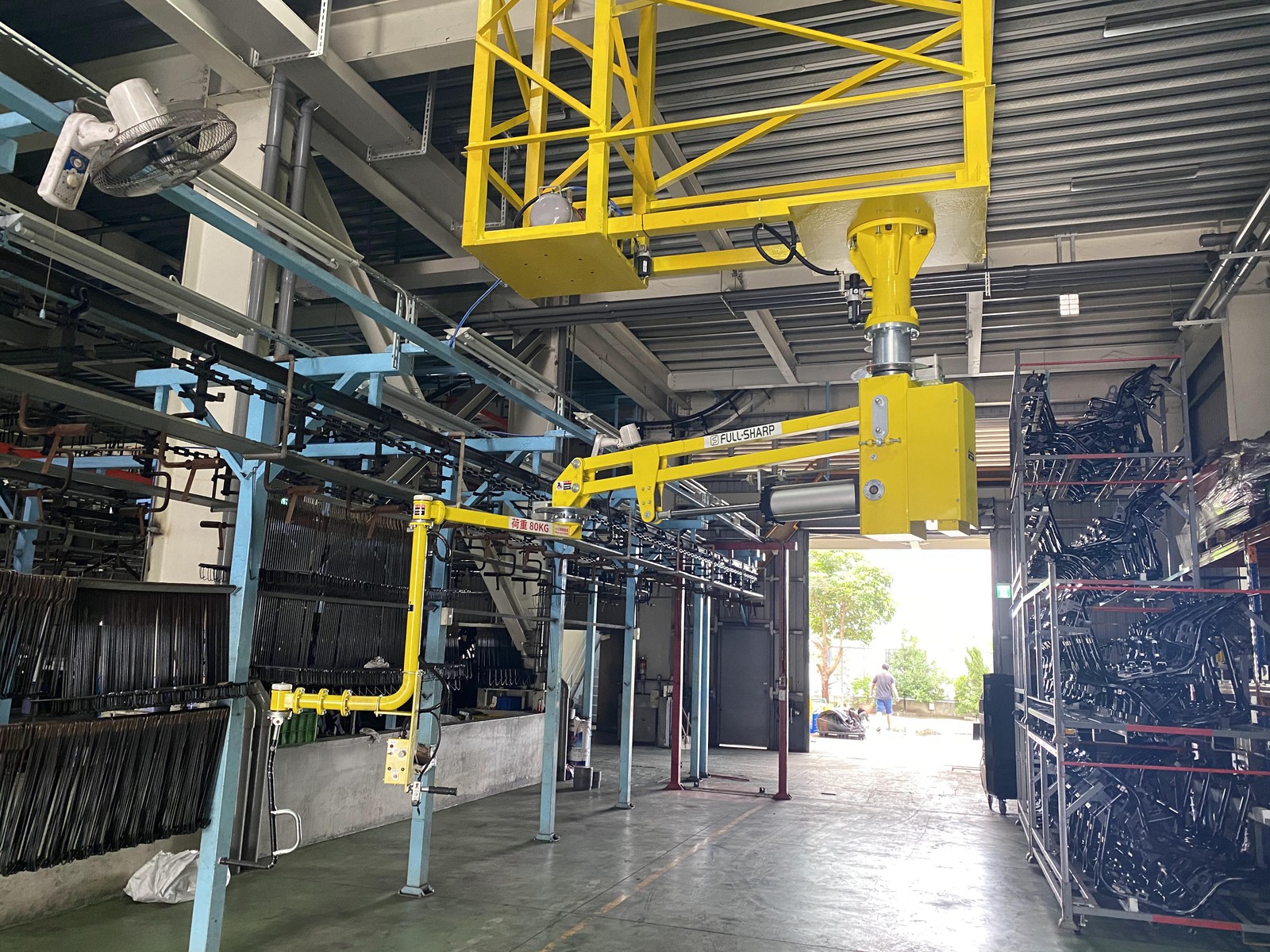

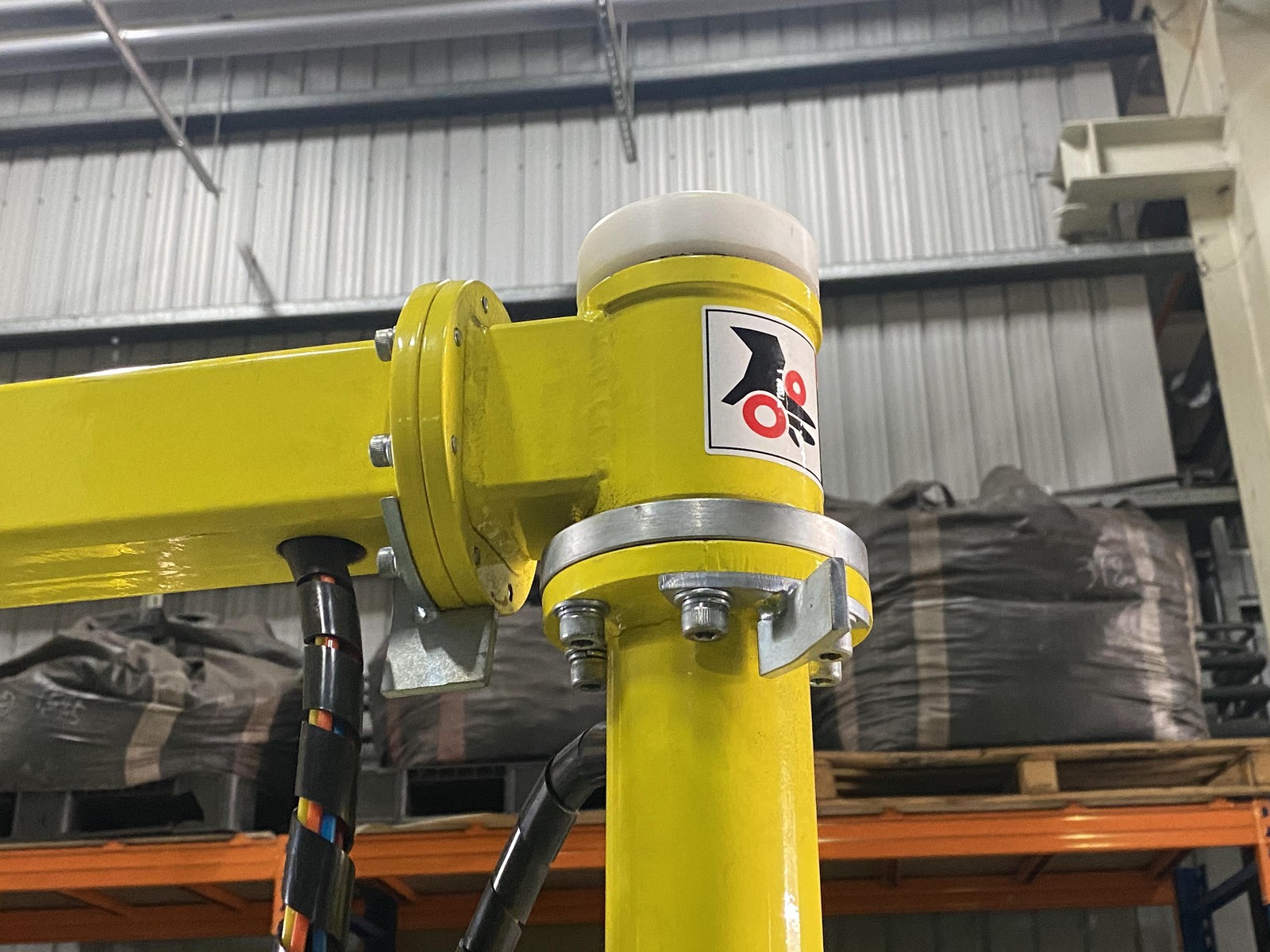

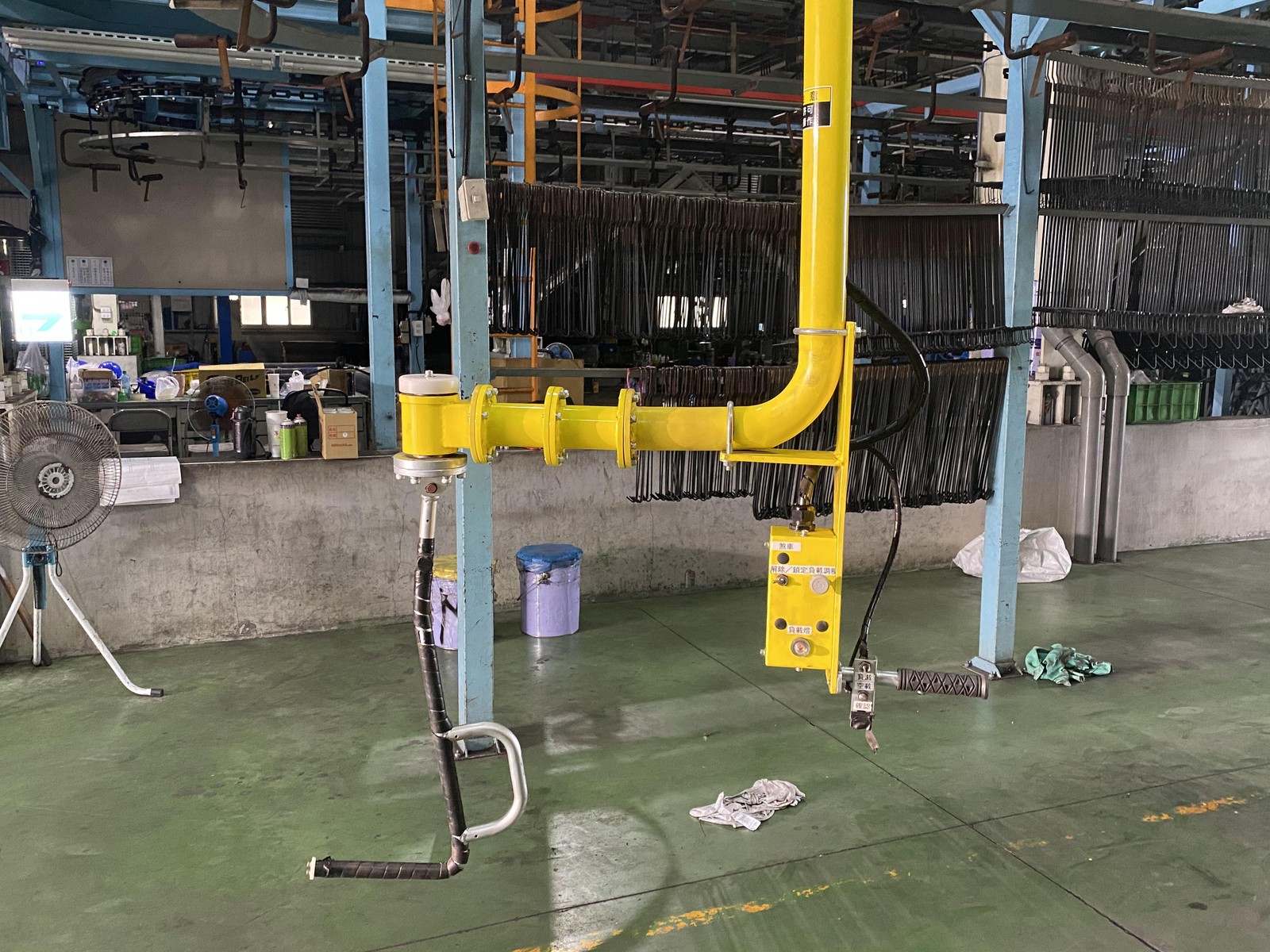

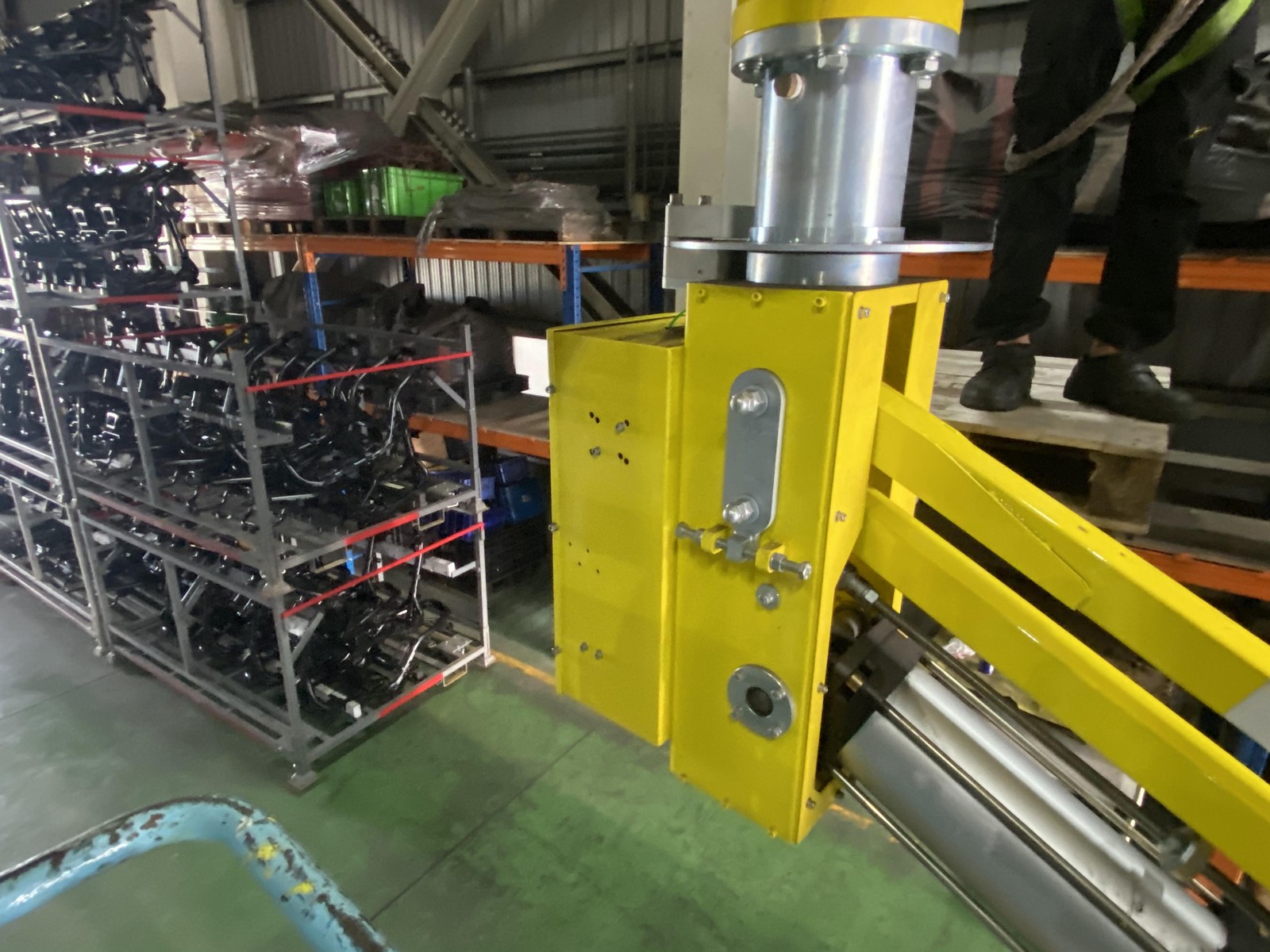

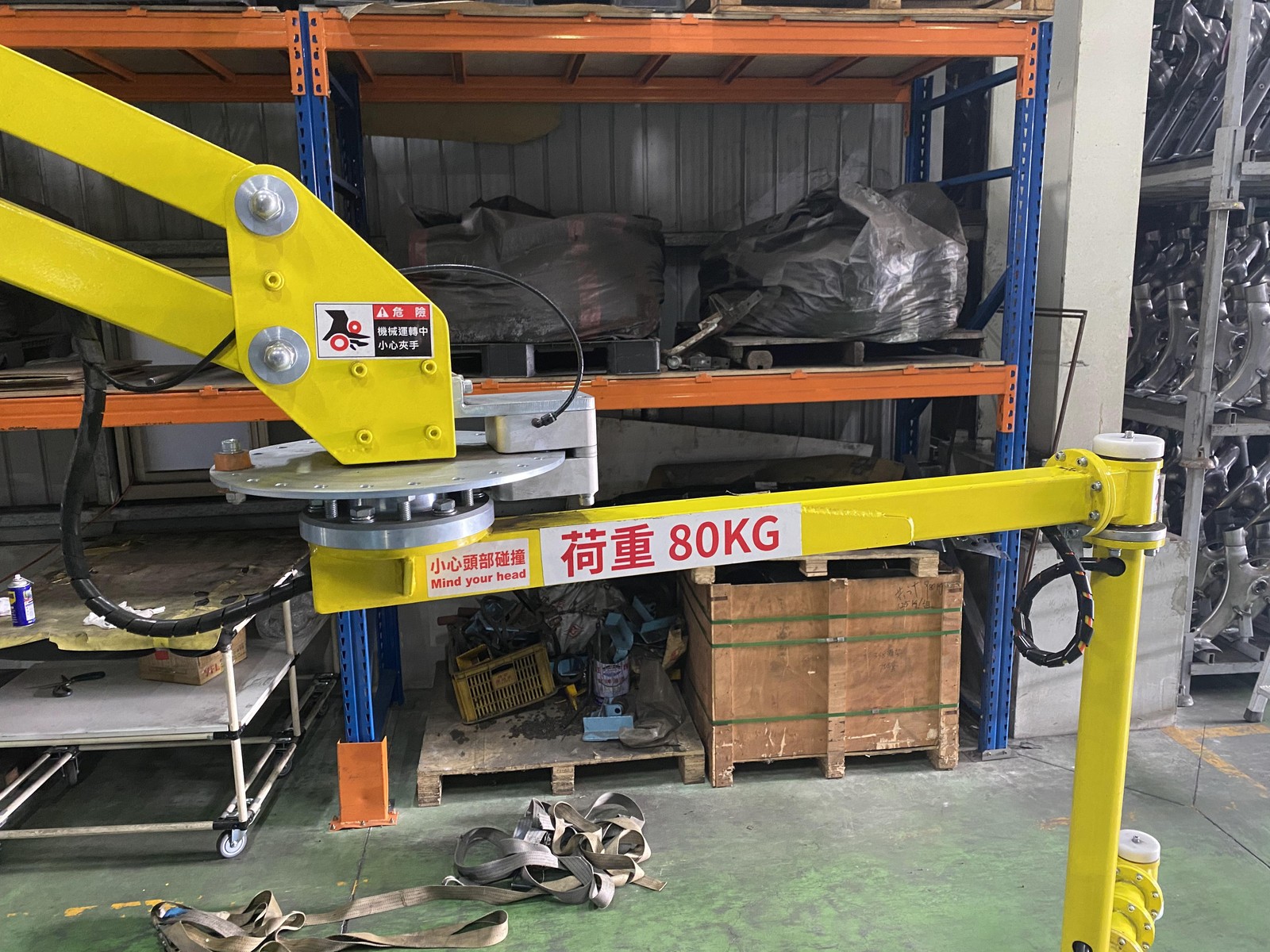

Installation photos

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 1

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 2

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 3

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 4

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 5

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 6

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 7

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 8

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 9

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 10

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 11

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 12

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 13

Ceiling-Mounted Manipulator for Lifting Motorcycle Frames - ảnh 14

Click a photo to enlarge. 14-photo album taken on site.

Suitable applications

Motorcycle and e-bike assembly lines
Frame repair and maintenance workshops
Two-wheeler parts factories
Frame inspection and packing stations

Get an installation plan for your plant

FullSharp weighs the frame, measures ceiling height and the station location to design the suspension system and lifting stroke. The end effector is shaped to match the exact frame of each model. Contact FullSharp to schedule a line survey.
