Pneumatic Manipulator for Treadmill Frames

A treadmill frame is both heavy and long, needing two or three workers to lift it onto the assembly bench each time. After fastening the screws, the frame has to be flipped again - a step that easily scratches the paint and strains workers' backs.

FullSharp installs a pneumatic manipulator with a fixture that cradles the frame. Compressed air balances the weight so the frame feels almost weightless, letting one person hold and rotate it to the required angle before setting it down gently.

Pneumatic Manipulator for Lifting Treadmill Frames

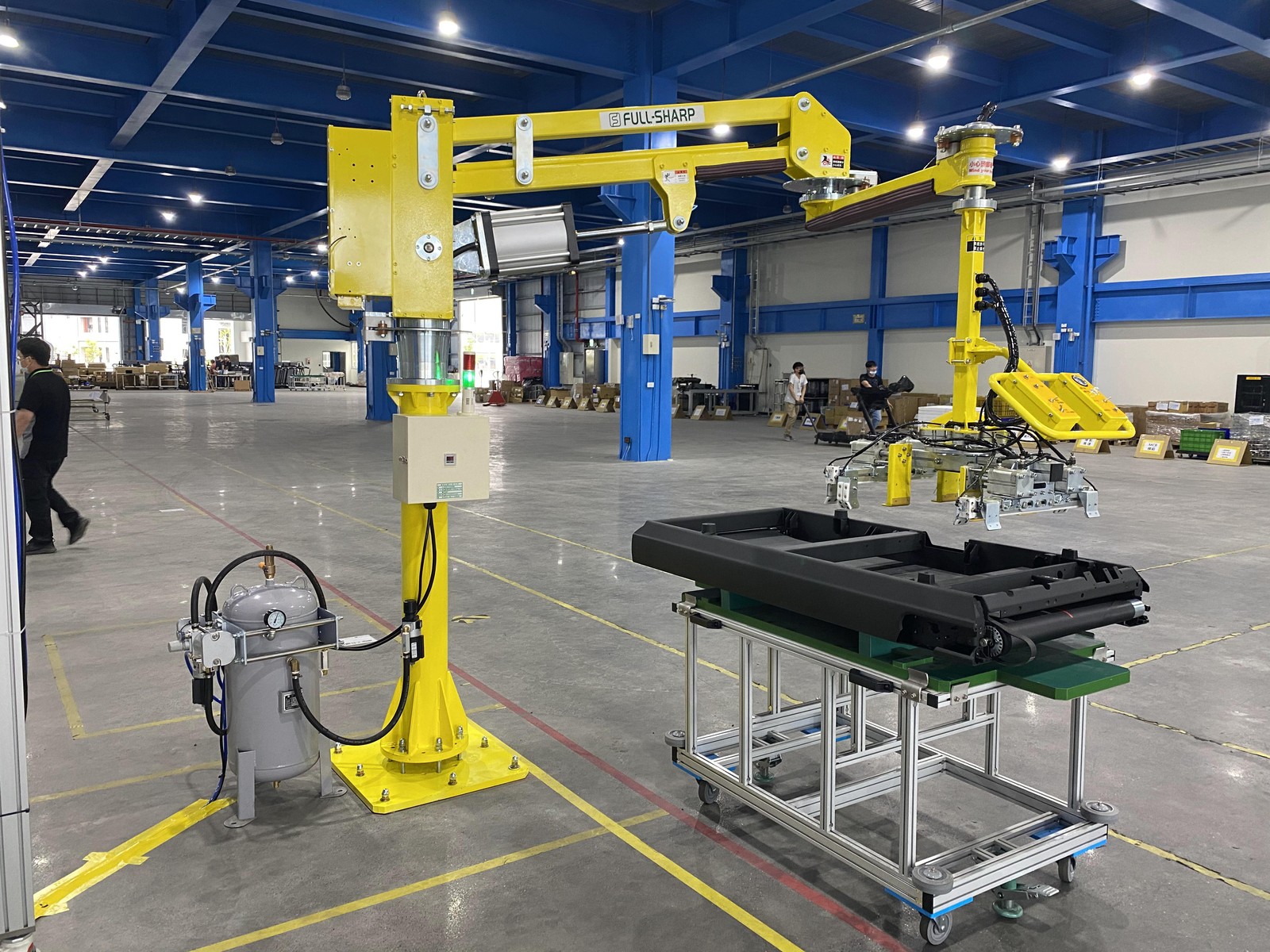

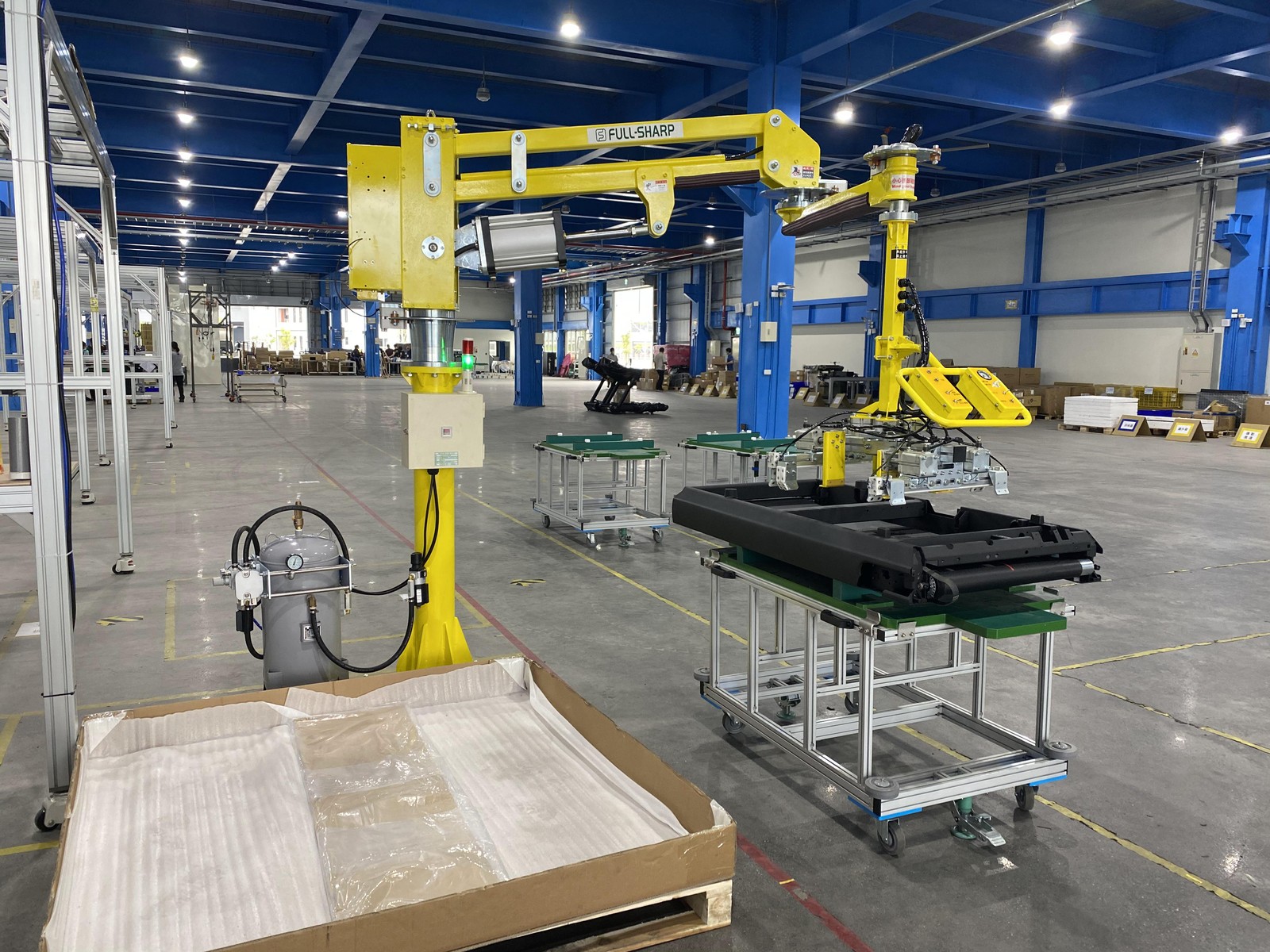

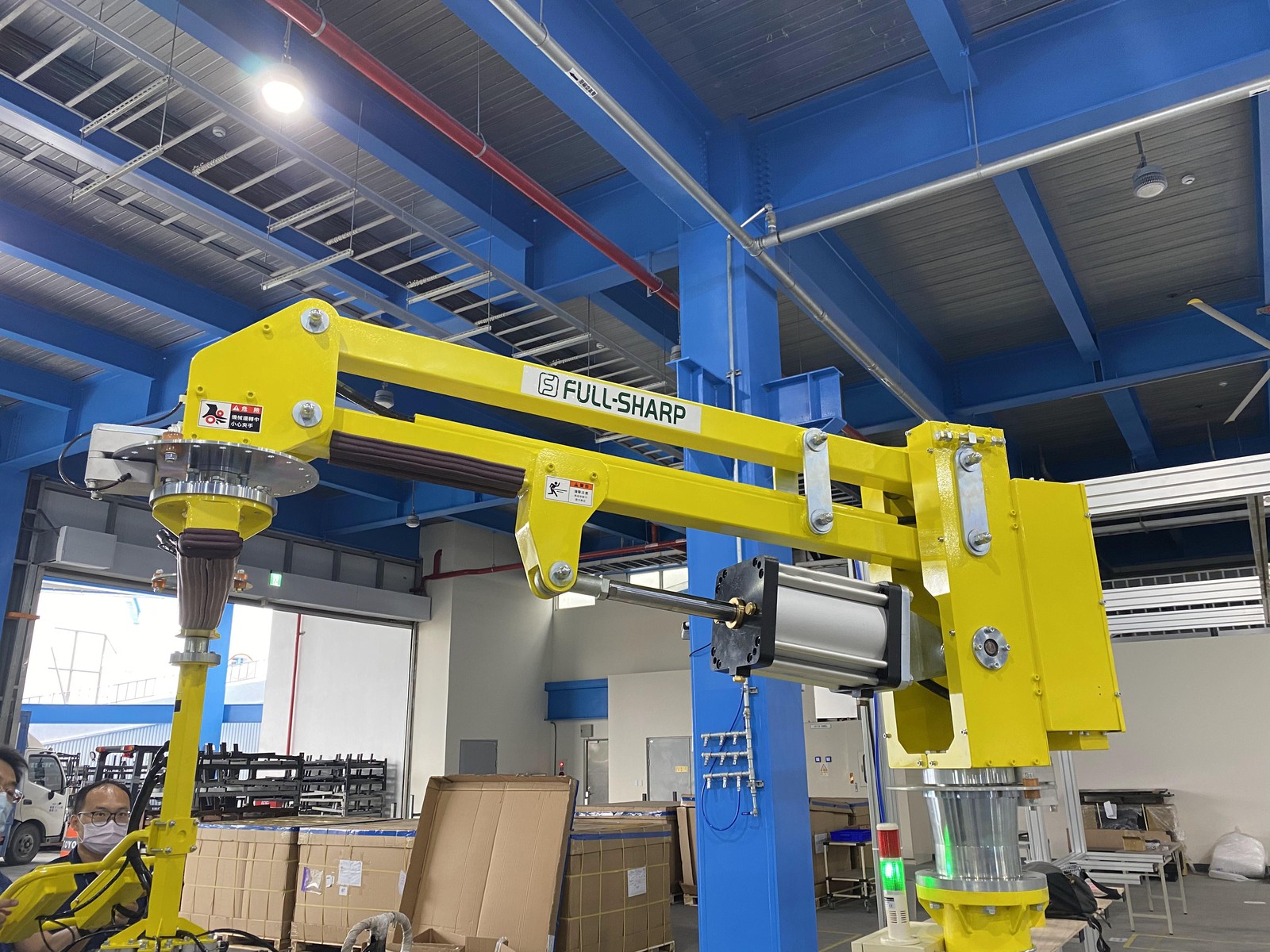

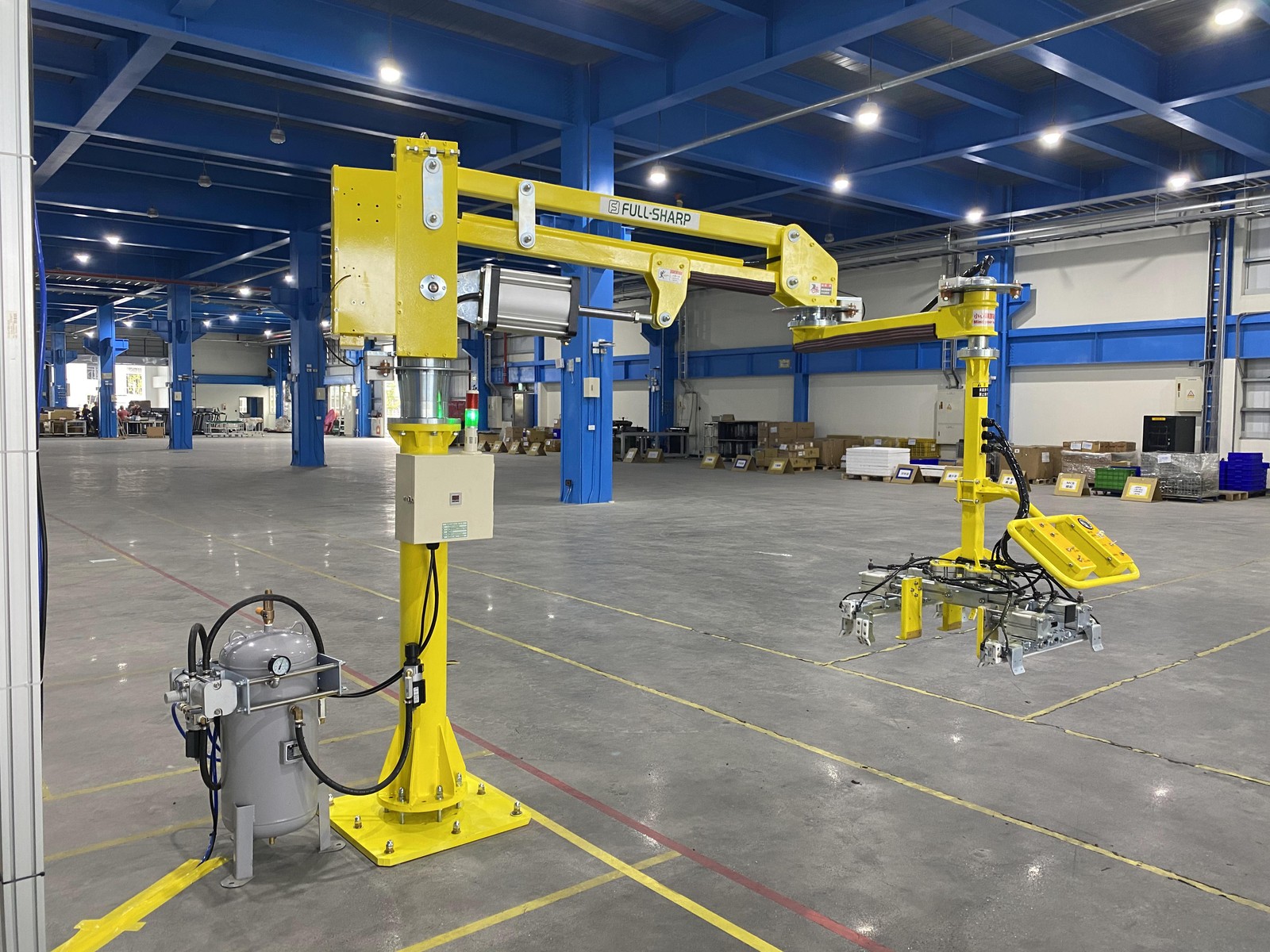

Pneumatic manipulator holding a treadmill frame at the assembly station in the factory.

Equipment Installed

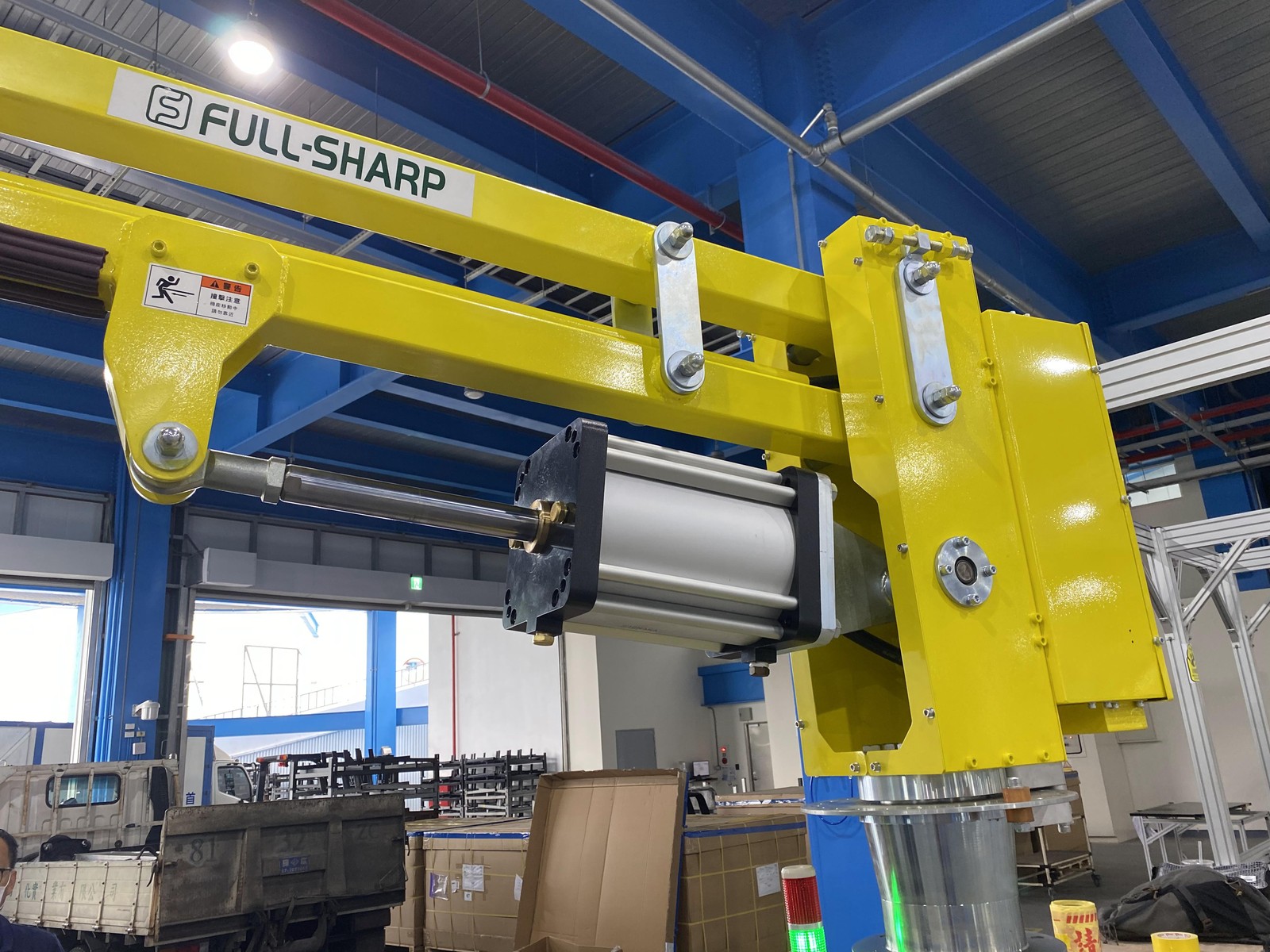

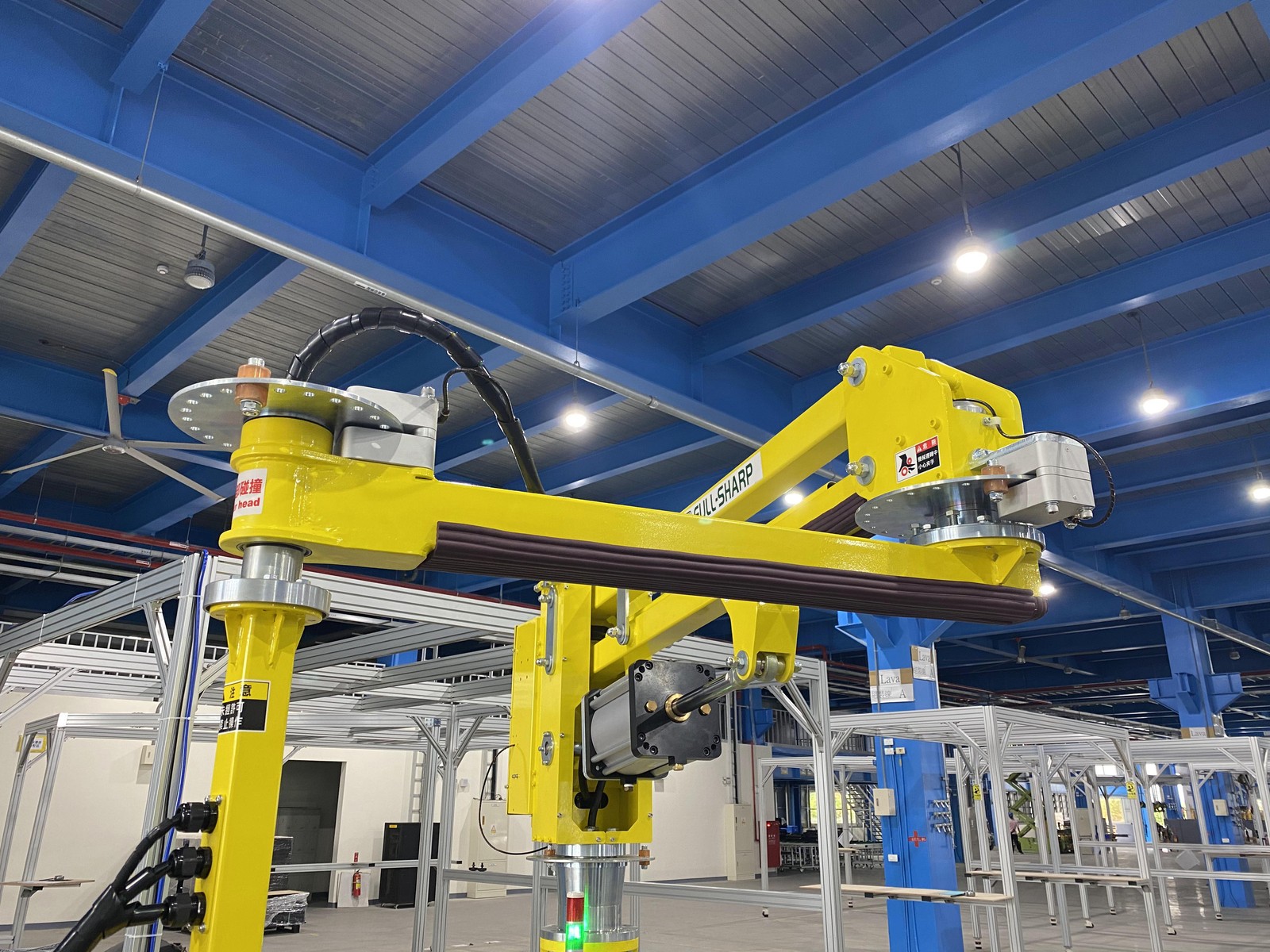

Pneumatic manipulator arm: balances the frame's weight, so the operator only needs a light touch to guide it.
Frame fixture: shaped to match the treadmill frame, gripping firmly without pressing on the painted surface.

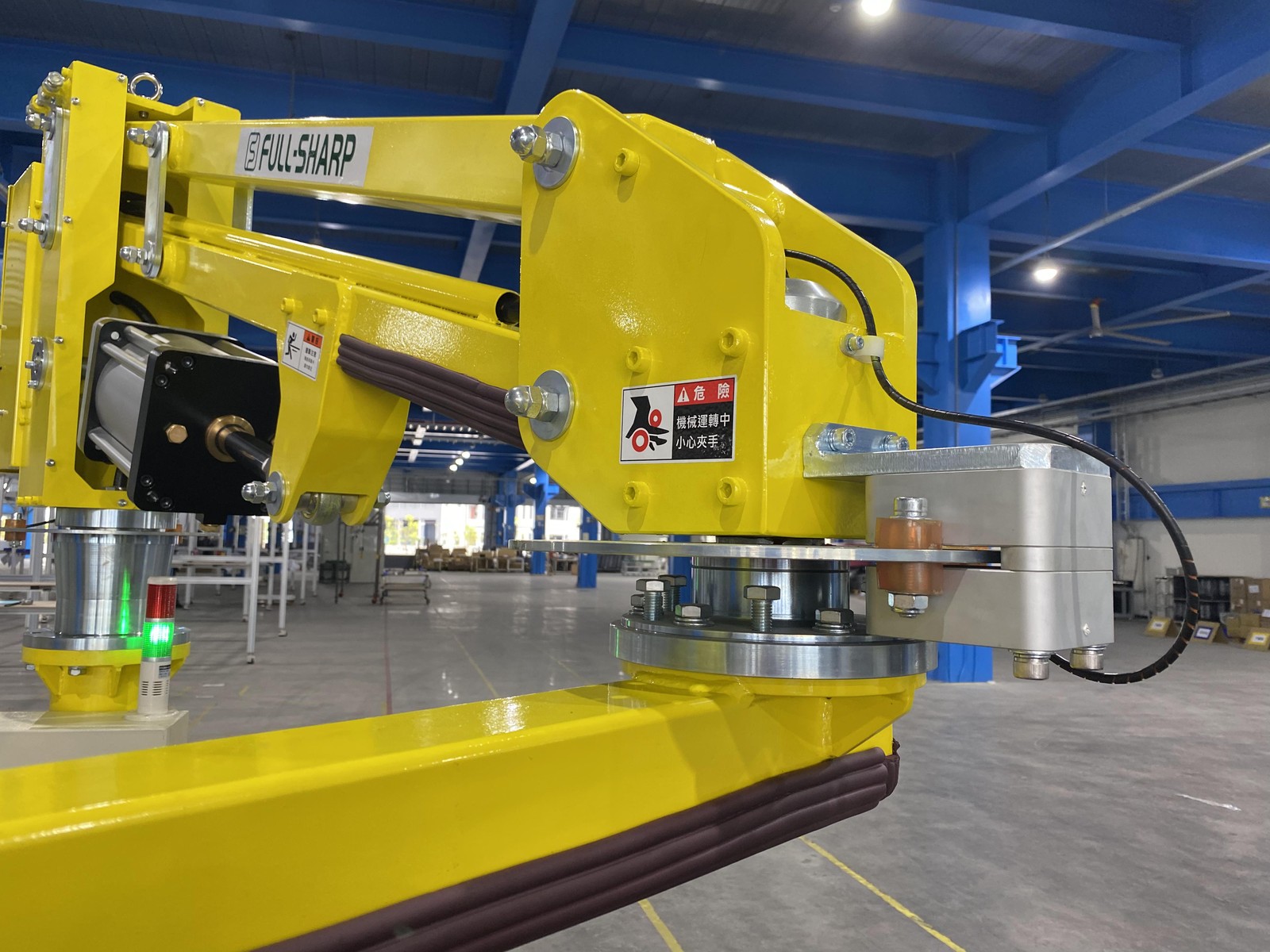

Rotating end joint: flips and rotates the frame to the angle needed for fastening without setting it down.
Valve control cluster: lift/lower buttons on the handle, releasing them holds the frame steady.

Benefits for Your Facility

One person is enough

The frame floats on the assist arm, so there's no need to call in extra hands for every assembly.

Keeps the paint intact

The fixture grips at safe points, so the frame doesn't drag or knock against the bench.

Keeps pace with the line

Fast rotation and placement keeps the assembly station's output steady.

Actual Installation Photos

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 1

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 2

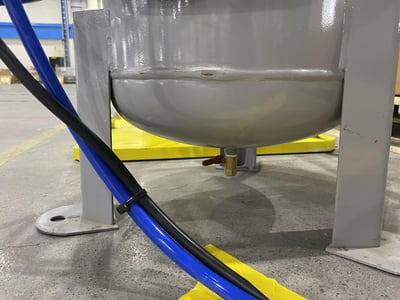

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 3

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 4

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 5

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 6

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 7

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 8

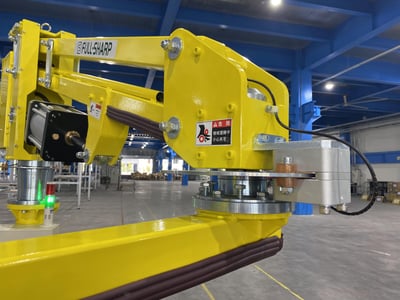

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 9

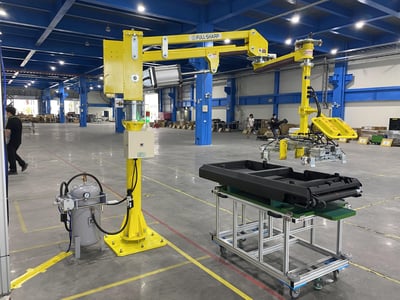

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 10

Pneumatic Manipulator for Lifting Treadmill Frames - ảnh 11

Click a photo to enlarge. Album of 11 photos taken on site.

Suitable Applications

Sports equipment factories
Metal frame assembly lines
Inspection and packaging areas
Frame and bracket fabrication shops

Installation Consulting for Your Facility

FullSharp weighs the frame and measures its overall dimensions and required tilt angle to design the fixture and balance range. Our engineers also check the column position, reach and air supply at the assembly station. Contact FullSharp to schedule a line survey.
