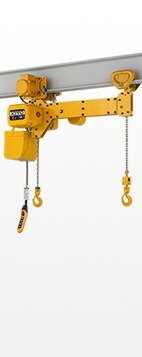

KITO TWER2M Twin Hook Electric Chain Hoist

KITO TWER2M Twin Hook Electric Chain Hoist – Optimal for lifting applications requiring two lifting points for a wide load or retaining a level lifting.

The KITO Twin Hook electric chain hoist, which is equipped with a single motor and two hooks, is intended for lifting hooks horizontally, equally and safely. Ideal for lifting applications requiring two lifting points for a wide load or retaining a level lifting.

Specifications & Dimensions

Twin Hook Electric Chain Hoist

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Std. Lift (m)	Lifting Motor	Lifting Speed (m/min)		Trav. Motor	Traversing Speed (m/min)
Code	Capacity (t)	Std. Lift (m)	Output (kW)	50 Hz	60 Hz	Output (kW)	50 Hz	60 Hz
TWER2M003S	125kg+125kg	３	0.56	9.2	11.0	0.4	20 (10)	24 (12)
TWER2M005S	250kg+250kg		0.9	7.3	8.8
TWER2M010S	500kg+500kg		1.8	7.1	8.5
TWER2M020S	1+1		3.5	7.0	8.4
TWER2M 030S	1.4+1.4		3.5	4.4	5.3

The bracketed figures in Traversing Speed are low speed.
This product is designed for straight beams.
Specify a beam width at the time of quotation or order.
The following information will be provided upon your request:

Precise weight depending on length of the hook span
Availability of curve beams
Availability of a lift exceeding the maximum (8 m)

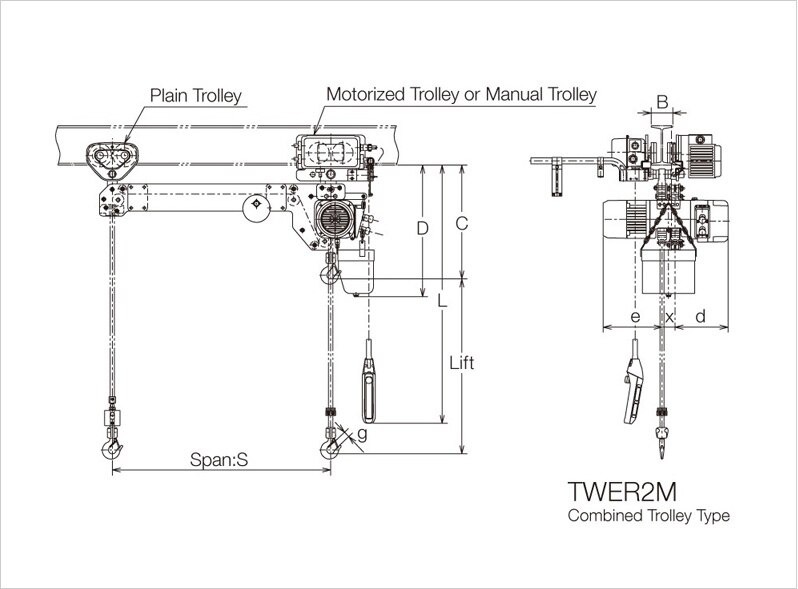

Dimensions (mm)

*Major capacities example. For more information, please refer to Product Catalog.

形式	Headroom: C		D	ｄ	e	g
形式	With Trolley	Hook	D	ｄ	e	g
TWER2M003S	535	525	620	242	271	27
TWER2M005S	535	525	620	242	268	27
TWER2M010S	615	620	710	291	307	31
TWER2M020S	800	830	790	347	356	39
TWER2M030S	970	995	920	347	356	44

Maximum hook span (S) is 4 m. Longer span is also available so contact FullSharp.

Contact FullSharp for a quotation Download KITO catalogue (PDF)
