KITO TF Series Manual Trolley

KITO TF Series Manual Trolley – Economical and universal trolley, industrial quality, built for long life.

Capacity	TFP (Plain Trolley) : 0.5t to 5t TFG (Geared Trolley) : 1t to 5t
Operating Temperature	TFP/TFG：-20℃～+60℃

Specifications & Dimensions

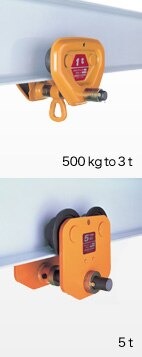

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Beam Width Adjustability (mm)			Min. Radius for Curve (mm)	Mass (Net Weight) (kg)
		Standard	Option
		Standard	W20*	W30*
TFP005	0.5	50-102	102-203	203-305	350	4.0
TFP010	1	58-127	127-203	203-305	450	7.0
TFP015	1.5	82-153	-	153-305	550	13
TFP020	2				550	13
TFP030	3				650	21
TFP050	5	125-178		178-305	2000	43

W20 and W30 mean 203 and 305 mm beam width adjustability as option.
In case of only straight I-beam, 500 kg plain trolley can be used on 58 mm and less width beam, and 1 ton plain trolley can be used on 74 mm and less width beam.

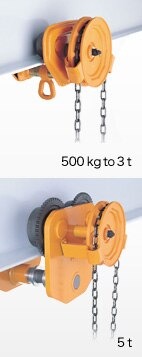

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Capacity (t)	Hand Chain Folded Length (m)	Beam Width Adjustability (mm)			Min. Radius for Curve (mm)	Mass (Net Weight) (kg)
			Standard	Option
			Standard	W20*	W30*
TFG010	1	2.5	58-127	127-203	203-305	450	11
TFG015	1.5	2.5	82-153	-	153-305	550	17
TFG020	2	3				550	17
TFG030	3	3				650	25
TFG050	5	3.5	125-178		178-305	2000	47

W20 and W30 mean 203 and 305 mm beam width adjustability as option.
In case of only straight I-beam, 1 ton geared trolley can be used on 74 mm and less width beam.
