KITO Textile Sling

KITO Textile Sling – Strong textile slings that avoid damaging loads, Allowing use in a wide variety of working environments.

Utilizing the optimum polyester yarn
Gently fits to the shape of loads
Lightweight type slings that are easy to work with
Outstanding durability
Allows selection of the ideal sling type to match your application

Product Specification

Wide Range of Lineup to Support All Kinds of Loads

Combining a Toughness Which Securely Supports Loads with a Flexibility That Avoids Damaging Them

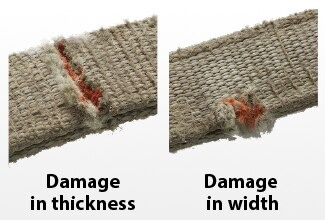

With Limit Sign for Easy Identification of Discard Limit

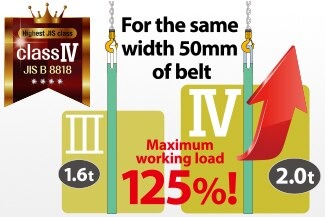

Upgraded from JIS Class III to Class IV!

Specifications & Dimensions

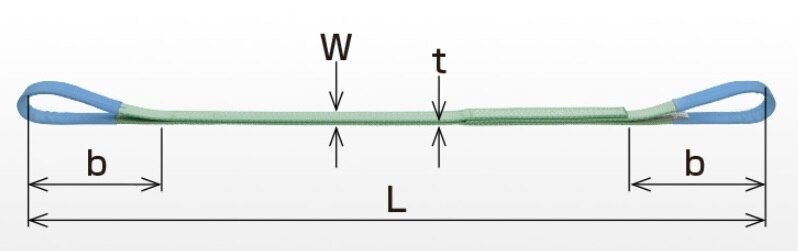

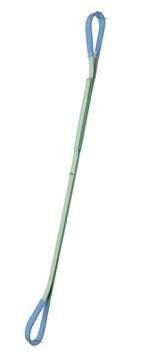

BSH Series Belt Sling

There are 10 types of JIS highest class IV slings width from 20 to 300 mm.
(Maximum Working Load: 0.8 to 12.5 t)
These are extremely high stability belt slings with suitable widths.
Because the eye parts at both ends of the sling are tightly bound (depending on the belt size), slinging work is easy.
Moreover, since the eye parts are covered with protective fabric, the slings have outstanding durability.
When the red limit warning sign becomes visible, the sling has reached its usage limit.
The eye parts at both ends of the belt sling BSH series are blue.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Sling Width: W (mm)	Maximum Working Load (t)	Color	Eye Length: b (mm)	Belt Thickness: t (mm)
BSH008	20	0.8	Light Green	200	9
BSH010	25	1.0		200
BSH016	40	1.6		250
BSH020	50	2.0		250
BSH024	60	2.4		300
BSH032	75	3.2		300
BSH040	100	4.0		350
BSH063	150	6.3		450
BSH080	200	8.0		550
BSH125	300	12.5		750

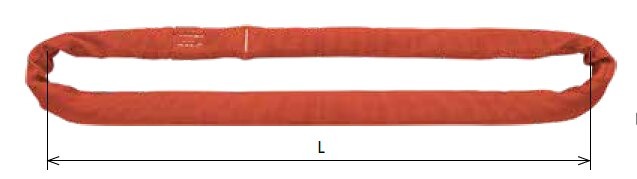

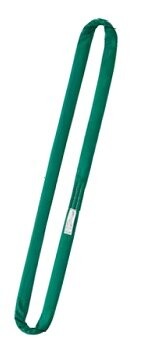

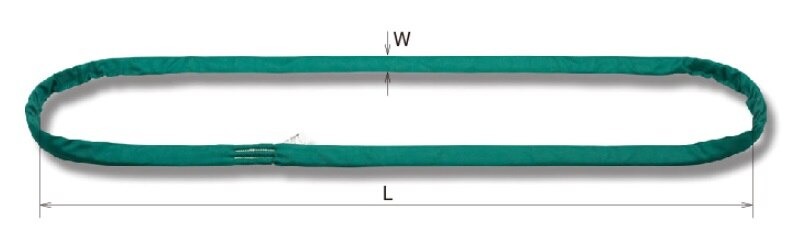

RE Series Round Slings

These are endless slings in which strands of strong polyester yarn are bound into a rope form and enclosed in a protective sheet.
Due to the use of a flexible rope form, the slings are also capable of snugly fitting to a wide variety of load shapes with little slippage to offer outstanding load stability.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Sling Width: W (mm)	Maximum Working Load (t)	Color	Sling Length: L (m)
RE010	30	1.0	Purple	Between 0.5m and 10m in 0.5m intervals
RE020	38	2.0	Green
RE032	47	3.2	Yellow
RE050	52	5.0	Red	Between 1m and 10m in 0.5m intervals
RE080	70	8.0	Blue	Between 2m and 10m in 0.5m intervals
RE100	80	10.0	Orange	Between 2m and 10m in 0.5m intervals

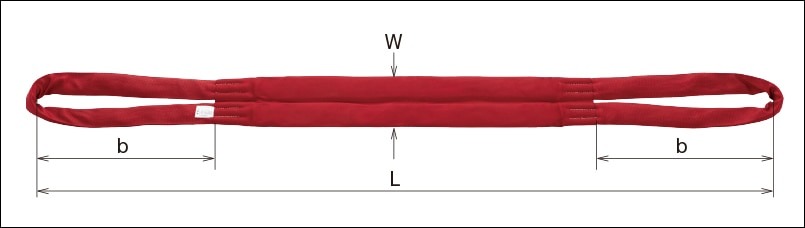

EE Series Eight-Shaped Sling

These slings offer outstanding strength and durability using strong polyester as the core yarn.
Because the body part which bears the weight of the load has a unique double layer structure that is highly flexible, the slings also snugly fit to a wide variety of load shapes.
The strength is maintained by the core yarn. If the outer sheath has been damaged and the core yarn becomes visible, the sling has reached its usage limit.

Specifications

*Major capacities example. For more information, please refer to Product Catalog.

Code	Sling Width: W (mm)	Maximum Working Load (t)	Color	Eye Length: b (mm)	Sling Length: L (m)
EE005	65	0.5	Gray	200	Between 1.5m and 4m in 0.5m intervals, between 4m and 6m in 1m interval
EE010	75	1	Purple	250
EE020	100	2	Green	300	Between 1.5m and 4m in 0.5m intervals, between 4m and 8m in 1m interval
EE030	125	3	Yellow	400	Between 2m and 8m in 1m interval
EE050	150	5	Red	500	Between 2m and 8m in 1m interval

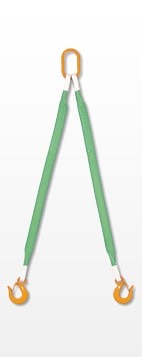

SCL3 Series Slings with Fittings

By using together with Master Links, slings can be used for a variety of applications such as by looping several belts onto a single lifting hook.

Specifications

* For more information, please refer to Product Catalog.
