KITO TD Rail Electrical Supply Rail
KITO TD Rail Electrical Supply Rail – Easily Installable and Removable Electrical Supply Rail.
- Lightweight, tough TD rail
- Secure, simple rail joint
- Accessories swiftly fitted and removed
- Installers: simplicity and flexibility
Standard Specification
| Material | Self-extinguishing vinyl chloride resin (PVC) |
|---|---|
| Voltage | 750V |
| Rated Current | 4P,5P-60A, 4P-100A |
| Protection Grade | IP23 |
| Applicable Standards | JIS C8373, EN60439-2, EN60204-32 |
| Ambient Temperature | -20 to 55℃ |
| Ambient Humidity | 90% RH or Less |
Easy-to-USE, Simple KITO TD Rail

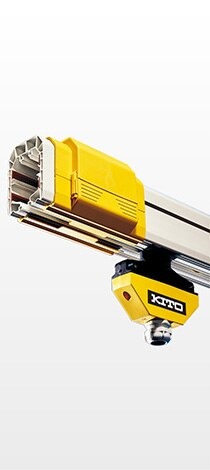

Lightweight, Tough TD Rail
The cell-shaped cross-sectional casing structure of the KITO TD rail helps secure high rigidity, while the lightweight, touch design allows up to a 5-pole conductor to pass through.
Secure, Simple Rail Joint
Our original special-purpose connection bolt is used on the KITO TD rail joints, allowing easy installation of the rail via firm tightening, even if no torque wrench is used. With a 2-step-structure head, this special-purpose connection bolt separates the 1st-step bolt head when a specified torque is attained, securely connecting the TD rail.

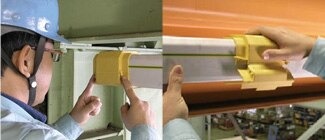

Accessories Swiftly Fitted and Removed
To facilitate fitting and maintenance, the main accessories have been designed for simpler, swifter, tool-free installation. The feeding box and covering flange are clipped on manually, but cannot be removed without the use of a tool, in accordance with regulations.
Innovation is our aesthetic
TD rail offers ergonomics without forgoing aesthetics. Elegant lines, harmonious colors, and coordinated elements result in a dynamic and smart end product, all combining to make this rail an aesthetically successful innovation.

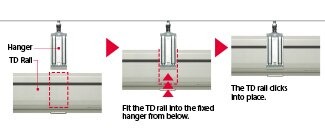

Installers: Simplicity and Flexibility.
Thanks to its limited number of parts, the systematic use of easily removed connections, and rapidly fitted accessories (without tools), TD rail offers installers a system which is simple and quick to set up, whatever the location.

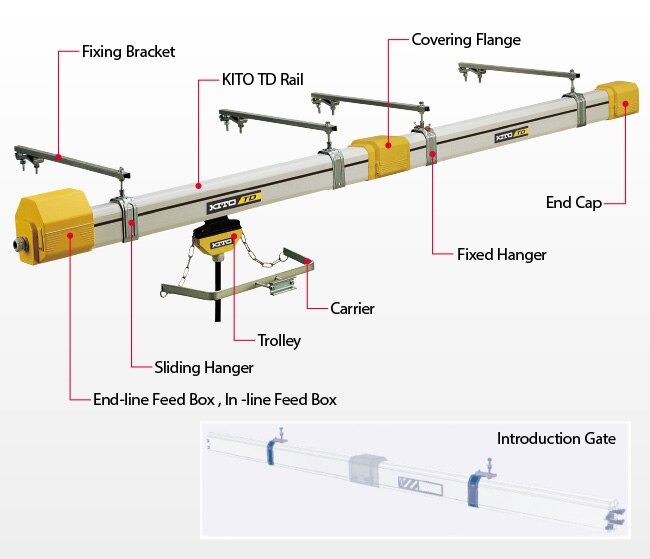

Specifications & Dimensions

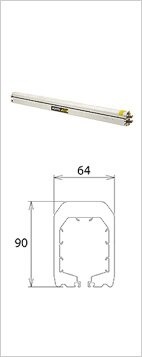

TD Rail
- Self-extinguishing vinyl chloride resin (PVC)
- 4P,5P-60A, 4P-100A
- Rated voltage: 750V
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Standard Length (m) | Poles-Rating | Mass (kg/m) |
|---|---|---|---|
| ME4604KTB | 4 | 4P-60A | 1.8 |
| ME4603KTB | 3 | ||
| ME4602KTB | 2 | ||
| ME4601KTB | 1 |

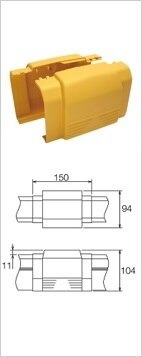

Covering Flange
- Self-extinguishing plastic
- Used to cover the joint of the TD rail.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Type | Mass (kg) |
|---|---|---|
| ME2000 | Common | 0.2 |

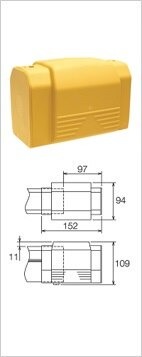

End Cap
- Self-extinguishing plastic
- Mounted to the end of the TD rail.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Type | Mass (kg) |
|---|---|---|
| ME2400 | Common | 0.3 |

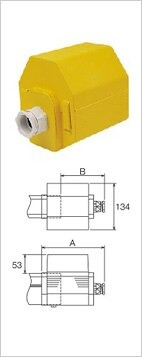

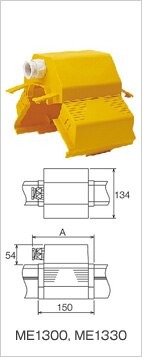

End-Line Feed Box
- Self-extinguishing plastic
- Used for supplying the electricity to the TD rail from the end.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Cable Connector | Applicable Cable 0.D (mm) | Mass (kg) | Dimensions (mm) | |
|---|---|---|---|---|---|
| A | B | ||||
| ME1200B | M25 | 13～19 | 0.4 | 181 | 126 |
| ME1230B | M32 | 15～25 | 183 | 128 | |
| ME1250B | M40 | 21～32 | 186 | 132 | |
In-Line Feed Box
- Self-extinguishing plastic
- Used for supplying the electricity to halfway the TD rail from the line.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Cable Connector | Applicable Cable O.D (mm) | Poles | Mass (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| A | |||||
| ME1300B | M25 | 13～19 | - | 0.3 | 169 |
| ME1330B | M32 | 15～25 | 170 | ||
| ME1332B | M40 | 21～32 | 4P | 1.5 | - |
| ME1329B | 5P |

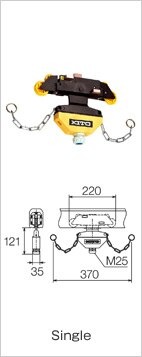

Trolley
- Travels within the TD rail, and provided with a current-collecting brush for receiving the electricity.
- The traveling speed should be 100 m/min. or less.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Cable Connector | Type | Poles-Rating | Mass (kg) |
|---|---|---|---|---|
| ME3043KTB | M25 | Single | 4P-35A | 0.6 |
| ME4042KTB | Double | 4P-35A × 2 | 1.1 | |
| ME5040KTB | Triple | 4P-35A × 3 | 1.6 | |
| ME3051KTB | Single | 5P-35A | 0.6 | |
| ME4050KTB | Double | 5P-35A × 2 | 1.1 | |
| ME5050KTB | Triple | 5P-35A × 3 | 1.6 |
Cleaning Trolley
- Used for cleaning the conductor within the TD rail.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Poles | Mass (kg) |
|---|---|---|
| ME4514 | 4P | 0.4 |
| ME4525 | 5P |

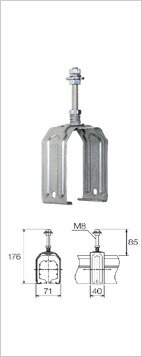

Sliding Hanger
- Used for fixing the TD rail.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Type | Mass (kg) |
|---|---|---|
| ME1510 | Common | 0.1 |

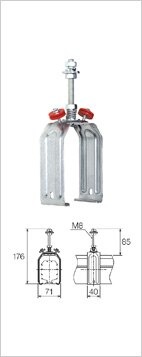

Fixed Hanger
- Used for fixing the TD rail.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Type | Mass (kg) |
|---|---|---|
| ME1500 | Common | 0.1 |

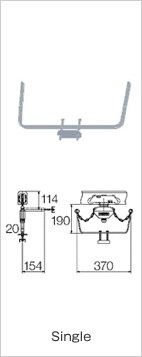

Carrier
- Used for coupling the trolley and a mobile object (crane or/and hoist).
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Type | Mass (kg) |
|---|---|---|
| ME1600 | Single | 0.6 |
| ME1610 | Double | 1.1 |
| ME1630 | Triple | 2.6 |

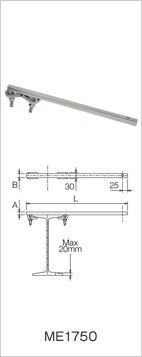

Fixing Bracket
- Used for fixing the hanger onto shaped steel, and so on.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Length (L) (m) | A x B （mm） | Mass (kg) |
|---|---|---|---|
| ME1700 | 380 | 15 x 20 | 0.5 |
| ME1750 | 500 | 0.6 | |
| ME1760 | 600 | 30 x 30 | 1.0 |
| ME1780 | 850 | 1.2 |

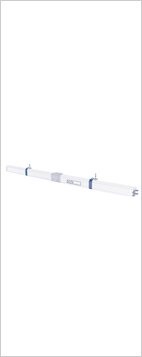

Introduction Gate
- Self-extinguishing vinyl chloride resin (PVC)
- 4P・5P-60A 4P-100A
- Used for mounting/dismounting the trolley halfway the line.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Length (m) | Poles - Rating | Mass (kg) |
|---|---|---|---|
| ME4706KTB | 2 | 4P-60A | 4.2 |
| ME4756KTB | 5P-60A | 4.4 | |
| ME4710KTB | 4P-100A | 4.6 |
Options

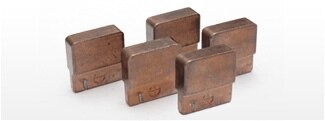

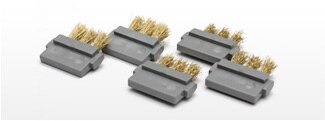

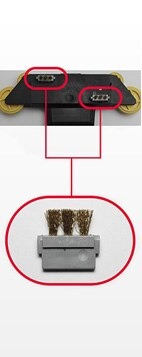

Current-Collecting Brush
- Special-purpose current-collecting brush for the trolley
- The current-collecting brush may be partly worn out.
- Replace the current-collecting brush before it reaches the wear limit.
Cleaning Brush
- Special cleaning brush for the cleaning trolley
- The cleaning brush may be partly deformed or worn out.
- Replace the cleaning brush when it is deformed or worn out.

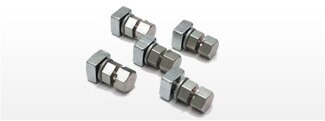

Connection Bolts
- Special connection bolts used for the TD rail
- When the pre-existing connection bolts are removed while inspecting the TD rail or trolley, ensure they are replaced with new ones.
